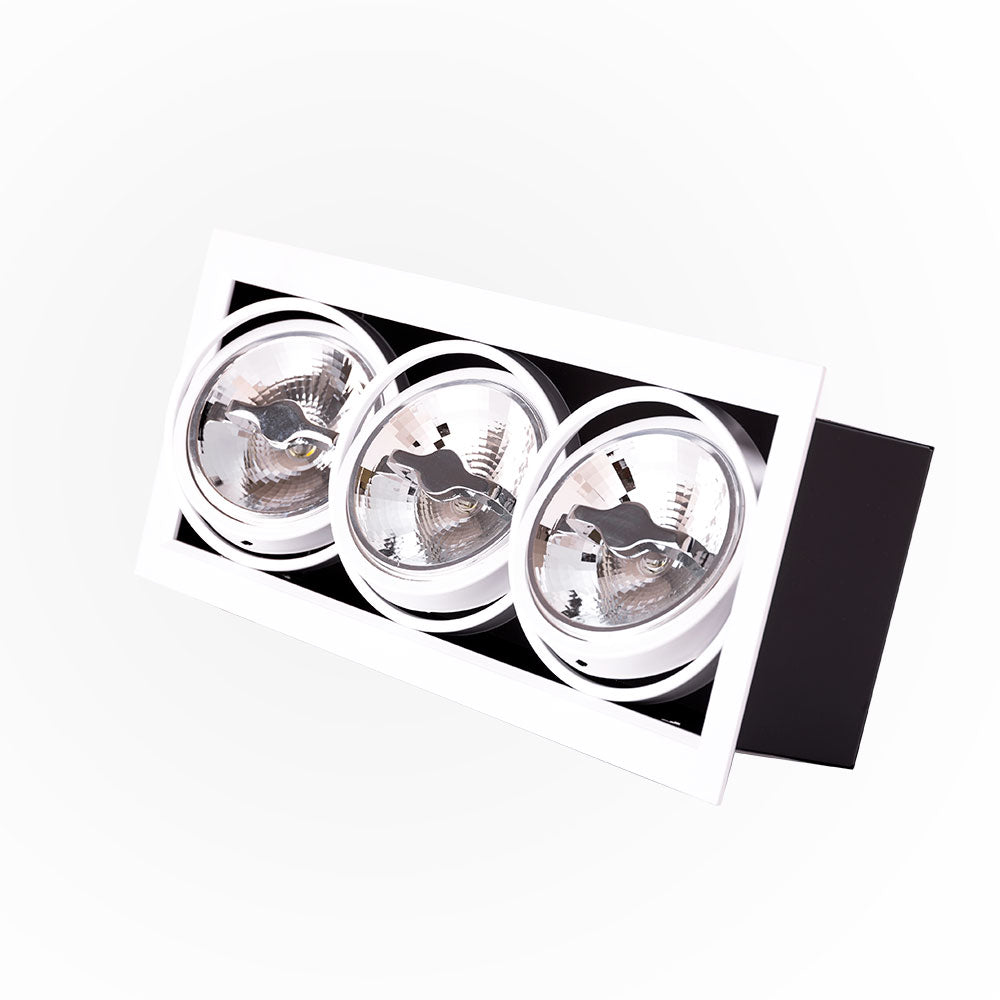

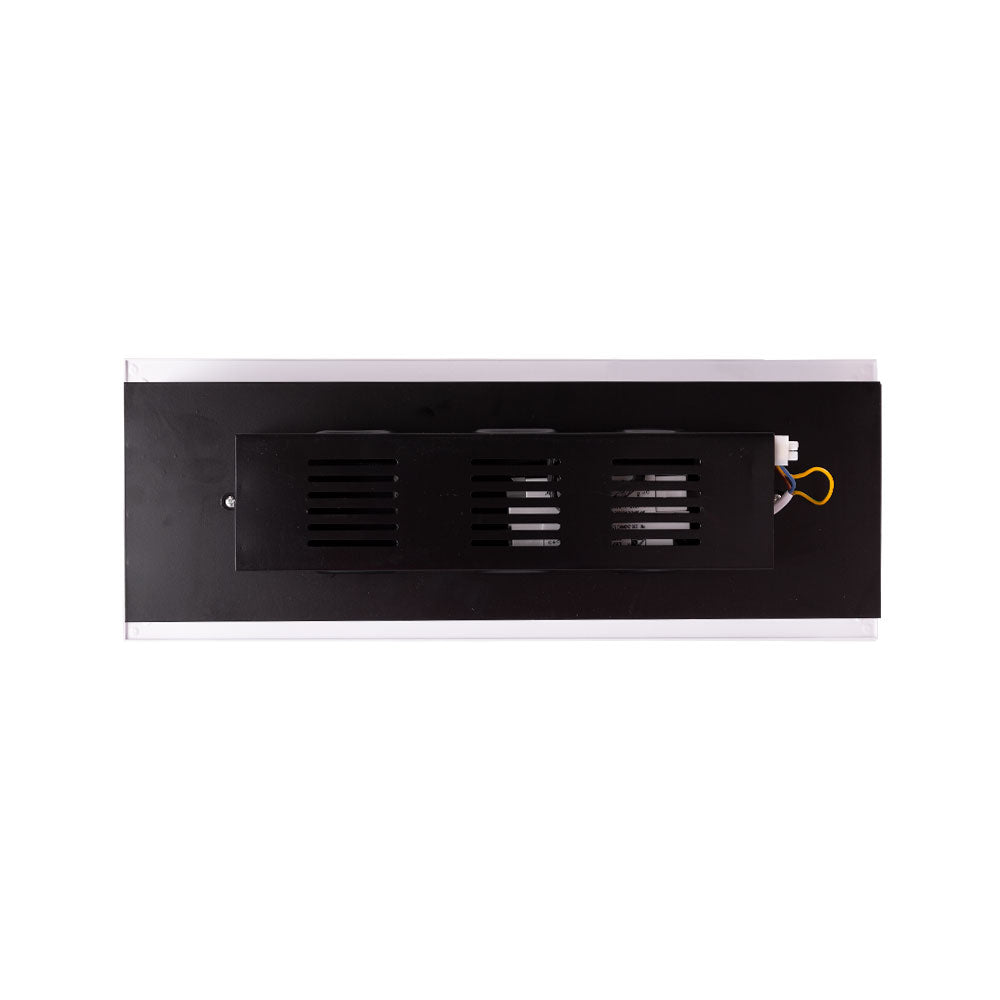

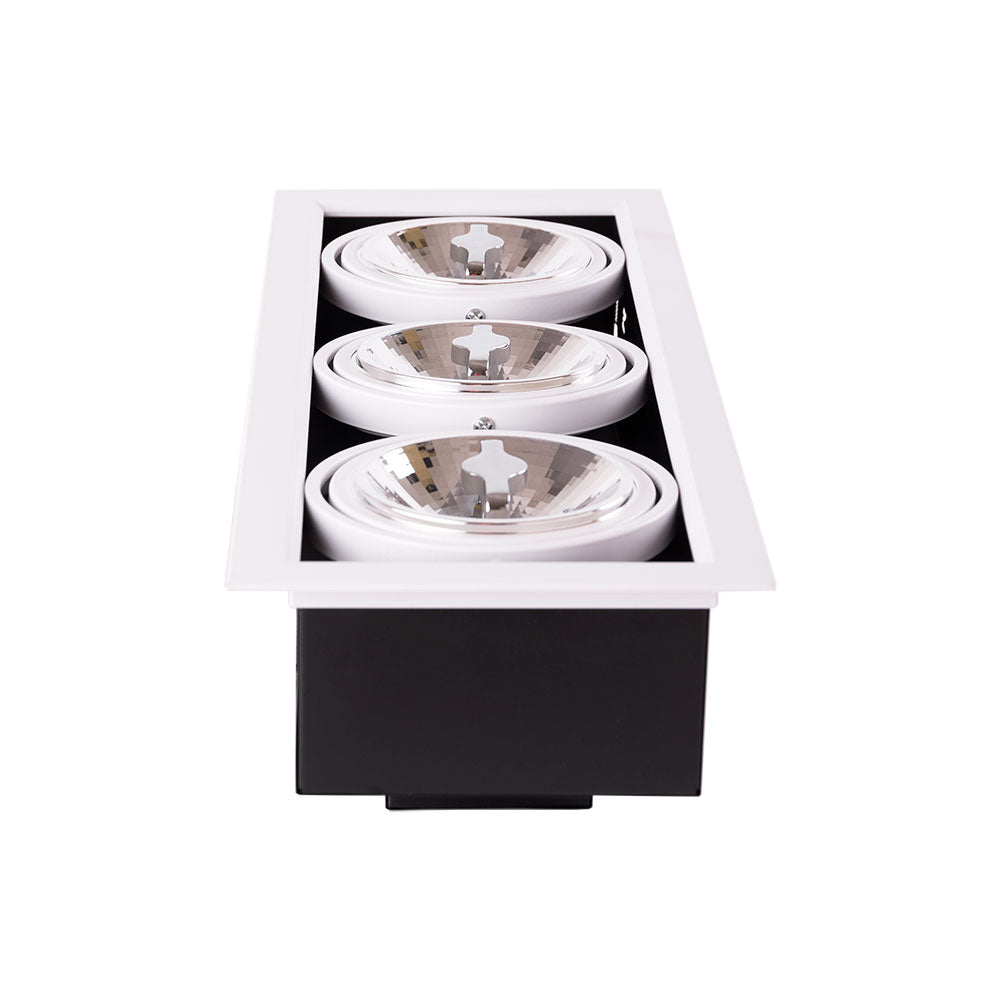

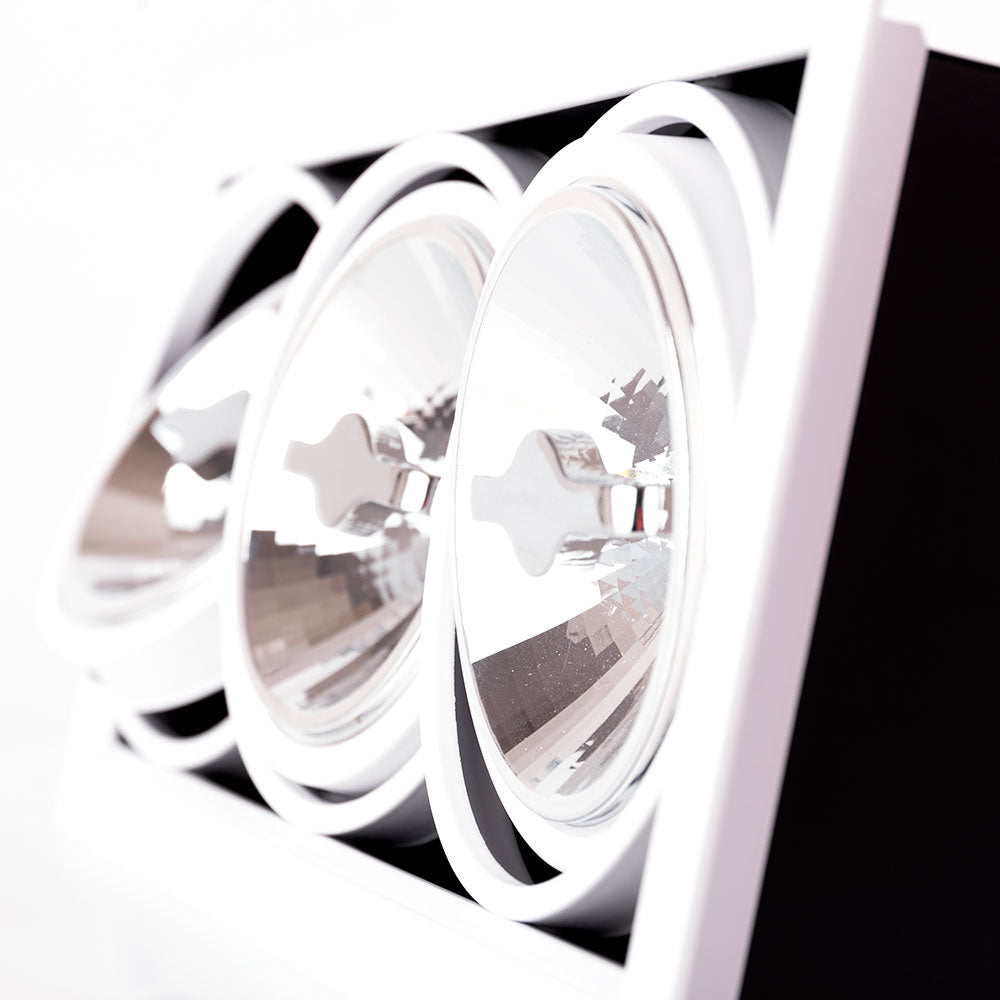

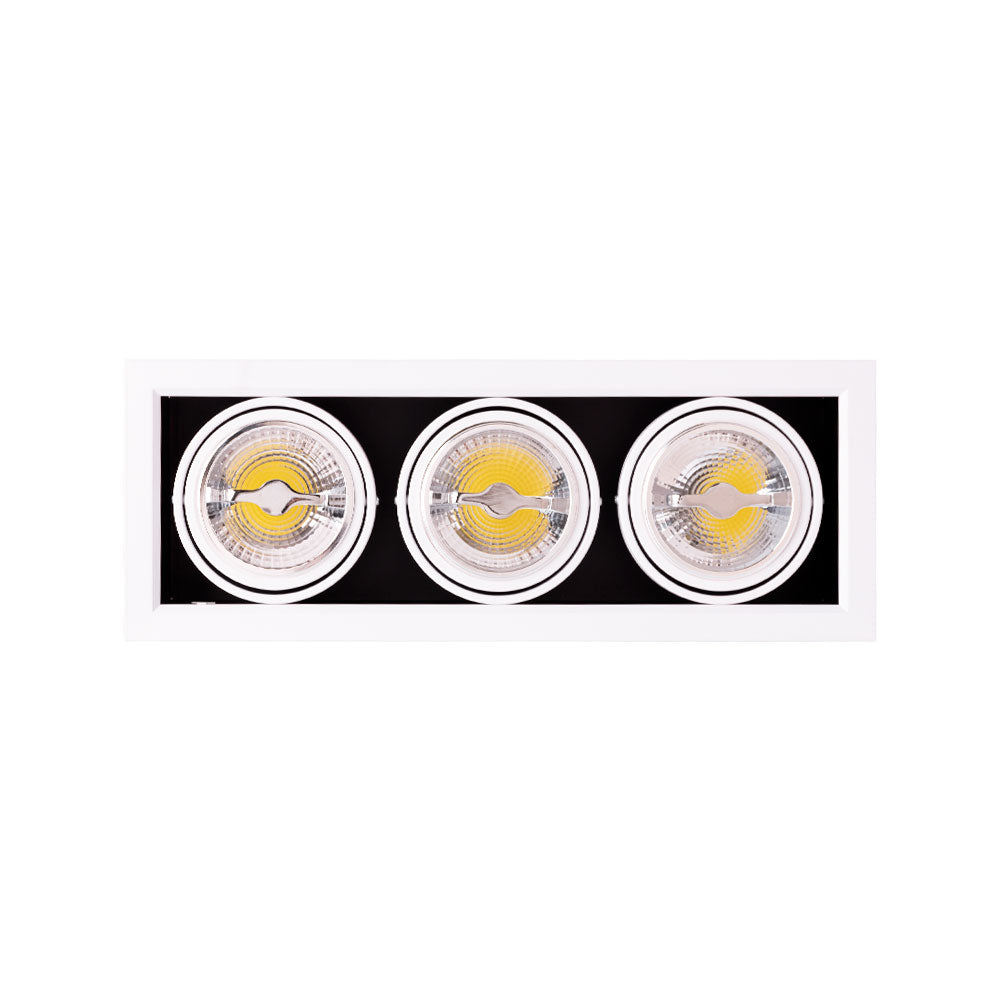

Cardan LED Downlight Spotlight 36W 3,600Lm 6000ºK CREE RA►90 40,000H [JW-CAR-LED-3x12W-CW]

Cardan LED Downlight Spotlight 36W 3,600Lm 6000ºK CREE RA►90 40,000H [JW-CAR-LED-3x12W-CW]

See questions and answers

  • Brand:Kimera + Cree Led
  • SKU:JW-CAR-LED-3x12W-CW
Eprel file
Reference Stock Price Discount Amount
6000K: Cool White
SKU: JW-CAR-LED-3x12W-CW
Free delivery in 48 h ... if you ask before
There are few
£53.00
£53.00
4200K: Daylight
SKU: JW-CAR-LED-3x12W-W
Free delivery in 48 h ... if you ask before
Stock available
£28.00
£28.00
2700K: Warm White
SKU: JW-CAR-LED-3x12W-WW
Free delivery in 48 h ... if you ask before
There are few
£29.00
£29.00
For additional amounts the delivery period is 60 days As of the order date

Warranty

  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 24 º Opening
  • Certificado ENEC

Accessories

Technical file

Product code
JW-CAR-LED-3x12W-CW
Light temperature
Cold White
Power (W)
36.0
Luminosity (LM)
3600
Luminous efficacy (LM/W)
100
Type of LEDs
Cree Led
Number of LEDs
3
LED efficacy
110
Opening Angle (º)
24
CRI
90
Power factor (PF)
0.98
Construction
Aluminum/ PC
Facility
IP20
Strain
85-265VAC
Long
585.0
Measures (mm)
585x185x105
Broad
185.0
High
105.0
Isolation class
II
Estimated life (H)
40000
Dimable
No
Equivalence (W)
190
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Transparent
Kelvin º
6000
Energy consumption (kWh/1000h)
36.0
Weight (gr)
2000
Flicker
0.77
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
22
Minimum cri range
85
Maximum cri range
10
Chromaticity x
0.304
Chromaticity and
0.312
Roof cut (mm)
460x155
Diameter
225
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
JW-CAR-LED-3x12W-CW
Light temperature
Cold White
Power (W)
36.0
Luminosity (LM)
3600
Luminous efficacy (LM/W)
100
Type of LEDs
Cree Led
Number of LEDs
3
LED efficacy
110
Opening Angle (º)
24
CRI
90
Power factor (PF)
0.98
Construction
Aluminum/ PC
Facility
IP20
Strain
85-265VAC
Long
585.0
Measures (mm)
585x185x105
Broad
185.0
High
105.0
Isolation class
II
Estimated life (H)
40000
Dimable
No
Equivalence (W)
190
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Transparent
Kelvin º
6000
Energy consumption (kWh/1000h)
36.0
Weight (gr)
2000
Flicker
0.77
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
22
Minimum cri range
85
Maximum cri range
10
Chromaticity x
0.304
Chromaticity and
0.312
Roof cut (mm)
460x155
Diameter
225
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

This 36W Cree COB Addressable LED Spotlight AR111 lifud driver integrates a light source with COB technology that has a luminosity of 3600 lm. It provides, at an angle of 24º, a high-quality light that ensures a very natural reproduction of colors.

This type of light perfectly complements the general lighting of any space. They are flush mounted in a hole with the cutout dimensions indicated. The driver comes pre-wired making installation of this spotlight a simple task. The focus can rotate up to 350º on its axis.

Documents

Installation_manual
Technical_drawings
