Technical file
Product code
GR-CONDIG12MD
Construction
ABS
Facility
IP20
Strain
12VDC
Work frequency (Hz)
50/ 60
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20 +60
Weight (gr)
140
Additional information
Detailed instructions in the "documents" tab
RM Pro remote control code
F-GR-CONDIG12M

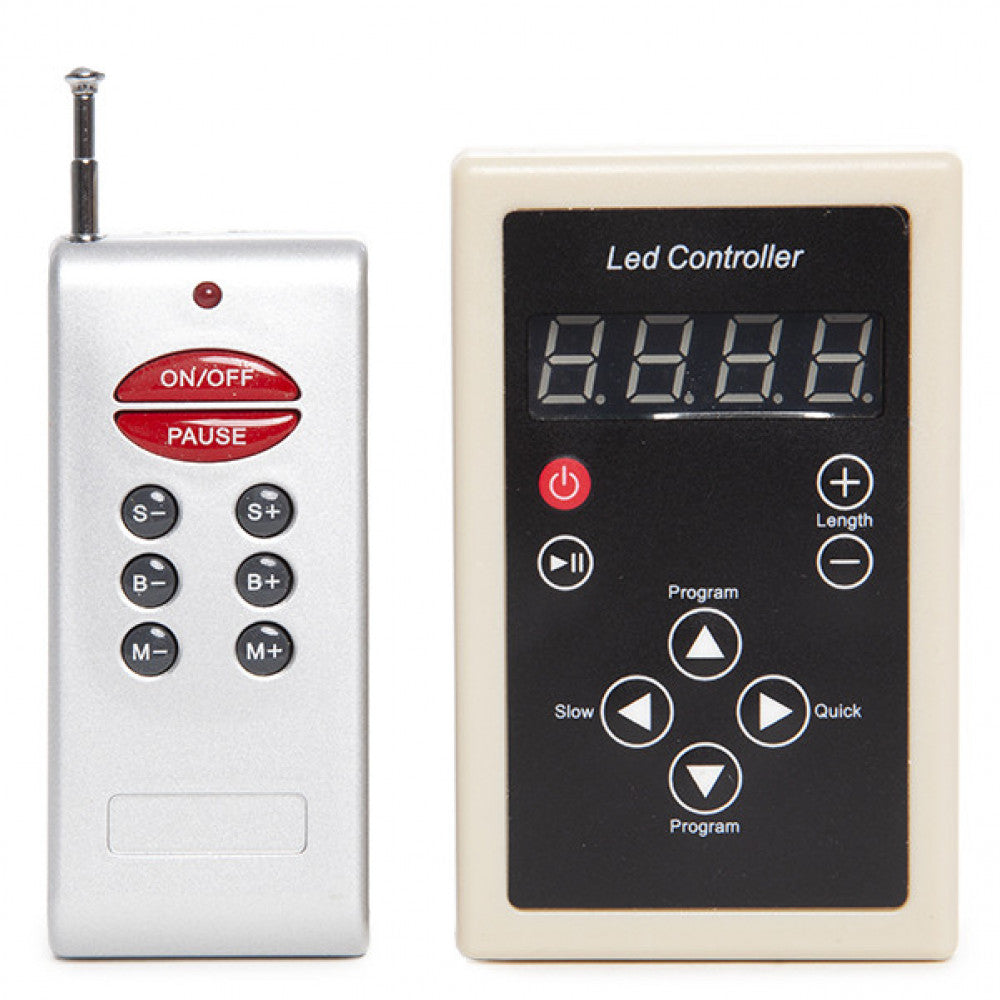

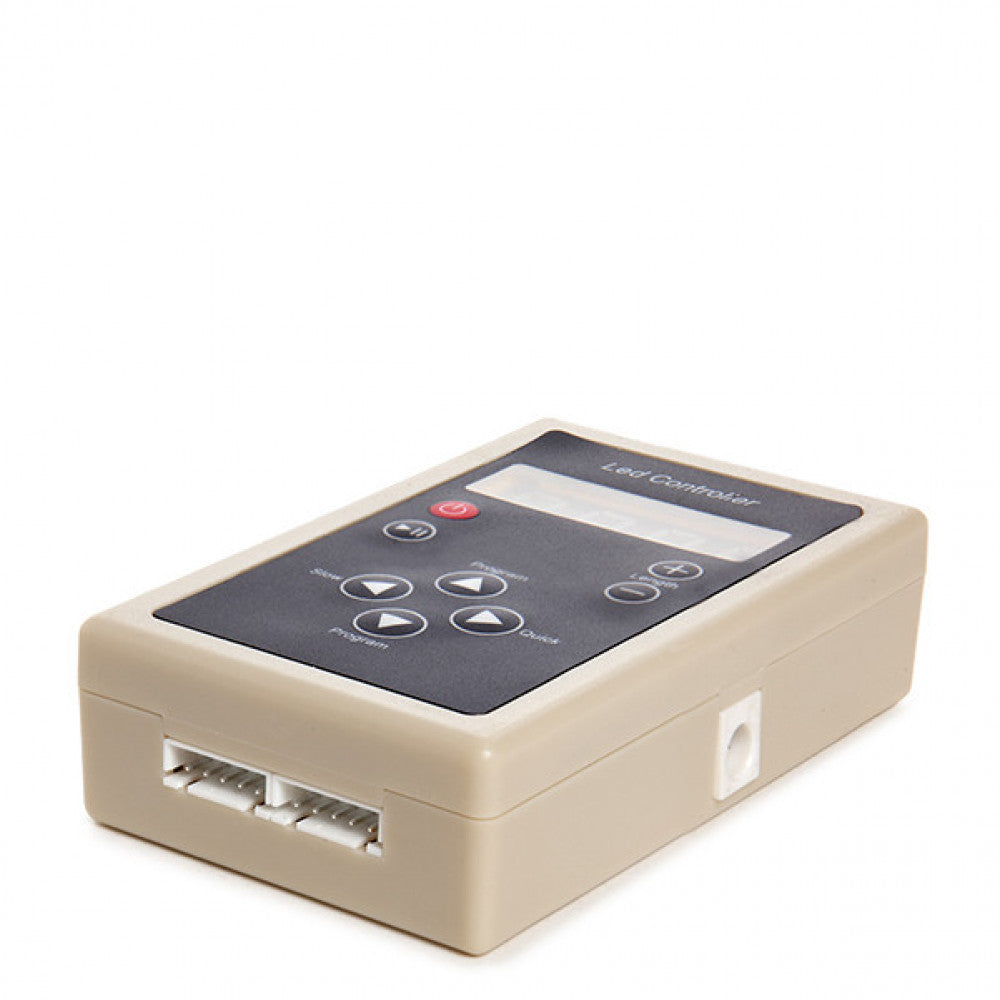

Description
The Controller for 12VDC Digital Strip allows the graduation and programming of the color range of the LED through a digital wireless technology. The RF remote control can control both the speed and the intensity of the lighting mode. color and change with dim light turning on/off in long control distance which enjoys high sensitivity and strong pulling ability to steady and reliable performance.
The controller allows, through a numerical IC protocol, the programming of the exact sequence of the color range for the digital strip. This controller can be specifically paired with adjustable digital LED strips, for total control of the strip.< /p>
Among the technical characteristics of the RGB controller, the following stand out:
Capacitance and digital wireless touch technology, without mechanical wear, thus overcoming the problems of shelf life caused by button s physical.
Automatic adaptation of 12VDC operating voltage and with input polarity protection function.
New flicker-free PWM control technology.
RF remote control distance greater than 50 meters.
Multi-level, multi-color, flexible control effects, multi-mode, with power input polarity protection.
Memory type functions multicolor, modes, speeds and brightness.
Sequential programming using IC numerical protocol.
132 dynamic modes, 20 static colors, 10 levels of intensity control and 10 levels of speed control sequential.
The Controller for 12VDC Digital Strip allows the graduation and programming of the color range of the LED through a digital wireless technology. The RF remote control can control both the speed and the intensity of the lighting mode. color and change with dim light turning on/off in long control distance which enjoys high sensitivity and strong pulling ability to steady and reliable performance.
The controller allows, through a numerical IC protocol, the programming of the exact sequence of the color range for the digital strip. This controller can be specifically paired with adjustable digital LED strips, for total control of the strip.< /p>
Among the technical characteristics of the RGB controller, the following stand out:
Capacitance and digital wireless touch technology, without mechanical wear, thus overcoming the problems of shelf life caused by button s physical.
Automatic adaptation of 12VDC operating voltage and with input polarity protection function.
New flicker-free PWM control technology.
RF remote control distance greater than 50 meters.
Multi-level, multi-color, flexible control effects, multi-mode, with power input polarity protection.
Memory type functions multicolor, modes, speeds and brightness.
Sequential programming using IC numerical protocol.
132 dynamic modes, 20 static colors, 10 levels of intensity control and 10 levels of speed control sequential.
