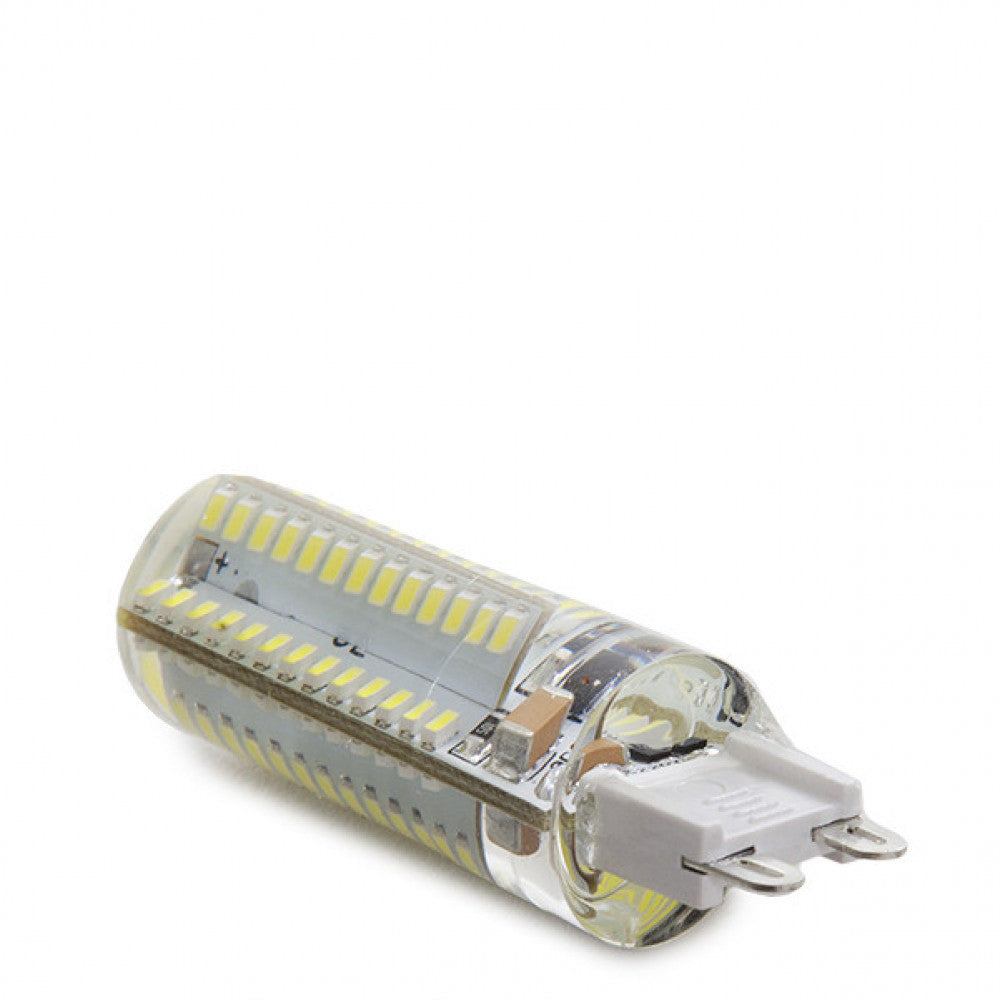

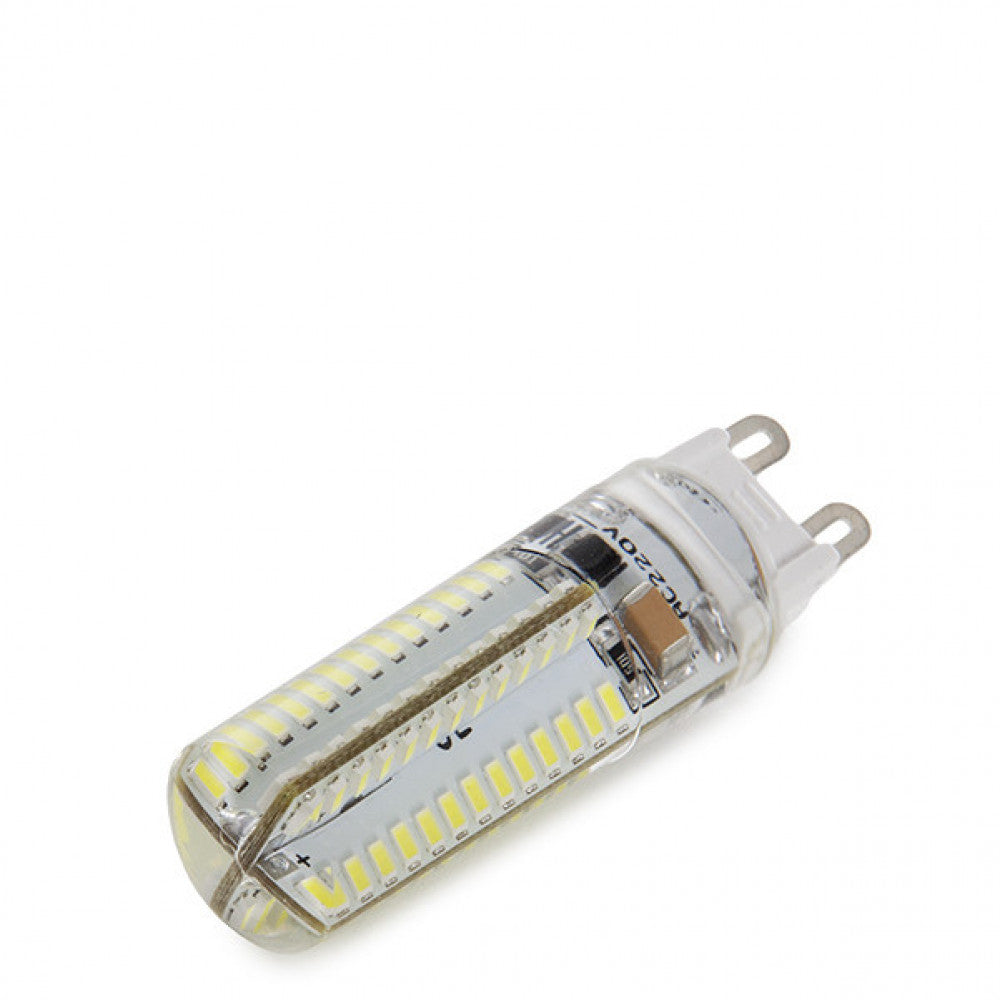

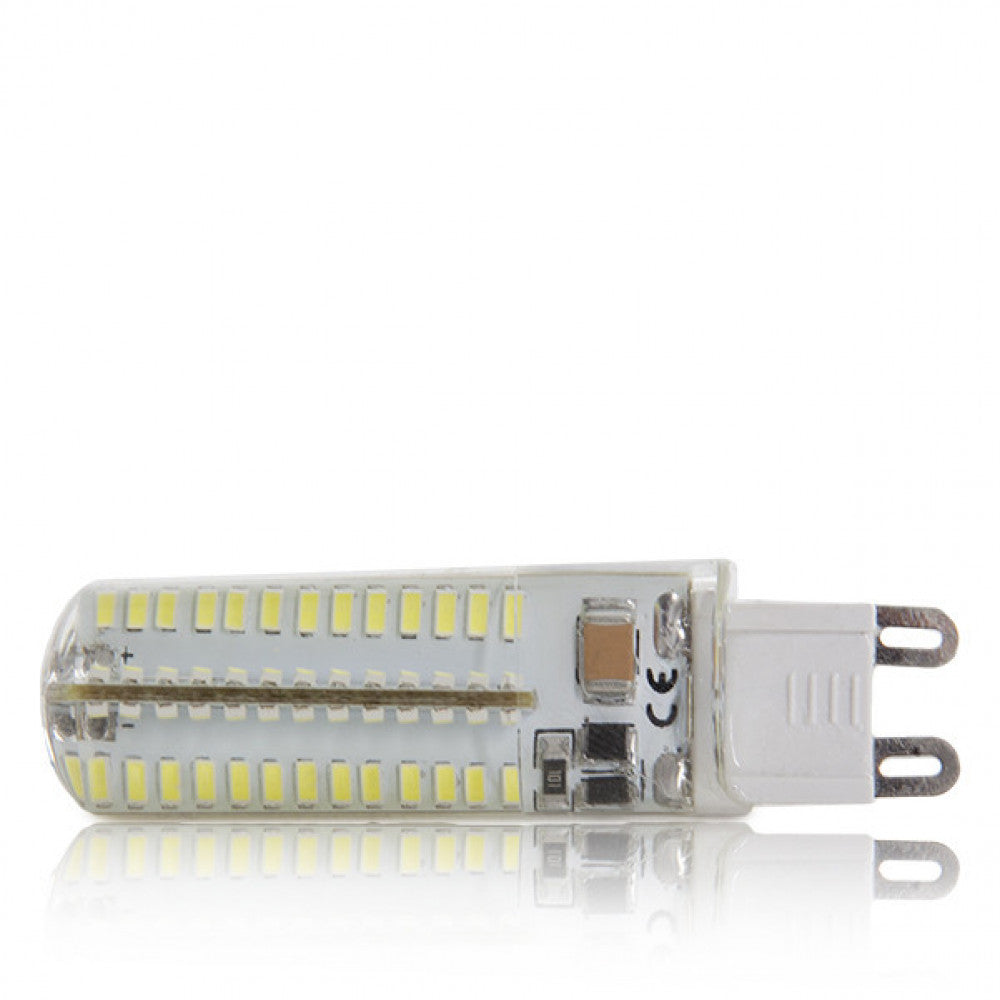

G9 LED Bulb 5W 320Lm 6000ºK 40,000H [KD-G9-5W-104-3014-CW]

G9 LED Bulb 5W 320Lm 6000ºK 40,000H [KD-G9-5W-104-3014-CW]

See questions and answers

  • Brand:GreenIce
  • SKU:KD-G9-5W-104-3014-CW
Eprel file
Reference Stock Price Discount Amount
6000K: Cool White
SKU: KD-G9-5W-104-3014-CW
Delivery in 48 h ... if you ask before
Stock available
£2.00
£2.00
2700K: Warm White
SKU: KD-G9-5W-104-3014-WW
Delivery in 48 h ... if you ask before
Stock available
£2.00
£2.00
For additional amounts the delivery period is 25 days As of the order date

Warranty

  • Warranty 3 years
  • 360 º Opening

Accessories

Technical file

Product code
KD-G9-5W-104-3014-CW
Light temperature
Cold White
Power (W)
5.0
Luminosity (LM)
320
Luminous efficacy (LM/W)
64
Type of LEDs
SMD3014
LED efficacy
70
Opening Angle (º)
360
CRI
80
Power factor (PF)
0.8
Construction
Epoxy
Facility
IP20
Strain
85-265VAC
Measures (mm)
Ø16x60
High
60.0
Estimated life (H)
40000
Dimable
No
Equivalence (W)
45
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
G9
Temperature range (ºC)
-20 +40
Lighting cycles
80000
Diffuser
Transparent
Kelvin º
6000
Energy consumption (kWh/1000h)
5.0
Weight (gr)
18
Flicker
0.88
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
28
Minimum cri range
90
Maximum cri range
2
Chromaticity x
0.318
Chromaticity and
0.328
Diameter
16
Número unidades caja exterior
100.0
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60968:1999

Characteristics

Product code
KD-G9-5W-104-3014-CW
Light temperature
Cold White
Power (W)
5.0
Luminosity (LM)
320
Luminous efficacy (LM/W)
64
Type of LEDs
SMD3014
LED efficacy
70
Opening Angle (º)
360
CRI
80
Power factor (PF)
0.8
Construction
Epoxy
Facility
IP20
Strain
85-265VAC
Measures (mm)
Ø16x60
High
60.0
Estimated life (H)
40000
Dimable
No
Equivalence (W)
45
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
G9
Temperature range (ºC)
-20 +40
Lighting cycles
80000
Diffuser
Transparent
Kelvin º
6000
Energy consumption (kWh/1000h)
5.0
Weight (gr)
18
Flicker
0.88
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
28
Minimum cri range
90
Maximum cri range
2
Chromaticity x
0.318
Chromaticity and
0.328
Diameter
16
Número unidades caja exterior
100.0
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60968:1999

Description

The G9 Led Lamp replaces bi-pin bulbs or G9 mini bulbs with the same light intensity, achieving savings of more than 80%. It is used in very small spaces and does not give off heat.

Due to its small size, this lamp is used to illuminate small spaces such as showcases, shelves, vehicles, etc.

IMPORTANT NOTICE: Do not use in hermetically sealed fixtures.
