LED Ceiling Light 18W 1190Lm 6000ºK Circular Custom Case 40,000H [JL-JM18WR-CW-EP01]

LED Ceiling Light 18W 1190Lm 6000ºK Circular Custom Case 40,000H [JL-JM18WR-CW-EP01]

See questions and answers

  • Brand:GreenIce
  • SKU:JL-JM18WR-CW-EP01
G
Reference Stock Price Discount Amount
6000K: Cool White
SKU: JL-JM18WR-CW-EP01
Delivery in 48 h ... if you ask before
Stock available
£5.00
£5.00
4200K: Daylight
SKU: JL-JM18WR-W-EP01
Delivery in 48 h ... if you ask before
Stock available
£5.00
£5.00
2700K: Warm White
SKU: JL-JM18WR-WW-EP01
Delivery in 48 h ... if you ask before
Stock available
£5.00
£5.00
For additional amounts the delivery period is 60 days As of the order date

Documents

Warranty

  • Warranty 3 years
  • 120 º Opening

Accessories

Technical file

Product code
JL-JM18WR-CW-EP01
Light temperature
Cold White
Power (W)
18.0
Luminosity (LM)
1190
Luminous efficacy (LM/W)
66
Type of LEDs
Osram Led
LED efficacy
72
Opening Angle (º)
120
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/ PC
Facility
IP20
Strain
85-265VAC
Measures (mm)
Ø210x27
High
27.0
Isolation class
II
Estimated life (H)
40000
Dimable
No
Equivalence (W)
120
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Opal
Kelvin º
6000
Energy consumption (kWh/1000h)
18.0
Weight (gr)
460
Flicker
0.9
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
26
Minimum cri range
88
Maximum cri range
26
Chromaticity x
0.317
Chromaticity and
0.335
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Diameter
210
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Characteristics

Product code
JL-JM18WR-CW-EP01
Light temperature
Cold White
Power (W)
18.0
Luminosity (LM)
1190
Luminous efficacy (LM/W)
66
Type of LEDs
Osram Led
LED efficacy
72
Opening Angle (º)
120
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/ PC
Facility
IP20
Strain
85-265VAC
Measures (mm)
Ø210x27
High
27.0
Isolation class
II
Estimated life (H)
40000
Dimable
No
Equivalence (W)
120
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Opal
Kelvin º
6000
Energy consumption (kWh/1000h)
18.0
Weight (gr)
460
Flicker
0.9
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
26
Minimum cri range
88
Maximum cri range
26
Chromaticity x
0.317
Chromaticity and
0.335
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Diameter
210
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Description

The 225mm diameter, 40mm thick circular LED ceiling light offers solutions for offices, factories, supermarkets, shops and for residential use. It can be installed directly to sockets current supplied by the electrical network (85-265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (67 Lm/W) consuming 18W through SMD2835 type LEDs and managing to provide a luminous flux of 1190Lm uniformly distributed by an opal plastic diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 100W incandescent bulb, its consumption represents a value of 18kWh/ 1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

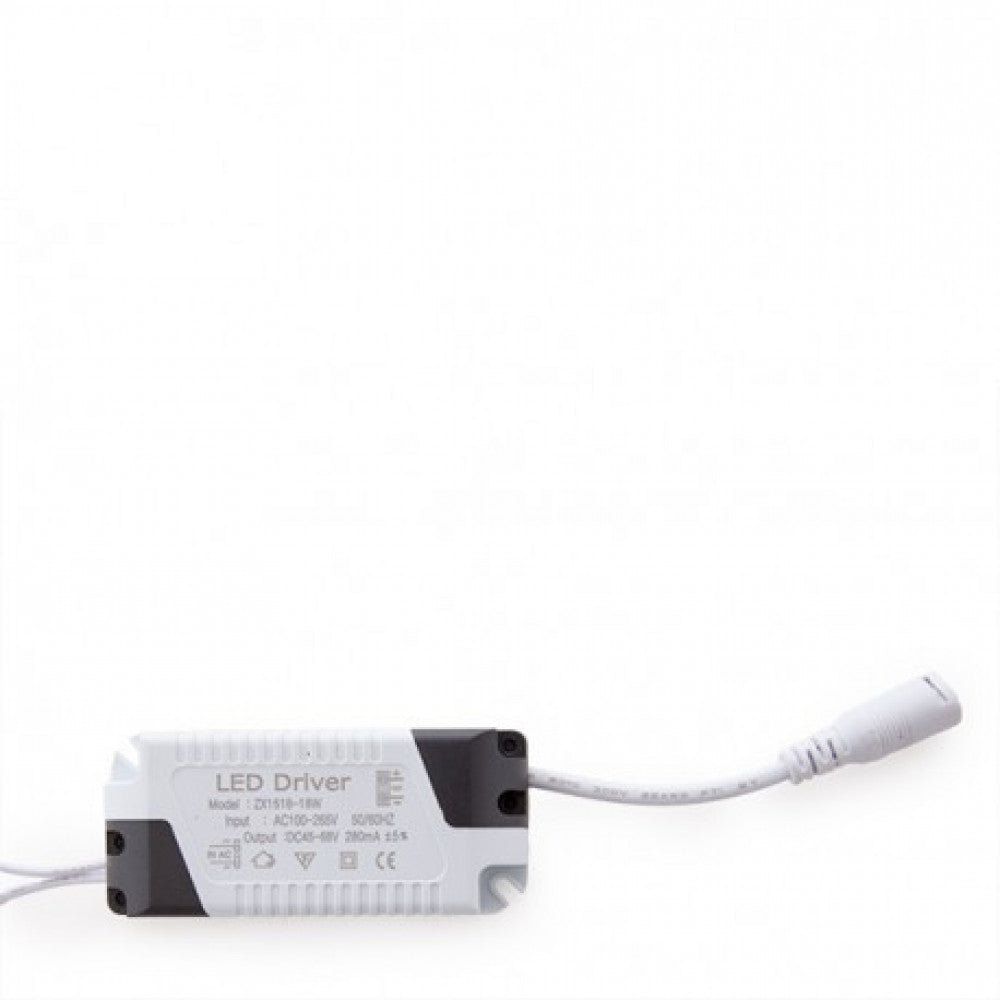

This luminaire is powered by a non-dimmable driver included in the package that must be connected directly to the network, with a connector output compatible with the connection of the plate (46-65VDC, 280mA), additionally the necessary accessories for the installation of the luminaire are included.

White finish made of aluminum.This surface ceiling light has a < strong>IP25 degree of protection (valid for dust and humidity indoors), as well as being robust enough for the required mechanical demands.

Ideal to replace traditional halogen lamps, reaching savings of up to 90% and conventional low-consumption downlights, reaching savings of up to 60%, thus achieving high energy efficiency.

Easy installation, long life of the LED luminaire, more of 30,000 hours and free of maintenance.

The perfect solution to create an elegant environment, in new construction or rehabilitation, to replace the current spotlights, for the home, offices, receptions, museums, bars, etc.

This luminaire is available in natural white (4200°K), cool white (6000°K) and warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.
