LED Ceiling Light 18W 1800Lm 6000ºK Square Satin Nickel 50,000H [GL-PL SM18SN-CW]

LED Ceiling Light 18W 1800Lm 6000ºK Square Satin Nickel 50,000H [GL-PL SM18SN-CW]

See questions and answers

  • Brand:GreenIce + Osram Led
  • SKU:GL-PL SM18SN-CW
Eprel file
Reference Stock Price Discount Amount
6000K: Cool White
SKU: GL-PL SM18SN-CW
Delivery in 48 h ... if you ask before
Stock available
£7.00
£7.00
For additional amounts the delivery period is 60 days As of the order date

Warranty

  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening

Accessories

Technical file

Product code
GL-PL SM18SN-CW
Light temperature
Cold White
Power (W)
18.0
Luminosity (LM)
1800
Luminous efficacy (LM/W)
100
Type of LEDs
Osram Led
Number of LEDs
90
LED efficacy
110
Opening Angle (º)
120
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/ PC
Facility
IP20
Strain
220-240V
Driver output
30-42 V
Long
200.0
Measures (mm)
200x200x38
Broad
38.0
High
200.0
Isolation class
II
Estimated life (H)
50000
Dimable
No
Equivalence (W)
120
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Opal
Kelvin º
6000
Energy consumption (kWh/1000h)
18.0
Weight (gr)
492
Flicker
0.51
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
26
Minimum cri range
92
Maximum cri range
1
Chromaticity x
0.323
Chromaticity and
0.353
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Número unidades caja exterior
20.0
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Characteristics

Product code
GL-PL SM18SN-CW
Light temperature
Cold White
Power (W)
18.0
Luminosity (LM)
1800
Luminous efficacy (LM/W)
100
Type of LEDs
Osram Led
Number of LEDs
90
LED efficacy
110
Opening Angle (º)
120
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/ PC
Facility
IP20
Strain
220-240V
Driver output
30-42 V
Long
200.0
Measures (mm)
200x200x38
Broad
38.0
High
200.0
Isolation class
II
Estimated life (H)
50000
Dimable
No
Equivalence (W)
120
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Opal
Kelvin º
6000
Energy consumption (kWh/1000h)
18.0
Weight (gr)
492
Flicker
0.51
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
26
Minimum cri range
92
Maximum cri range
1
Chromaticity x
0.323
Chromaticity and
0.353
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Número unidades caja exterior
20.0
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Description

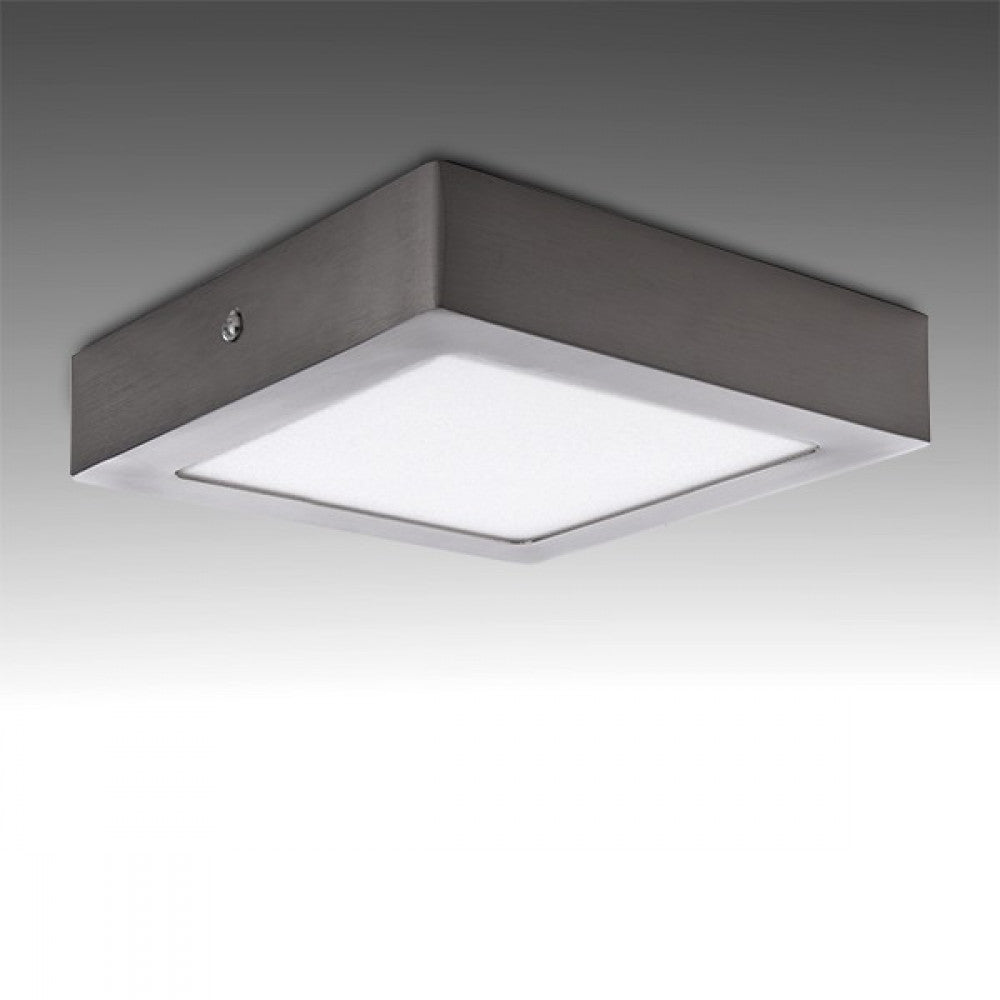

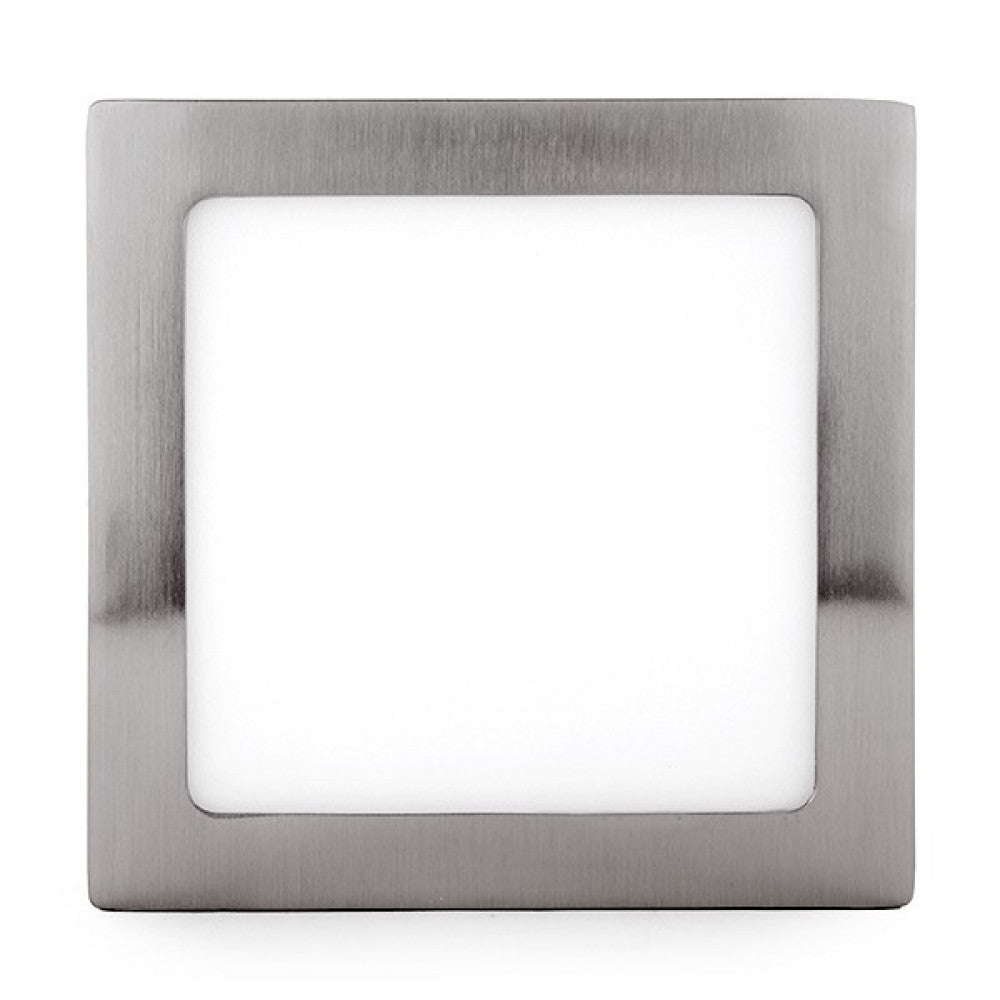

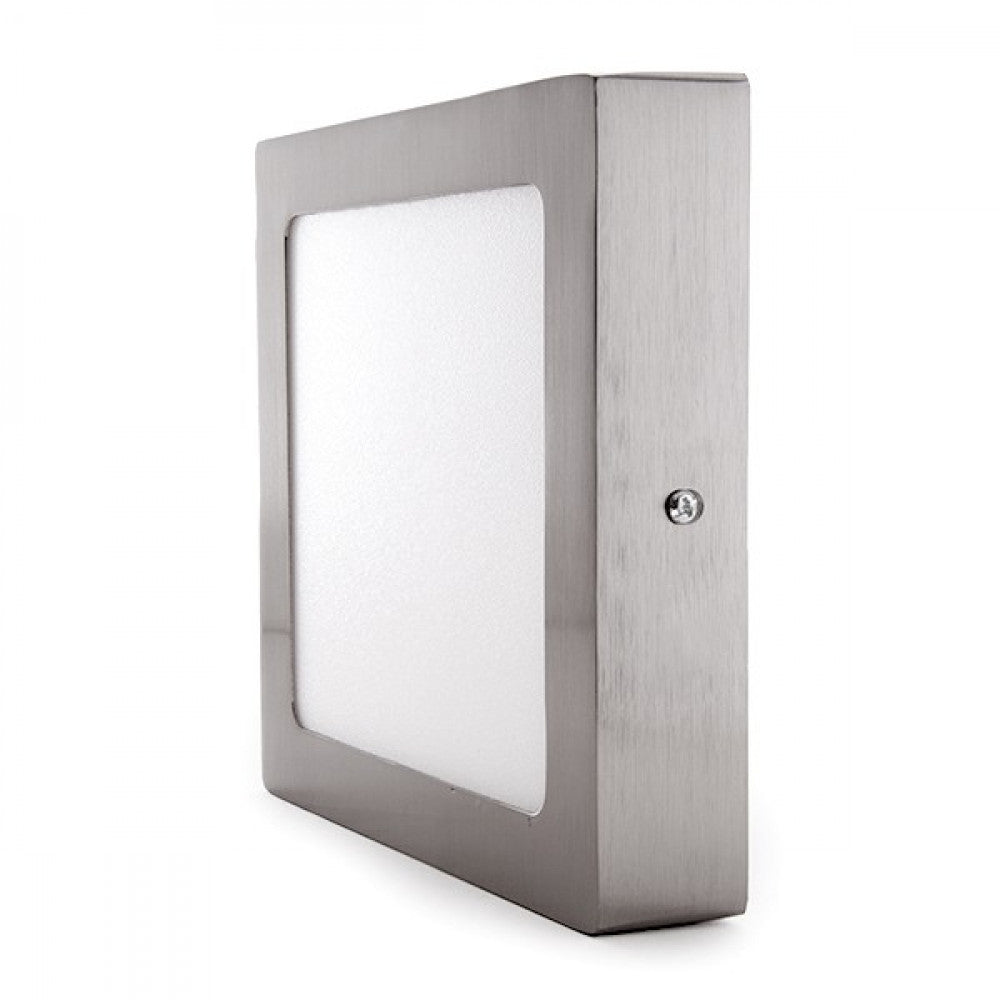

The 225x225mm square LED ceiling light, with a thickness of 38mm, offers solutions for offices, factories, supermarkets, shops and residential use. It can be installed directly to power outlets supplied by the electrical network (85- 265VAC) with a service frequency of 50/60Hz.

It has a high efficacy (72 Lm/W) consuming 18W through SMD2835 type LEDs and managing to provide a luminous flux of 1300Lm evenly distributed by a diffuser made of opalized plastic from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 100W incandescent bulb, its consumption represents a value of 18kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases to the atmosphere.

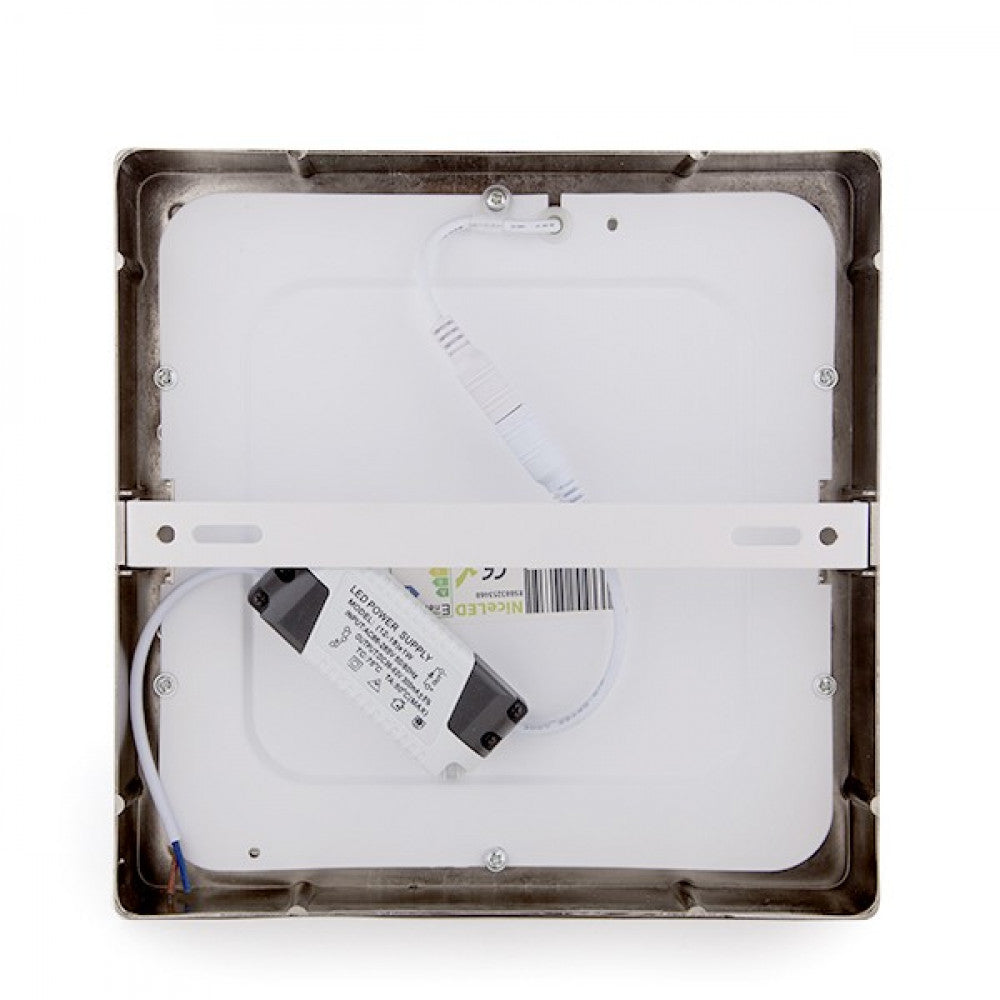

This luminaire is powered by a non-dimmable driver included in the package that must be connected directly to the network, with an output connector compatible with the plate connection (46 -65VDC, 280mA), additionally the necessary accessories for the installation of the luminaire are included. Satin nickel silver finish.This surface ceiling light has an IP25 degree of protection (valid for dust and humidity indoors), as well as being robust enough for the required mechanical demands.

Ideal to replace the traditional halogen, reaching savings of up to 90% and conventional low consumption downlights, reaching savings of up to 60% with which high energy efficiency is achieved.

Easy installation, long life of the led luminaire, more than 30,000 hours and maintenance free.

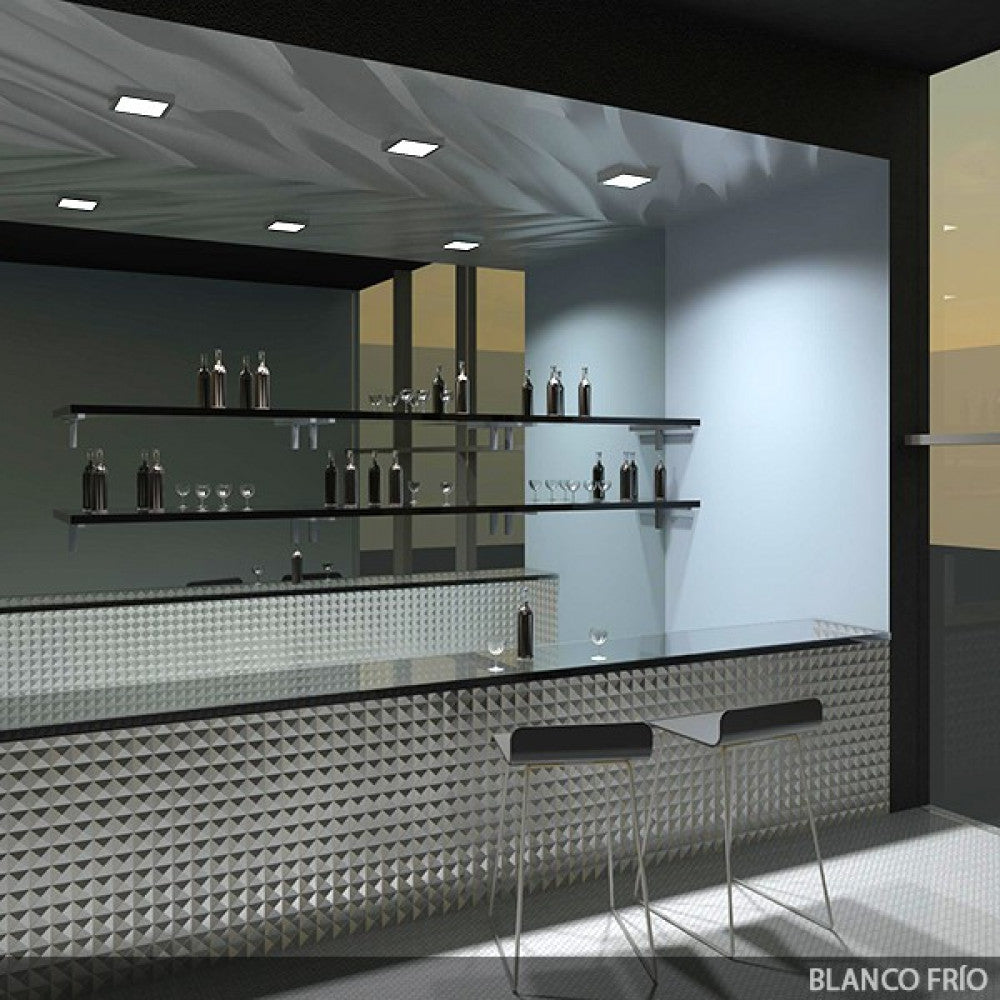

The perfect solution to create an elegant environment, in new construction or rehabilitation, to replace the current spotlights, for the home, offices, receptions, museums, bars, etc.

This luminaire is available in cool white (6000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.

Documents

Installation_manual
Technical_drawings
