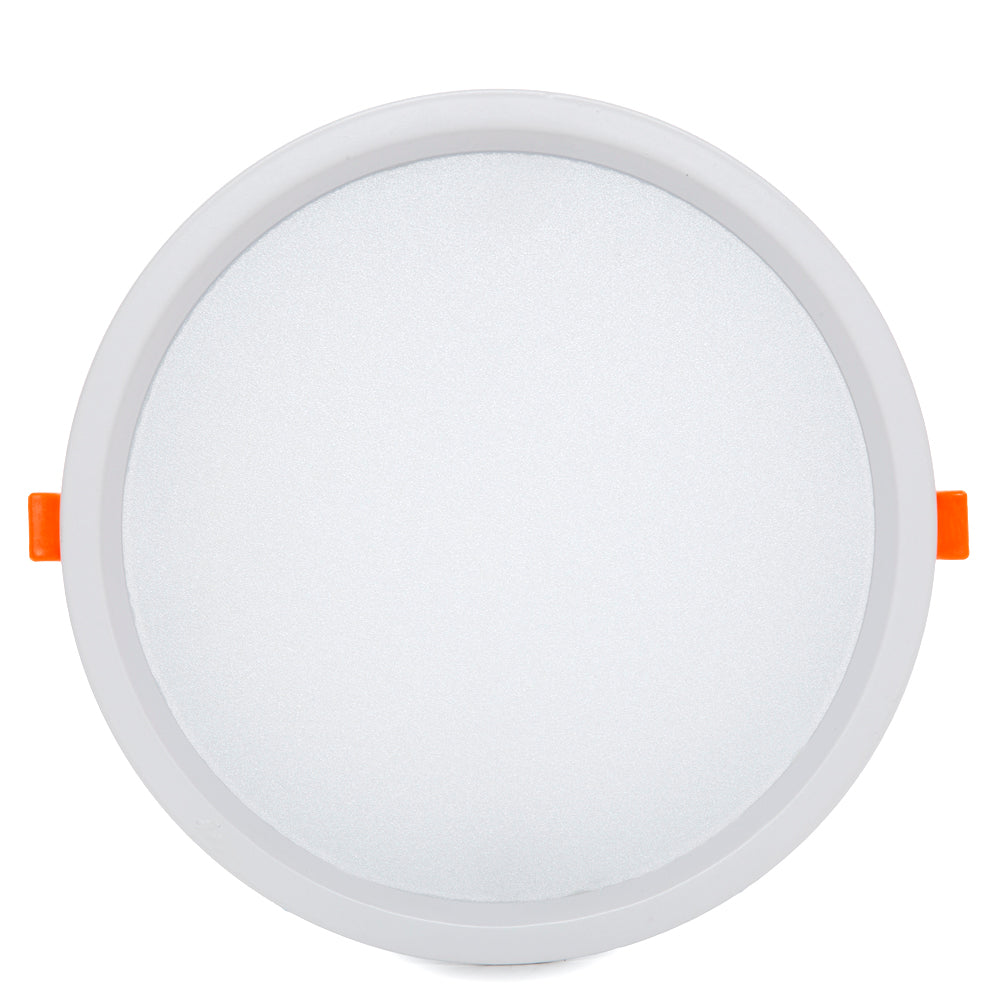

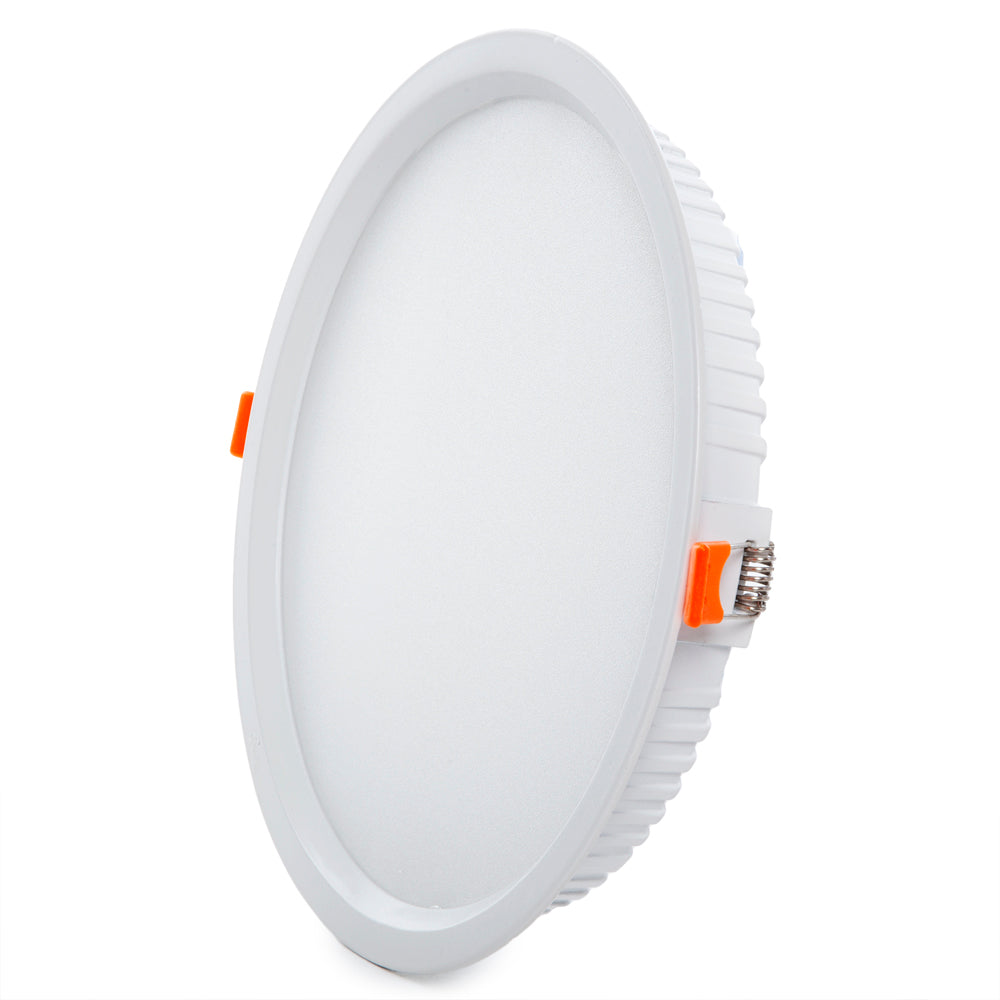

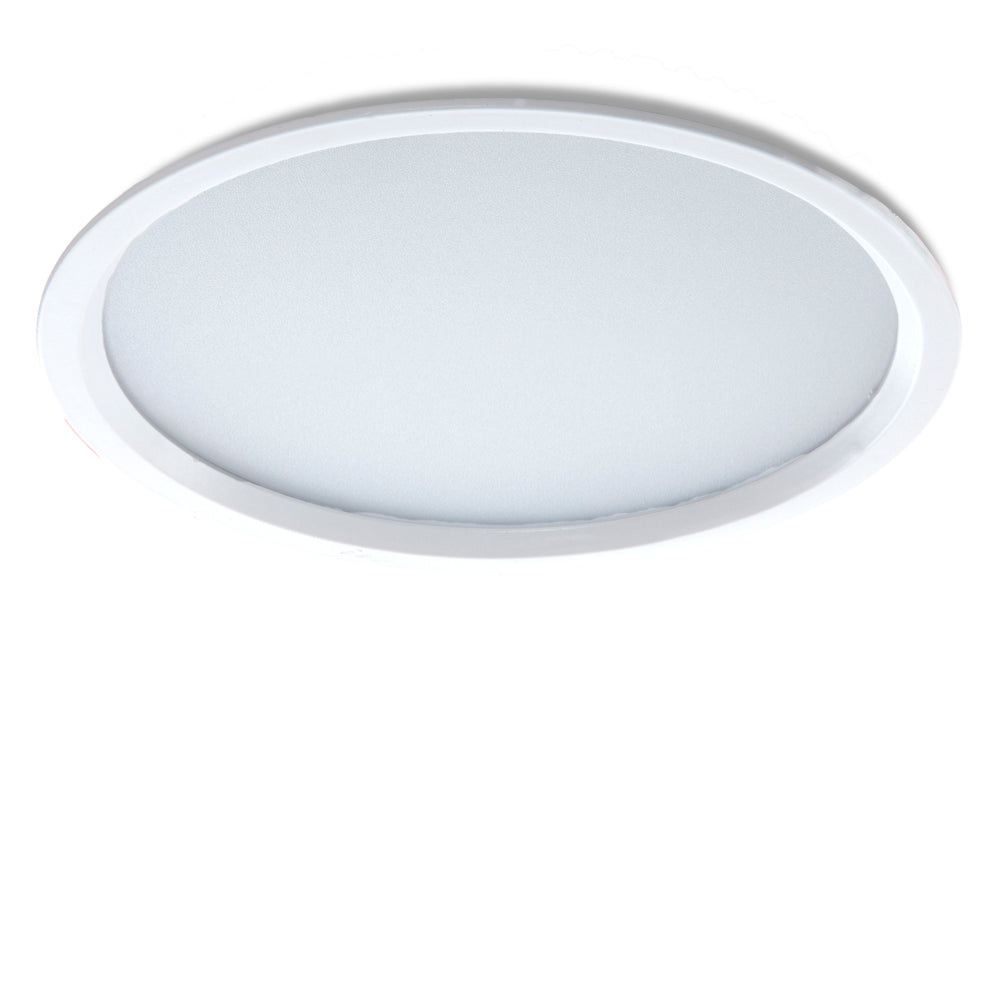

LED Downlight Spotlight 32W 2695Lm 2700ºK Circular UGR19 50,000H [JW-32W-Y-WW]

LED Downlight Spotlight 32W 2695Lm 2700ºK Circular UGR19 50,000H [JW-32W-Y-WW]

See questions and answers

  • Brand:GreenIce
  • SKU:JW-32W-Y-WW
Eprel file
Reference Stock Price Discount Amount
6000K: Cool White
SKU: JW-32W-Y-CW
Ask for it and collect it in 60 days
Exhausted
£5.00
£5.00
2700K: Warm White
SKU: JW-32W-Y-WW
Delivery in 48 h ... if you ask before
There are few
£6.00
£6.00
For additional amounts the delivery period is 60 days As of the order date

Warranty

  • Warranty 3 years
  • 120 º Opening
  • Certificado ENEC

Accessories

Technical file

Product code
JW-32W-Y-WW
Light temperature
Warm White
Power (W)
32.0
Luminosity (LM)
2694
Luminous efficacy (LM/W)
84
Type of LEDs
Epistar Led
Number of LEDs
168
LED efficacy
92
Opening Angle (º)
120
CRI
90
UGR
◄17
Power factor (PF)
0.98
Construction
Aluminum/ PC
Facility
IP20
Strain
AC 100-240 V
Measures (mm)
225x30
High
30.0
Isolation class
II
Estimated life (H)
50000
Dimable
No
Equivalence (W)
170
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Transparent
Kelvin º
2700
Energy consumption (kWh/1000h)
32.0
Weight (gr)
410
Flicker
0.5
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
2700
INDEX R9
3
Minimum cri range
98
Maximum cri range
10
Chromaticity x
0.432
Chromaticity and
0.402
Roof cut (mm)
Ø205
Diameter
225
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
JW-32W-Y-WW
Light temperature
Warm White
Power (W)
32.0
Luminosity (LM)
2694
Luminous efficacy (LM/W)
84
Type of LEDs
Epistar Led
Number of LEDs
168
LED efficacy
92
Opening Angle (º)
120
CRI
90
UGR
◄17
Power factor (PF)
0.98
Construction
Aluminum/ PC
Facility
IP20
Strain
AC 100-240 V
Measures (mm)
225x30
High
30.0
Isolation class
II
Estimated life (H)
50000
Dimable
No
Equivalence (W)
170
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Transparent
Kelvin º
2700
Energy consumption (kWh/1000h)
32.0
Weight (gr)
410
Flicker
0.5
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
2700
INDEX R9
3
Minimum cri range
98
Maximum cri range
10
Chromaticity x
0.432
Chromaticity and
0.402
Roof cut (mm)
Ø205
Diameter
225
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

32W Circular Downlight with LED technology is ideal for replacing any existing halogen Downlight model on the market.

It provides intense light with a multitude of possibilities, ideal to replace the traditional halogen ones, reaching savings of up to 90% and conventional low-consumption downlights, reaching savings of up to 60%, thus achieving high energy efficiency.

AREAS OF APPLICATION

  • Interior lighting
  • Accent spotlights
  • Shop windows and exhibition halls
  • Shops / Offices / Domestic Use

Documents
