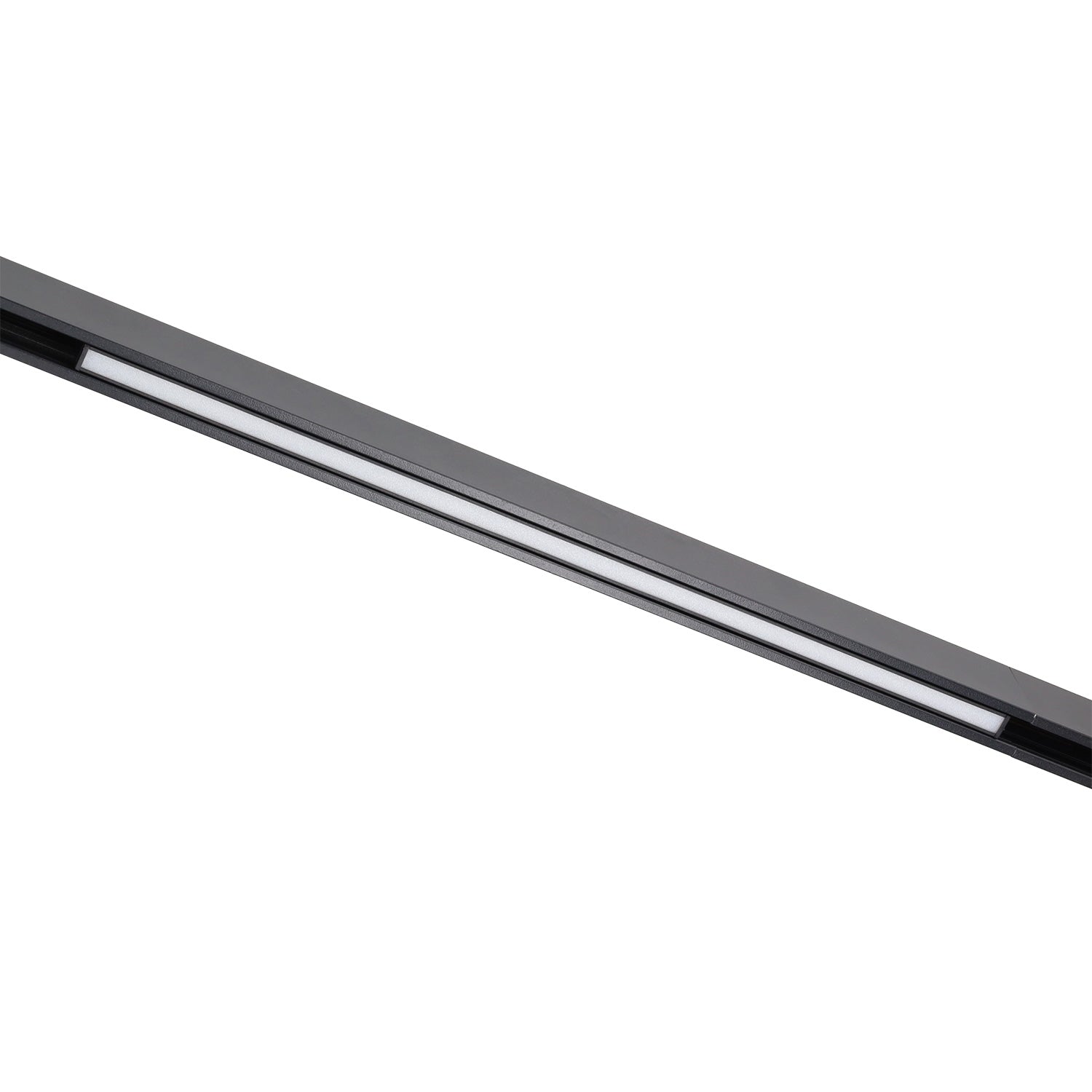

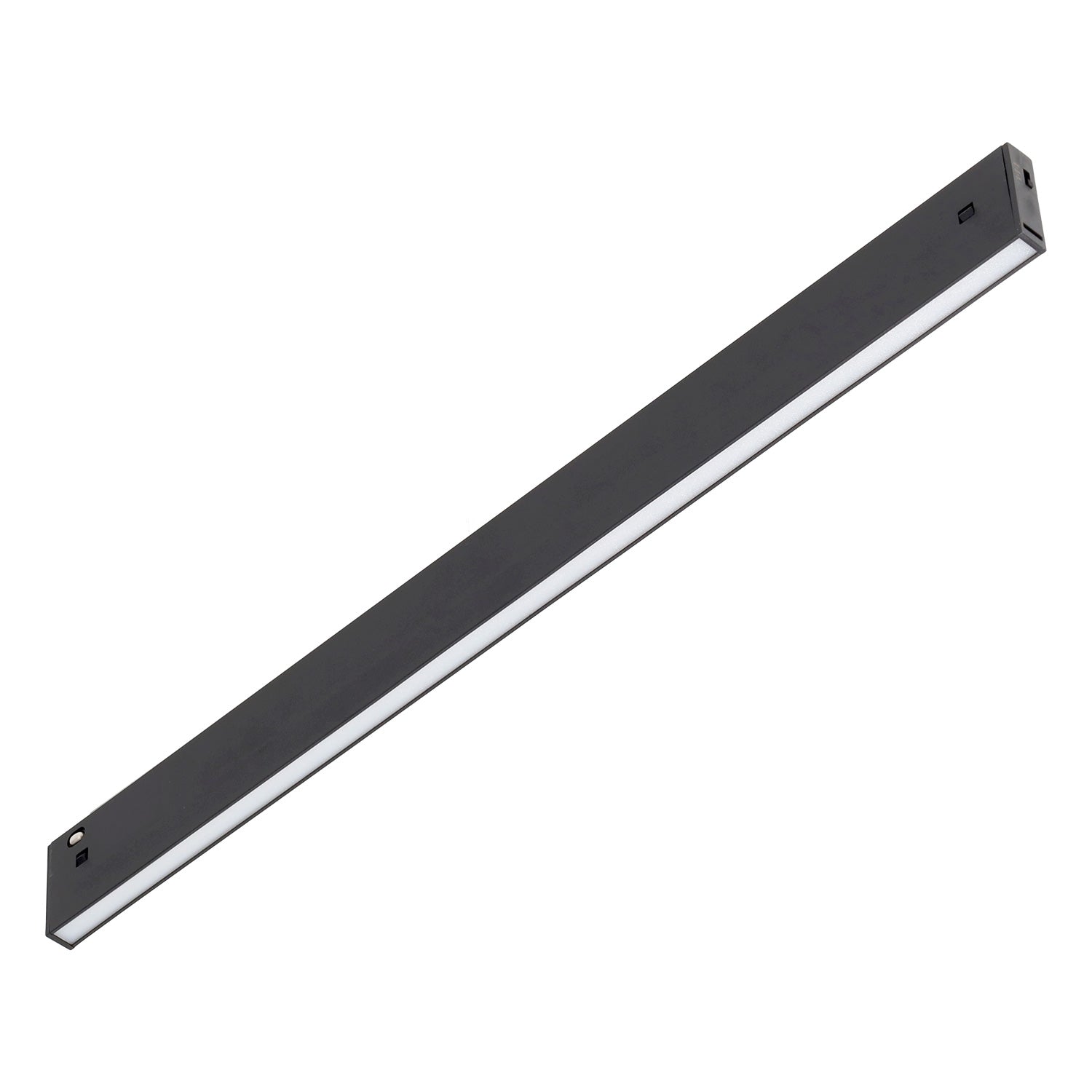

LED Magnetic Track Light 10mm 18W 50Lm/W 120º 48VDC CCT (Adjustable Light Color) Black Finish

LED Magnetic Track Light 10mm 18W 50Lm/W 120º 48VDC CCT (Adjustable Light Color) Black Finish

See questions and answers

  • + Philips Led
  • SKU:LUM-HS10-20F-CCT
G
Reference Stock Price Discount Amount
CCT
SKU: LUM-HS10-20F-CCT
Delivery in 48 h ... if you ask before
Stock available
£11.00
£11.00
For additional amounts the delivery period is 60 days As of the order date

Warranty

  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
  • Certificado ENEC

Technical file

Product code
LUM-HS10-20F-CCT
Light temperature
CCT
Power (W)
18.0
Luminosity (LM)
900
Luminous efficacy (LM/W)
50
Type of LEDs
Philips LED
LED efficacy
60
Opening Angle (º)
120
CRI
95
UGR
<15
Construction
Alu.
Facility
IP20
Strain
48VDC
Long
10.0
Measures (mm)
400x10x37
Broad
37.0
High
400.0
Estimated life (H)
100000
Work frequency (Hz)
50/60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20+40
Lighting cycles
100000
Energy consumption (kWh/1000h)
18.0
Half -year useful life (at 3 h/day)
91.32
Half -Year Useful Life (5 h/day)
54.79
Half -year useful life (at 8 h/day)
34.24
Minimum CCT range
3000
Maximum cri range
5700
Número unidades caja exterior
50.0

Characteristics

Product code
LUM-HS10-20F-CCT
Light temperature
CCT
Power (W)
18.0
Luminosity (LM)
900
Luminous efficacy (LM/W)
50
Type of LEDs
Philips LED
LED efficacy
60
Opening Angle (º)
120
CRI
95
UGR
<15
Construction
Alu.
Facility
IP20
Strain
48VDC
Long
10.0
Measures (mm)
400x10x37
Broad
37.0
High
400.0
Estimated life (H)
100000
Work frequency (Hz)
50/60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20+40
Lighting cycles
100000
Energy consumption (kWh/1000h)
18.0
Half -year useful life (at 3 h/day)
91.32
Half -Year Useful Life (5 h/day)
54.79
Half -year useful life (at 8 h/day)
34.24
Minimum CCT range
3000
Maximum cri range
5700
Número unidades caja exterior
50.0

Description

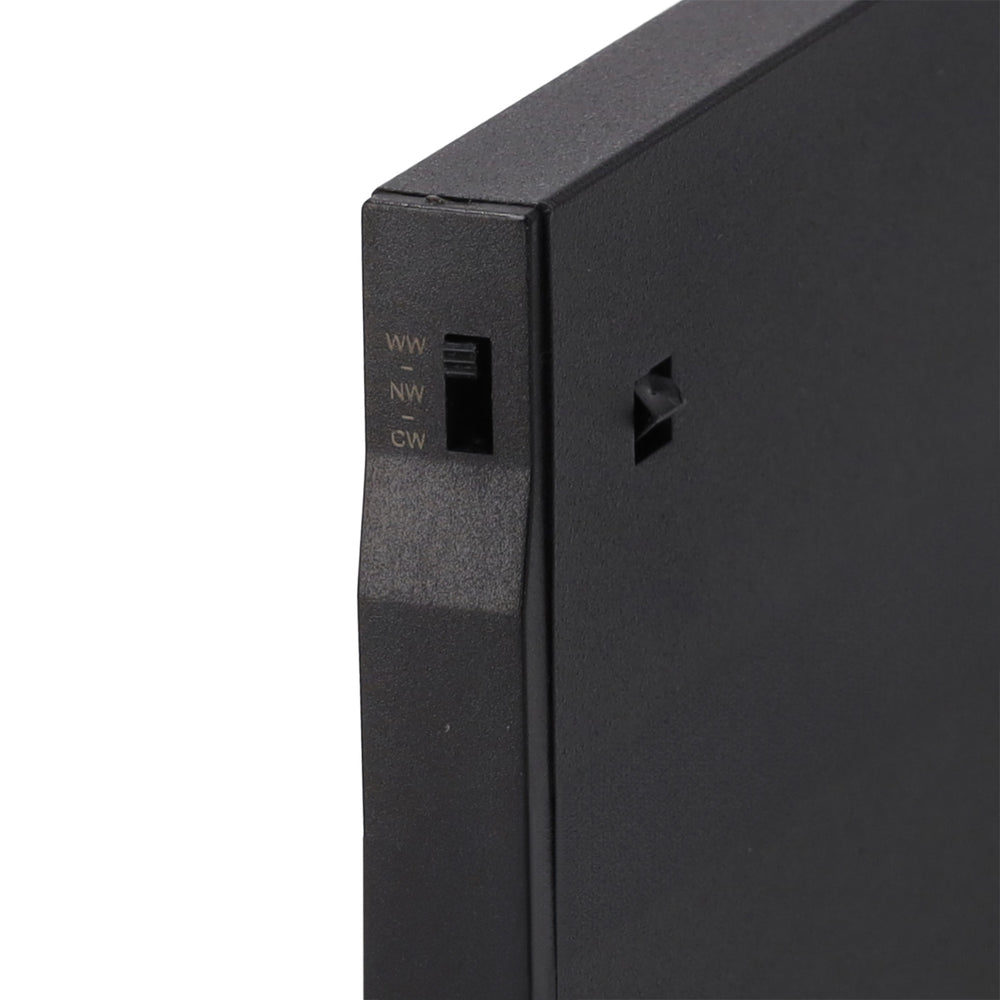

18W LED luminaire for 10mm magnetic track, designed to provide wide, uniform, and efficient general lighting in 48V DC systems. Its 120° beam angle allows for homogeneous light distribution, making it ideal for illuminating workspaces, commercial areas, and residential spaces with a high level of visual comfort. It incorporates CCT (Correlated Color Temperature) technology, allowing you to select the color temperature from warm, neutral, or cool light, adapting the lighting to the needs of each project and creating the right ambiance in any room. With a luminous efficacy of 50 lm/W, it offers efficient operation and reduced energy consumption. Made of high-quality aluminum with a black finish, it guarantees excellent heat dissipation, promoting stable performance and a long lifespan. Its magnetic mounting system allows for easy installation, movement, and repositioning of the luminaire on the track, providing a versatile and adaptable lighting solution. Technical specifications: Power: 18W Luminous efficacy: 50 lm/W. Operating voltage: 48V DC. Compatible with 10 mm magnetic tracks. Beam angle: 120°. CCT technology with selectable color temperature (warm, neutral, or cool). High-quality aluminum housing. Finish: Black. Excellent heat dissipation. Quick, tool-free magnetic installation. Low energy consumption and long lifespan. Applications: Ideal for homes, offices, shops, hotels, restaurants, meeting rooms, hallways, workspaces, and other architectural lighting projects where uniform, efficient general lighting with adjustable color temperature is required.
