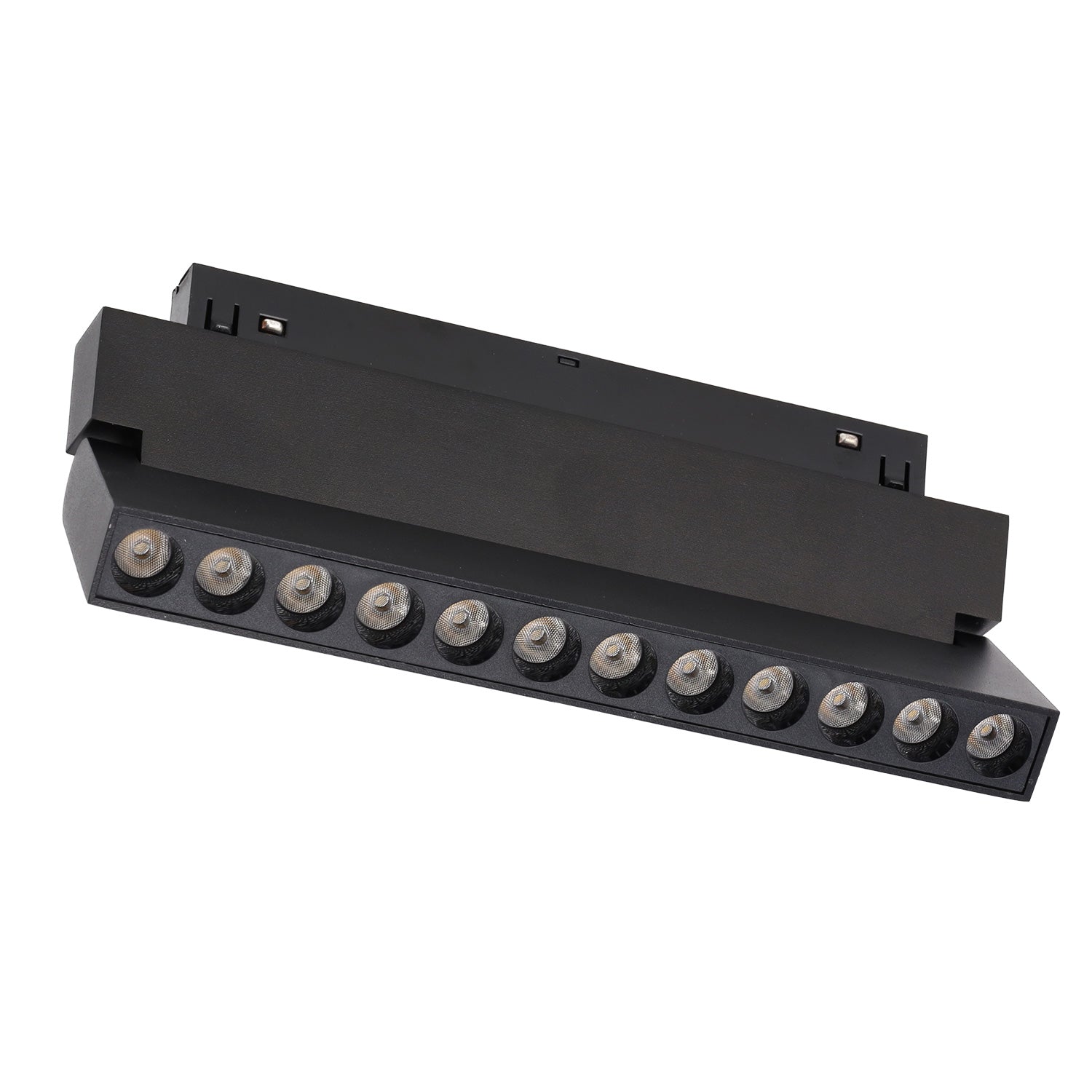

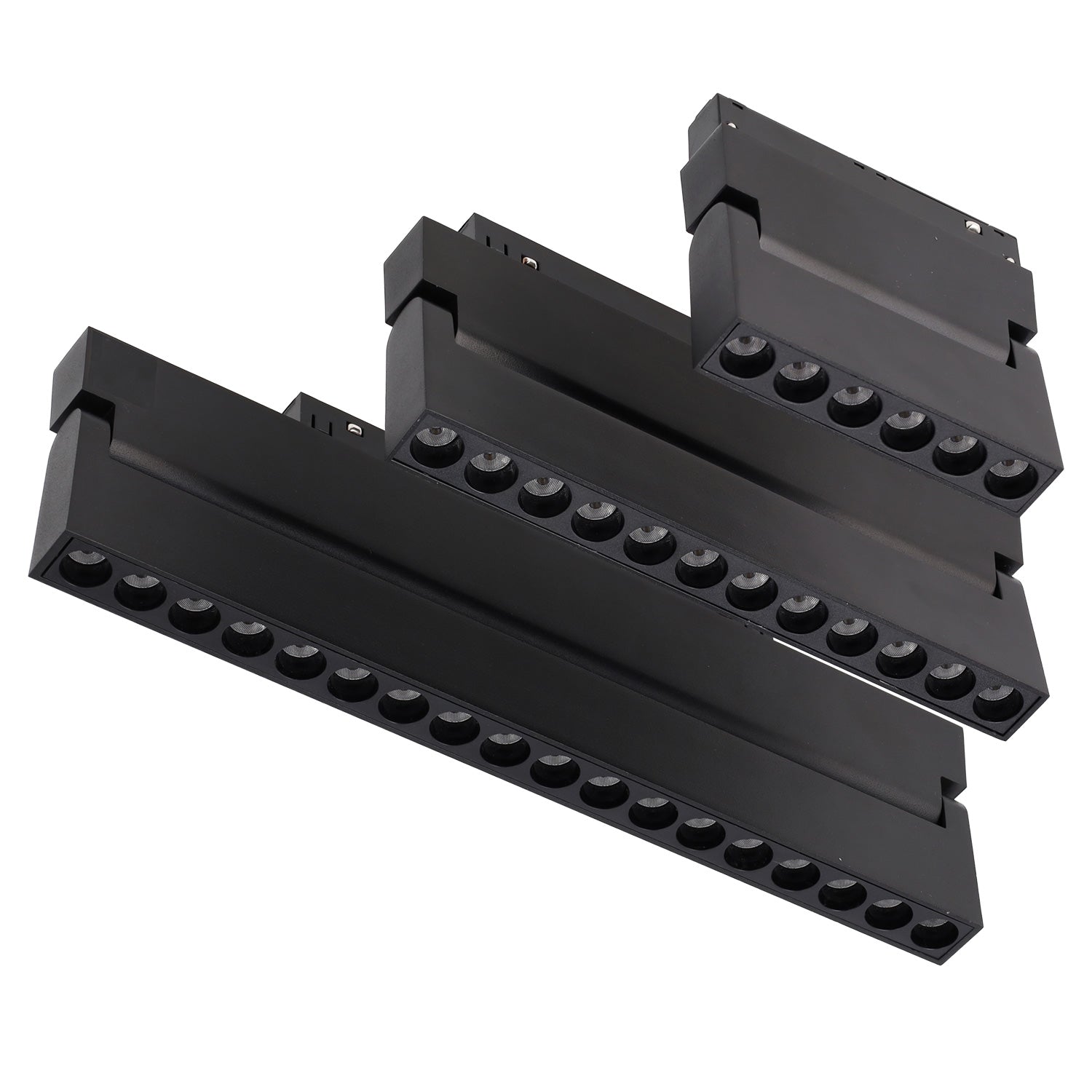

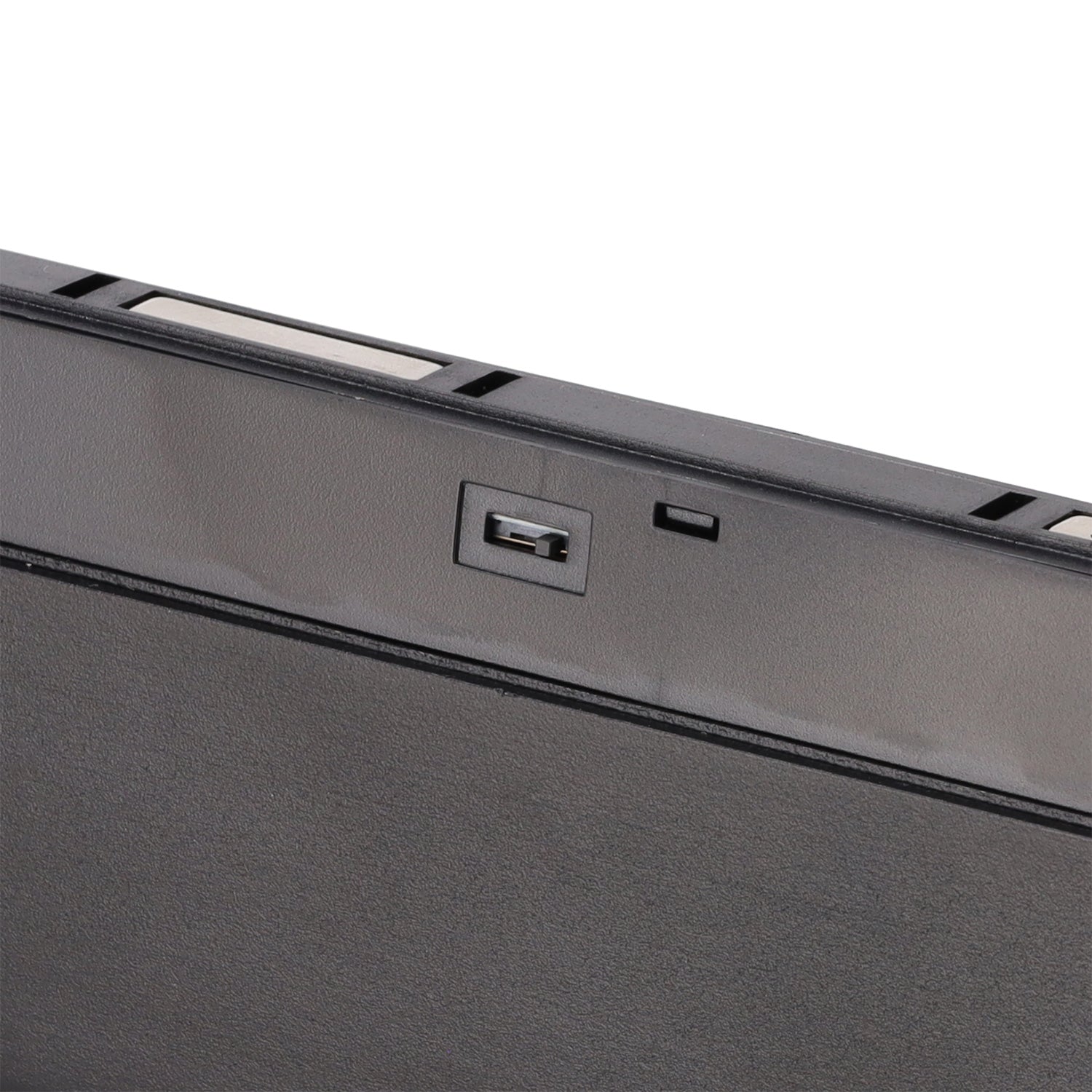

Magnetic LED Track Light 12W 225mm 90Lm/W CCT (Adjustable Light Color)

Magnetic LED Track Light 12W 225mm 90Lm/W CCT (Adjustable Light Color)

See questions and answers

  • Brand:Kimera + KIMERA
  • SKU:JW-20-ZD12W-225-A
F
Reference Stock Price Discount Amount
CCT
SKU: JW-20-ZD12W-225-A
Delivery in 48 h ... if you ask before
Stock available
£13.00
£13.00
For additional amounts the delivery period is 60 days As of the order date

Warranty

  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 36 º Opening
  • Certificado ENEC

Accessories

Technical file

Product code
JW-20-ZD12W-225-A
Light temperature
CCT
Power (W)
12.0
Luminosity (LM)
1080
Luminous efficacy (LM/W)
90
Number of LEDs
Osram LED
LED efficacy
100
Opening Angle (º)
36
CRI
95
UGR
<17
Construction
Alu/PC
Facility
IP20
Strain
24V DC
Long
225.0
Isolation class
III
Estimated life (H)
50000
Work frequency (Hz)
50/60
Start time (s)
0.1
Certificates
ISO/ROHS/9001
Temperature range (ºC)
-20+40
Lighting cycles
100000
Energy consumption (kWh/1000h)
12.0
Weight (gr)
200
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Minimum cri range
90
Maximum cri range
95
Minimum CCT range
2700
Maximum cri range
6000
Número unidades caja exterior
50.0

Characteristics

Product code
JW-20-ZD12W-225-A
Light temperature
CCT
Power (W)
12.0
Luminosity (LM)
1080
Luminous efficacy (LM/W)
90
Number of LEDs
Osram LED
LED efficacy
100
Opening Angle (º)
36
CRI
95
UGR
<17
Construction
Alu/PC
Facility
IP20
Strain
24V DC
Long
225.0
Isolation class
III
Estimated life (H)
50000
Work frequency (Hz)
50/60
Start time (s)
0.1
Certificates
ISO/ROHS/9001
Temperature range (ºC)
-20+40
Lighting cycles
100000
Energy consumption (kWh/1000h)
12.0
Weight (gr)
200
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Minimum cri range
90
Maximum cri range
95
Minimum CCT range
2700
Maximum cri range
6000
Número unidades caja exterior
50.0

Description

Illuminate your spaces efficiently and flexibly with this 12W magnetic LED track light with a 225mm linear design. Its high efficiency of 90 lumens per watt provides bright, uniform light with low energy consumption. The adjustable CCT function allows you to select the ideal light tone for any environment, from warm to cool, adapting to offices, shops, galleries, or any space that requires visual comfort and versatility. The magnetic system facilitates easy installation and repositioning on compatible tracks, combining practicality with a modern and discreet design that blends seamlessly into any setting. Key Features: Power: 12W Size: 225mm Efficiency: 90 lm/W Adjustable CCT: Warm, Neutral, and Cool Light Magnetic System for Easy Installation and Repositioning Ideal for offices, shops, galleries, and commercial spaces

Documents

Installation_manual
