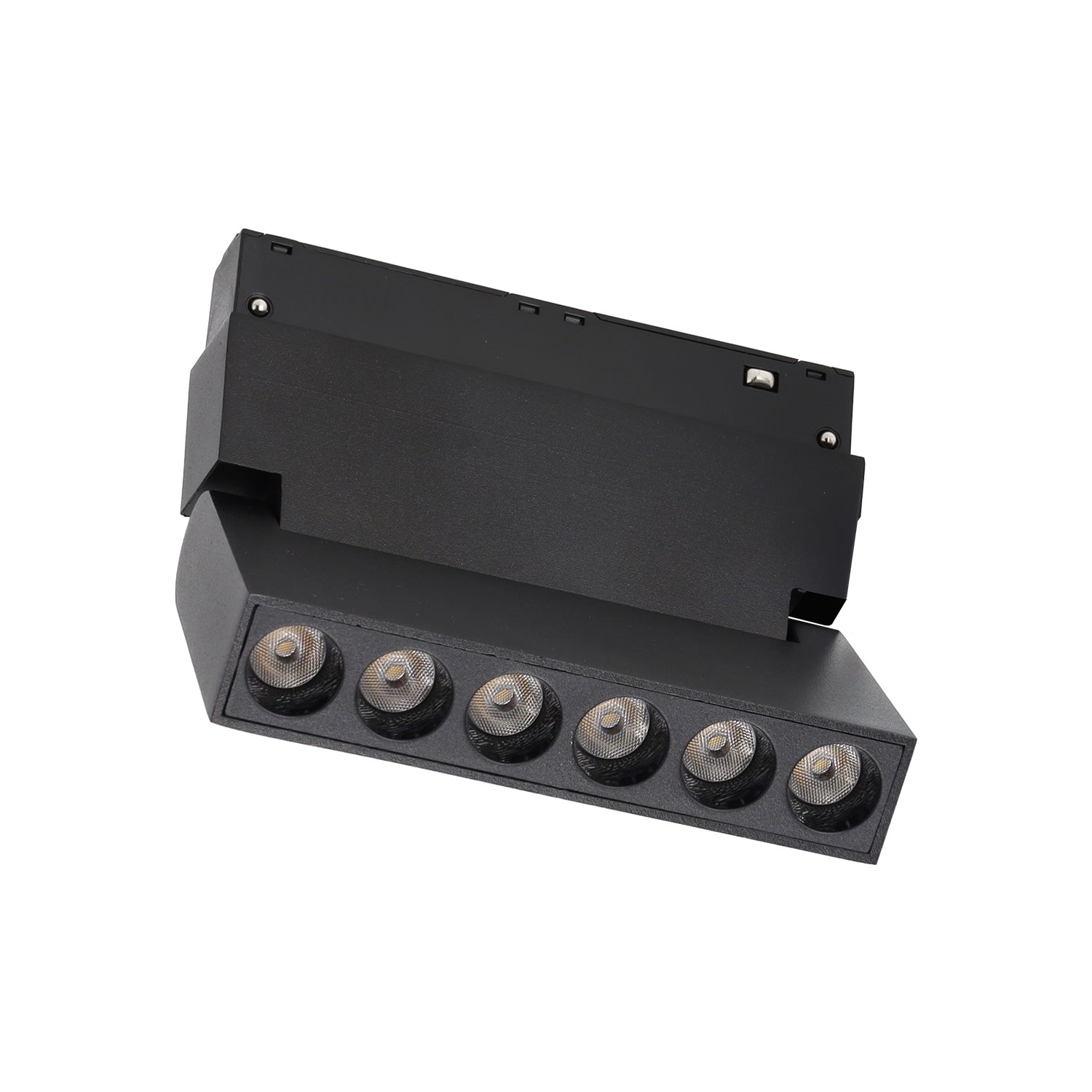

Magnetic LED Track Light 6W 112mm 90Lm/W CCT (Adjustable Light Color)

Magnetic LED Track Light 6W 112mm 90Lm/W CCT (Adjustable Light Color)

See questions and answers

  • Brand:Kimera + KIMERA
  • SKU:JW-20-ZD6W-112-A
F
Reference Stock Price Discount Amount
CCT
SKU: JW-20-ZD6W-112-A
Delivery in 48 h ... if you ask before
Stock available
£10.00
£10.00
For additional amounts the delivery period is 60 days As of the order date

Warranty

  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 36 º Opening
  • Certificado ENEC

Accessories

Technical file

Product code
JW-20-ZD6W-112-A
Light temperature
CCT
Power (W)
6.0
Luminosity (LM)
540
Luminous efficacy (LM/W)
90
Type of LEDs
Osram LED
LED efficacy
100
Opening Angle (º)
36
CRI
95
UGR
<17
Construction
Alu/PC
Facility
IP20
Strain
48V DC
Long
112.0
Isolation class
III
Estimated life (H)
50000
Work frequency (Hz)
50/60
Start time (s)
0.1
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20+40
Lighting cycles
100000
Energy consumption (kWh/1000h)
6.0
Weight (gr)
230
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Minimum cri range
90
Maximum cri range
95
Minimum CCT range
2700
Maximum cri range
6000
Número unidades caja exterior
50.0

Characteristics

Product code
JW-20-ZD6W-112-A
Light temperature
CCT
Power (W)
6.0
Luminosity (LM)
540
Luminous efficacy (LM/W)
90
Type of LEDs
Osram LED
LED efficacy
100
Opening Angle (º)
36
CRI
95
UGR
<17
Construction
Alu/PC
Facility
IP20
Strain
48V DC
Long
112.0
Isolation class
III
Estimated life (H)
50000
Work frequency (Hz)
50/60
Start time (s)
0.1
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20+40
Lighting cycles
100000
Energy consumption (kWh/1000h)
6.0
Weight (gr)
230
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Minimum cri range
90
Maximum cri range
95
Minimum CCT range
2700
Maximum cri range
6000
Número unidades caja exterior
50.0

Description

Illuminate your spaces efficiently and with versatility using this 6W magnetic LED track light with a compact 112mm design. With an efficiency of 90 lumens per watt, it provides bright, uniform light while consuming minimal energy. Its adjustable CCT allows you to select the ideal light tone for any environment, from warm to cool, making it perfect for offices, shops, galleries, or residential spaces that require visual comfort and flexibility. The magnetic system facilitates easy installation and repositioning on compatible tracks, combining practicality with a modern and discreet design that blends seamlessly into any setting. Key Features: Power: 6W Size: 112mm Efficiency: 90 lm/W Adjustable CCT: Warm, Neutral, and Cool White Magnetic system for easy installation and repositioning Ideal for offices, shops, galleries, and commercial spaces

Documents

Installation_manual
