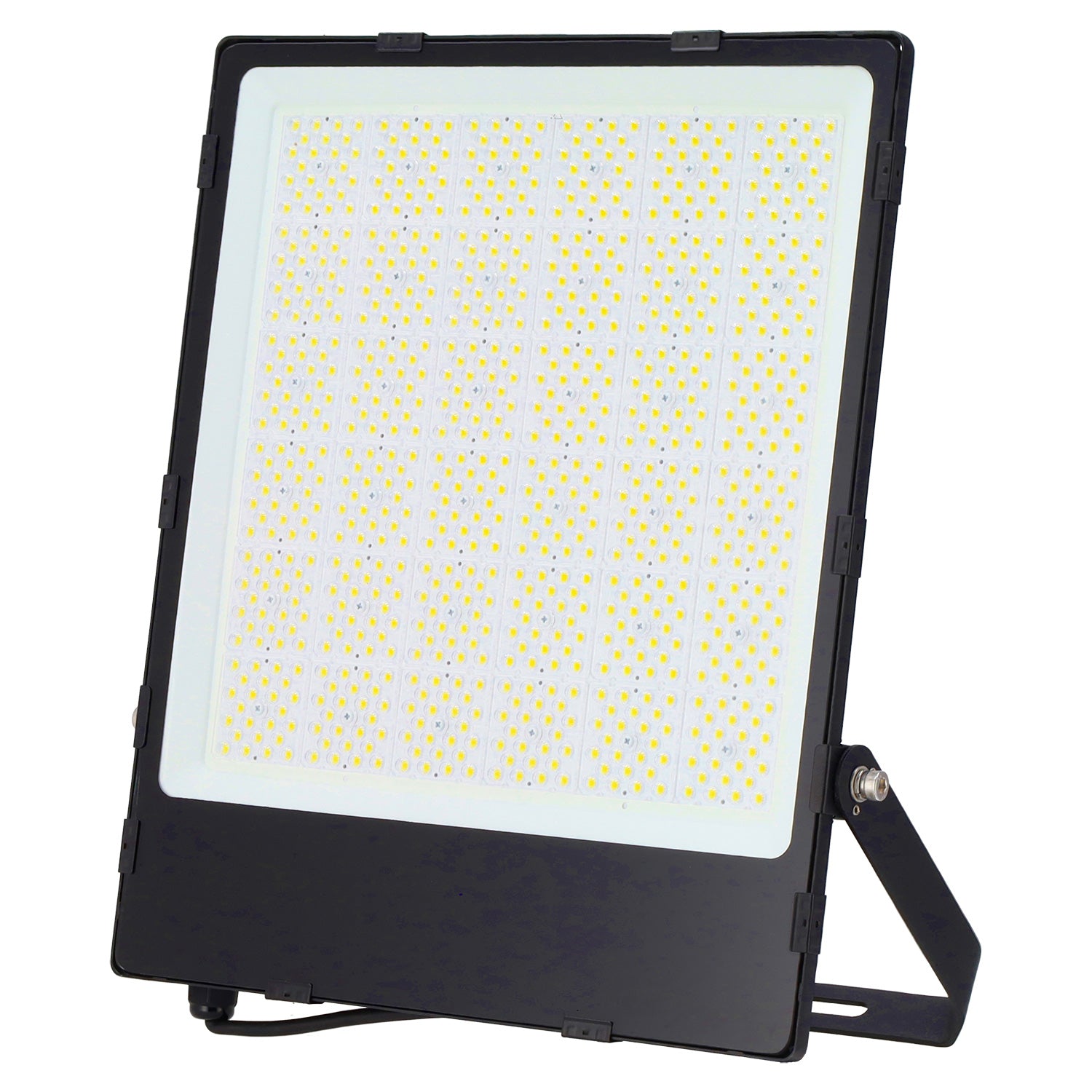

Outdoor LED Projector Spotlight IP65 300W 200Lm/W 90º Driver Lifud 5000ºK

Outdoor LED Projector Spotlight IP65 300W 200Lm/W 90º Driver Lifud 5000ºK

See questions and answers

+ Lifud Driver
SKU:1916-NS-FL300W-V2-200-CW

	Reference	Stock	Price	Discount	Amount
	5000K: Cool White SKU: 1916-NS-FL300W-V2-200-CW Stock available soon	Available	Usual price £118.00 Usual price Offer price £118.00 Unit price by

For additional amounts the delivery period is 60 days As of the order date

Documents

See all documents

Warranty

Warranty 7 years

Eye Care
TUV SUD
90 º Opening
Certificado ENEC

Technical file

Product code

1916-NS-FL300W-V2-200-CW

Light temperature

CW

Power (W)

300.0

Luminosity (LM)

60000

Luminous efficacy (LM/W)

200

Type of LEDs

SMD2835 Lumileds

LED efficacy

220

Opening Angle (º)

90

CRI

80

UGR

<22

Power factor (PF)

0.99

Construction

Alu/Cri.

Facility

IP65

Strain

220-240VAC

Long

502.0

Measures (mm)

502x401x52

Broad

52.0

High

401.0

Isolation class

I

Estimated life (H)

100000

Dimable

Triac

Work frequency (Hz)

50/60

Start time (s)

0.1

Energy class

B

Certificates

CE/ROHS/ISO9001

Temperature range (ºC)

-20+50

Lighting cycles

100000

Kelvin º

5000

Energy consumption (kWh/1000h)

300.0

Half -year useful life (at 3 h/day)

91.32

Half -Year Useful Life (5 h/day)

54.79

Half -year useful life (at 8 h/day)

34.24

Single CCT

5000

Minimum cri range

80

Maximum cri range

90

Driver

Lifud

IK Protection Index

IK10

ULR

0%

Characteristics

Product code

1916-NS-FL300W-V2-200-CW

Light temperature

CW

Power (W)

300.0

Luminosity (LM)

60000

Luminous efficacy (LM/W)

200

Type of LEDs

SMD2835 Lumileds

LED efficacy

220

Opening Angle (º)

90

CRI

80

UGR

<22

Power factor (PF)

0.99

Construction

Alu/Cri.

Facility

IP65

Strain

220-240VAC

Long

502.0

Measures (mm)

502x401x52

Broad

52.0

High

401.0

Isolation class

I

Estimated life (H)

100000

Dimable

Triac

Work frequency (Hz)

50/60

Start time (s)

0.1

Energy class

B

Certificates

CE/ROHS/ISO9001

Temperature range (ºC)

-20+50

Lighting cycles

100000

Kelvin º

5000

Energy consumption (kWh/1000h)

300.0

Half -year useful life (at 3 h/day)

91.32

Half -Year Useful Life (5 h/day)

54.79

Half -year useful life (at 8 h/day)

34.24

Single CCT

5000

Minimum cri range

80

Maximum cri range

90

Driver

Lifud

IK Protection Index

IK10

ULR

0%

Description

The 300W LED floodlight with Lifud driver is a professional lighting system offering high luminous efficacy and maximum reliability, designed for industrial, sports, and architectural applications. It offers exceptional luminous efficacy of 200 lumens per watt, achieving a total luminous flux of 60,000 lumens, making it a direct alternative to traditional 1000W metal halide floodlights with significantly lower energy consumption. Its 90° optics allow for a wide and uniform light distribution, guaranteeing homogeneous visibility and reduced shadows. The 5000K color temperature provides a neutral white light with a natural appearance, ideal for spaces where visual precision and lighting comfort are required. The Lifud driver, with its high power factor and low harmonic distortion, ensures stable power supply, surge protection, and extended system lifespan. Technical Specifications: Parameter Value Rated Power 300 W Luminous Efficacy 200 lm/W Total Luminous Flux 60,000 lm ±5% Color Temperature (CCT) 5000 K (Industrial Neutral White) Beam Angle 90° LED Type High-Efficiency SMD (Industrial Chip) Lifespan (L70B10) >100,000 hours Color Rendering Index (CRI) ≥80 Input Voltage 220–240 V AC, 50/60 Hz Lifud Driver – Power Factor ≥0.95 Power Factor (PF) ≥0.95 THD (Total Harmonic Distortion) <15% Protection Rating IP65 (Dustproof and Water Jet Resistant) Impact Resistance IK08 Body Material High-Dissipation Die-Cast Aluminum Thermal Passive cooling system with heat sink fins Operating temperature: -30 °C to +50 °C Mounting: High-strength, adjustable metal bracket Body color: Matte black (RAL 9005) Approximate weight: 6–7.5 kg (depending on model and housing) Technical advantages: • Ultra-efficient: up to 200 lm/W, drastically reducing energy consumption. • Professional Lifud driver with protection against spikes, short circuits, and overvoltages. • Instant start-up without flickering or preheating. • Optimized thermal design, maximizing heat dissipation and extending LED lifespan. • Robust IP65 die-cast aluminum housing, resistant to weather, humidity, and dust. • 90° precision optics, ideal for uniform illumination of large areas. Recommended applications: • Industrial outdoor lighting: warehouses, logistics areas, storage facilities. • Sports lighting: courts, stadiums, gyms. • Architectural lighting: facades, monuments, structures. • Street and security lighting: parking lots, courtyards, perimeters. • Direct replacement of traditional 1000–1500 W HID or metal halide floodlights.
