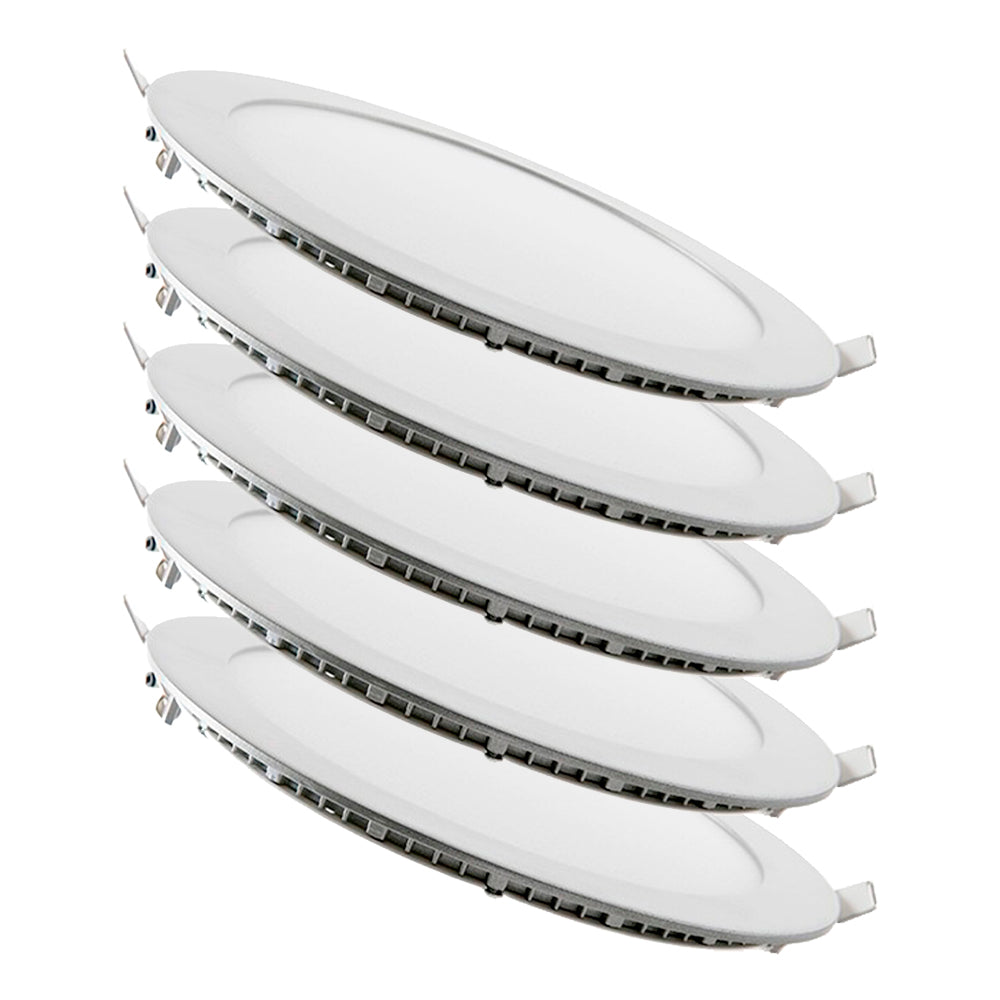

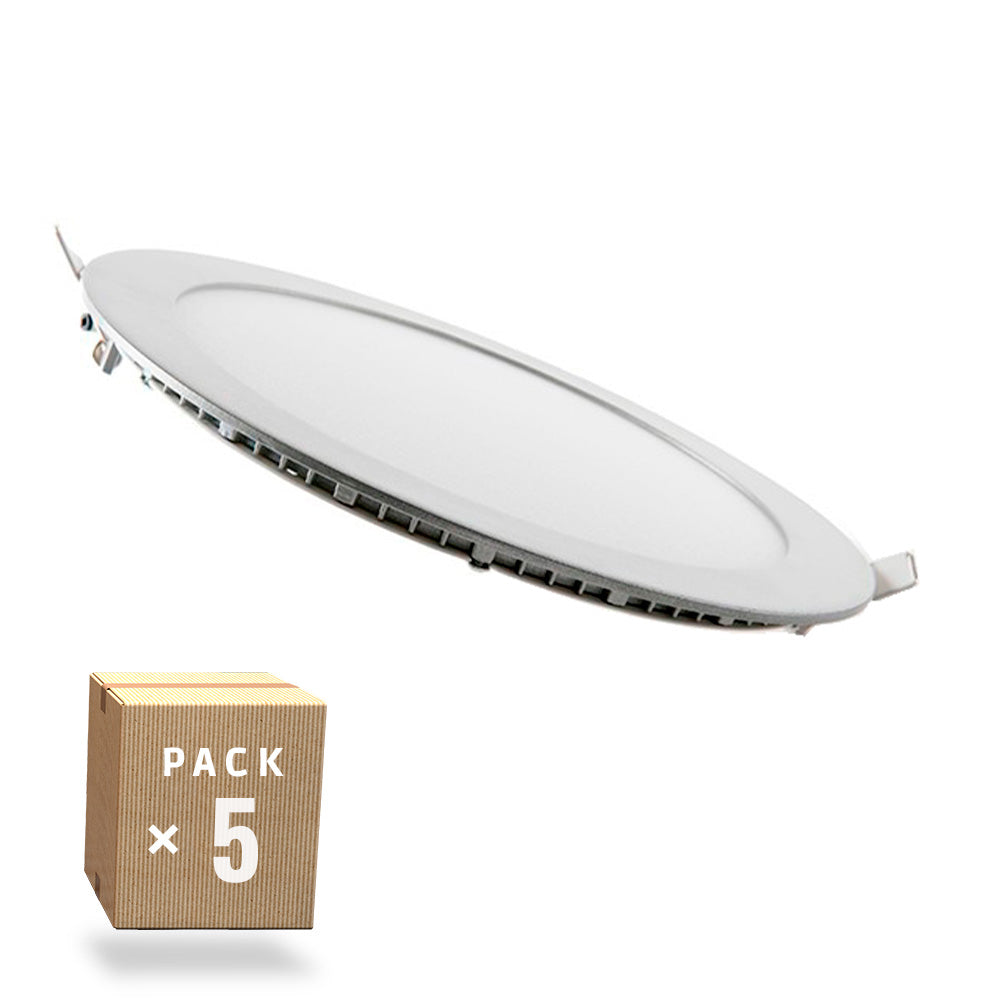

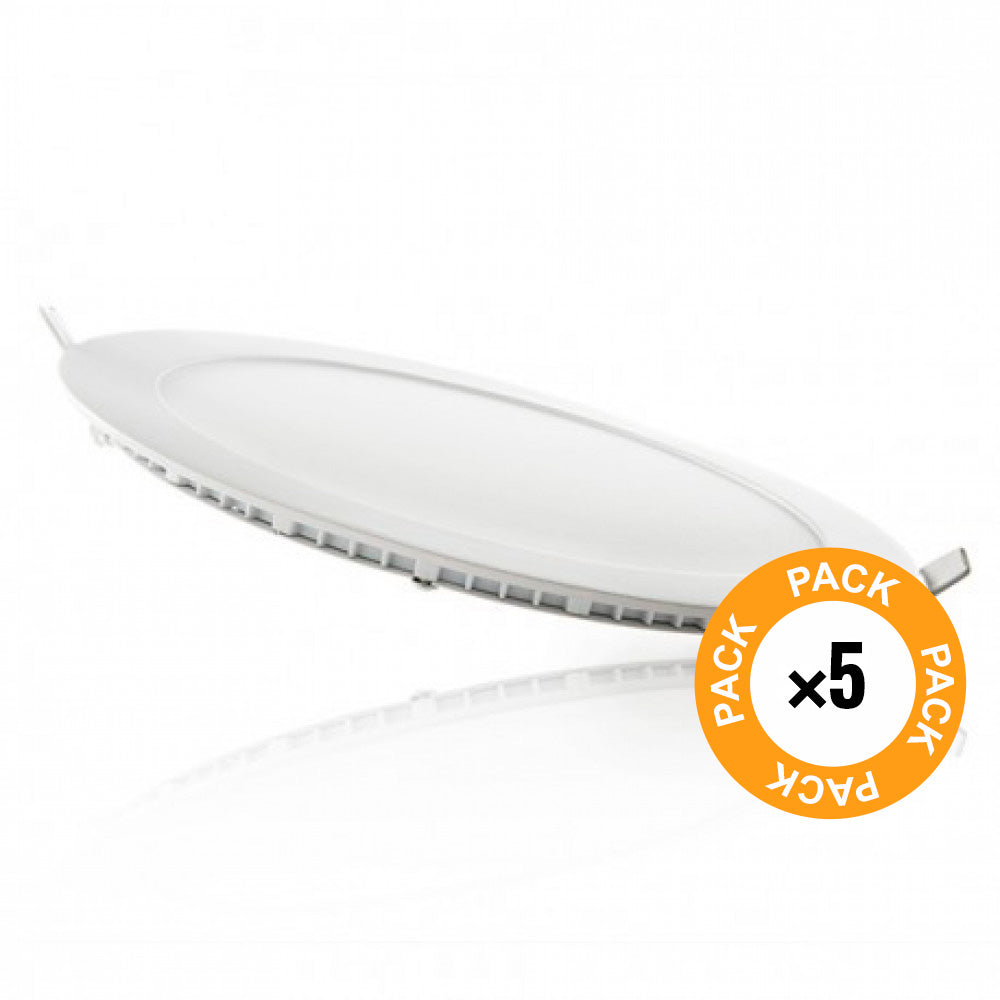

Pack of 5 LED Plates 20W 2000Lm 6000ºK Circular 40,000H [HO-1027P5-CW]

Pack of 5 LED Plates 20W 2000Lm 6000ºK Circular 40,000H [HO-1027P5-CW]

See questions and answers

  • Brand:GreenIce + Epistar Led
  • SKU:HO-1027P5-CW
Eprel file
Reference Stock Price Discount Amount
6000K: Cool White
SKU: HO-1027P5-CW
Stock available soon
Available
£19.00
£19.00
4200K: Daylight
SKU: PE-1011P5-W
Delivery in 48 h ... if you ask before
There are few
£18.00
£18.00
For additional amounts the delivery period is 60 days As of the order date

Warranty

  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening

Accessories

Technical file

Product code
HO-1027P5-CW
Light temperature
Cold White
Power (W)
20.0
Luminosity (LM)
2000
Luminous efficacy (LM/W)
100
Type of LEDs
Epistar Led
Number of LEDs
100
LED efficacy
110
Opening Angle (º)
120
CRI
80
Power factor (PF)
0.9
Construction
Aluminum/ PC
Facility
IP20
Strain
220-240VAC
Driver output
30-42 V
Measures (mm)
Ø220x17
High
17.0
Estimated life (H)
40000
Dimable
No
Equivalence (W)
135
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Opal
Kelvin º
6000
Energy consumption (kWh/1000h)
20.0
Weight (gr)
1600
Flicker
0.81
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
25
Minimum cri range
91
Maximum cri range
6
Chromaticity x
0.302
Chromaticity and
0.312
Roof cut (mm)
200
Diameter
220
Número unidades caja exterior
5.0
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
HO-1027P5-CW
Light temperature
Cold White
Power (W)
20.0
Luminosity (LM)
2000
Luminous efficacy (LM/W)
100
Type of LEDs
Epistar Led
Number of LEDs
100
LED efficacy
110
Opening Angle (º)
120
CRI
80
Power factor (PF)
0.9
Construction
Aluminum/ PC
Facility
IP20
Strain
220-240VAC
Driver output
30-42 V
Measures (mm)
Ø220x17
High
17.0
Estimated life (H)
40000
Dimable
No
Equivalence (W)
135
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Opal
Kelvin º
6000
Energy consumption (kWh/1000h)
20.0
Weight (gr)
1600
Flicker
0.81
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
25
Minimum cri range
91
Maximum cri range
6
Chromaticity x
0.302
Chromaticity and
0.312
Roof cut (mm)
200
Diameter
220
Número unidades caja exterior
5.0
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

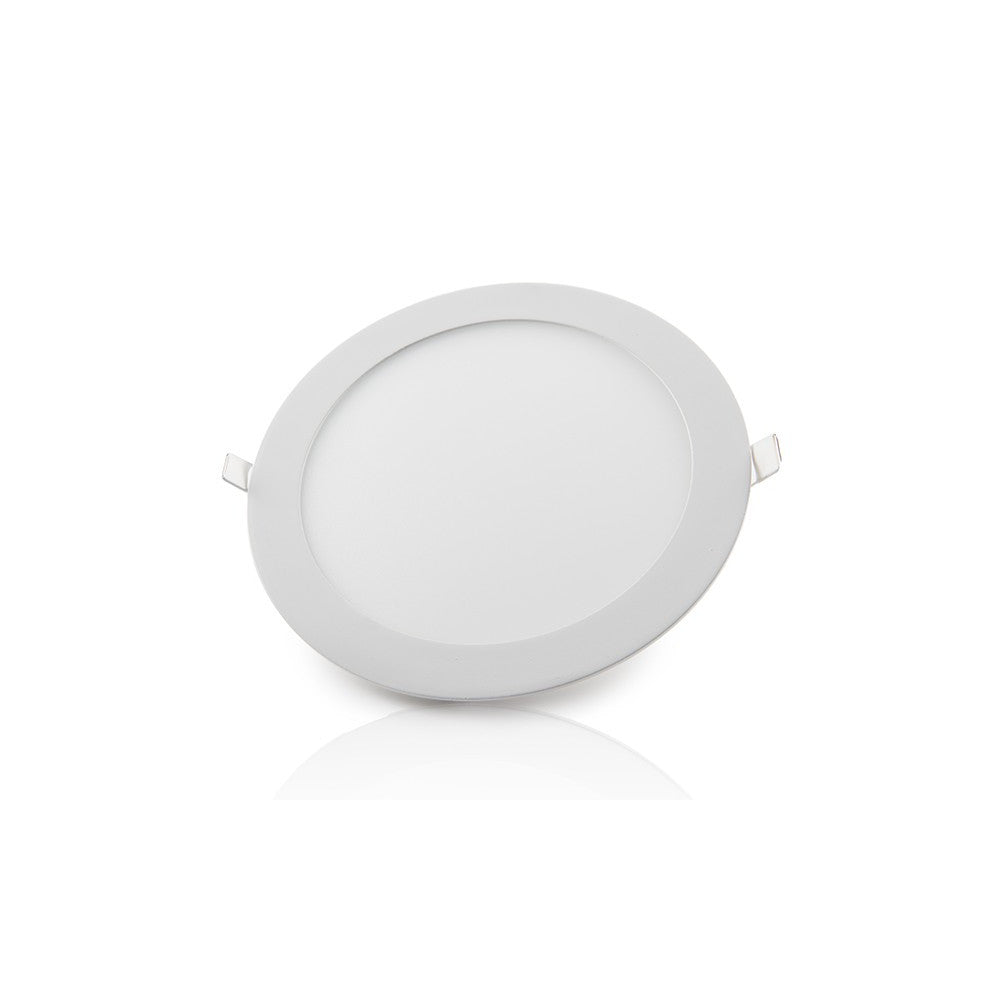

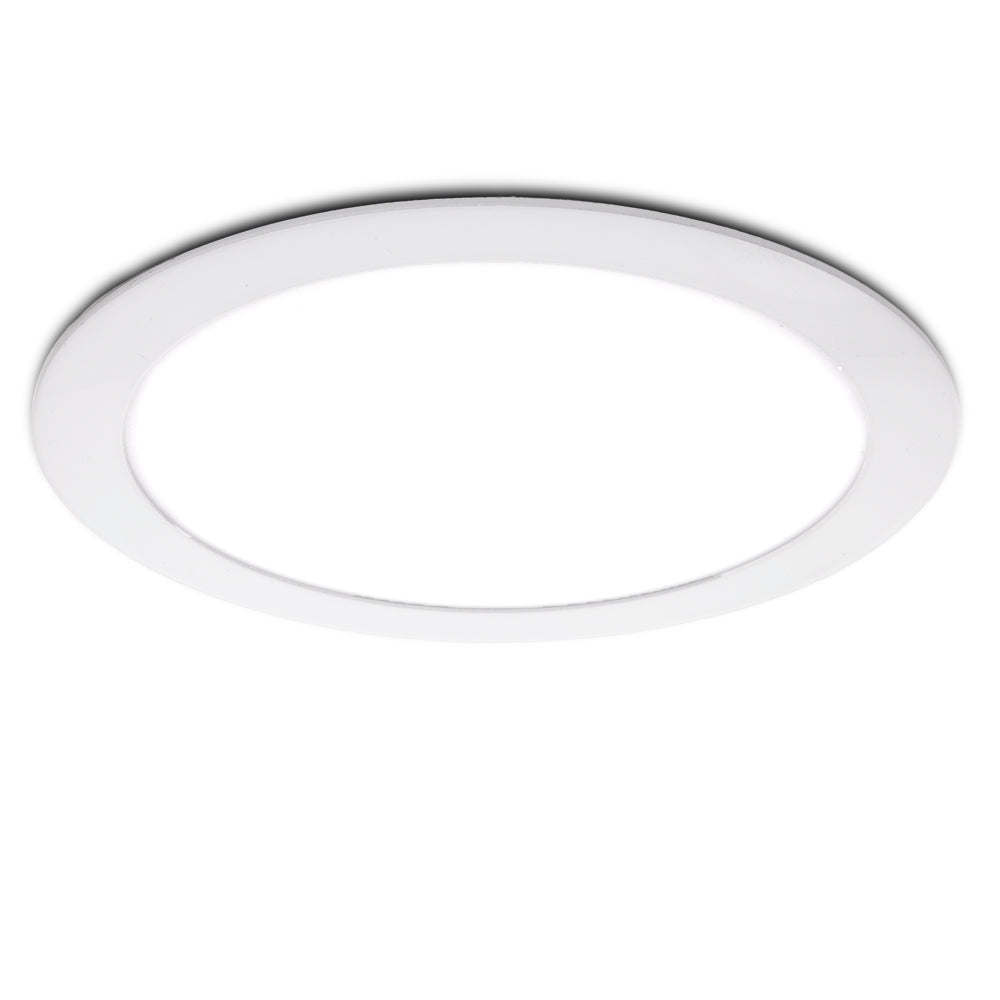

The 225mm diameter circular LED plate with ultra-thin dimensions (20mm), offers solutions for offices, factories, supermarkets, shops and for residential use. It can be installed directly to outlets supplied by the electrical network (85-265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (90 Lm/W) consuming 20W through SMD2835 type LEDs and managing to provide a luminous flux of 1800Lm uniformly distributed through an opal plastic diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 120W incandescent bulb, its consumption represents a value of 20kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

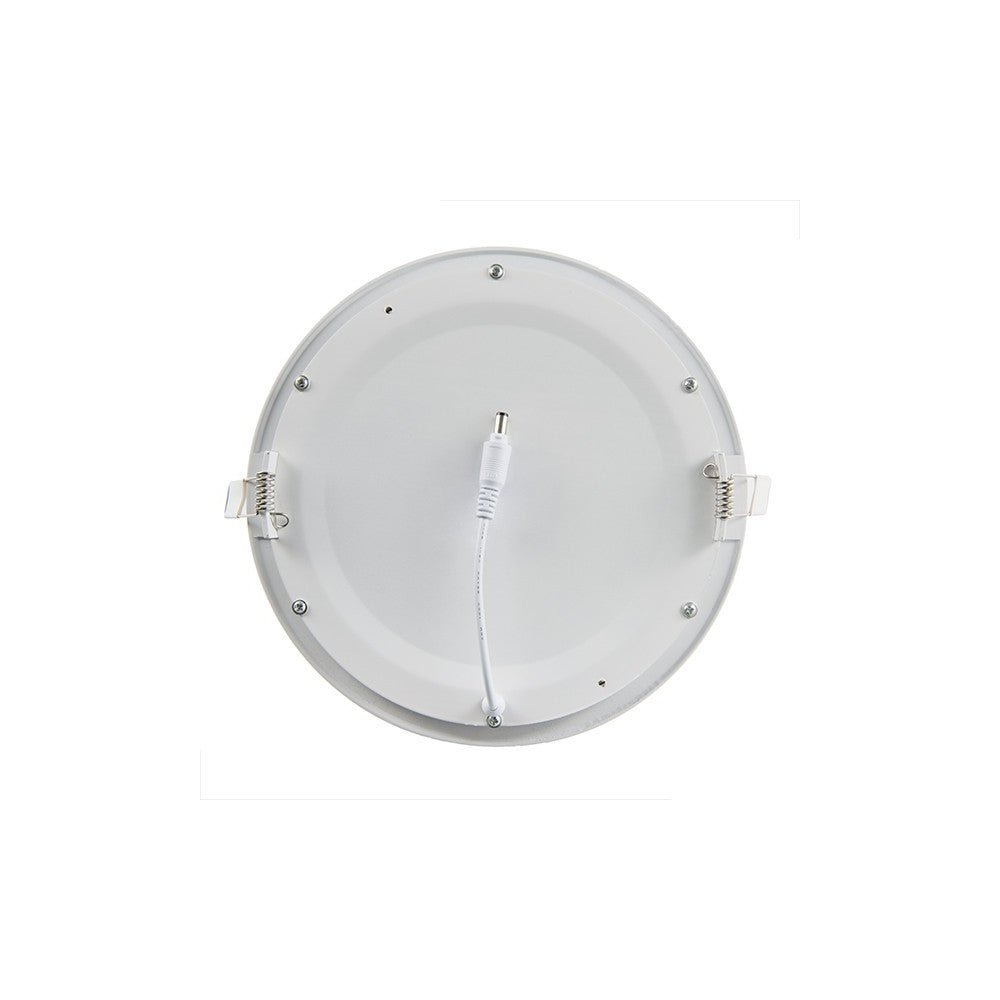

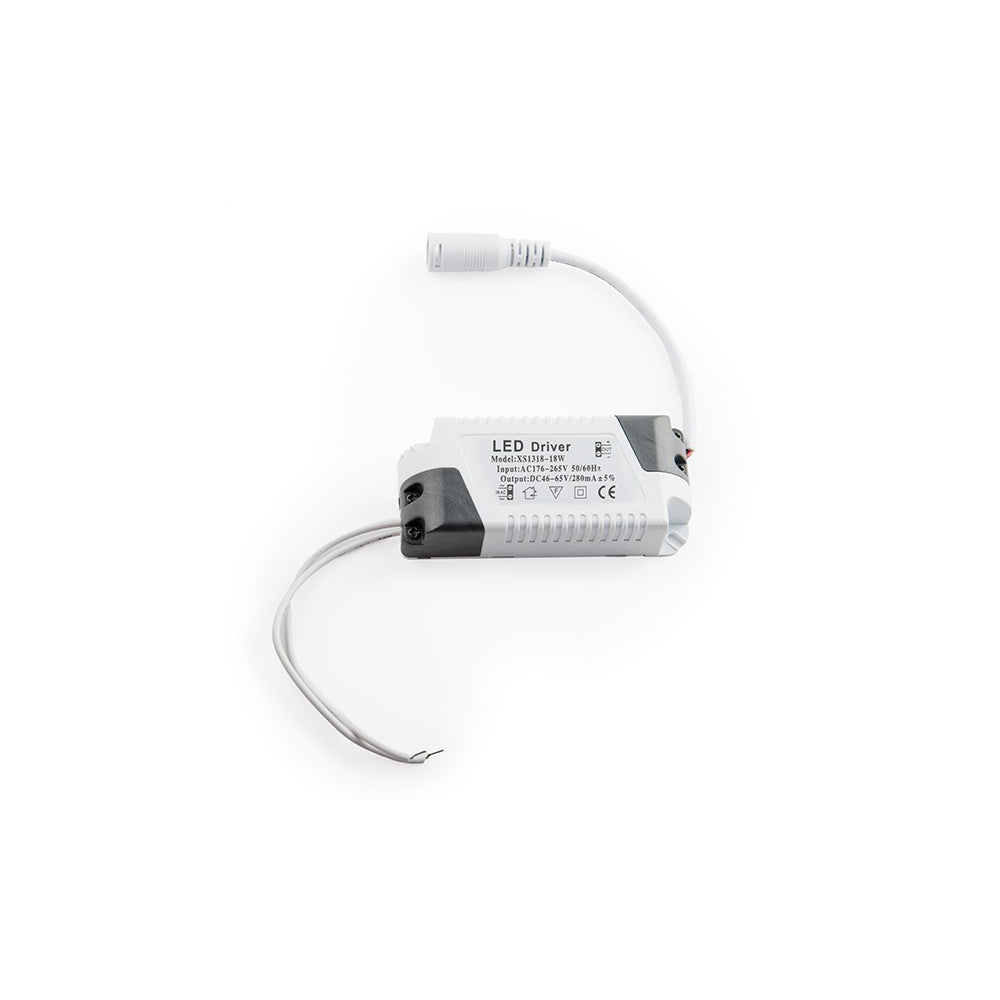

This plate is powered by a Non-dimmable driver included in the package that must be connected directly to the network, with an output connector compatible with the connection of the plate (25-150VDC, 300mA), additionally the necessary accessories for the installation of the plate are included.< /p>

White finish made of aluminium. The plate has a IP25 degree of protection (valid for dust and humidity indoors),in addition to being robust enough for the required mechanical demands.

This plate is available in cold white 6000ºK and natural white 4000ºK. The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.

LED downlights are ideal for lighting General lighting in spaces that require high performance and long periods of continuous lighting. And that is why they include a high-quality aluminum heat sink, which contributes to minimal heat emission from the LED luminaire. They are also very easy to install and being so thin they can be placed in false ceilings with little height where more voluminous solutions could not be used.
