Recessed COB LED ceiling spotlight - 5W - Adjustable - Low UGR - Ø50mm

Recessed COB LED ceiling spotlight - 5W - Adjustable - Low UGR - Ø50mm

See questions and answers

  • + Bridgelux Led
  • SKU:JW-5W-WW
E
Reference Stock Price Discount Amount
2700K: Warm White
SKU: JW-5W-WW
Free delivery in 48 h ... if you ask before
Stock available
£23.00
£23.00
For additional amounts the delivery period is 60 days As of the order date

Warranty

  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 24 º Opening
  • Certificado ENEC

Technical file

Product code
JW-8W-CCT
Light temperature
WW
Power (W)
5.0
Luminosity (LM)
600
Luminous efficacy (LM/W)
120
Type of LEDs
Bridgelux LED
Number of LEDs
1
LED efficacy
130
Opening Angle (º)
24
CRI
95
UGR
<15
Power factor (PF)
0.99
Construction
Alu/PC
Facility
IP20
Strain
85-265VAC
Long
85.0
Measures (mm)
58x58x85
Broad
58.0
High
58.0
Isolation class
II
Estimated life (H)
50000
Equivalence (W)
60
Work frequency (Hz)
50/60
Start time (s)
0.1
Energy class
E
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20+40
Lighting cycles
100000
Kelvin º
2700
Energy consumption (kWh/1000h)
5.0
Weight (gr)
200
Flicker
0.8
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Single CCT
2700
INDEX R9
1
Minimum cri range
80
Maximum cri range
95
Roof cut (mm)
Ø50
Minimum CCT range
2700
Maximum cri range
6000

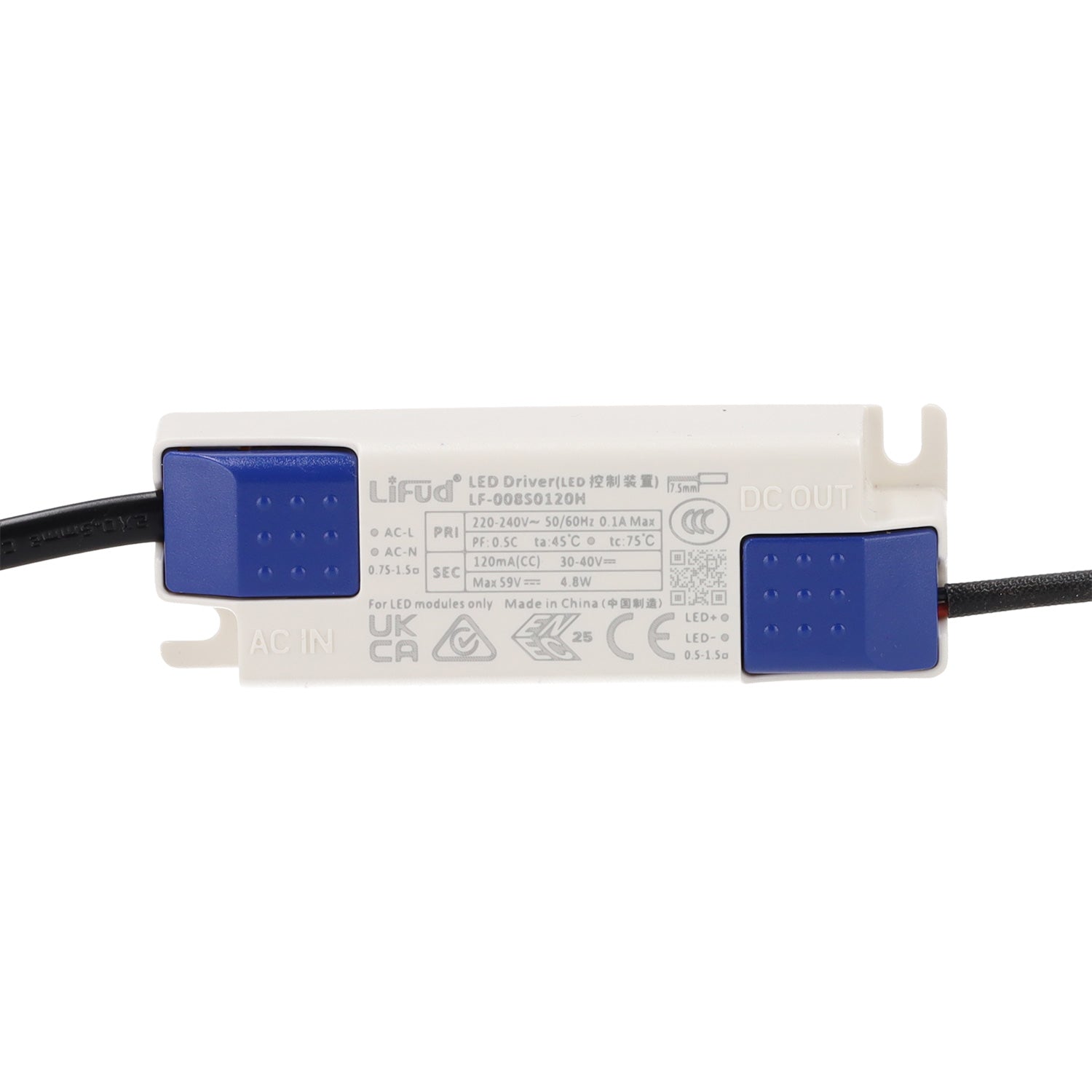

Driver
Lifud
IK Protection Index
IK08
Diameter
Ø58
Número unidades caja exterior
200.0
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
JW-8W-CCT
Light temperature
WW
Power (W)
5.0
Luminosity (LM)
600
Luminous efficacy (LM/W)
120
Type of LEDs
Bridgelux LED
Number of LEDs
1
LED efficacy
130
Opening Angle (º)
24
CRI
95
UGR
<15
Power factor (PF)
0.99
Construction
Alu/PC
Facility
IP20
Strain
85-265VAC
Long
85.0
Measures (mm)
58x58x85
Broad
58.0
High
58.0
Isolation class
II
Estimated life (H)
50000
Equivalence (W)
60
Work frequency (Hz)
50/60
Start time (s)
0.1
Energy class
E
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20+40
Lighting cycles
100000
Kelvin º
2700
Energy consumption (kWh/1000h)
5.0
Weight (gr)
200
Flicker
0.8
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Single CCT
2700
INDEX R9
1
Minimum cri range
80
Maximum cri range
95
Roof cut (mm)
Ø50
Minimum CCT range
2700
Maximum cri range
6000
Driver
Lifud
IK Protection Index
IK08
Diameter
Ø58
Número unidades caja exterior
200.0
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

The 95, allows for realistic colors, similar to natural light. Easy to install, it can be mounted on ceilings using a simple anchoring system. It requires no subsequent maintenance and allows for energy savings of 80% compared to traditional halogen lamps. This luminaire offers a solution of the highest quality, design, and efficiency for any lighting project.

Documents

Installation_manual
Technical_drawings
