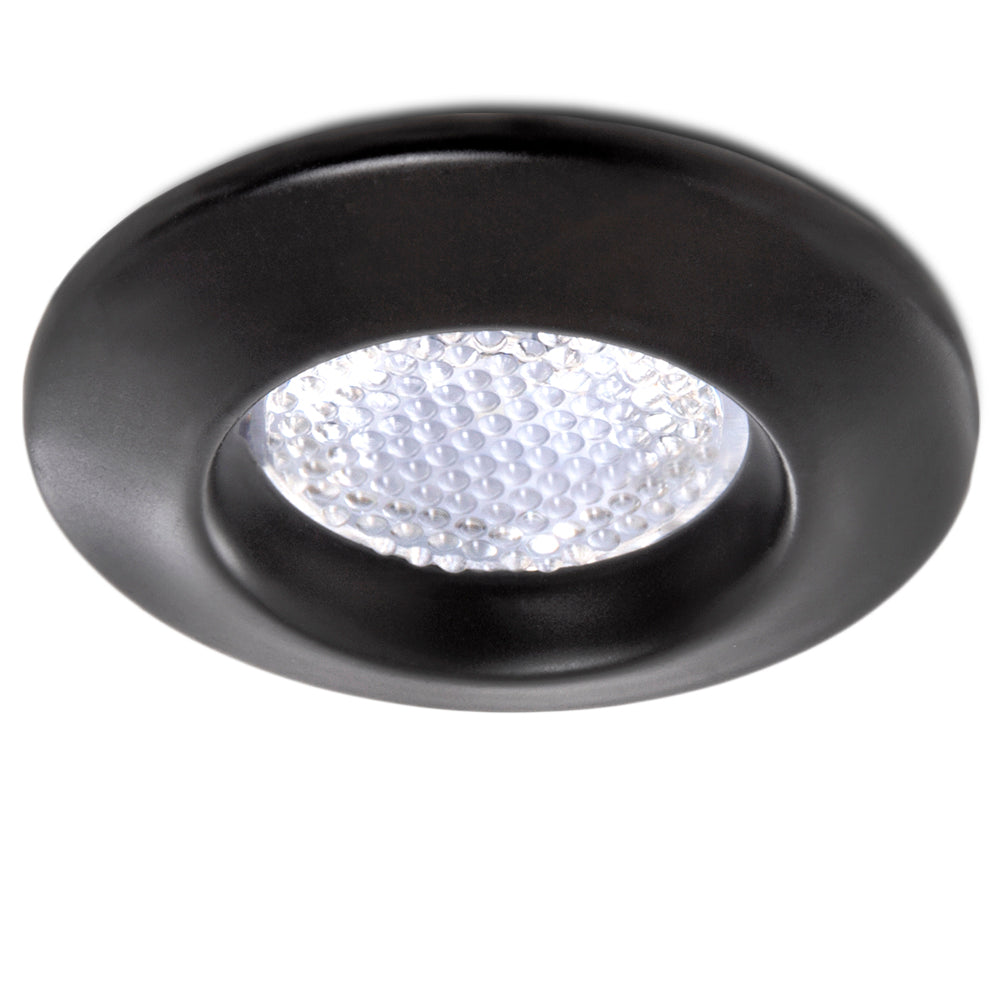

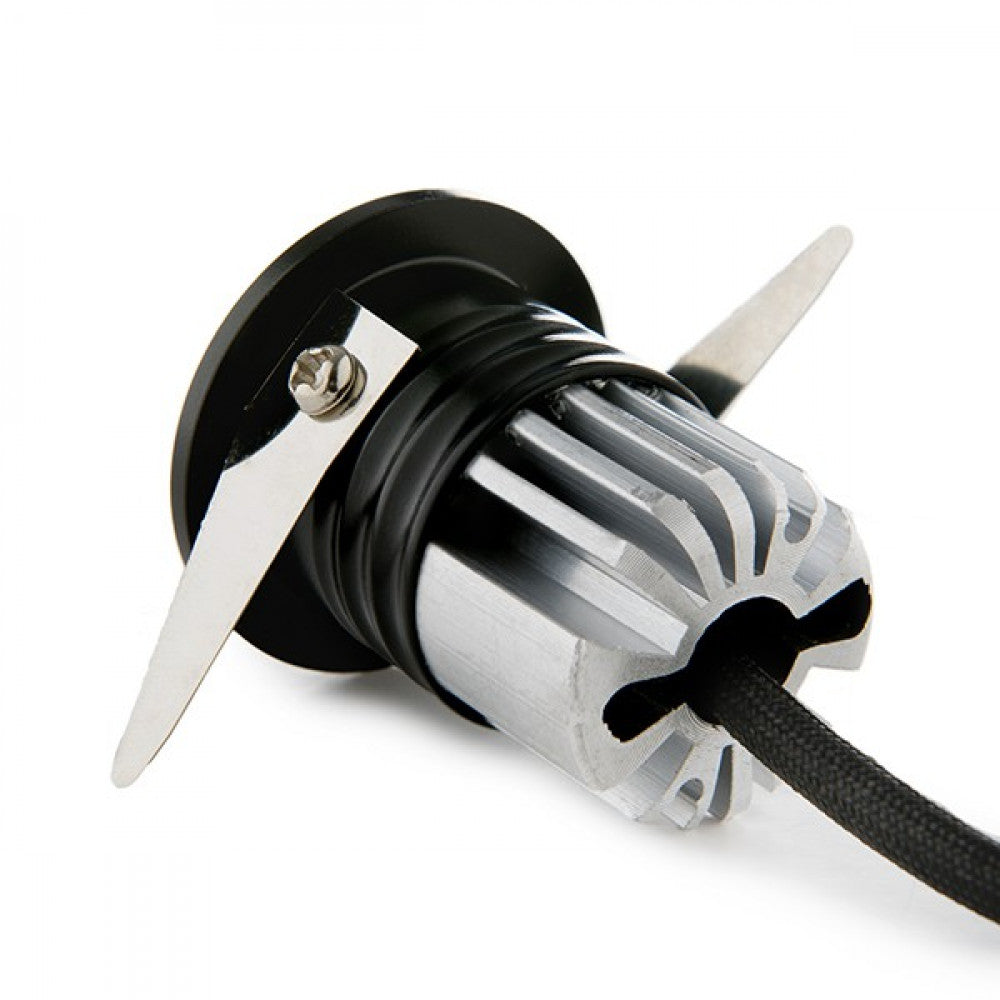

Recessed LED Light 2W 180Lm 6000ºK "Rosalie" Circular Ø36Mm 40,000H [JN-S003-D-CW]

Recessed LED Light 2W 180Lm 6000ºK "Rosalie" Circular Ø36Mm 40,000H [JN-S003-D-CW]

See questions and answers

  • Brand:GreenIce + Epistar Led
  • SKU:JN-S003-D-CW
Eprel file
Reference Stock Price Discount Amount
6000K: Cool White
SKU: JN-S003-D-CW
Delivery in 48 h ... if you ask before
Stock available
£2.00
£2.00
2700K: Warm White
SKU: JN-S003-D-WW
Delivery in 48 h ... if you ask before
There are few
£4.00
£4.00
For additional amounts the delivery period is 60 days As of the order date

Warranty

  • Warranty 3 years
  • Eye Care Eye Care
  • 45 º Opening

Accessories

Technical file

Product code
JN-S003-D-CW
Light temperature
Cold White
Power (W)
2.0
Luminosity (LM)
180
Luminous efficacy (LM/W)
90
Type of LEDs
Epistar Led
LED efficacy
99
Opening Angle (º)
45
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/ PC
Facility
IP20
Strain
85-265VAC

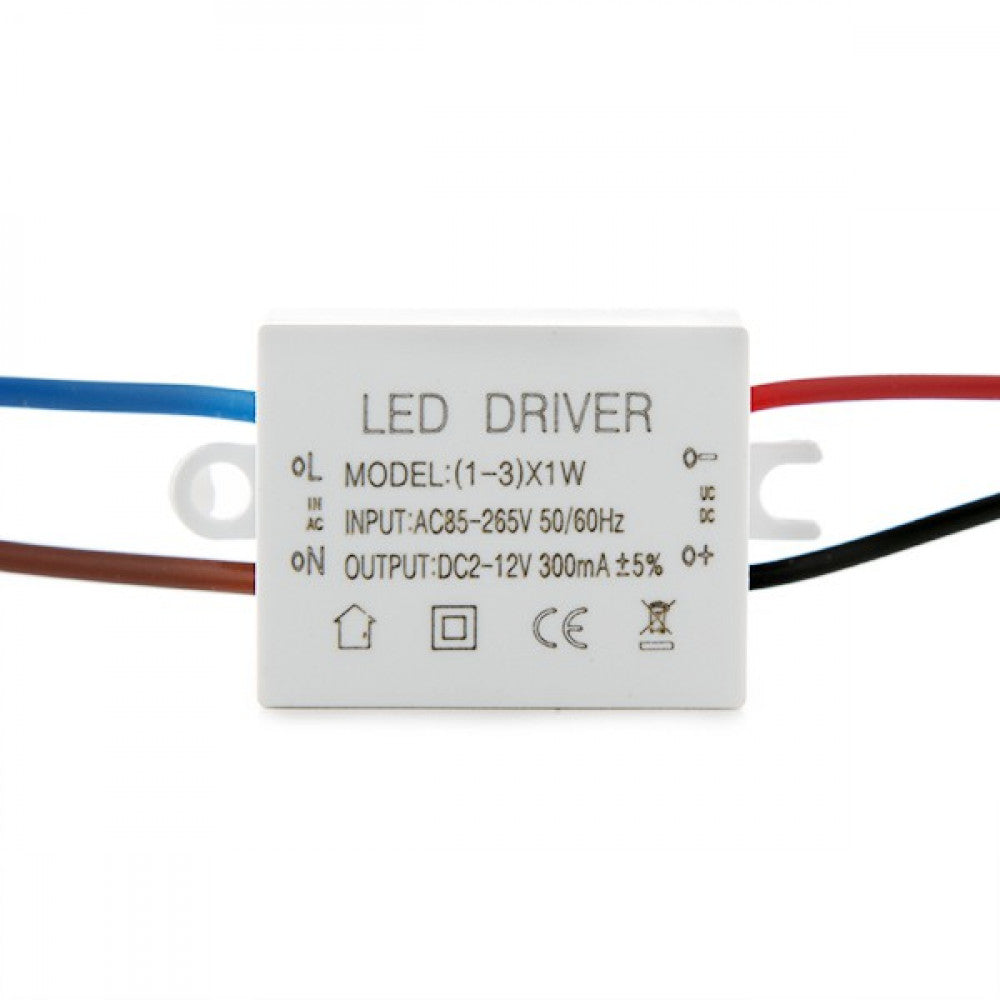

Driver output
DC9-11V
Measures (mm)
Ø35x45
High
45.0
Isolation class
II
Estimated life (H)
40000
Dimable
No
Equivalence (W)
18
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
80000
Diffuser
Opal
Kelvin º
6000
Energy consumption (kWh/1000h)
2.0
Weight (gr)
58
Flicker
0.97
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
30
Minimum cri range
91
Maximum cri range
22
Chromaticity x
0.311
Chromaticity and
0.335
Roof cut (mm)
Ø33
Diameter
35
Número unidades caja exterior
100.0
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
JN-S003-D-CW
Light temperature
Cold White
Power (W)
2.0
Luminosity (LM)
180
Luminous efficacy (LM/W)
90
Type of LEDs
Epistar Led
LED efficacy
99
Opening Angle (º)
45
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/ PC
Facility
IP20
Strain
85-265VAC
Driver output
DC9-11V
Measures (mm)
Ø35x45
High
45.0
Isolation class
II
Estimated life (H)
40000
Dimable
No
Equivalence (W)
18
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
80000
Diffuser
Opal
Kelvin º
6000
Energy consumption (kWh/1000h)
2.0
Weight (gr)
58
Flicker
0.97
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
30
Minimum cri range
91
Maximum cri range
22
Chromaticity x
0.311
Chromaticity and
0.335
Roof cut (mm)
Ø33
Diameter
35
Número unidades caja exterior
100.0
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

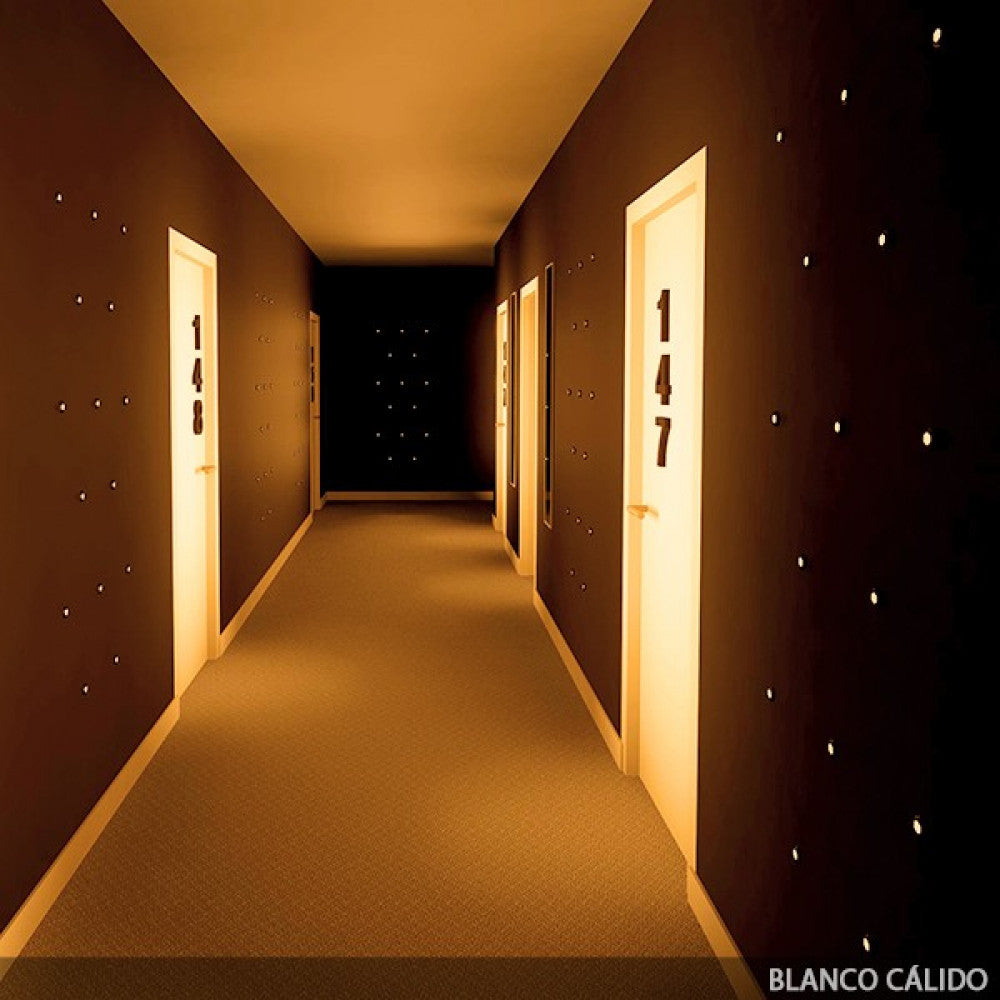

The LED Recessed Spot is perfect as ambient light or beaconing in interior spaces.

The light emitted by the downlight is of high quality and is focused at an angle of 45º. It is mainly used as decorative or auxiliary light in many interior spaces, both in domestic and commercial environments. It is made of aluminum, has a long useful life estimated at 30,000 hours and has a two-year warranty.

Documents

Installation_manual
Technical_drawings
