Solar LED Luminaire 150W 15000Lm 6000ºK IP67 Panel: 6V 18W Battery: 3.2V 15000MaH

Solar LED Luminaire 150W 15000Lm 6000ºK IP67 Panel: 6V 18W Battery: 3.2V 15000MaH

See questions and answers

  • Brand:GreenIce
  • SKU:HO-SOLARSTSMD150W-CW
Reference Stock Price Discount Amount
6000K: Cool White
SKU: HO-SOLARSTSMD150W-CW
Stock available soon
Available
£67.00
£67.00
4000K: Daylight
SKU: HO-SOLARSTSMD150W-W
Stock available soon
Available
£67.00
£67.00
For additional amounts the delivery period is 60 days As of the order date

Warranty

  • Warranty 3 years
  • 360 º Opening

Technical file

Product code
HO-SOLAR-ST-SMD150W-CW
Light temperature
Cold White
Power (W)
150.0
Luminosity (LM)
15000
Luminous efficacy (LM/W)
100
Type of LEDs
SMD5730
LED efficacy
110
Opening Angle (º)
360
CRI
80
Construction
ABS
Facility
IP67
Strain
6V 3,2V 15000MaH
Long
555.0
Measures (mm)
555x555x125
Broad
555.0
High
125.0
Estimated life (H)
40000
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +65
Lighting cycles
80000
Kelvin º
6000
Energy consumption (kWh/1000h)
150.0
Weight (gr)
4250
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non Directional
Single CCT
6000
Connection
No de Red
IK Protection Index
IK08
Número unidades caja exterior
5.0
Fixing diameter
90mm
Applicable standards
EN 55015:2013; EN61547:2009; IEC 62321-3-1:2013; IEC 62321-5:2013; IEC 62321-4:2013; IEC 62321-6:2015; IEC 62321-7-1:2015; IEC 62321-7-2:2017

Characteristics

Product code
HO-SOLAR-ST-SMD150W-CW
Light temperature
Cold White
Power (W)
150.0
Luminosity (LM)
15000
Luminous efficacy (LM/W)
100
Type of LEDs
SMD5730
LED efficacy
110
Opening Angle (º)
360
CRI
80
Construction
ABS
Facility
IP67
Strain
6V 3,2V 15000MaH
Long
555.0
Measures (mm)
555x555x125
Broad
555.0
High
125.0
Estimated life (H)
40000
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +65
Lighting cycles
80000
Kelvin º
6000
Energy consumption (kWh/1000h)
150.0
Weight (gr)
4250
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non Directional
Single CCT
6000
Connection
No de Red
IK Protection Index
IK08
Número unidades caja exterior
5.0
Fixing diameter
90mm
Applicable standards
EN 55015:2013; EN61547:2009; IEC 62321-3-1:2013; IEC 62321-5:2013; IEC 62321-4:2013; IEC 62321-6:2015; IEC 62321-7-1:2015; IEC 62321-7-2:2017

Description

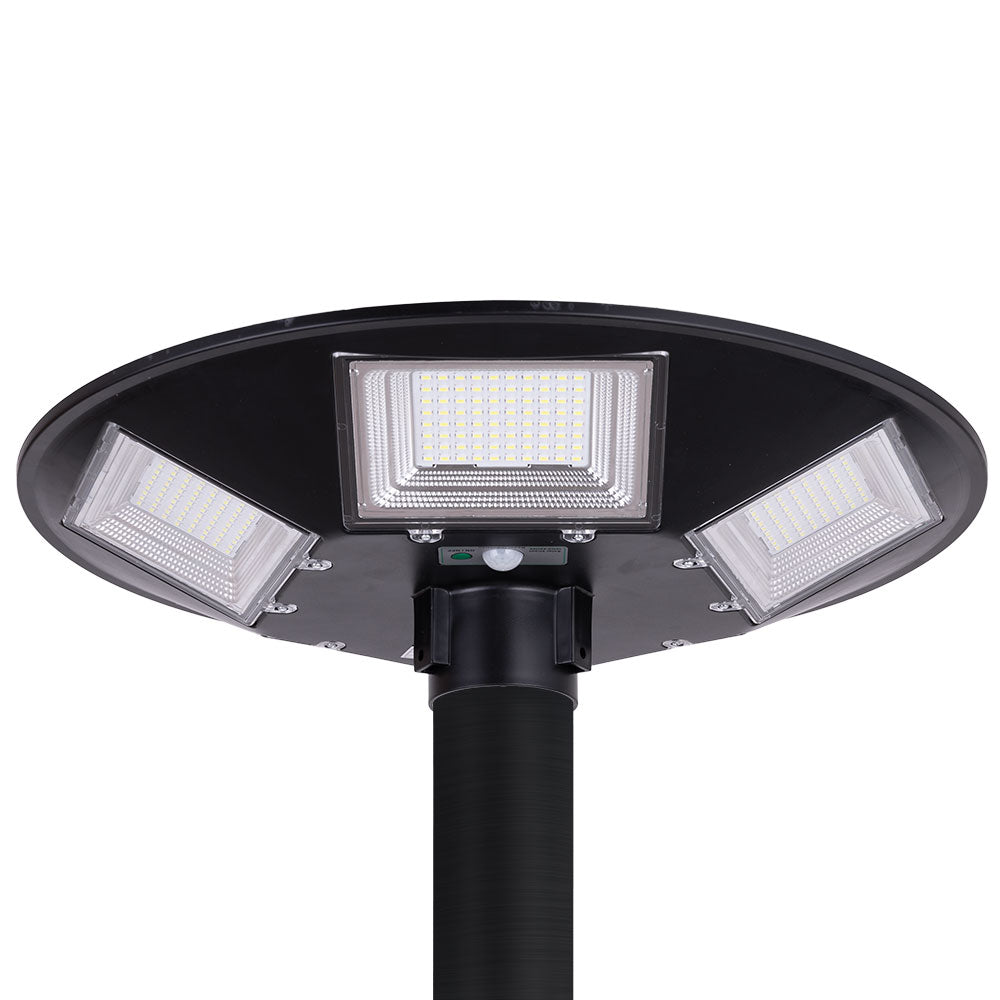

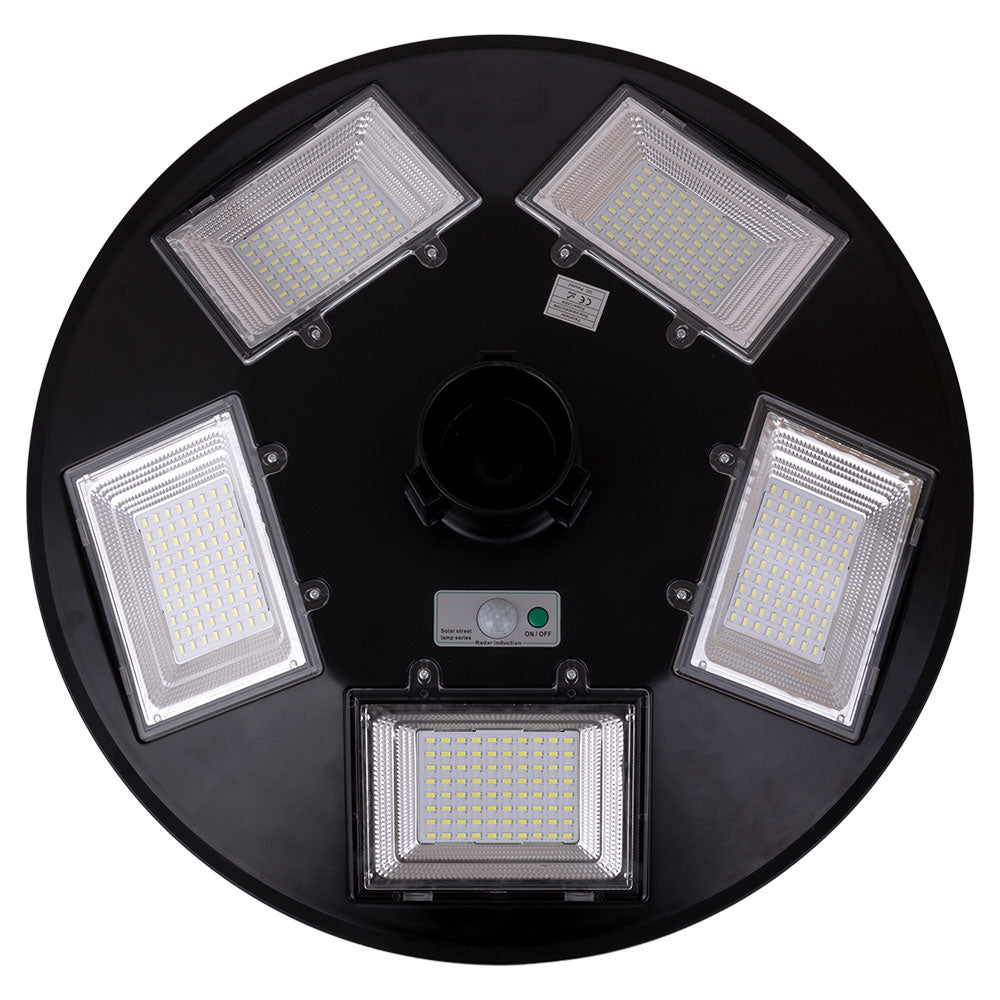

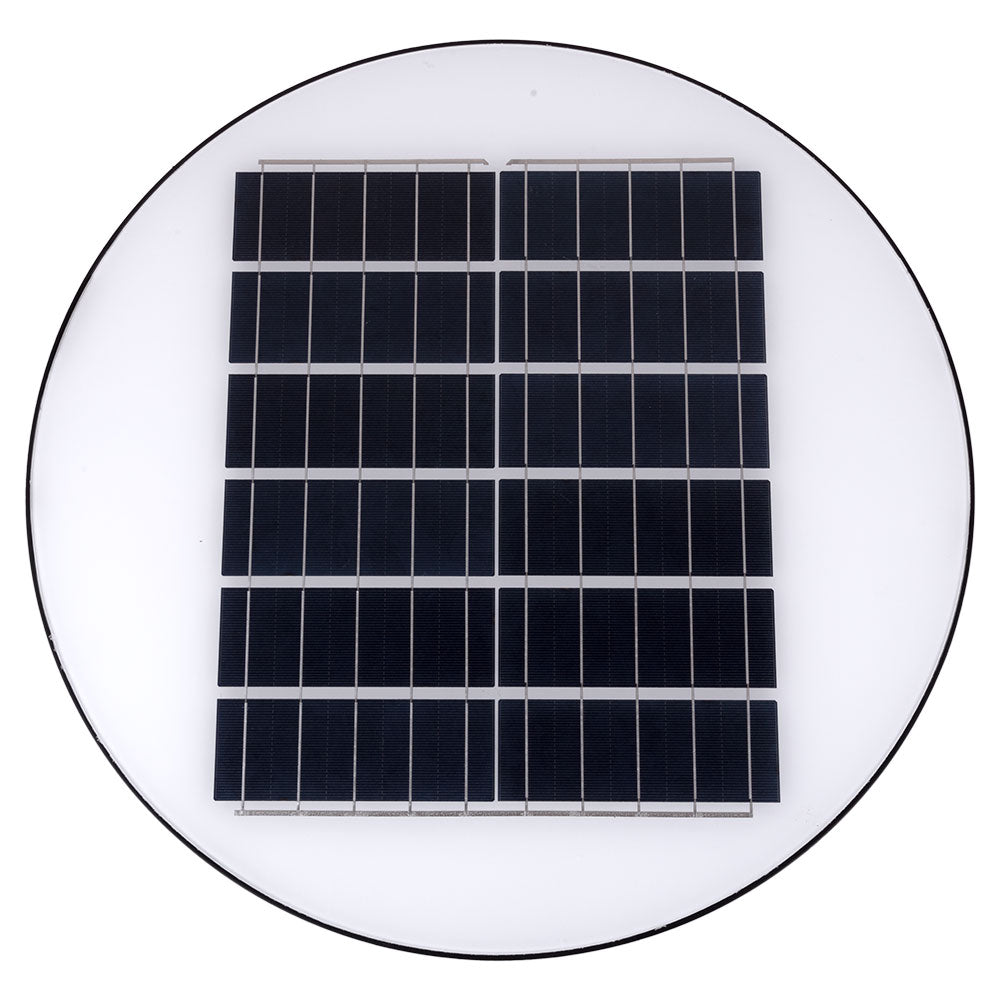

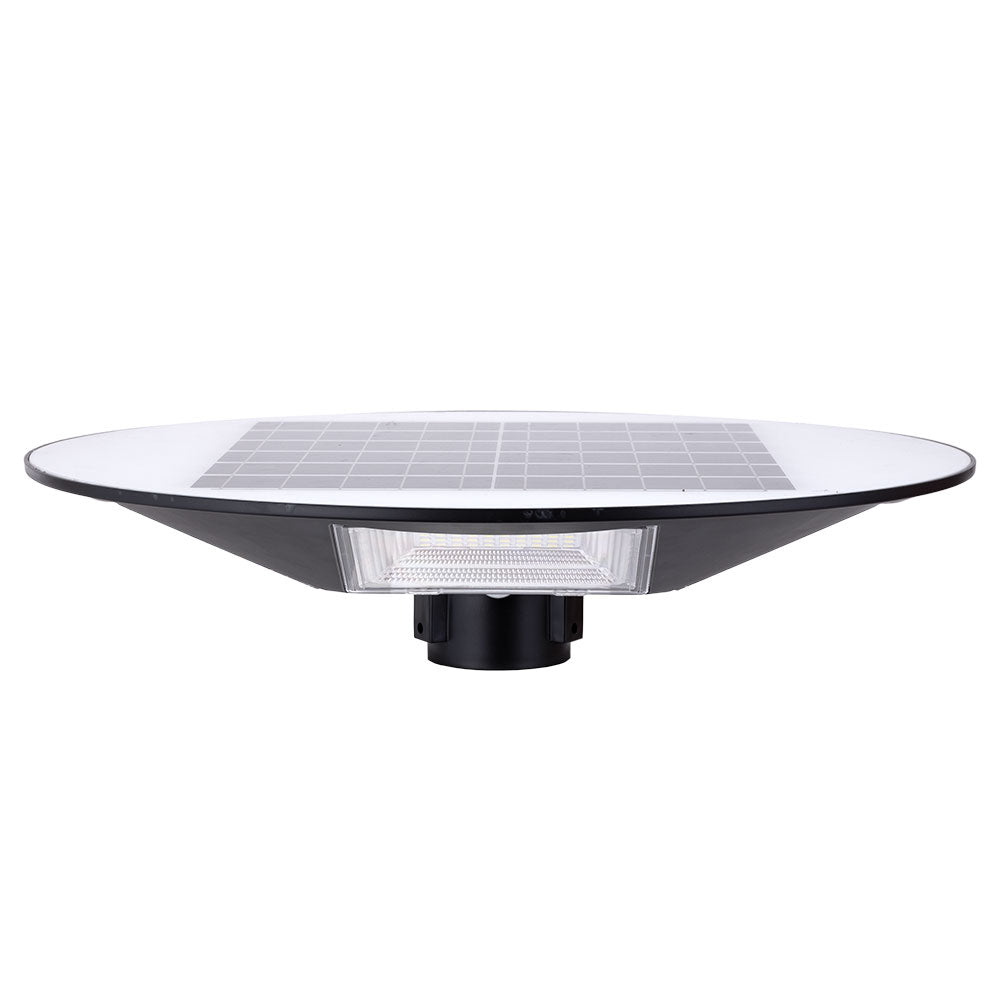

Solar LED street lamp for twilight and with a motion sensor, ideal for public lighting, the maximum charges are reached after 6-8 hours of exposure to the sun.

It has an IP65 protection.

Once assembled, it does not require any type of maintenance, except for superficial cleaning of the panel in case of excessive dirt.

Its operation is automatic thanks to its twilight optical sensor that is activated at dusk.

The remote control to control the lamp is also included.

The battery consists of 6V 3.2V 15000MaH

The fixing diameter is 90mm

Functioning:

The light turns on automatically at dusk with 50% reduced brightness until morning.

The integrated sensor activates the light with maximum intensity for 30 seconds if it detects a presence in a space of 7-8 meters until when it stops detecting movements.

Attention: the stick is not included in the price. Recommended installation height: 3-4 meters.

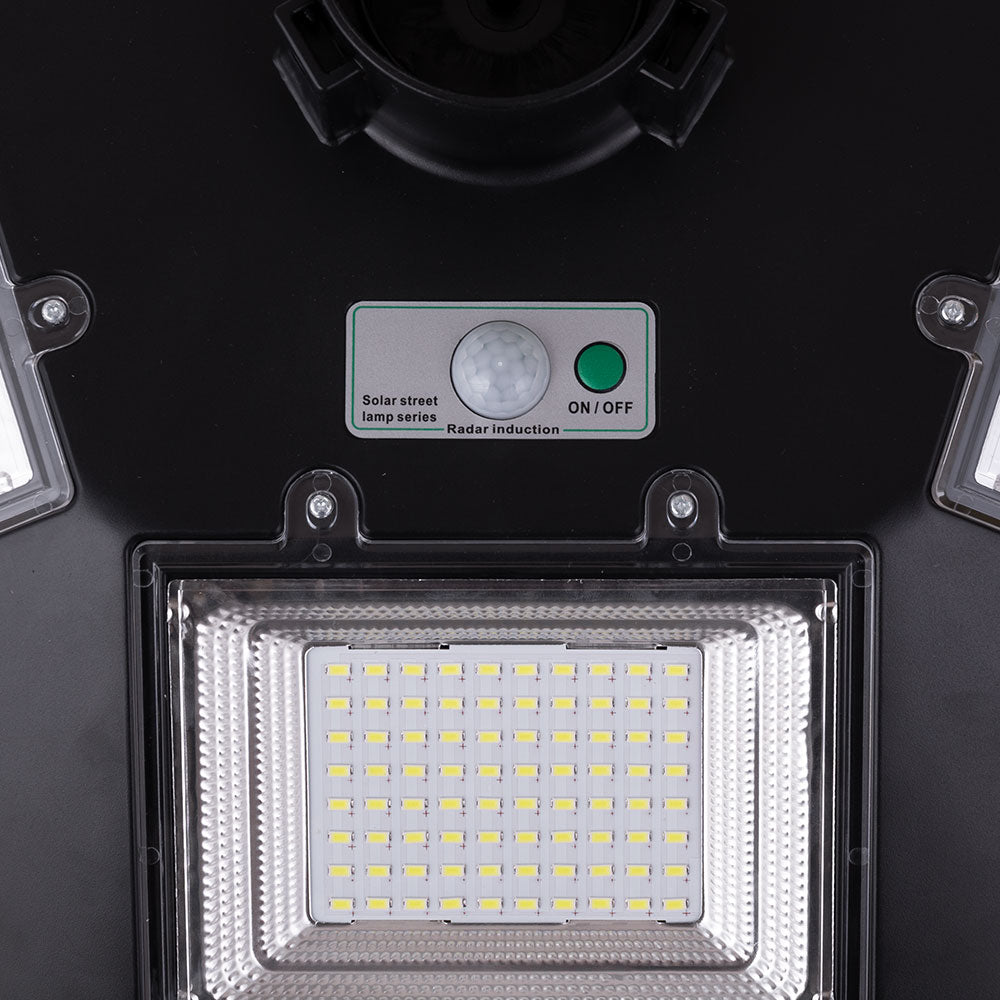

It incorporates a button on the front for permanent payment or to activate its operation through the sensor.

The lamppost is available in cool white (6000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.

Use time from 10 to 12 hours.

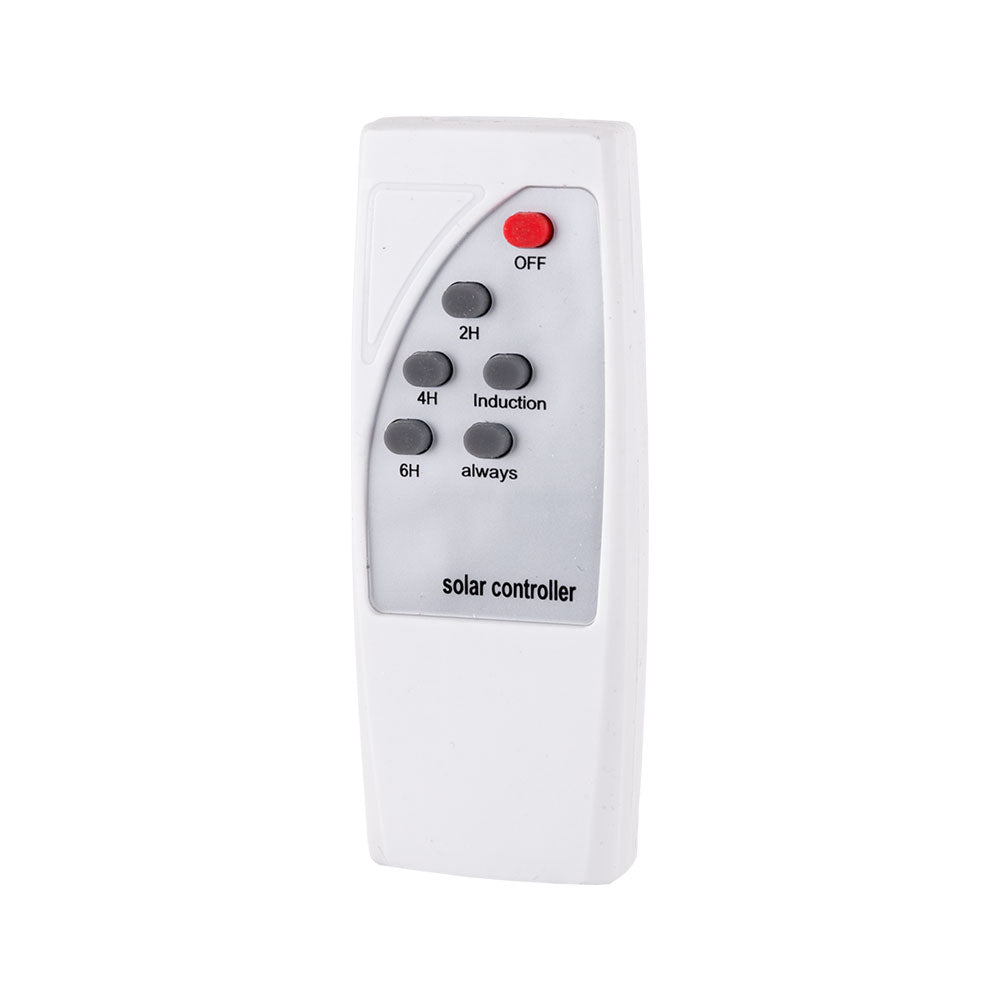

Remote control:

ON/OFF button: the LED projector turns on and by pressing the same button again, the projector turns off. Regardless of ambient light.

OFF button: activates/deactivates the light sensor mode.

2H button: activates the lamp for a continuous period of 2 hours, and repeats the process on subsequent days.

4H button: activates the lamp for a continuous period of 4 hours, and repeats the process on subsequent days.

6H button: Activates the lamp for a continuous period of 2 hours, and repeats the process on subsequent days.

Always: constantly on.
