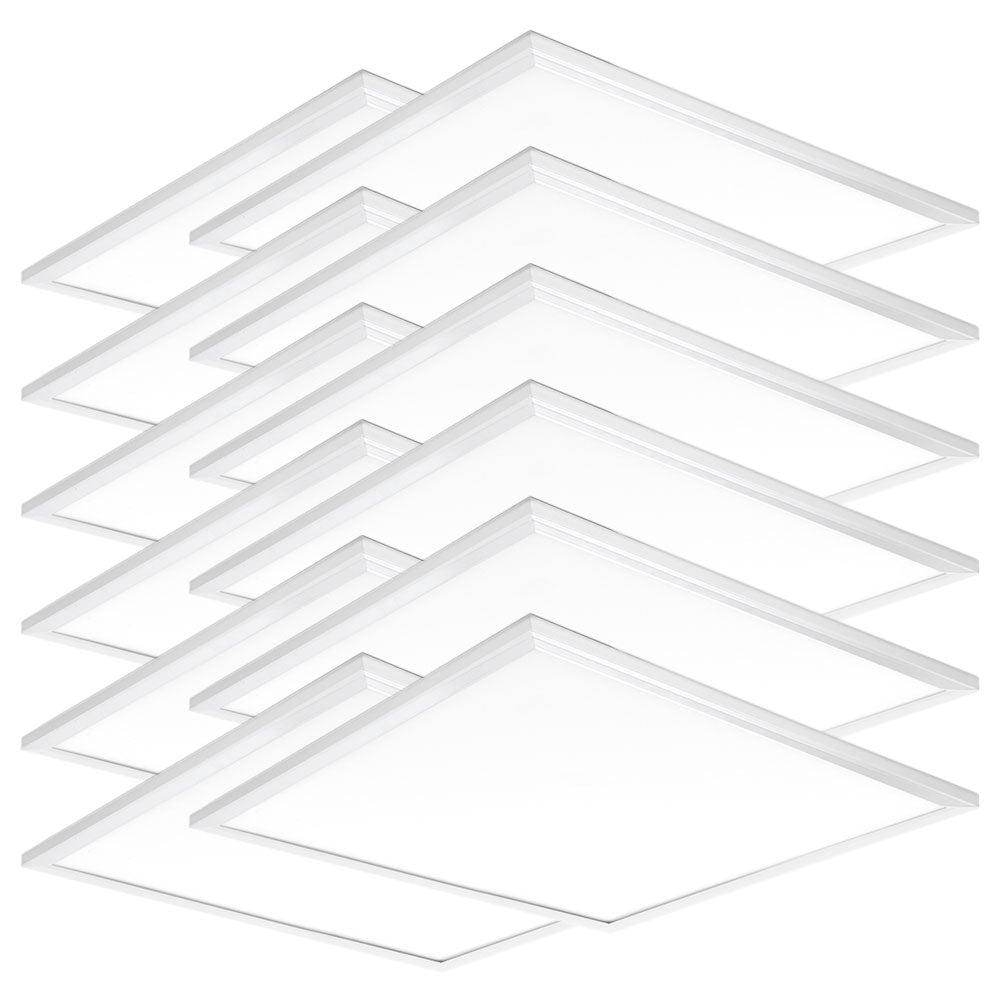

Pack 10 LED Panel 40W 5200Lm 6000ºK 60x60Cm Trellis UGR19 40,000H [HO-PG-600x600-40W-CW-PK10]

Pack 10 LED Panel 40W 5200Lm 6000ºK 60x60Cm Trellis UGR19 40,000H [HO-PG-600x600-40W-CW-PK10]

See questions and answers

  • Brand:GreenIce + Samsung Led
  • SKU:HO-PG-600x600-40W-CW-PK10
E
Reference Stock Price Discount Amount
6000K: Cool White
SKU: HO-PG-600x600-40W-CW-PK10
Free delivery in 48 h ... if you ask before
Stock available
81,34€
81,34€
4200K: Daylight
SKU: HO-PG-600x600-40W-W-PK10
Free delivery in 48 h ... if you ask before
Stock available
81,34€
81,34€
For additional amounts the delivery period is 60 days As of the order date

Warranty

  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
  • Certificado ENEC

Accessories

Technical file

Product code
HO-PG-600x600-40W-CW
Light temperature
Cold White
Power (W)
40.0
Luminosity (LM)
5200
Luminous efficacy (LM/W)
130
Type of LEDs
Samsung LED
LED efficacy
140
Opening Angle (º)
120
CRI
80
UGR
◄19
Power factor (PF)
0.99
Construction
Aluminum/ PC
Facility
IP40
Strain
220-240VAC
Driver output
DC38V-62V 600MA
Measures (mm)
595x595x35
Isolation class
II
Estimated life (H)
40000
Dimable
No
Equivalence (W)
215
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
E
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Opal
Kelvin º
6000
Energy consumption (kWh/1000h)
40.0
Weight (gr)
1900
Flicker
0.83
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
18
Minimum cri range
97
Maximum cri range
1
Chromaticity x
0.306
Chromaticity and
0.331
IK Protection Index
IK05
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Characteristics

Product code
HO-PG-600x600-40W-CW
Light temperature
Cold White
Power (W)
40.0
Luminosity (LM)
5200
Luminous efficacy (LM/W)
130
Type of LEDs
Samsung LED
LED efficacy
140
Opening Angle (º)
120
CRI
80
UGR
◄19
Power factor (PF)
0.99
Construction
Aluminum/ PC
Facility
IP40
Strain
220-240VAC
Driver output
DC38V-62V 600MA
Measures (mm)
595x595x35
Isolation class
II
Estimated life (H)
40000
Dimable
No
Equivalence (W)
215
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
E
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Opal
Kelvin º
6000
Energy consumption (kWh/1000h)
40.0
Weight (gr)
1900
Flicker
0.83
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
18
Minimum cri range
97
Maximum cri range
1
Chromaticity x
0.306
Chromaticity and
0.331
IK Protection Index
IK05
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Description

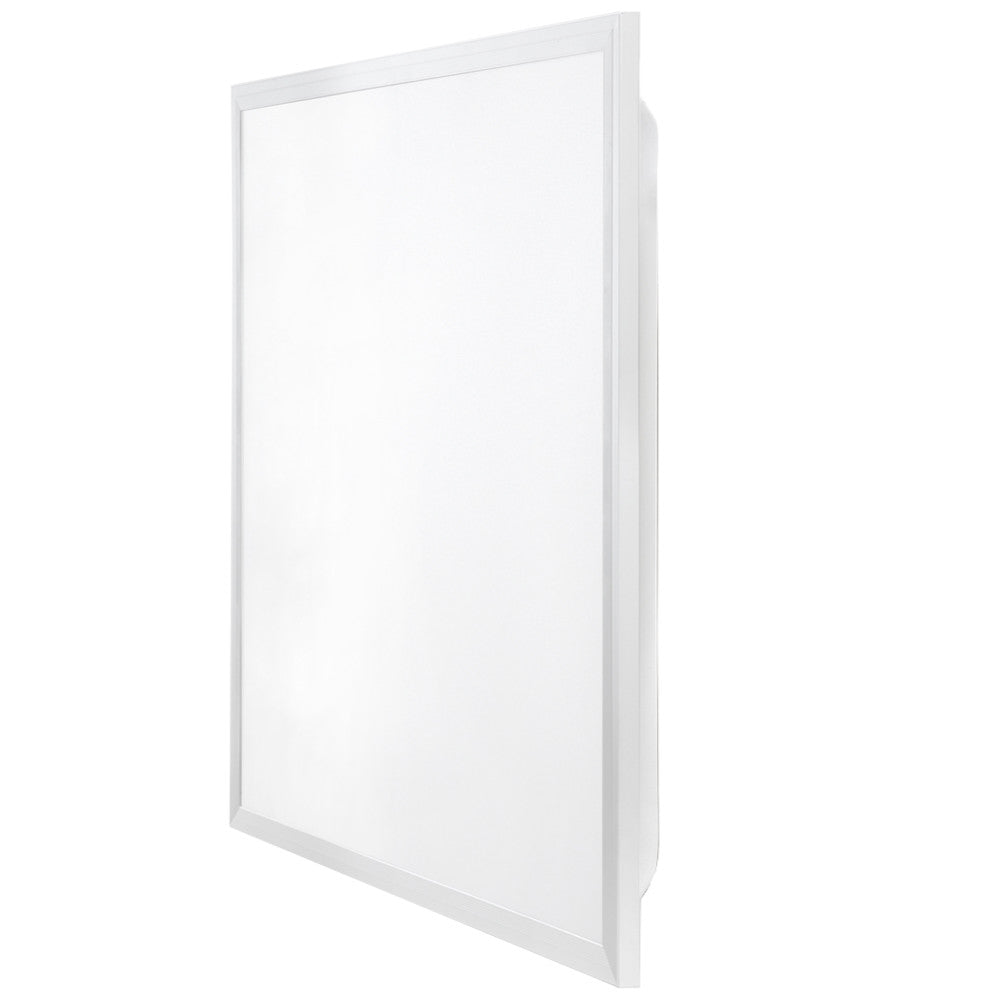

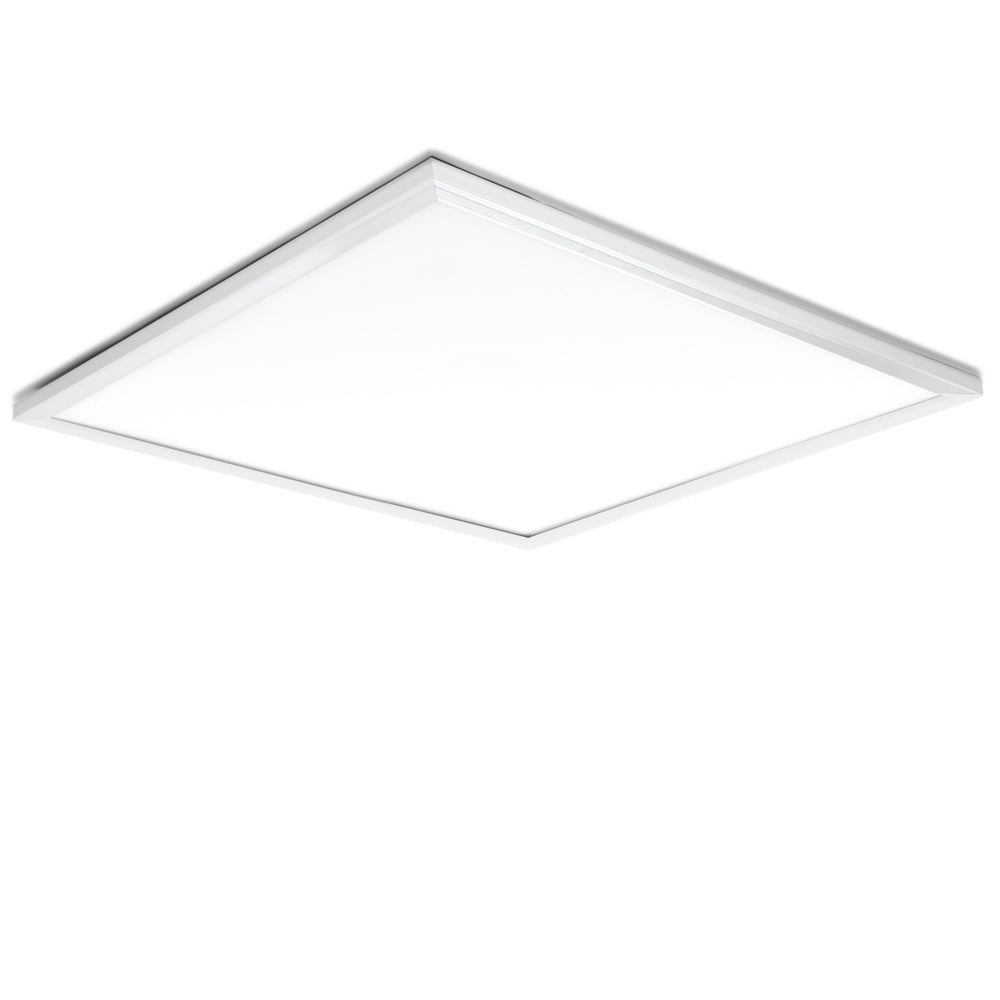

The 60x60Cm lattice LED panel has an elegant finish and a white lacquered aluminum frame. With an immediate start-up, without noise and without flickering, this LED Panel is perfect for places where you want to maximize the illuminated space, projecting light uniformly and without glare.

It offers solutions for offices, factories , supermarkets, shops and for residential use, due to its elegant design and finish, it represents an efficient alternative for the most demanding designers. It can be installed directly to outlets supplied by the electrical network (220-240VAC) with a service frequency of 50/60Hz. It has a high efficacy (130 Lm/W) consuming 40W through SMD2835 type LEDs and managing to provide a luminous flux of 5200Lm uniformly distributed through an opalized plastic diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 200W incandescent bulb, its consumption represents a value of 40kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

This panel is powered by a non-dimmable driver included in the package that must be connected directly to the network.

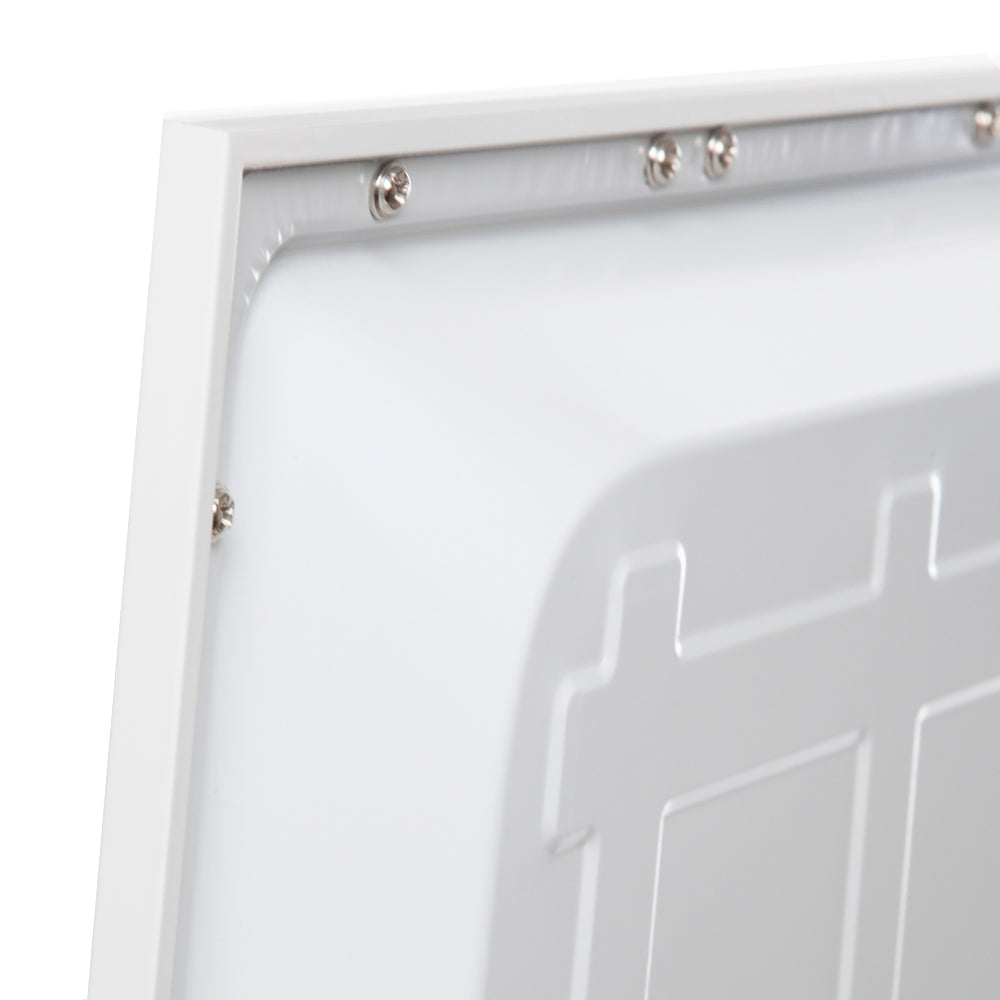

White finish made of aluminum. The panel has an IP40 degree of protection (valid for dust and humidity indoors), in addition to being robust enough for the required mechanical demands.

These extra-flat LED screens consume up to 55% less and they do not require any type of maintenance, with which we avoid substitutions of primers or reactances. And having the advantage of being a much lighter and more manageable product.

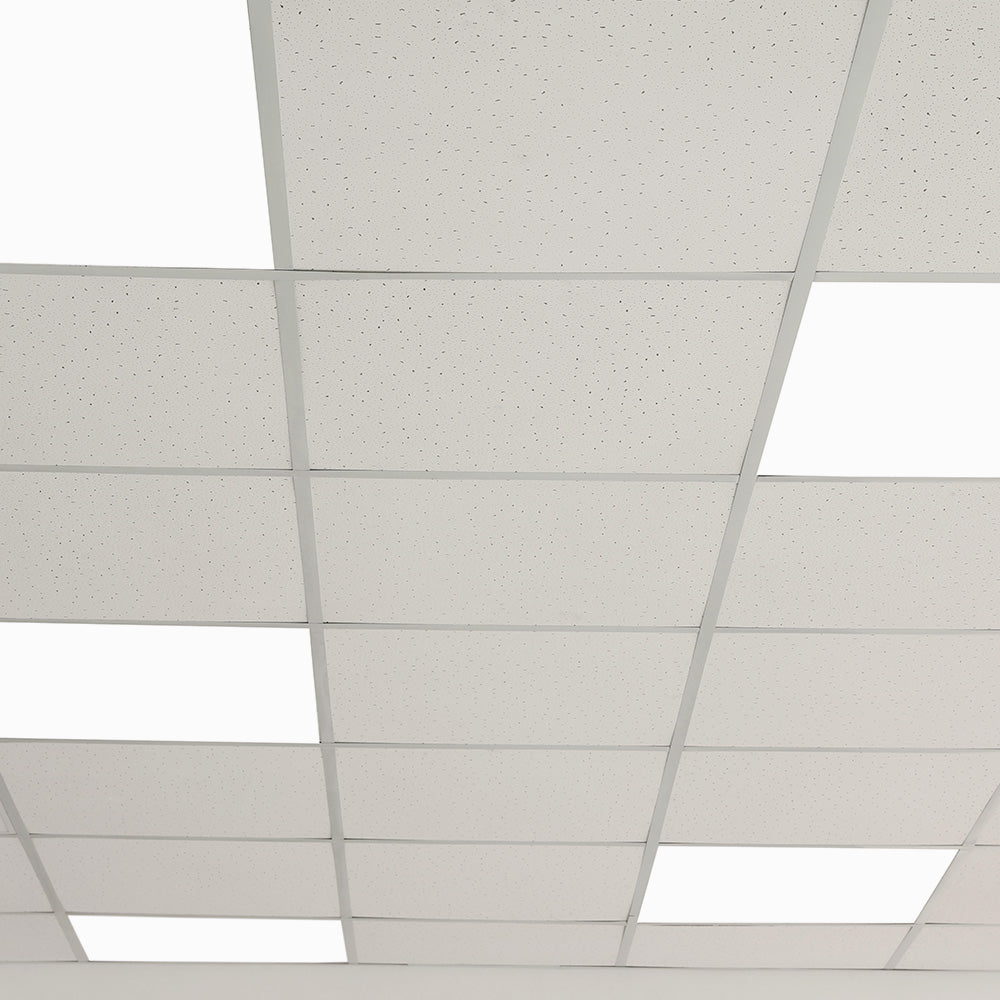

The led panel can be used supported on Armstrong false ceiling, on plasterboard with the help of the fastening clips for led panels, with which we can embed said panel in the ceiling, or with suspension kits for led panels. These kits are made up of four tensors, one in each corner, allowing us to achieve the desired height or inclination to give the perfect touch to our decoration.

This panel is available in natural white (4200°K ) and cool white (6000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.
