Connector for 15W 117.5cm 110lm/W 220VAC Cool White Strip

Connector for 15W 117.5cm 110lm/W 220VAC Cool White Strip

See questions and answers

  • + KIMERA
  • SKU:SKY-PAN-15W-117,5Cm-CW
E
Reference Stock Price Discount Amount
6000K: Cool White
SKU: SKY-PAN-15W-117,5Cm-CW
Delivery in 48 h ... if you ask before
There are few
5,84€
5,84€
For additional amounts the delivery period is 25 days As of the order date

Warranty

  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
  • Certificado ENEC

Technical file

Product code
SKY-PAN-15W-117,5Cm-CW
Light temperature
Cold White
Power (W)
15.0
Luminosity (LM)
1650
Luminous efficacy (LM/W)
110
Type of LEDs
SMD2835
LED efficacy
120
Opening Angle (º)
120
CRI
90
Power factor (PF)
0.99
Construction
Alu/PC
Facility
IP20
Strain
220-240VAC
Long
1175.0
Measures (mm)
1175x22x35
Broad
35.0
High
22.0
Estimated life (H)
50000
Work frequency (Hz)
50/60
Start time (s)
0.1
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20+40
Lighting cycles
100000
Kelvin º
6000
Energy consumption (kWh/1000h)
15.0
Weight (gr)
300
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Single CCT
6000
Minimum cri range
85
Maximum cri range
90
Número unidades caja exterior
30.0

Characteristics

Product code
SKY-PAN-15W-117,5Cm-CW
Light temperature
Cold White
Power (W)
15.0
Luminosity (LM)
1650
Luminous efficacy (LM/W)
110
Type of LEDs
SMD2835
LED efficacy
120
Opening Angle (º)
120
CRI
90
Power factor (PF)
0.99
Construction
Alu/PC
Facility
IP20
Strain
220-240VAC
Long
1175.0
Measures (mm)
1175x22x35
Broad
35.0
High
22.0
Estimated life (H)
50000
Work frequency (Hz)
50/60
Start time (s)
0.1
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20+40
Lighting cycles
100000
Kelvin º
6000
Energy consumption (kWh/1000h)
15.0
Weight (gr)
300
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Single CCT
6000
Minimum cri range
85
Maximum cri range
90
Número unidades caja exterior
30.0

Description

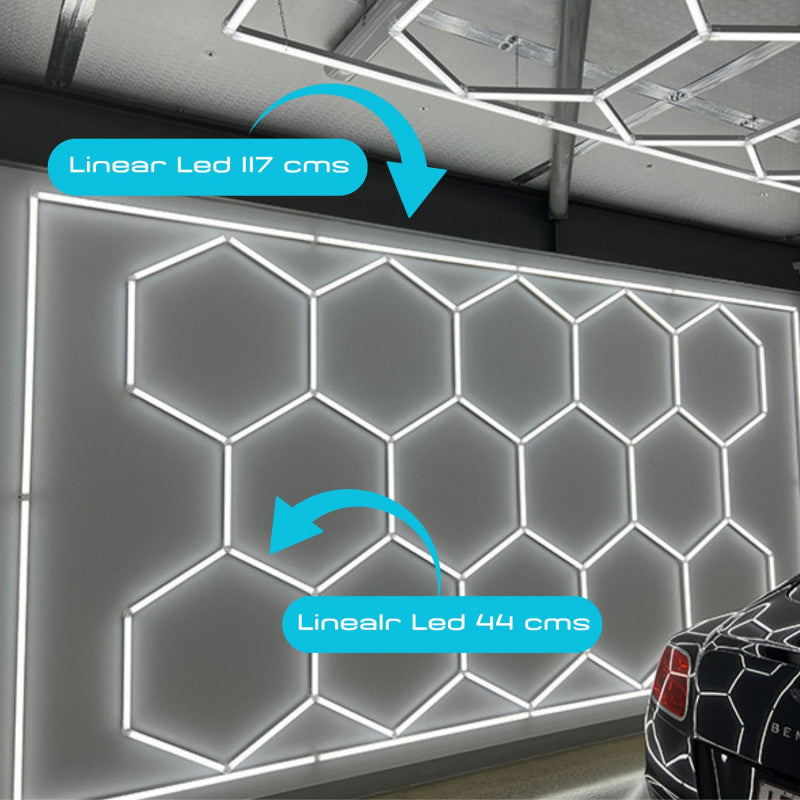

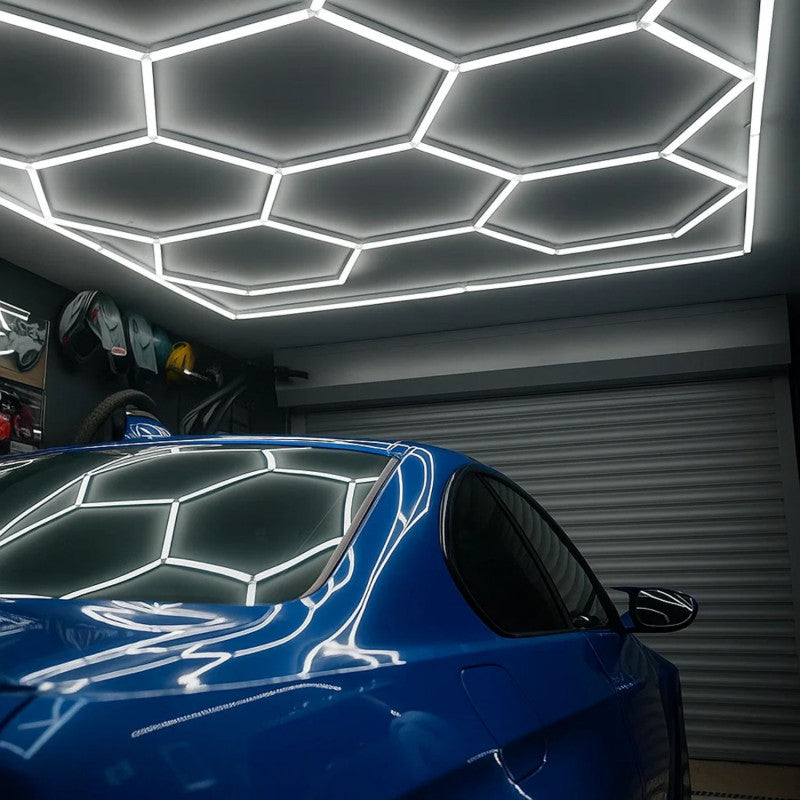

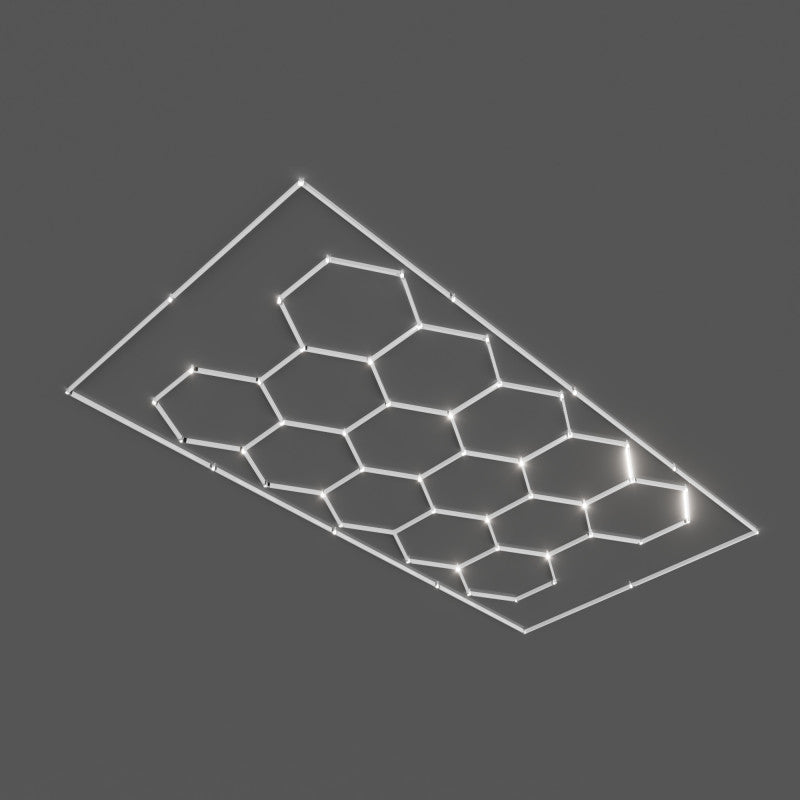

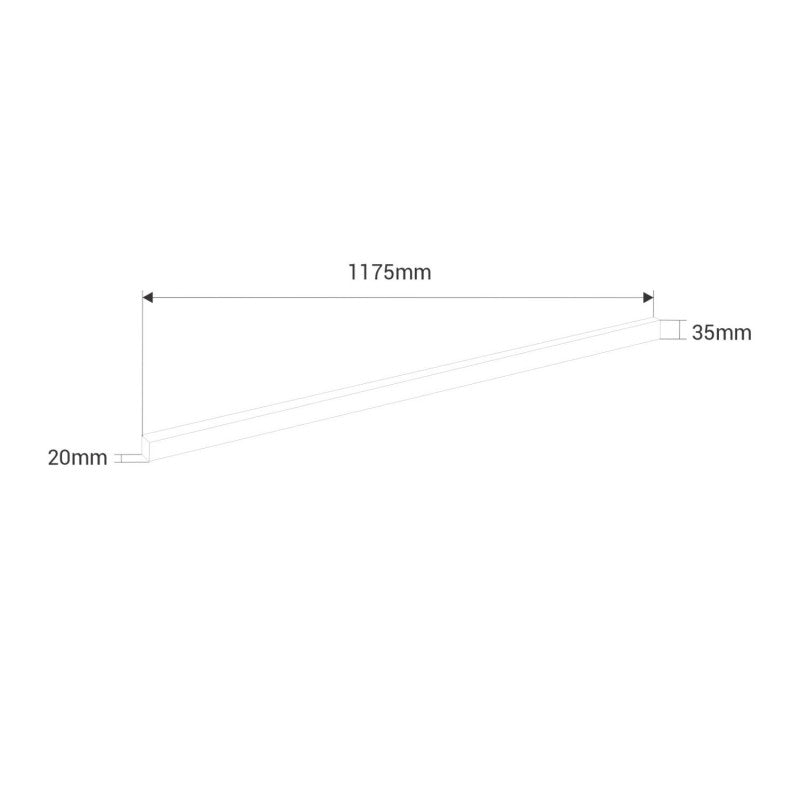

120 cm linear luminaire, specially designed to integrate into hexagonal structures. Cool white tone. Its slim, minimalist design offers a modern and versatile solution for creative projects with dynamic lighting and geometric shapes. Ideal for commercial spaces, offices, studios, or art installations. Designed to highlight ceilings, walls, or suspended structures, this lamp adds visual dynamism and enhances the identity of any space with its lighting effects. • Cool white lighting (6000K): Offers clear, crisp light that highlights the details of the space, suitable for modern, functional, or high-traffic environments. • Modular design: Each luminaire fits perfectly with others to form hexagonal structures or custom compositions, facilitating the creation of unique, modern, and visually striking designs. • Electromagnetic Compatibility (EMC): Operates without interference with other electronic devices, ensuring stability and compliance with technical standards. • Versatile installation: Easily integrates into a wide variety of projects, from decorative installations to architectural solutions. • Precise dimensions: 1175mm long, 22mm wide, 35mm high

Documents

Technical_drawings
