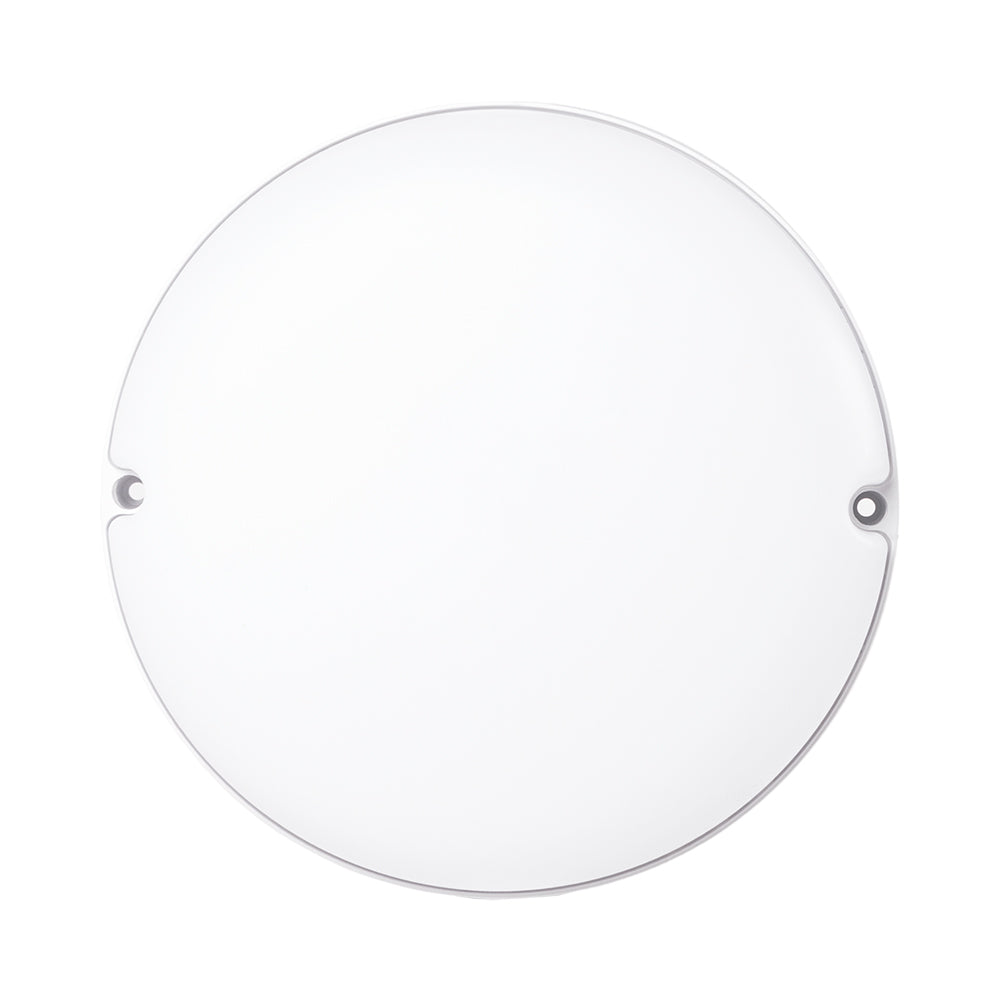

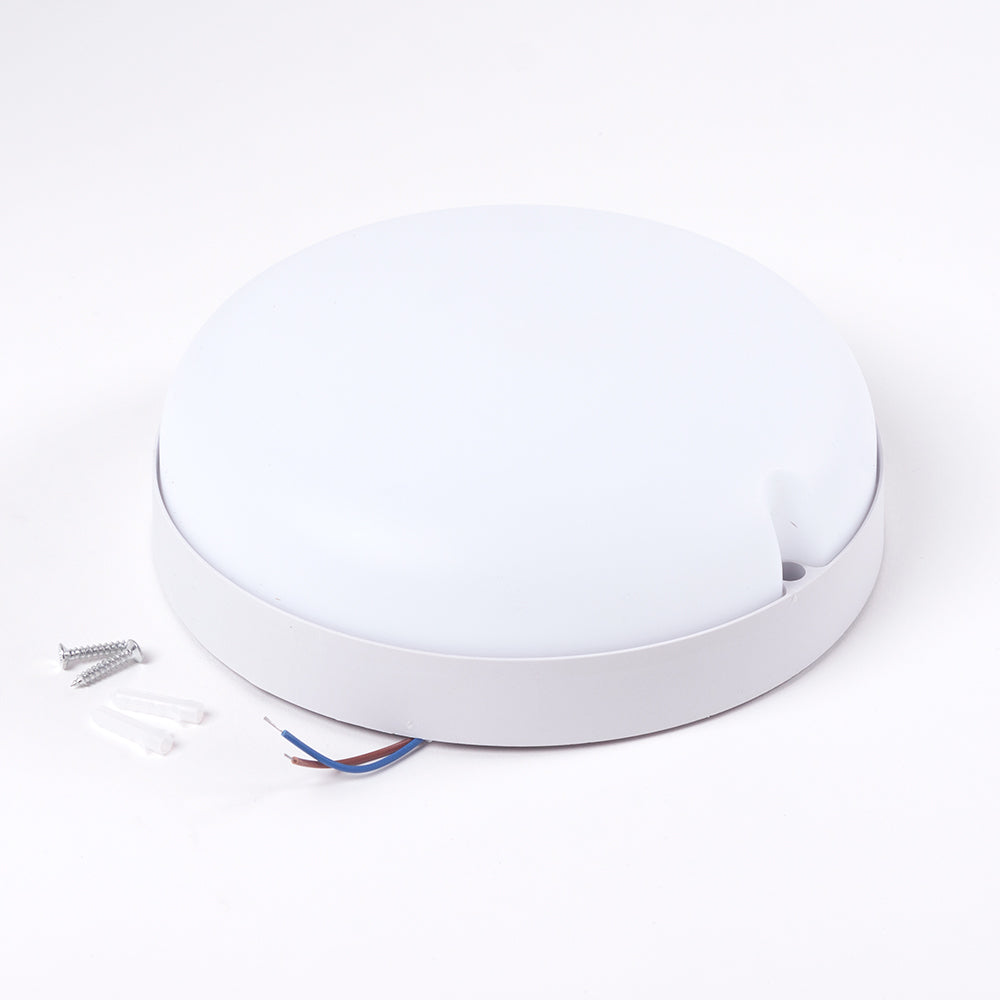

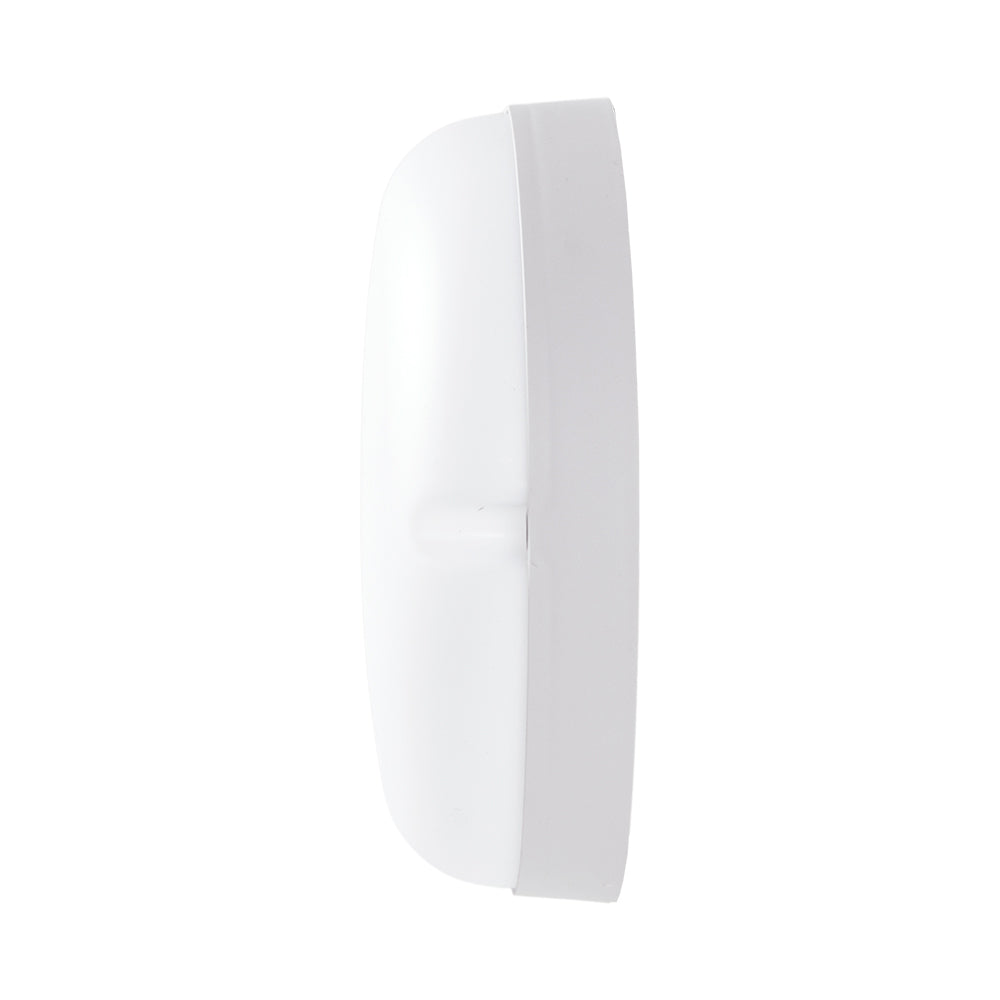

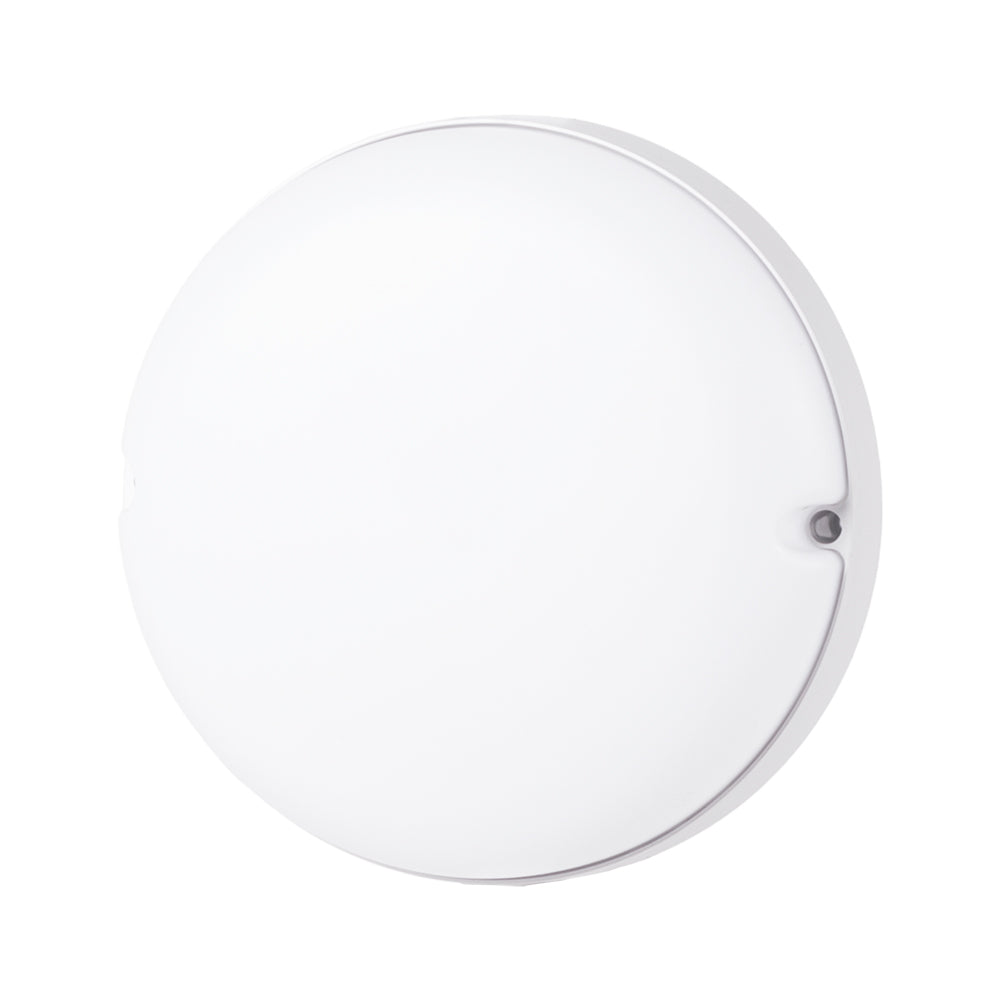

LED ceiling light 24W 2,200Lm 6000ºK IP54 "Braelynn" 40,000H [WR-DLROA-24W-CW]

LED ceiling light 24W 2,200Lm 6000ºK IP54 "Braelynn" 40,000H [WR-DLROA-24W-CW]

See questions and answers

  • Brand:GreenIce
  • SKU:WR-DLROA-24W-CW
Eprel file
Reference Stock Price Discount Amount
6000K: Cool White
SKU: WR-DLROA-24W-CW
Ask for it and collect it in 60 days
Available
9,35€
9,35€
4200K: Daylight
SKU: WR-DLROA-24W-W
Ask for it and collect it in 60 days
Available
9,35€
9,35€
2700K: Warm White
SKU: WR-DLROA-24W-WW
Delivery in 48 h ... if you ask before
Stock available
9,69€
9,69€
For additional amounts the delivery period is 60 days As of the order date

Warranty

  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening

Accessories

Technical file

Product code
WR-DLROA-24W-CW
Light temperature
Cold White
Power (W)
24.0
Luminosity (LM)
2200
Luminous efficacy (LM/W)
91
Type of LEDs
SMD2835
LED efficacy
100
Opening Angle (º)
120
CRI
80
Power factor (PF)
0.6
Construction
Aluminum/ PC
Facility
IP54
Strain
165-285V
Driver output
DC36-75V 160MA
Measures (mm)
Ø206x65
High
65.0
Isolation class
II
Estimated life (H)
40000
Dimable
No
Equivalence (W)
160
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +65
Lighting cycles
100000
Diffuser
Opal
Kelvin º
6000
Energy consumption (kWh/1000h)
24.0
Weight (gr)
200
Flicker
0.85
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
36
Minimum cri range
95
Maximum cri range
11
Chromaticity x
0.304
Chromaticity and
0.312
IK Protection Index
IK07
Diameter
206
Número unidades caja exterior
20.0
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Characteristics

Product code
WR-DLROA-24W-CW
Light temperature
Cold White
Power (W)
24.0
Luminosity (LM)
2200
Luminous efficacy (LM/W)
91
Type of LEDs
SMD2835
LED efficacy
100
Opening Angle (º)
120
CRI
80
Power factor (PF)
0.6
Construction
Aluminum/ PC
Facility
IP54
Strain
165-285V
Driver output
DC36-75V 160MA
Measures (mm)
Ø206x65
High
65.0
Isolation class
II
Estimated life (H)
40000
Dimable
No
Equivalence (W)
160
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +65
Lighting cycles
100000
Diffuser
Opal
Kelvin º
6000
Energy consumption (kWh/1000h)
24.0
Weight (gr)
200
Flicker
0.85
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
36
Minimum cri range
95
Maximum cri range
11
Chromaticity x
0.304
Chromaticity and
0.312
IK Protection Index
IK07
Diameter
206
Número unidades caja exterior
20.0
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Description

The IP54 ceiling light is, without a doubt, a very decorative and versatile element that will adapt to any style.

The high quality PC finish and its factor of IP54 protection make this device resistant to dust and water. Therefore, we can install the IP54 ceiling light in a large number of spaces such as balconies, facades, gardens or exterior walkways. It can be fixed to any type of surface by screwing the wall and ceiling lights.

This wall light is a very decorative and versatile element that will adapt to any style. The high-quality finish and its IP54 protection factor make this device resistant to dust and splashes of water. Therefore, we can install it in a large number of spaces such as balconies, canopies or covered outdoor walkways.

It can be fixed to any type of surface by screwing the wall light to any wall. To maintain IP54 protection, the customer must ensure that all supplied components are properly fixed and secured.

Although it is intended for use outdoors, the elegant design of this ceiling lamp makes it a an LED lighting element that can be used in less common environments such as corridors, stairs and even bathrooms, either at home or in commercial spaces such as restaurants and hotels. Useful life of 30,000 hours, ten times more than a conventional luminaire.

This wall light is available in warm white (3000ºK), natural white (4200ºK) and cool white (6000ºK). The indicated color temperature may fluctuate corresponding to a tolerance of 7%.

Documents

Installation_manual
