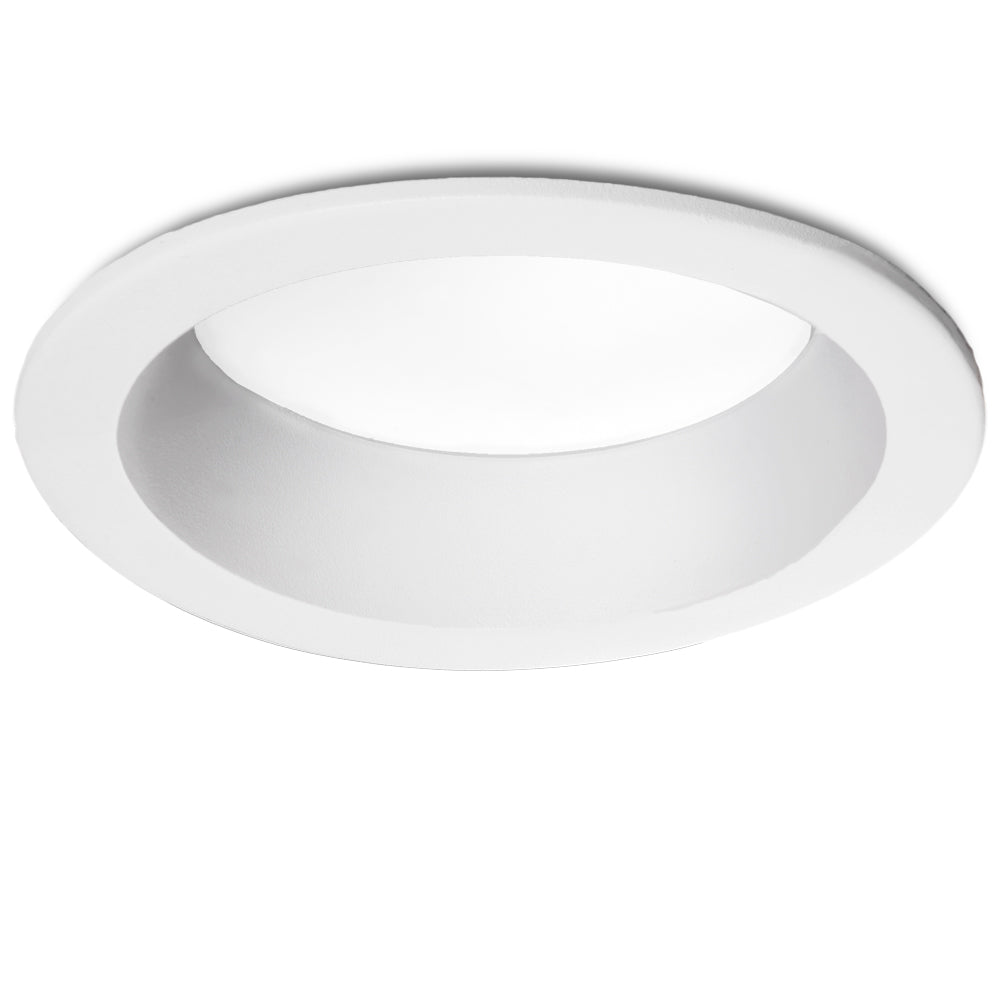

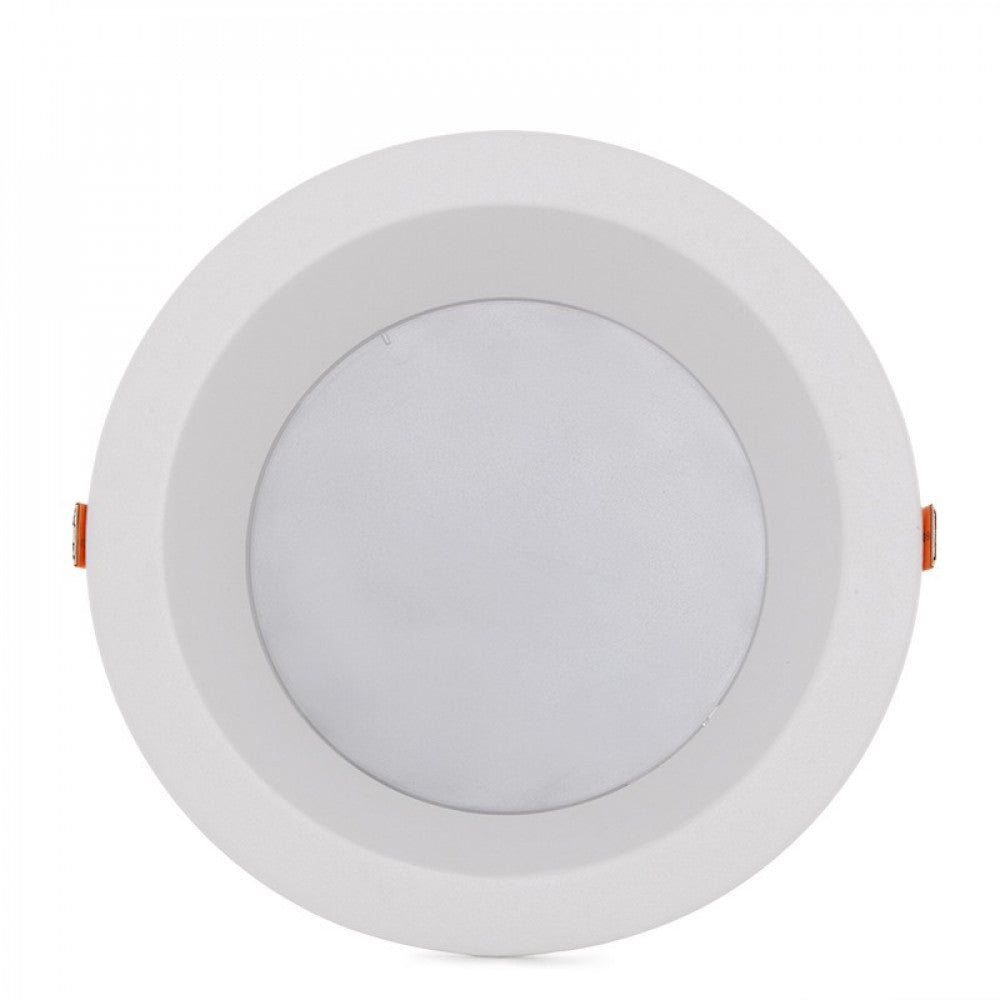

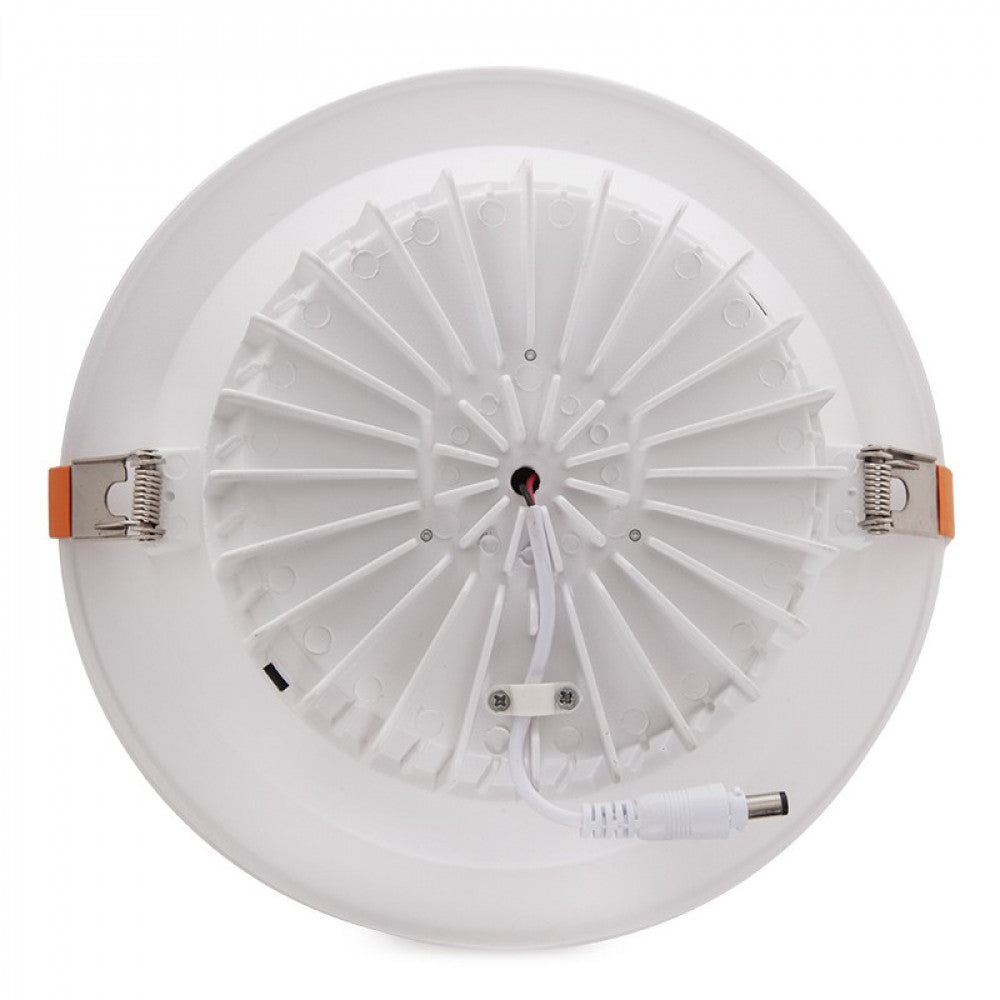

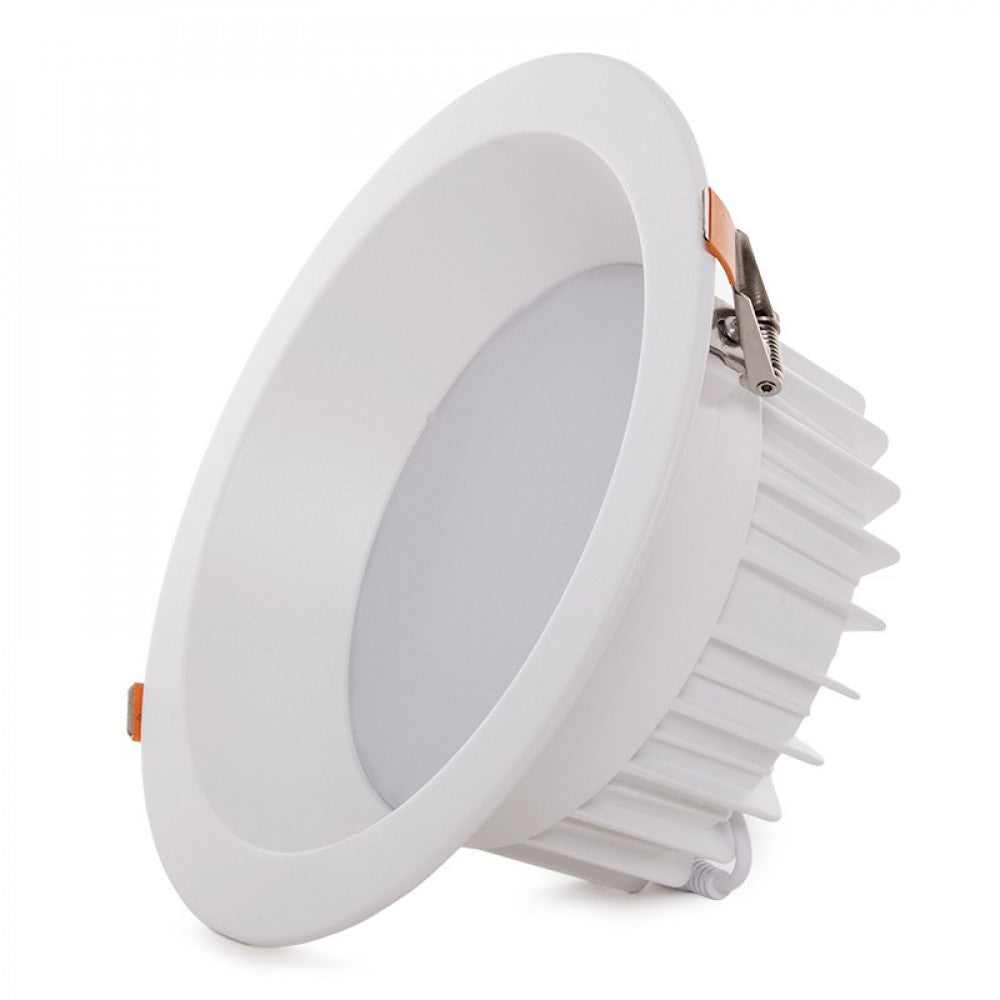

LED Circular Downlight Spotlight 20W 2,000Lm 6000ºK Anti-Glare UGR19 40,000H [HO-DL-AD-20W-CW]

LED Circular Downlight Spotlight 20W 2,000Lm 6000ºK Anti-Glare UGR19 40,000H [HO-DL-AD-20W-CW]

See questions and answers

  • Brand:GreenIce + Philips Led
  • SKU:HO-DL-AD-20W-CW
Eprel file
Reference Stock Price Discount Amount
6000K: Cool White
SKU: HO-DL-AD-20W-CW
Delivery in 48 h ... if you ask before
Stock available
14,85€
14,85€
4200K: Daylight
SKU: HO-DL-AD-20W-W
Delivery in 48 h ... if you ask before
Stock available
14,85€
14,85€
For additional amounts the delivery period is 60 days As of the order date

Warranty

  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening

Accessories

Technical file

Product code
HO-DL-AD-20W-CW
Light temperature
Cold White
Power (W)
20.0
Luminosity (LM)
2800
Luminous efficacy (LM/W)
140
Type of LEDs
Philips Led
LED efficacy
154
Opening Angle (º)
120
CRI
80
UGR
◄19
Power factor (PF)
0.98
Construction
Aluminum/ PC
Facility
IP20
Strain
220-240VAC
Driver output
30-42 V
Measures (mm)
Ø190x95
High
95.0
Isolation class
II
Estimated life (H)
40000
Dimable
No
Equivalence (W)
135
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
D
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Kelvin º
6000
Energy consumption (kWh/1000h)
20.0
Weight (gr)
670
Flicker
0.81
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
25
Minimum cri range
93
Maximum cri range
2
Chromaticity x
0.322
Chromaticity and
0.349
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Roof cut (mm)
Ø160
Diameter
190
Número unidades caja exterior
20.0
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
HO-DL-AD-20W-CW
Light temperature
Cold White
Power (W)
20.0
Luminosity (LM)
2800
Luminous efficacy (LM/W)
140
Type of LEDs
Philips Led
LED efficacy
154
Opening Angle (º)
120
CRI
80
UGR
◄19
Power factor (PF)
0.98
Construction
Aluminum/ PC
Facility
IP20
Strain
220-240VAC
Driver output
30-42 V
Measures (mm)
Ø190x95
High
95.0
Isolation class
II
Estimated life (H)
40000
Dimable
No
Equivalence (W)
135
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
D
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Kelvin º
6000
Energy consumption (kWh/1000h)
20.0
Weight (gr)
670
Flicker
0.81
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
25
Minimum cri range
93
Maximum cri range
2
Chromaticity x
0.322
Chromaticity and
0.349
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Roof cut (mm)
Ø160
Diameter
190
Número unidades caja exterior
20.0
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

The 190mm diameter circular LED Downlight with a thickness of (95mm) offers solutions for offices, factories, supermarkets, shops and for residential use. It can be installed directly to sockets current supplied by the electrical network (85-265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (140 Lm/W) consuming 20W through an SMD2835 type LED and managing to provide a luminous flux of 2800Lm uniformly distributed by an anti-glare opal diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 160W incandescent bulb, its consumption represents a value of 20kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

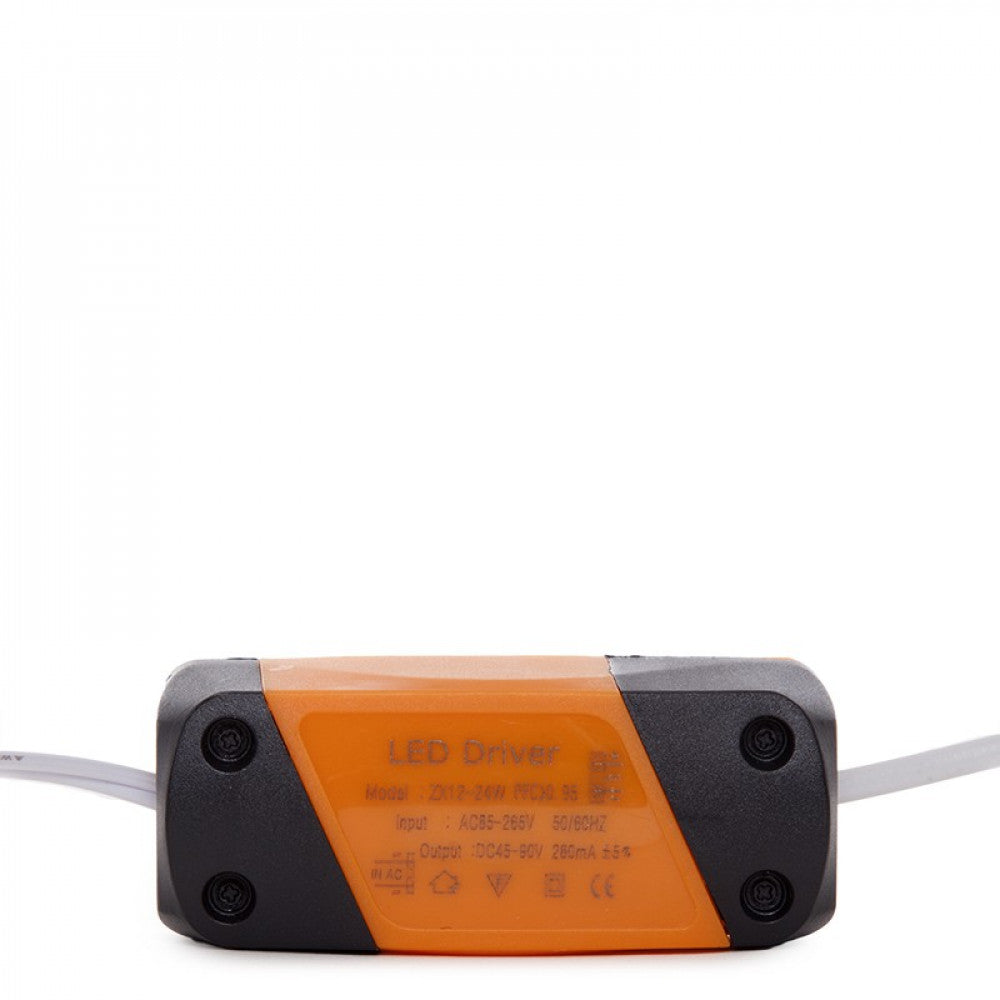

This downlight is powered by a Non-dimmable driver included in the package that must be connected directly to the network, with an output connector compatible with the connection of the downlight (45-90VDC, 300mA), additionally the necessary accessories for the installation of the downlight are included. White finish built with aluminum and polycarbonate. The Downlight has an IP20 degree of protection (valid for dust and humidity indoors), as well as being robust enough for the required mechanical demands.

It is made of high-quality materials such as aluminium, which ensures the durability of the spotlight. It offers uniform lighting without annoying reflections. In addition, it has the CE and RoHS certificates, which are synonymous with quality and safety.

The Downlight spotlight has a high color rendering index (CRI 80) and, therefore, , ensures distortion-free color reproduction. This factor is key in commercial environments and spaces where products are displayed in general, such as supermarkets, shops, malls, museums, dealerships, restaurants, etc.

This Downlight It is available in natural white (4200°K), cool white (6000°K) and warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.

Documents

Installation_manual
Technical_drawings
