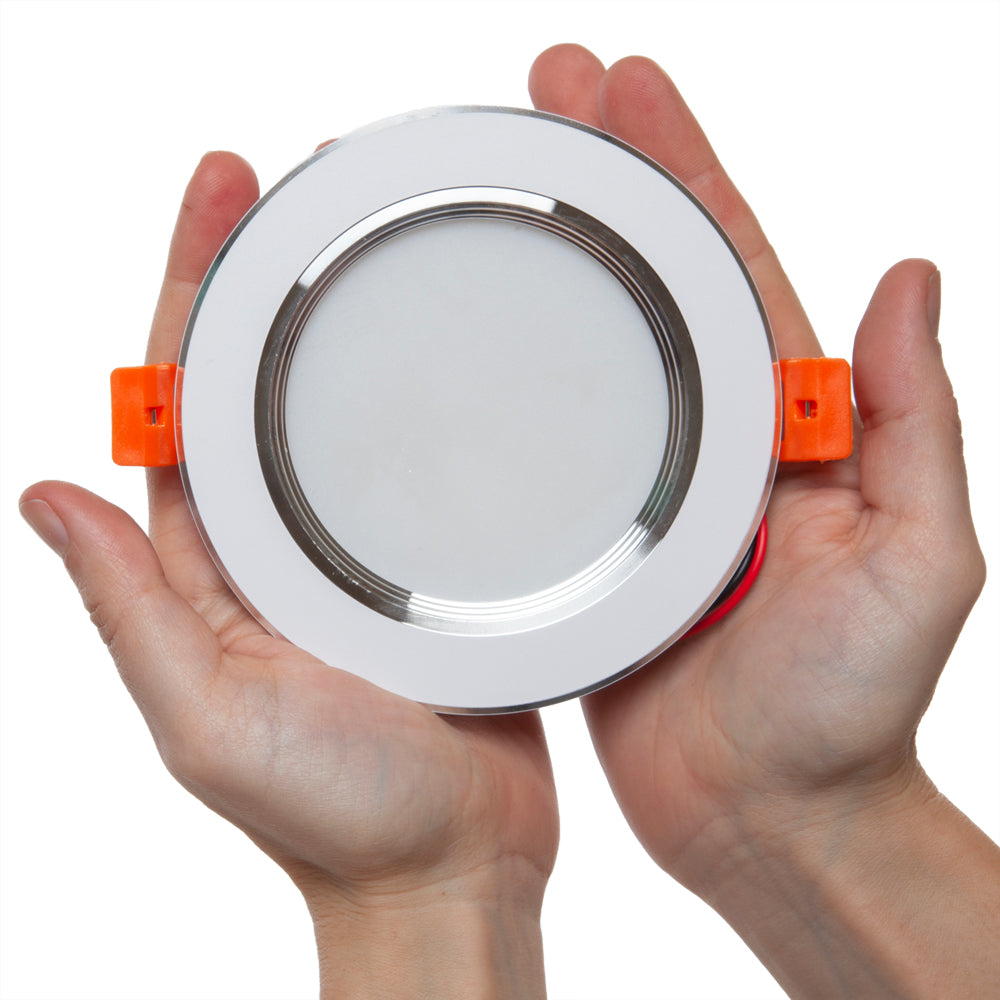

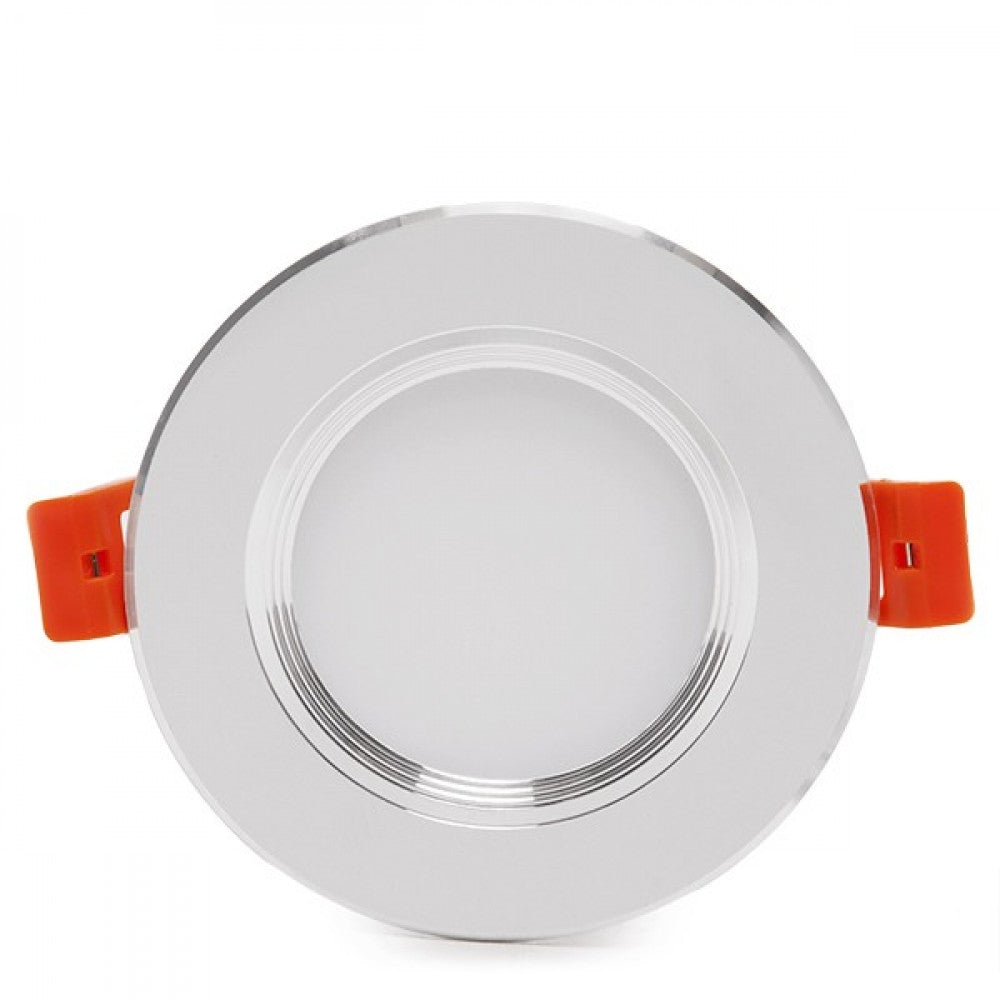

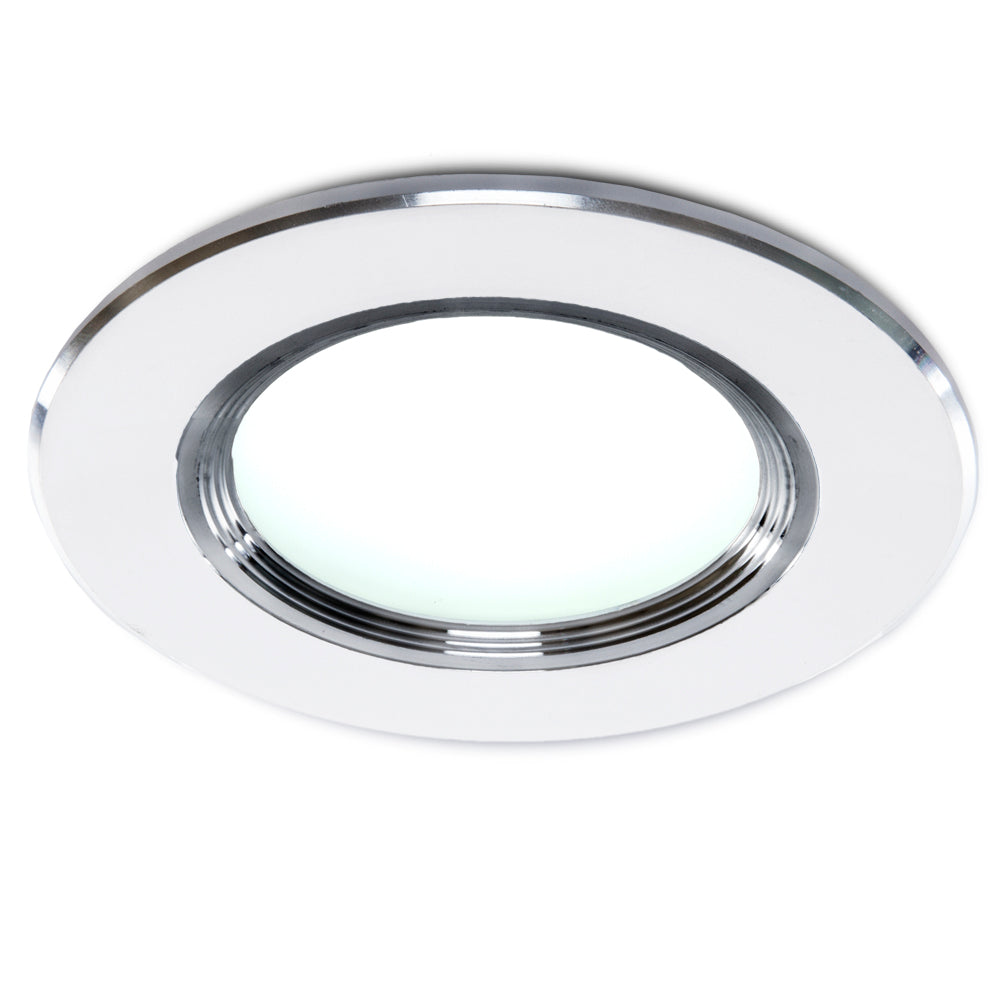

LED Downlight Spotlight 7W 560Lm 6000ºK 40,000H [PCE-DL7W-CW]

LED Downlight Spotlight 7W 560Lm 6000ºK 40,000H [PCE-DL7W-CW]

See questions and answers

  • Brand:GreenIce + Epistar Led
  • SKU:PCE-DL7W-CW
Eprel file
Reference Stock Price Discount Amount

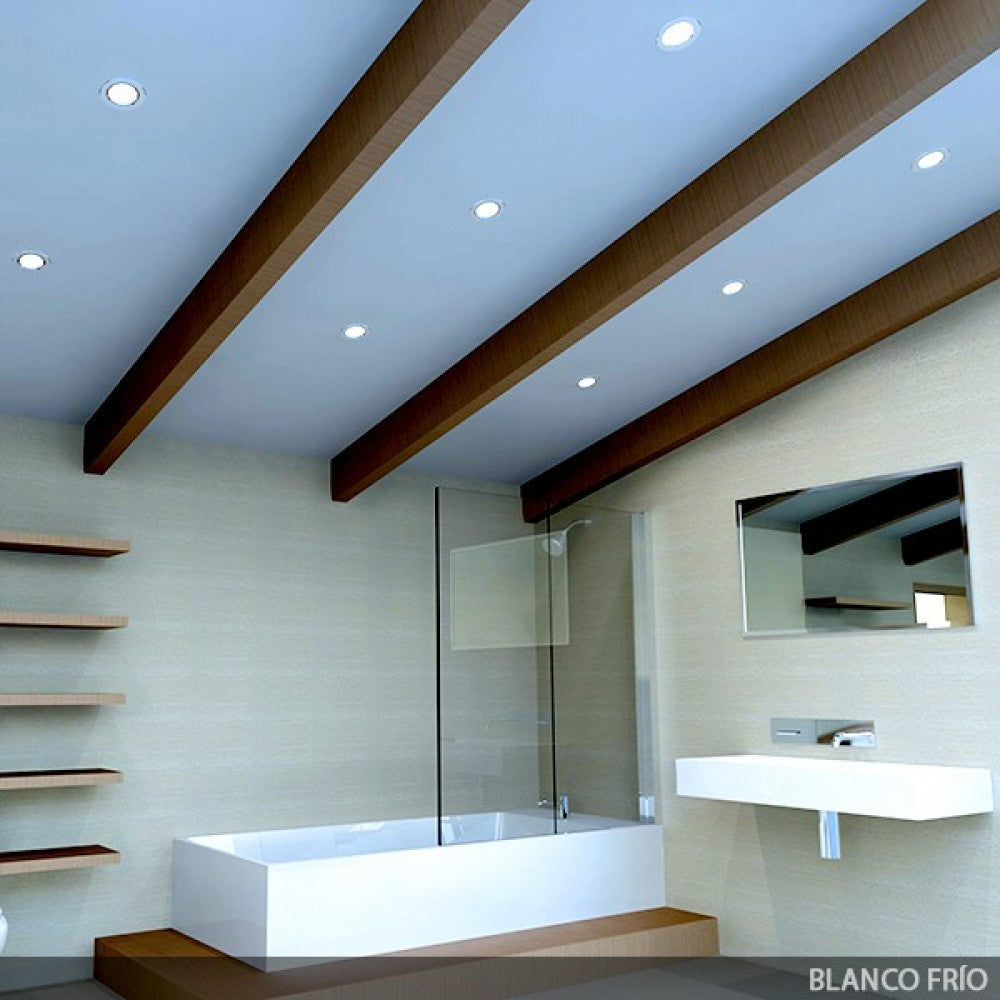

6000K: Cool White
SKU: PCE-DL7W-CW
Delivery in 48 h ... if you ask before
Stock available
4,28€
4,28€

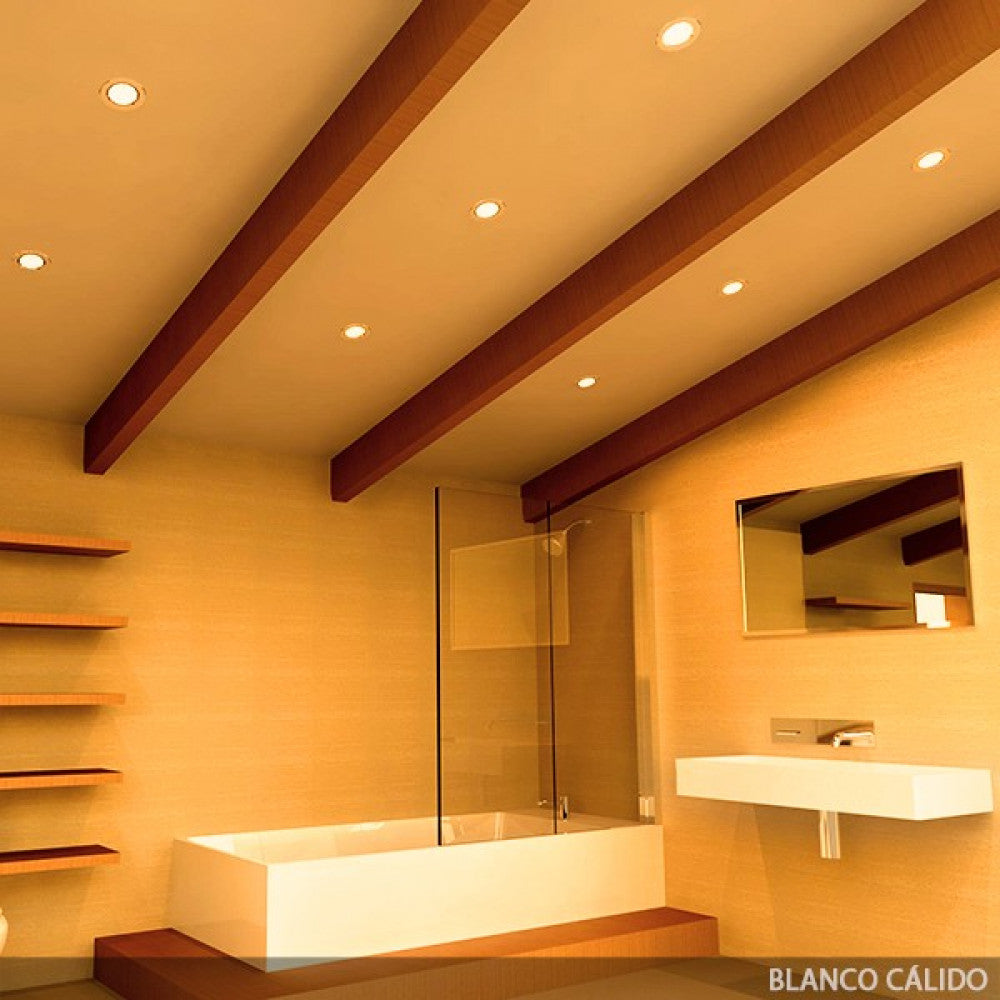

2700K: Warm White
SKU: PCE-DL7W-WW
Delivery in 48 h ... if you ask before
Stock available
4,28€
4,28€
For additional amounts the delivery period is 60 days As of the order date

Warranty

  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening

Accessories

Technical file

Product code
PCE-DL7W-CW
Light temperature
Cold White
Power (W)
7.0
Luminosity (LM)
560
Luminous efficacy (LM/W)
80
Type of LEDs
Epistar Led
LED efficacy
88
Opening Angle (º)
120
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/ PC
Facility
IP20
Strain
85-265VAC

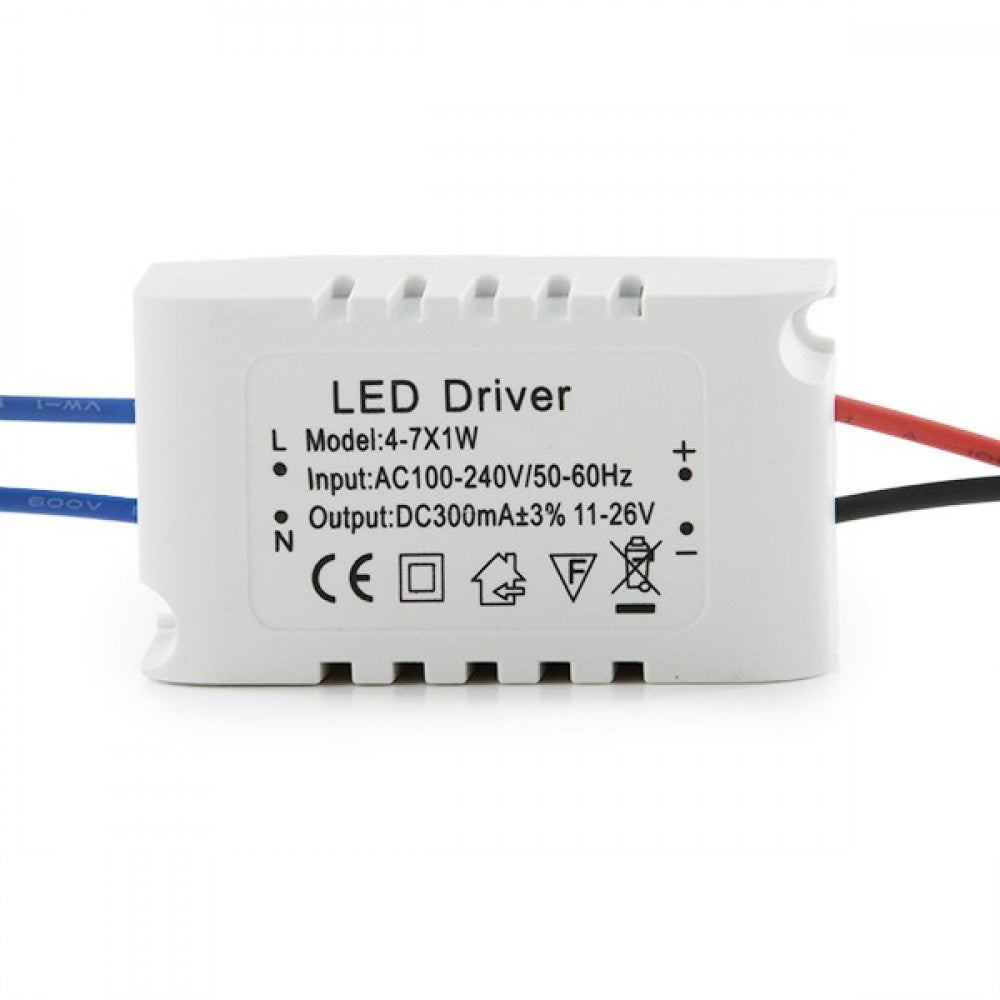

Driver output
DC12-24V
Measures (mm)
Ø115x33
High
33.0
Isolation class
II
Estimated life (H)
40000
Dimable
No
Equivalence (W)
60
Work frequency (Hz)
50/ 60
Start time (s)
0.3
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
80000
Diffuser
Opal
Kelvin º
6000
Energy consumption (kWh/1000h)
7.0
Weight (gr)
133
Flicker
0.76
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
29
Minimum cri range
97
Maximum cri range
20
Chromaticity x
0.432
Chromaticity and
0.403
Roof cut (mm)
Ø82
Diameter
115
Número unidades caja exterior
40.0
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
PCE-DL7W-CW
Light temperature
Cold White
Power (W)
7.0
Luminosity (LM)
560
Luminous efficacy (LM/W)
80
Type of LEDs
Epistar Led
LED efficacy
88
Opening Angle (º)
120
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/ PC
Facility
IP20
Strain
85-265VAC
Driver output
DC12-24V
Measures (mm)
Ø115x33
High
33.0
Isolation class
II
Estimated life (H)
40000
Dimable
No
Equivalence (W)
60
Work frequency (Hz)
50/ 60
Start time (s)
0.3
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
80000
Diffuser
Opal
Kelvin º
6000
Energy consumption (kWh/1000h)
7.0
Weight (gr)
133
Flicker
0.76
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
29
Minimum cri range
97
Maximum cri range
20
Chromaticity x
0.432
Chromaticity and
0.403
Roof cut (mm)
Ø82
Diameter
115
Número unidades caja exterior
40.0
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

The Downlight Spotlight is designed for general lighting applications, both commercial and domestic. It provides an intense light with a multitude of possibilities, ideal for replacing traditional halogen lamps, reaching savings of up to 90% and a downlight of low conventional consumption, reaching savings of up to 60% with which high energy efficiency is achieved.

It mounts LEDs -SMD that provide a width of the light beam of 120º. Designed to work at 85-265VAC and a frequency of 50-60Hz.

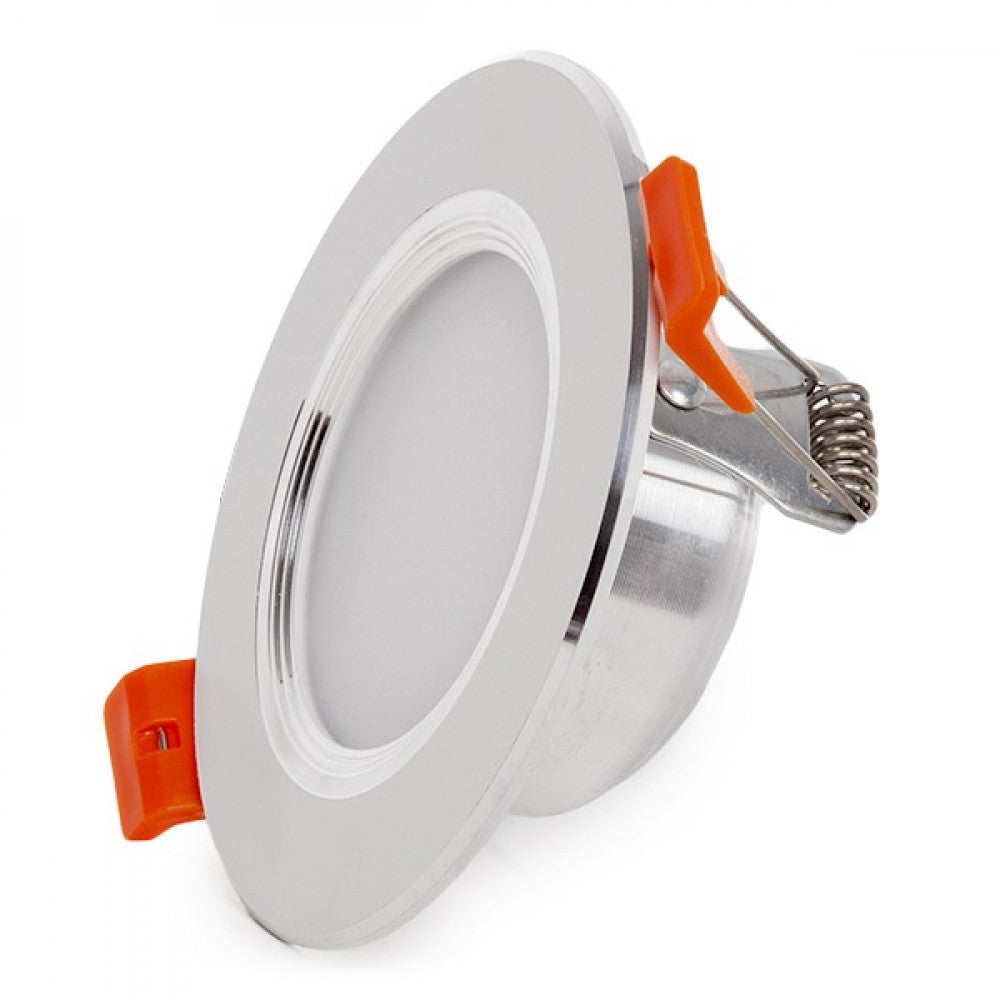

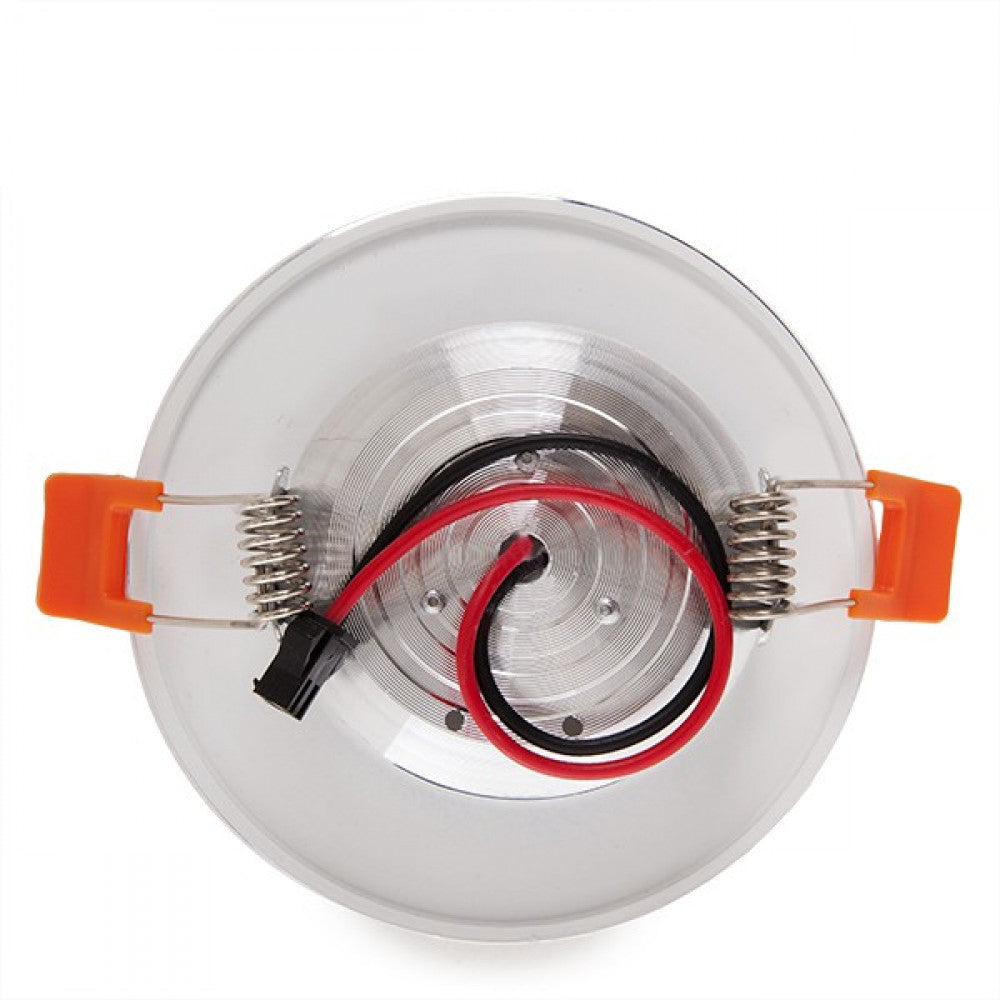

Equipped with an opal diffuser, it offers a semi-diffuse light ideal for use in both general applications and support lighting for downlights. greater luminosity.Includes high-quality aluminum heat sink and clamps for perfect fixing to the ceiling.

The features of this type of product make it suitable for many spaces, including outside the commercial field, whether in transit areas such as stairs, halls or corridors, and even in work environments such as offices.

Documents

Installation_manual
Technical_drawings
