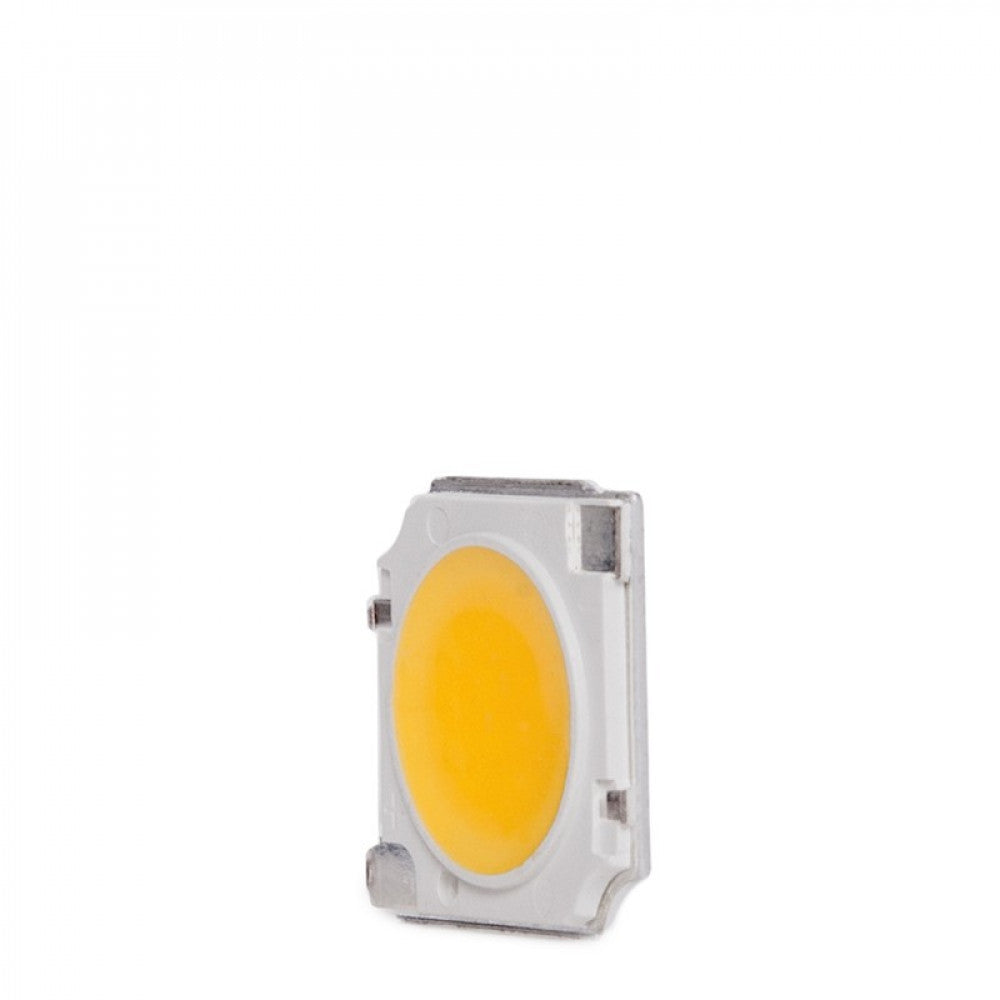

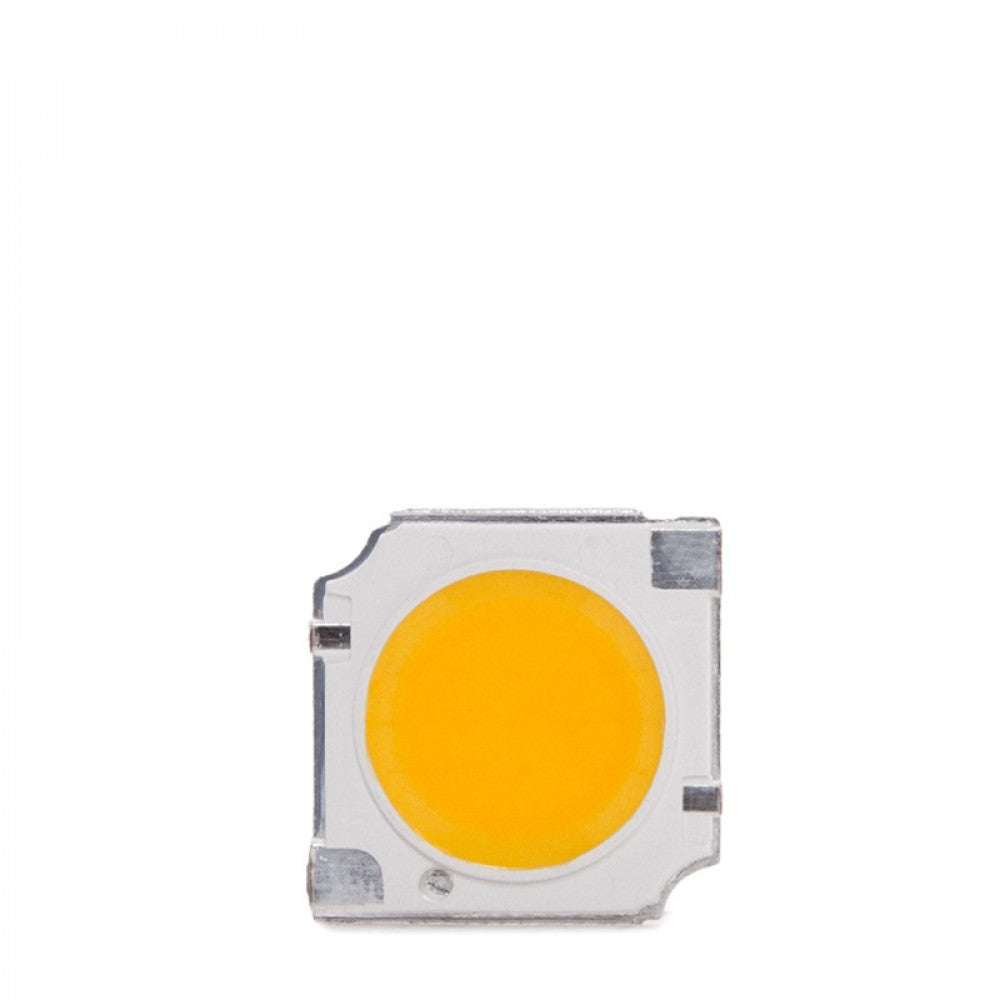

LED High Power 5W 500Lm 6000ºK COB 40.000H [CH-COB-5W-CW]

LED High Power 5W 500Lm 6000ºK COB 40.000H [CH-COB-5W-CW]

See questions and answers

  • Brand:GreenIce
  • SKU:CH-COB-5W-CW
Eprel file
Reference Stock Price Discount Amount
6000K: Cool White
SKU: CH-COB-5W-CW
Delivery in 48 h ... if you ask before
Stock available
1,22€
1,22€
3000K: Warm White
SKU: CH-COB-5W-WW
Stock available soon
Available
1,22€
1,22€
For additional amounts the delivery period is 30 days As of the order date

Documents

Warranty

  • Warranty 3 years
  • 120 º Opening

Accessories

Technical file

Product code
CH-COB-5W-CW
Light temperature
Cold
Power (W)
5.0
Luminosity (LM)
500
Luminous efficacy (LM/W)
100
Type of LEDs
COB
LED efficacy
110
Opening Angle (º)
120
CRI
80
Construction
Aluminum
Facility
IP20
Strain
15-18V
Long
13.0
Measures (mm)
13x13
Broad
13.0
Estimated life (H)
50000
Dimable
Yeah
Work frequency (Hz)
50/ 60
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Kelvin º
6000
Energy consumption (kWh/1000h)
5.0
Weight (gr)
10
Flicker
0.85
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
15
Minimum cri range
83
Maximum cri range
4
Chromaticity x
0.304
Chromaticity and
0.312
Applicable standards
EN55015:2006;EN6147:2009;EN61000-3-2:2006;EN6100-3-3:2008

Characteristics

Product code
CH-COB-5W-CW
Light temperature
Cold
Power (W)
5.0
Luminosity (LM)
500
Luminous efficacy (LM/W)
100
Type of LEDs
COB
LED efficacy
110
Opening Angle (º)
120
CRI
80
Construction
Aluminum
Facility
IP20
Strain
15-18V
Long
13.0
Measures (mm)
13x13
Broad
13.0
Estimated life (H)
50000
Dimable
Yeah
Work frequency (Hz)
50/ 60
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Kelvin º
6000
Energy consumption (kWh/1000h)
5.0
Weight (gr)
10
Flicker
0.85
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
15
Minimum cri range
83
Maximum cri range
4
Chromaticity x
0.304
Chromaticity and
0.312
Applicable standards
EN55015:2006;EN6147:2009;EN61000-3-2:2006;EN6100-3-3:2008

Description

The High Power COB LEDs are usually used to replace all types of lamps.

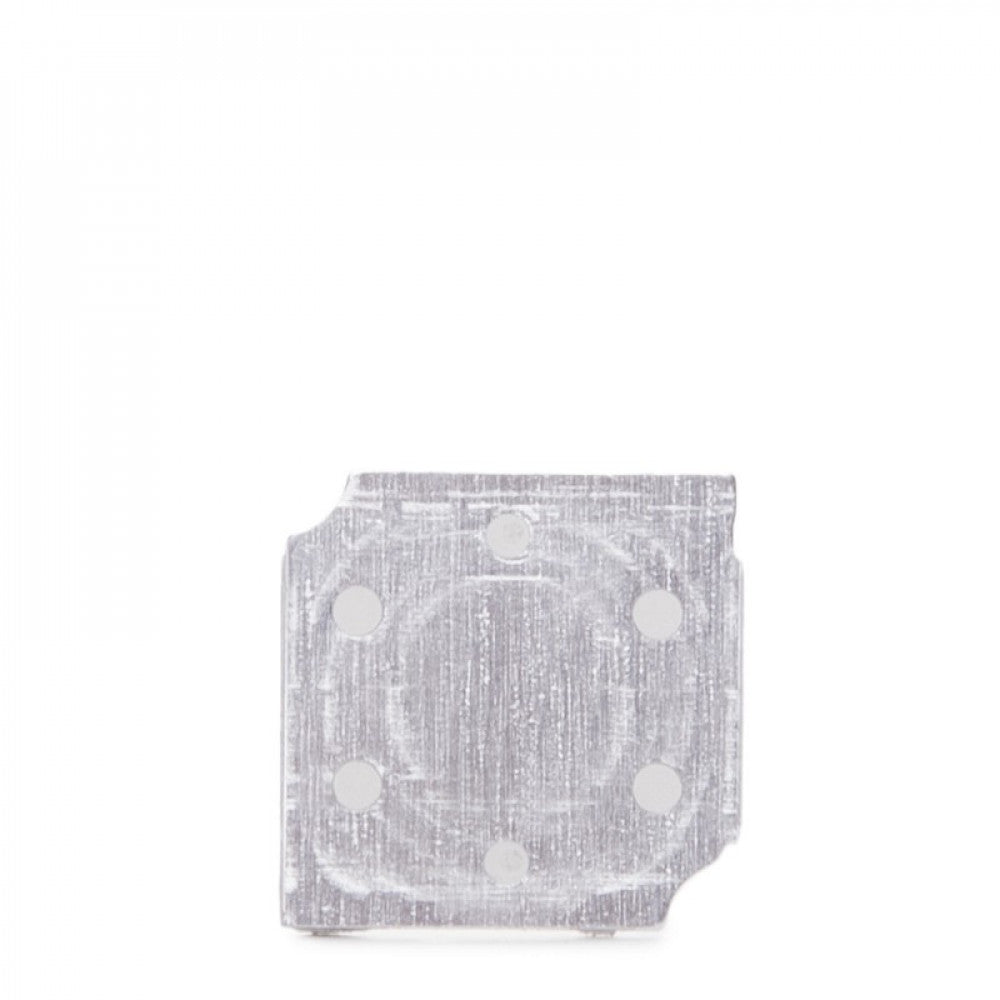

These LEDs are covered by a kind of silicone surrounded by a white plastic, supported on a metal base that acts as a pre-dissipating plate. Due to their metal base, they must be mounted on another dissipating surface to avoid high temperatures.

High Power COB LEDs have four connectors, 2 with positive polarity and 2 negative, from which it is possible to connect them by soldering them using a tin point.

Utilities:

  • Individual: direct LED power supply from the power supply through a regulated source or with the use of resistors or regulators. The desired voltage must be supplied to the LED within the working values.
  • Parallel configuration: power supply of a group of LEDs connecting all anodes together and all cathodes together, using the required voltage. It is regulated by a single resistor in series.
  • Series configuration: power supply for a group of LEDs connected sequentially. The number of LEDs to use per series will be limited by the voltage delivered by the power supply.
  • Polarization: the positive pole of the power supply must be connected to the anode (or to the beginning of the series) , while the negative pole must be connected to the cathode (or to the closure of the series).
