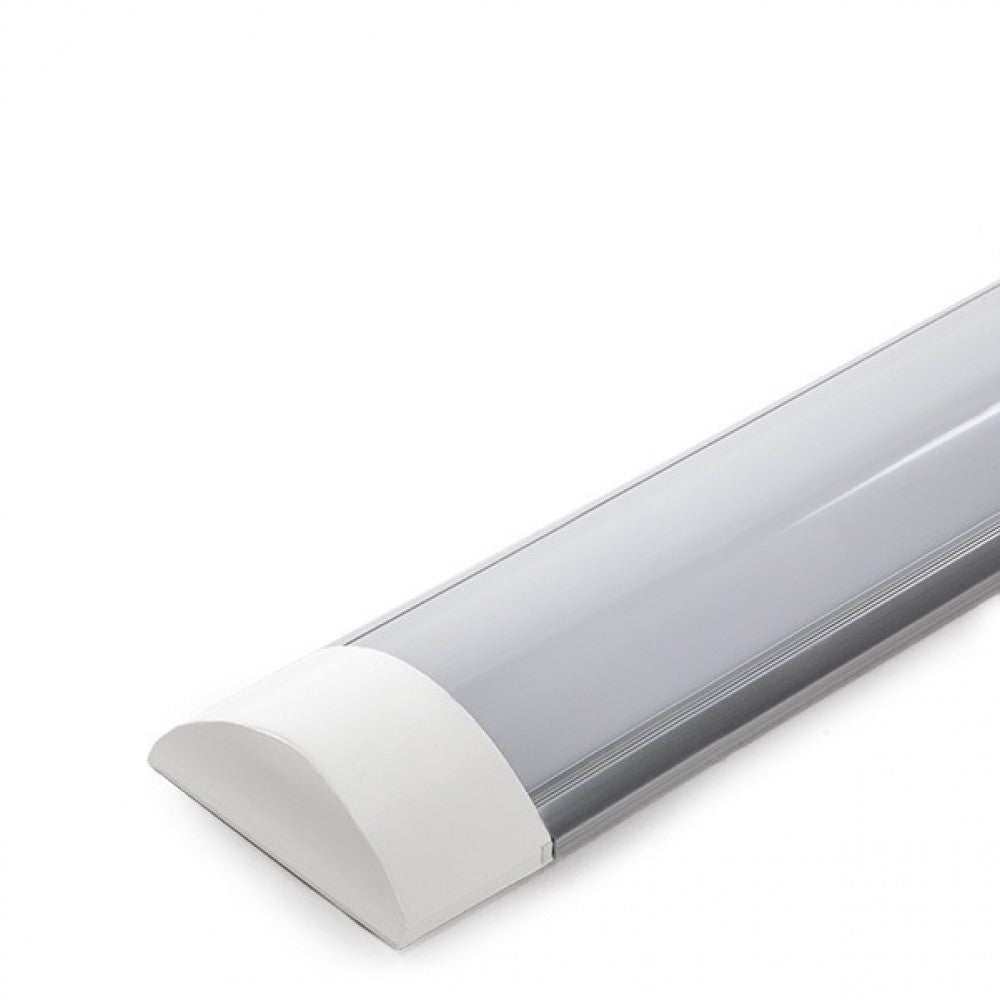

LED Luminaire 10W 900Lm 6000ºK Linear Surface 30Cm 40,000H [HO-LIL-10W-300-CW]

LED Luminaire 10W 900Lm 6000ºK Linear Surface 30Cm 40,000H [HO-LIL-10W-300-CW]

See questions and answers

  • Brand:GreenIce
  • SKU:HO-LIL-10W-300-CW
Eprel file
Reference Stock Price Discount Amount
6000K: Cool White
SKU: HO-LIL-10W-300-CW
Delivery in 48 h ... if you ask before
There are few
4,88€
4,88€
4200K: Daylight
SKU: HO-LIL-10W-300-W
Stock available soon
Available
4,88€
4,88€
For additional amounts the delivery period is 60 days As of the order date

Warranty

  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening

Accessories

Technical file

Product code
HO-LIL-10W-300-CW
Light temperature
Cold White
Power (W)
10.0
Luminosity (LM)
900
Luminous efficacy (LM/W)
90
Type of LEDs
SMD2835
Number of LEDs
50
LED efficacy
99
Opening Angle (º)
120
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/ PC
Facility
IP20
Strain
220VAC
Driver output
DC24-48V
Long
300.0
Measures (mm)
300
Isolation class
II
Estimated life (H)
40000
Dimable
No
Equivalence (W)
90
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Opal
Kelvin º
6000
Energy consumption (kWh/1000h)
10.0
Weight (gr)
400
Flicker
0.93
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
28
Minimum cri range
87
Maximum cri range
19
Chromaticity x
0.386
Chromaticity and
0.395
IK Protection Index
IK07
Número unidades caja exterior
30.0
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
HO-LIL-10W-300-CW
Light temperature
Cold White
Power (W)
10.0
Luminosity (LM)
900
Luminous efficacy (LM/W)
90
Type of LEDs
SMD2835
Number of LEDs
50
LED efficacy
99
Opening Angle (º)
120
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/ PC
Facility
IP20
Strain
220VAC
Driver output
DC24-48V
Long
300.0
Measures (mm)
300
Isolation class
II
Estimated life (H)
40000
Dimable
No
Equivalence (W)
90
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Opal
Kelvin º
6000
Energy consumption (kWh/1000h)
10.0
Weight (gr)
400
Flicker
0.93
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
28
Minimum cri range
87
Maximum cri range
19
Chromaticity x
0.386
Chromaticity and
0.395
IK Protection Index
IK07
Número unidades caja exterior
30.0
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

The Surface Linear LED Luminaire has a wide opening angle to offer general lighting with high efficiency. Ease of installation on any type of ceiling, whether plaster, concrete or any other surface.< /strong>

With an opal diffuser that provides general lighting without reflections. Ideal to replace traditional halogens, reaching savings of up to 90% and conventional low consumption downlights, reaching savings of up to 60%, thus achieving high energy efficiency. Easy installation, long life of the led luminaire, more than 30,000 hours and maintenance free.

Clean and architectural design where the latest led technology is adapted to the simplicity of the Lamp with a linear shape that offers a diffused and soft light.Provides general and wide-spread lighting.

The perfect solution to create an elegant environment, in new construction or rehabilitation, to replace the current lights, for the home, offices, receptions, museums, bars, etc.

Documents

Installation_manual
