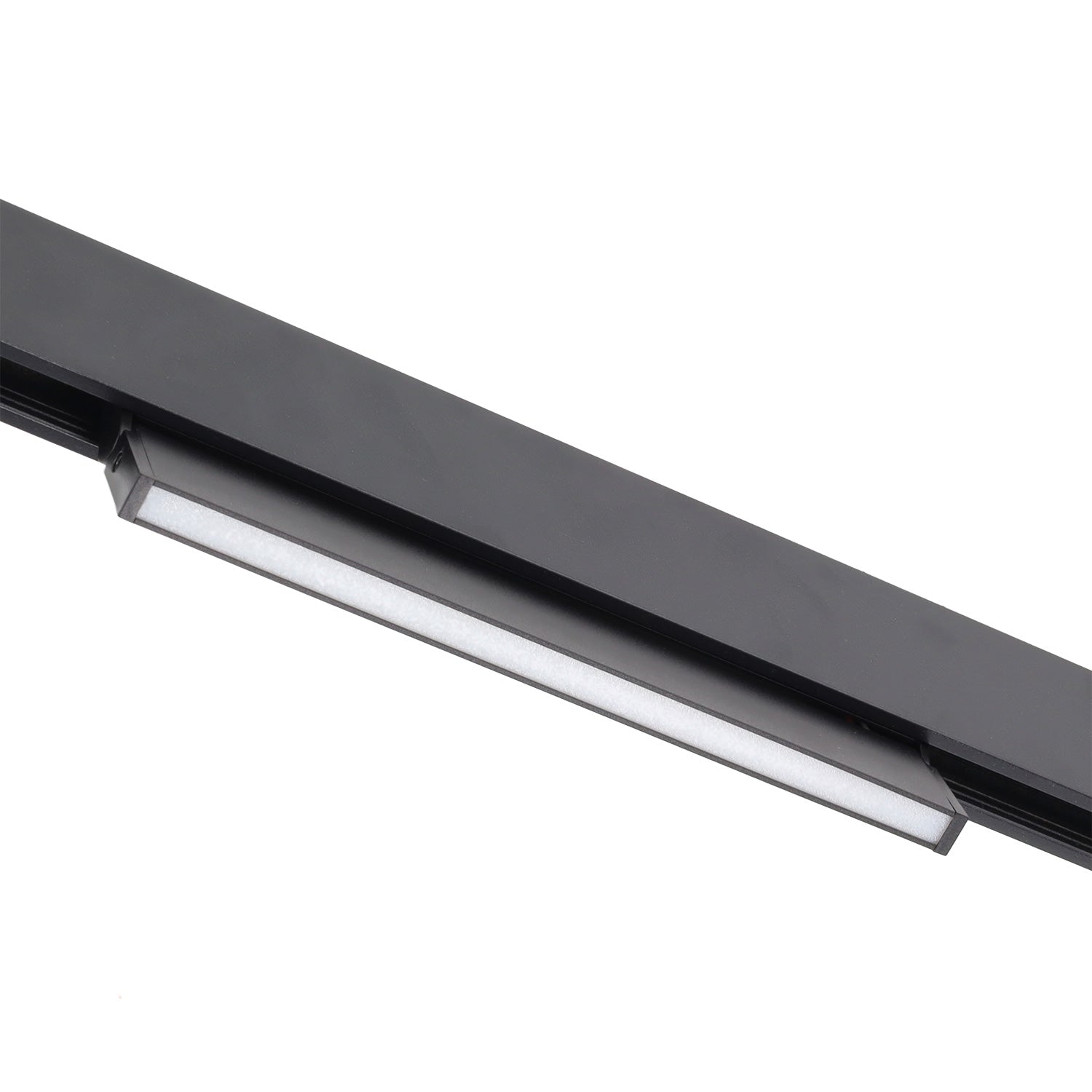

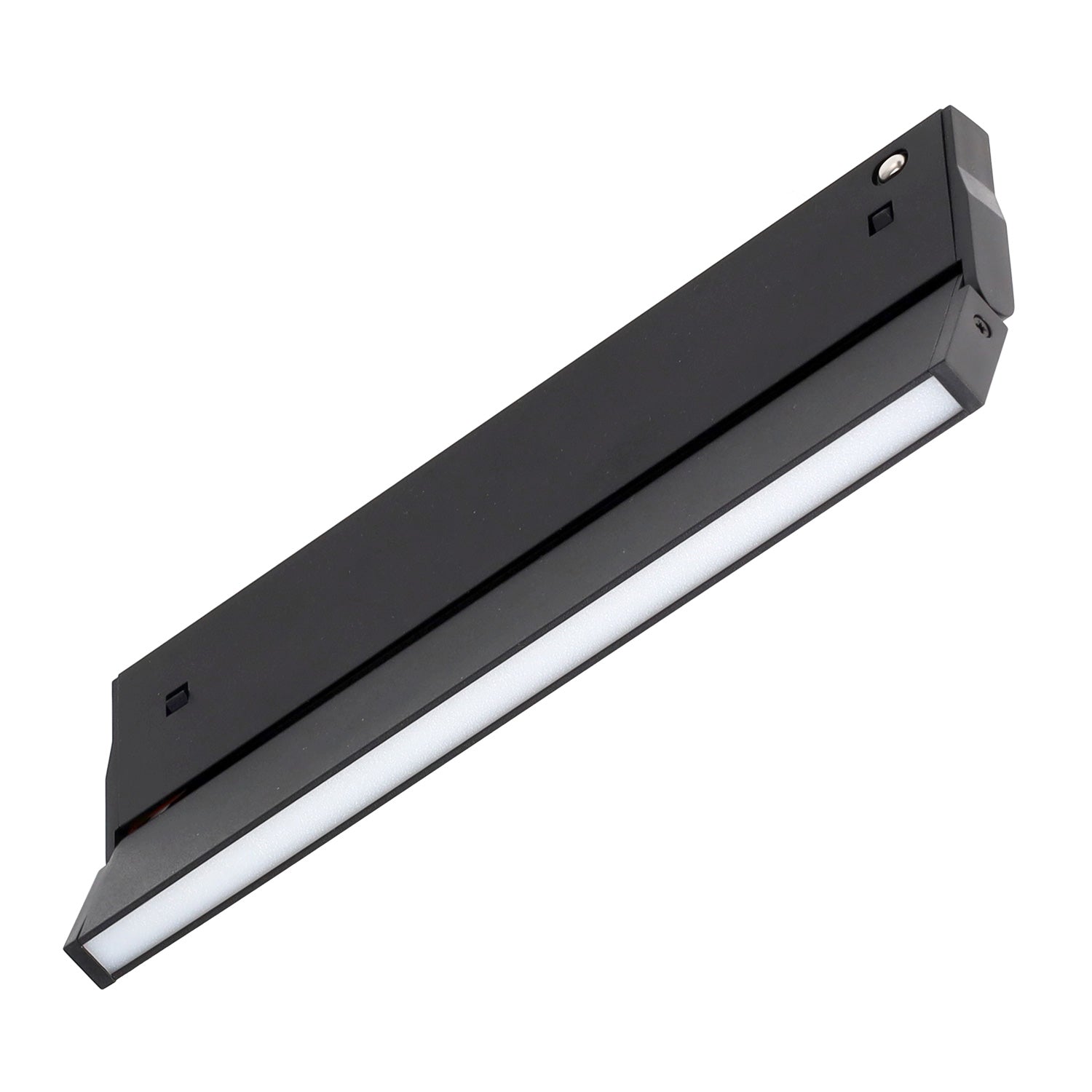

LED Magnetic Track Light 10mm 9W 50Lm/W 120º 48VDC CCT (Adjustable Light Color) Black Finish

LED Magnetic Track Light 10mm 9W 50Lm/W 120º 48VDC CCT (Adjustable Light Color) Black Finish

See questions and answers

  • + Philips Led
  • SKU:LUM-HS10-ZD-10F-CCT
G
Reference Stock Price Discount Amount
CCT
SKU: LUM-HS10-ZD-10F-CCT
Delivery in 48 h ... if you ask before
Stock available
14,03€
14,03€
For additional amounts the delivery period is 60 days As of the order date

Warranty

  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
  • Certificado ENEC

Technical file

Product code
LUM-HS10-ZD-10F-CCT
Light temperature
CCT
Power (W)
9.0
Luminosity (LM)
450
Luminous efficacy (LM/W)
50
Type of LEDs
Philips LED
LED efficacy
60
Opening Angle (º)
120
CRI
95
UGR
<15
Construction
Alu.
Facility
IP20
Strain
48VDC
Long
10.0
Measures (mm)
200x10x73
Broad
73.0
High
200.0
Estimated life (H)
100000
Work frequency (Hz)
50/60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20+40
Lighting cycles
100000
Energy consumption (kWh/1000h)
9.0
Half -year useful life (at 3 h/day)
91.32
Half -Year Useful Life (5 h/day)
54.79
Half -year useful life (at 8 h/day)
34.24
Minimum CCT range
3000
Maximum cri range
5700
Número unidades caja exterior
50.0

Characteristics

Product code
LUM-HS10-ZD-10F-CCT
Light temperature
CCT
Power (W)
9.0
Luminosity (LM)
450
Luminous efficacy (LM/W)
50
Type of LEDs
Philips LED
LED efficacy
60
Opening Angle (º)
120
CRI
95
UGR
<15
Construction
Alu.
Facility
IP20
Strain
48VDC
Long
10.0
Measures (mm)
200x10x73
Broad
73.0
High
200.0
Estimated life (H)
100000
Work frequency (Hz)
50/60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20+40
Lighting cycles
100000
Energy consumption (kWh/1000h)
9.0
Half -year useful life (at 3 h/day)
91.32
Half -Year Useful Life (5 h/day)
54.79
Half -year useful life (at 8 h/day)
34.24
Minimum CCT range
3000
Maximum cri range
5700
Número unidades caja exterior
50.0

Description

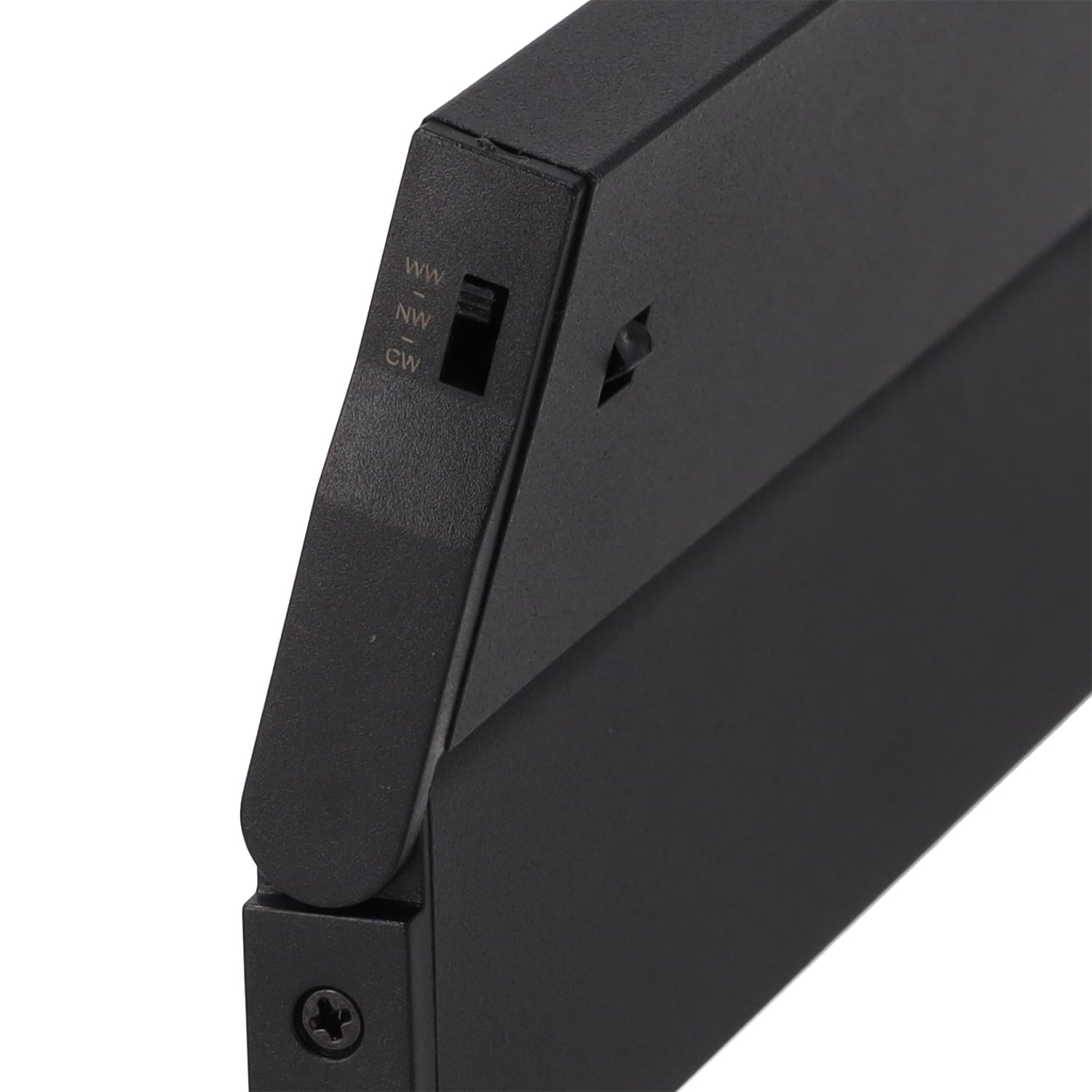

9W LED luminaire for 10mm magnetic track, designed to provide wide and uniform general lighting in 48V DC systems. Its 120° beam angle ensures homogeneous light distribution, making it ideal for illuminating entire spaces with a high level of visual comfort. It incorporates CCT (Correlated Color Temperature) technology, allowing you to select the color temperature between warm, neutral, or cool light, adapting the lighting to the needs of each project or environment. With a luminous efficacy of 50 lm/W, it offers efficient operation and optimized energy consumption. Made of high-quality aluminum with a black finish, it ensures excellent heat dissipation, promoting stable performance and a long lifespan. Thanks to its magnetic mounting system, the luminaire can be easily installed, moved, and repositioned on the track, providing a flexible and adaptable lighting solution. Technical specifications: Power: 9W Luminous efficacy: 50 lm/W Operating voltage: 48V DC. Compatible with 10mm magnetic tracks. Beam angle: 120°. CCT technology with selectable color temperature (warm, neutral, or cool). High-quality aluminum housing. Finish: Black. Excellent heat dissipation. Quick, tool-free magnetic installation. Low energy consumption and long lifespan. Applications: Ideal for homes, offices, shops, hotels, restaurants, hallways, meeting rooms, workspaces, and other architectural lighting projects where uniform, efficient general lighting with adjustable color temperature is required.
