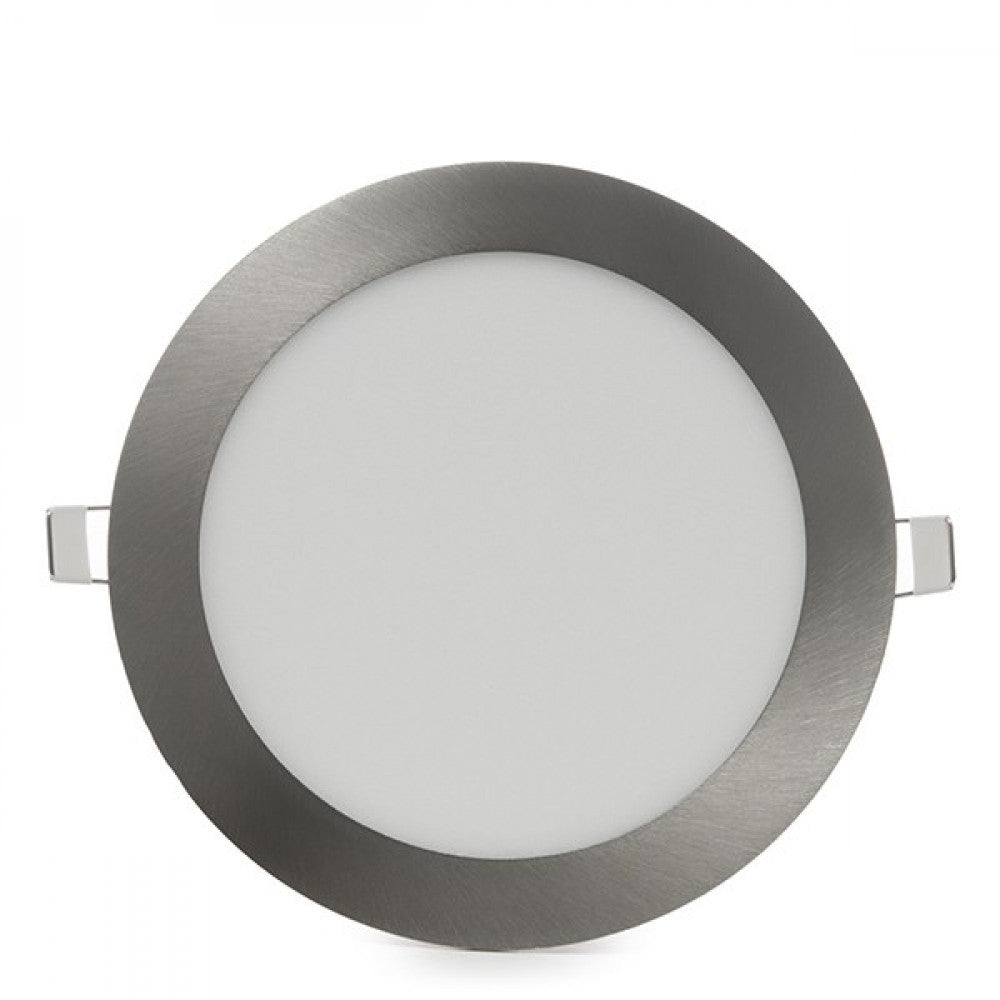

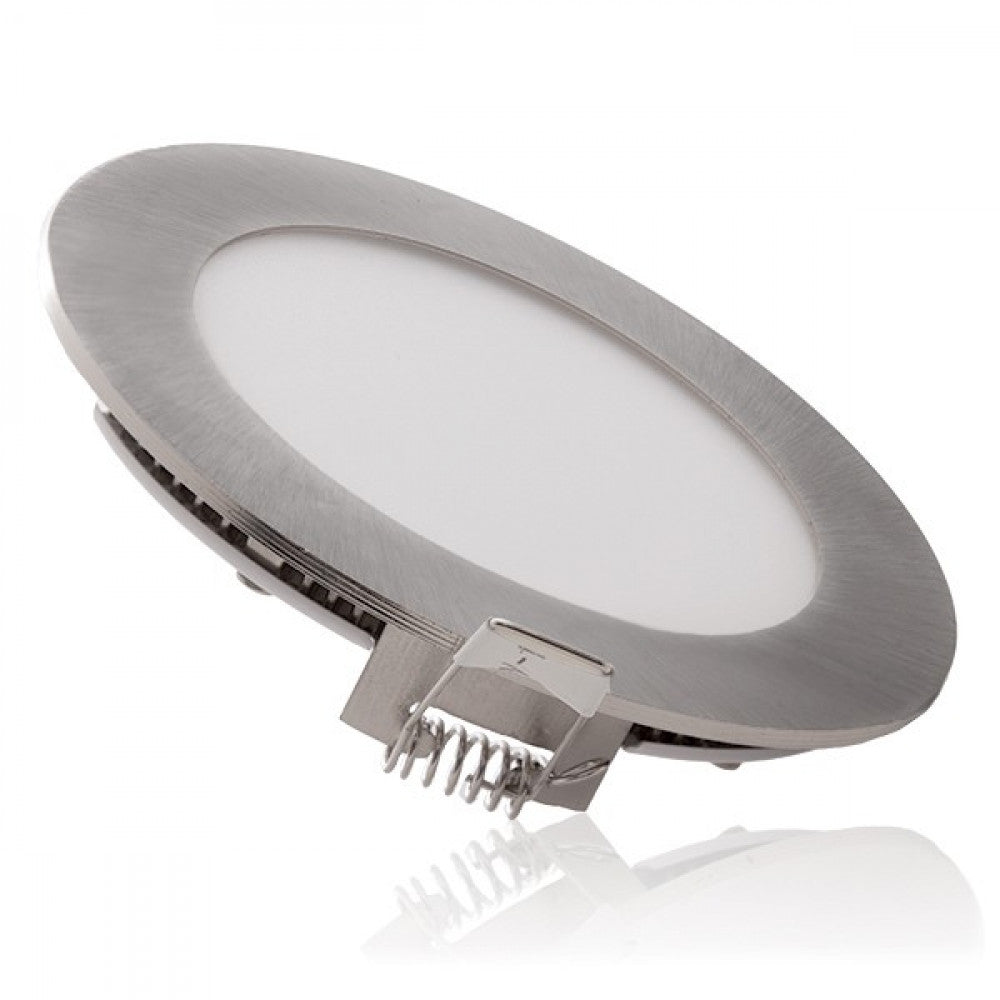

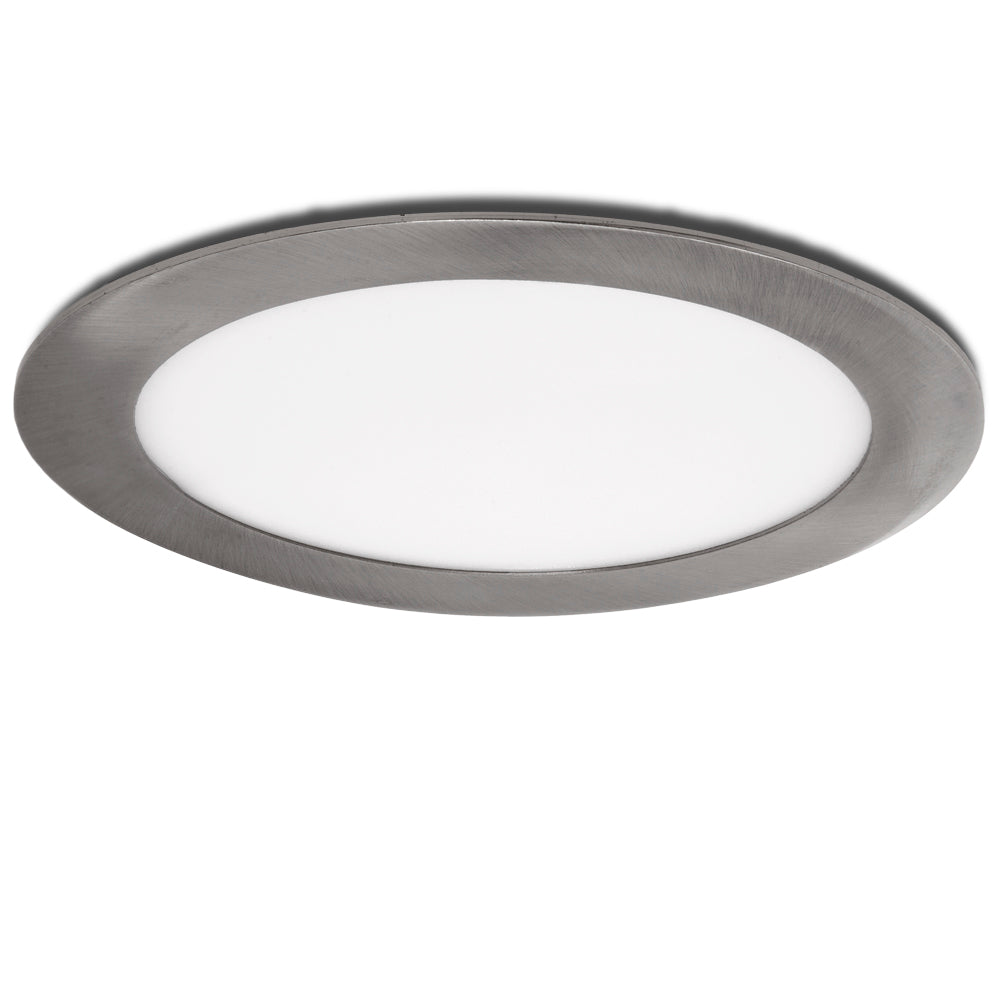

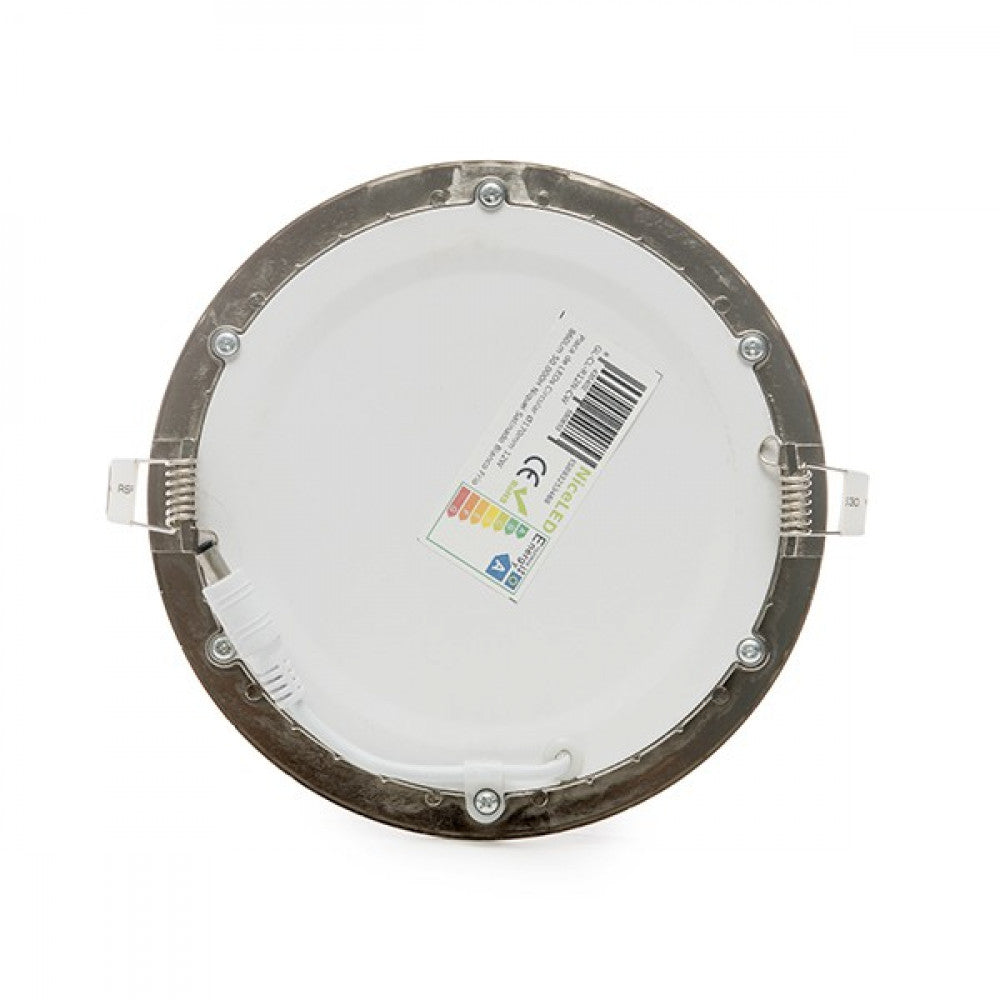

LED Plate 12W 1200Lm 6000ºK Circular Satin Nickel 50,000H [GL-CL-R12N-CW]

LED Plate 12W 1200Lm 6000ºK Circular Satin Nickel 50,000H [GL-CL-R12N-CW]

See questions and answers

  • Brand:GreenIce + Osram Led
  • SKU:GL-CL-R12N-CW
Eprel file
Reference Stock Price Discount Amount
6000K: Cool White
SKU: GL-CL-R12N-CW
Delivery in 48 h ... if you ask before
Stock available
4,60€
4,60€
For additional amounts the delivery period is 60 days As of the order date

Warranty

  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening

Accessories

Technical file

Product code
GL-CL-R12N-CW
Light temperature
Cold White
Power (W)
12.0
Luminosity (LM)
1200
Luminous efficacy (LM/W)
100
Type of LEDs
Osram Led
Number of LEDs
60
LED efficacy
110
Opening Angle (º)
120
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/ PC
Facility
IP20
Strain
85-265VAC
Driver output
DC24-48V
Measures (mm)
Ø167x20
High
20.0
Isolation class
II
Estimated life (H)
50000
Dimable
No
Equivalence (W)
80
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Opal
Kelvin º
6000
Energy consumption (kWh/1000h)
12.0
Weight (gr)
245
Flicker
0.57
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
28
Minimum cri range
94
Maximum cri range
23
Chromaticity x
0.322
Chromaticity and
0.35
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Roof cut (mm)
Ø158
Diameter
167
Número unidades caja exterior
30.0
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
GL-CL-R12N-CW
Light temperature
Cold White
Power (W)
12.0
Luminosity (LM)
1200
Luminous efficacy (LM/W)
100
Type of LEDs
Osram Led
Number of LEDs
60
LED efficacy
110
Opening Angle (º)
120
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/ PC
Facility
IP20
Strain
85-265VAC
Driver output
DC24-48V
Measures (mm)
Ø167x20
High
20.0
Isolation class
II
Estimated life (H)
50000
Dimable
No
Equivalence (W)
80
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Opal
Kelvin º
6000
Energy consumption (kWh/1000h)
12.0
Weight (gr)
245
Flicker
0.57
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
28
Minimum cri range
94
Maximum cri range
23
Chromaticity x
0.322
Chromaticity and
0.35
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Roof cut (mm)
Ø158
Diameter
167
Número unidades caja exterior
30.0
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

The 170mm diameter circular LED plate with ultra-thin dimensions (18mm), offers solutions for offices, factories, supermarkets, shops and for residential use. It can be installed directly to power outlets supplied by the electrical network (85-265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (72 Lm/W) consuming 12W through SMD2835 type LEDs and achieving provide a luminous flux of 860Lm evenly distributed through an opal plastic diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 75W incandescent bulb, its consumption represents a value of 12kWh/1000h , reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

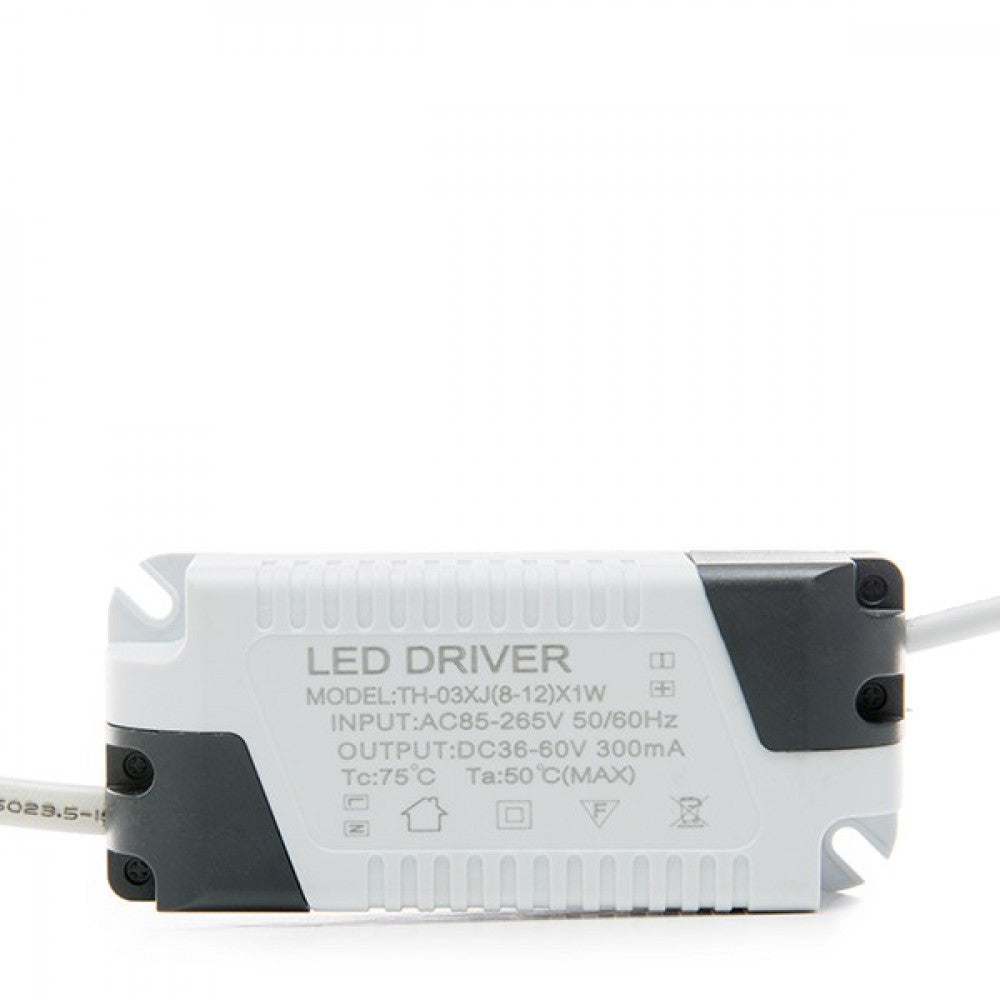

This board is powered by a non-dimmable driver included in the package that must be connected directly to the network, with a output com Compatible with the connection of the plate (36-60VDC, 300mA), additionally the necessary accessories for the installation of the plate are included. White finish built with aluminum.

The plate has an IP25 degree of protection (valid for dust and humidity indoors), in addition to being robust enough for the required mechanical demands .

This plate is available in cold white (6000°K) and warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7 %.

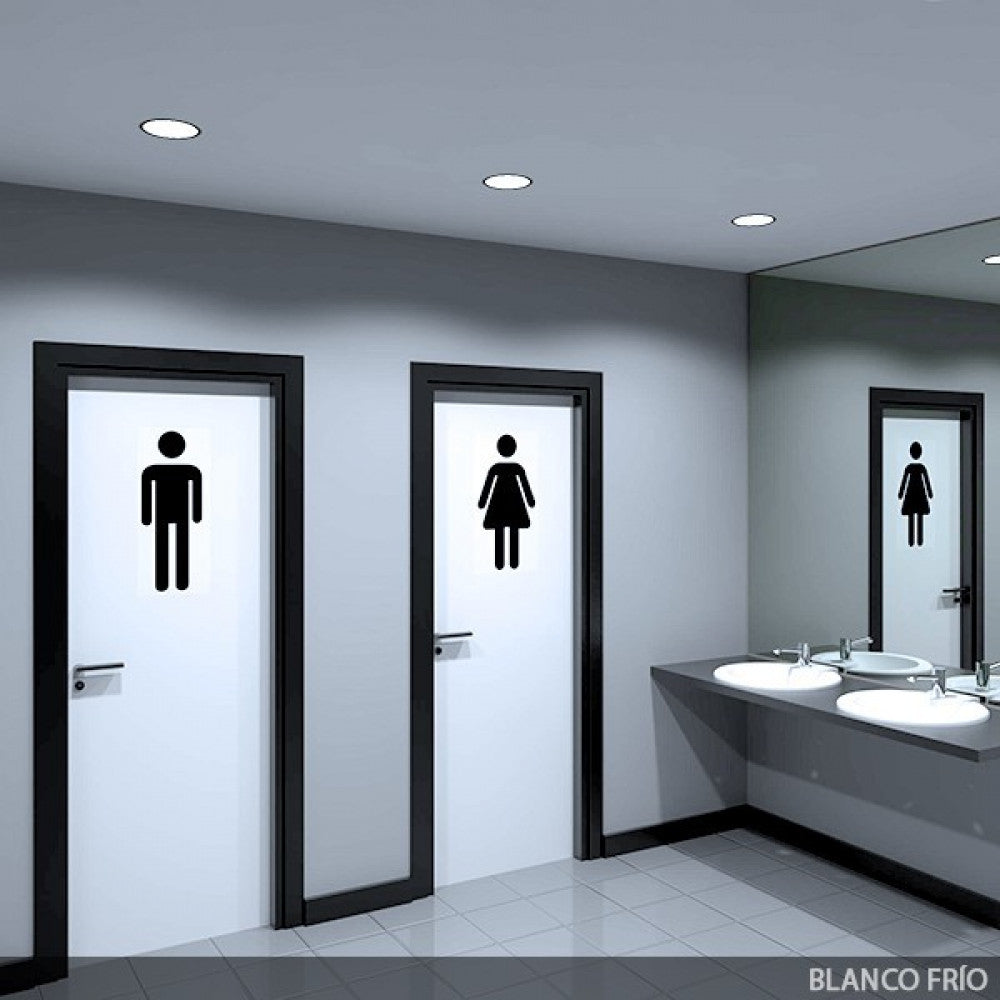

LED downlights are ideal for general lighting in spaces that require high performance and long periods of continuous lighting. And that is why they include a high-quality aluminum heat sink, which contributes to minimal heat emission from the LED luminaire. They are also very easy to install and being so thin they can be placed in false ceilings with little height where more voluminous solutions could not be used.
