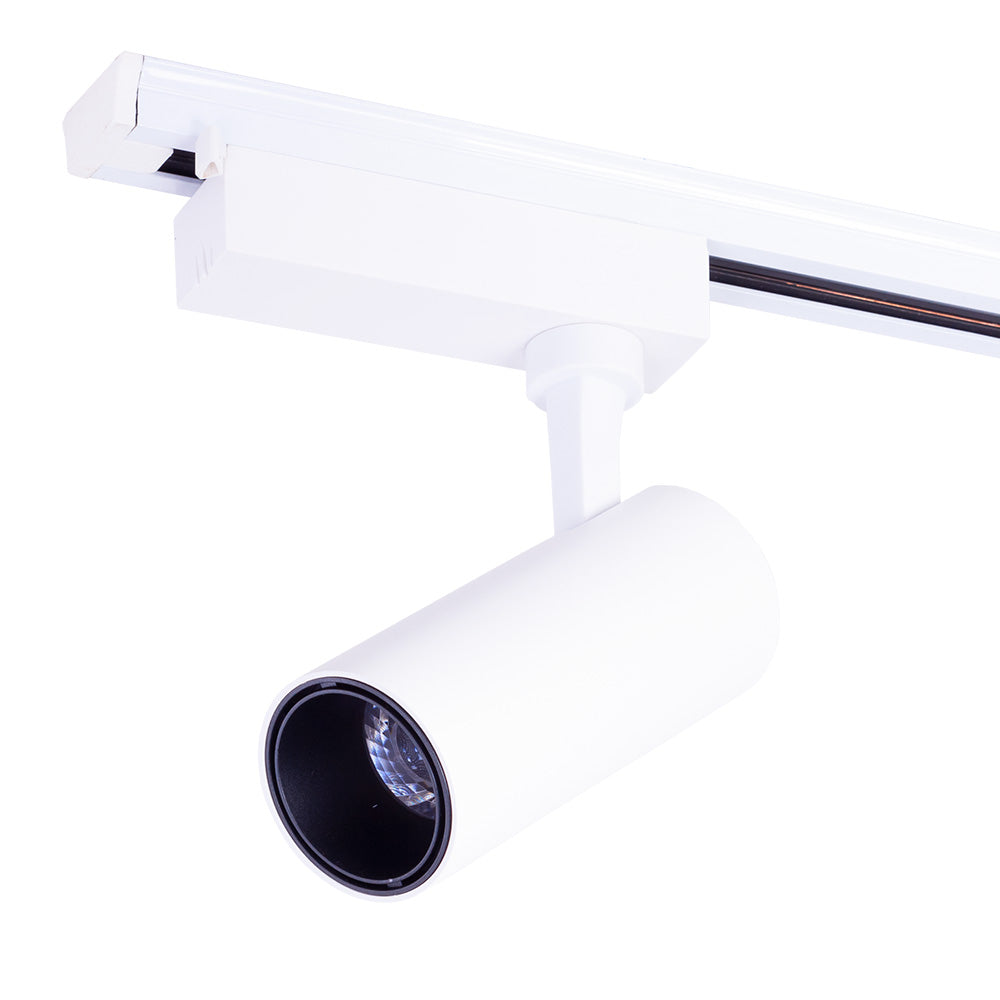

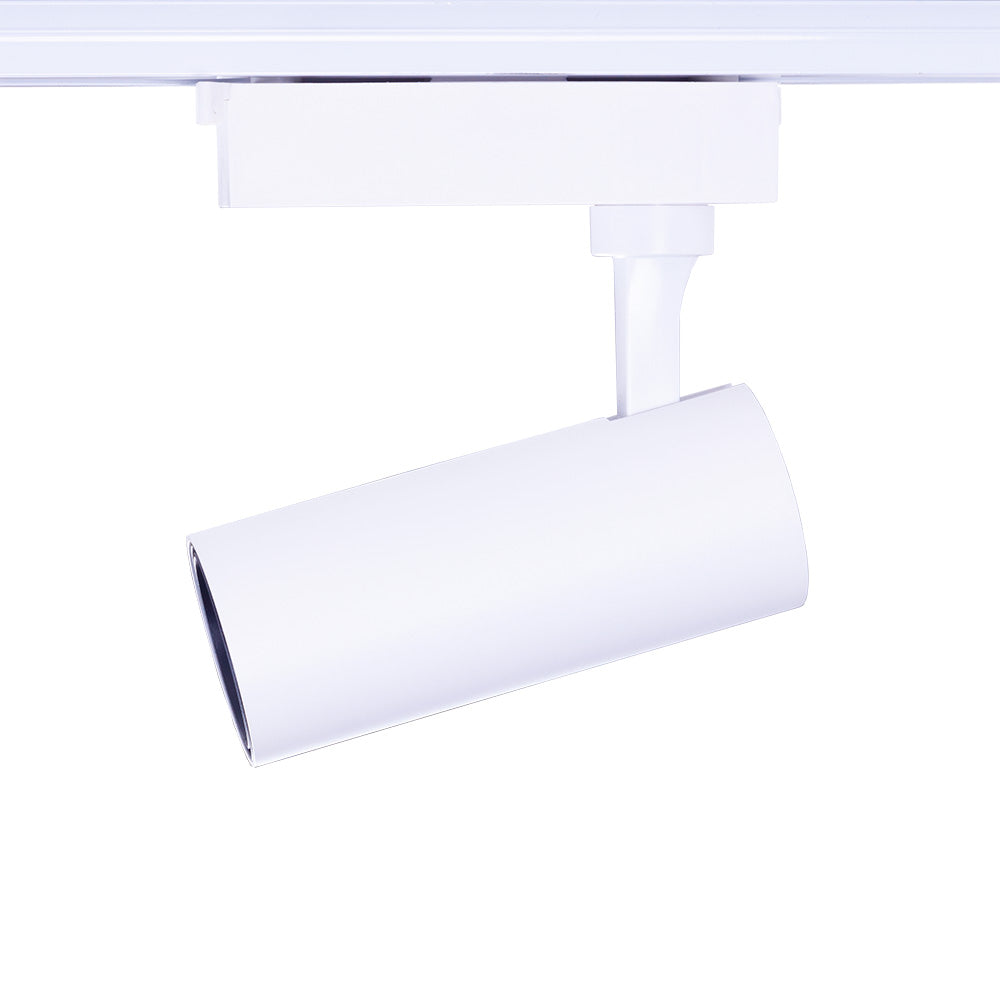

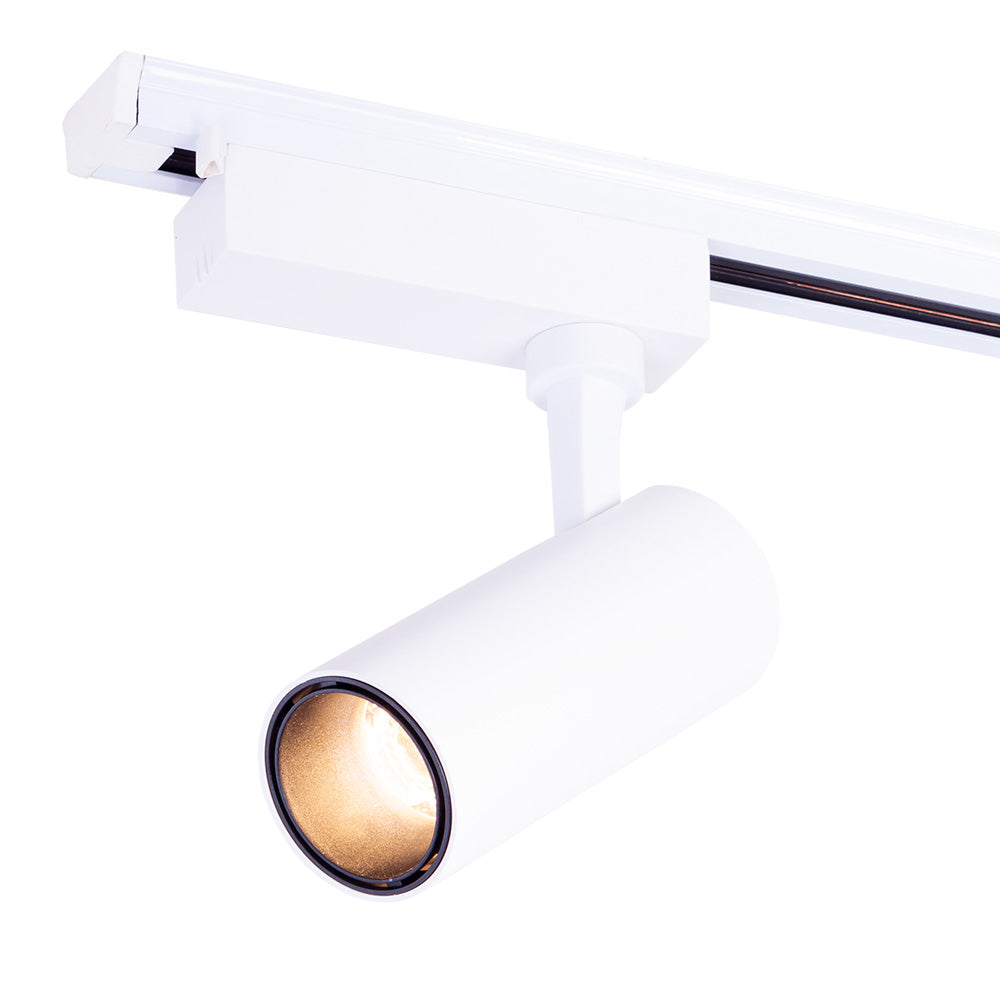

LED Track Spotlight 20W 2000Lm CRI85 4200ºK Lumiastra Single Phase 40,000H [LUM-ATB060012-WW]

LED Track Spotlight 20W 2000Lm CRI85 4200ºK Lumiastra Single Phase 40,000H [LUM-ATB060012-WW]

See questions and answers

  • Brand:GreenIce + Lumiastra
  • SKU:LUM-ATB060012-W-W
Eprel file
Reference Stock Price Discount Amount
4200K: Daylight
SKU: LUM-ATB060012-W-W
Delivery in 48 h ... if you ask before
Stock available
4,99€
4,99€
2700K: Warm White
SKU: LUM-ATB060012-W-WW
Delivery in 48 h ... if you ask before
Stock available
10,50€
10,50€
For additional amounts the delivery period is 60 days As of the order date

Warranty

  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 38 º Opening
  • Certificado ENEC

Accessories

Technical file

Product code
LUM-ATB060012-W-W
Light temperature
Natural White
Power (W)
20.0
Luminosity (LM)
2000
Luminous efficacy (LM/W)
100
Type of LEDs
COB
Number of LEDs
1
LED efficacy
110
Opening Angle (º)
38
CRI
85
UGR
◄19
Power factor (PF)
0.9
Construction
Aluminum/ PC
Facility
IP20
Strain
220-240VAC
Measures (mm)
Ø65x240
High
240.0
Isolation class
II
Estimated life (H)
40000
Dimable
No
Equivalence (W)
135
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Transparent
Kelvin º
4200
Energy consumption (kWh/1000h)
20.0
Weight (gr)
700
Flicker
0.95
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Directional
Single/range CCT
Only
Single CCT
4200
INDEX R9
7
Minimum cri range
95
Maximum cri range
3
Chromaticity x
0.377
Chromaticity and
0.374
Diameter
65
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000-3-2:2006; EN61000-3-3:2008; EN 60598-2-1:1989; EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008; EN 62471:2008; EN 62493:2010

Characteristics

Product code
LUM-ATB060012-W-W
Light temperature
Natural White
Power (W)
20.0
Luminosity (LM)
2000
Luminous efficacy (LM/W)
100
Type of LEDs
COB
Number of LEDs
1
LED efficacy
110
Opening Angle (º)
38
CRI
85
UGR
◄19
Power factor (PF)
0.9
Construction
Aluminum/ PC
Facility
IP20
Strain
220-240VAC
Measures (mm)
Ø65x240
High
240.0
Isolation class
II
Estimated life (H)
40000
Dimable
No
Equivalence (W)
135
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Transparent
Kelvin º
4200
Energy consumption (kWh/1000h)
20.0
Weight (gr)
700
Flicker
0.95
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Directional
Single/range CCT
Only
Single CCT
4200
INDEX R9
7
Minimum cri range
95
Maximum cri range
3
Chromaticity x
0.377
Chromaticity and
0.374
Diameter
65
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000-3-2:2006; EN61000-3-3:2008; EN 60598-2-1:1989; EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008; EN 62471:2008; EN 62493:2010

Description

The single-phase Lumiastra LED track light with a white finish offers solutions for all types of shops. Provides versatile lighting perfect for ever-changing spaces, where decorative elements or products on display need to be highlighted.

It has a high efficiency (100Lm / W), consuming 20W through 1 high-power COB LED, managing to provide a luminous flux of 2000Lm passing through a transparent diffuser, it has a color rendering index of 85 . Its consumption represents a value of 20kWh / 1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

The spotlight has a base designed to support its total weight, it has an IP25 degree of protection (valid for dust and humidity indoors) , as well as being robust enough for the mechanical requirements required.

It is made of quality materials such as aluminum and incorporates high-performance components. It has a long useful life of 30,000 hours, ten times that of a conventional bulb.

Its installation on the single-phase track is very simple and allows the luminaire to move on the track. This allows for a very flexible lighting system that adapts to any situation.

Its use occurs mainly in the tertiary sector in spaces such as shops, exhibition halls, commercial galleries, hotels, etc. Places that require a versatile accent light that adapts to the layout of the products on display.

This bulb emits a natural white (4200 ° K) and warm white (3000 ° K) color tone. The indicated color temperature may fluctuate corresponding to a tolerance of 7%.
