Superslim LED Panel 72W 7,200Lm 120x60Cm White Remote Control (Intensity-CCT) 40,000H [HO-PANMB595119572W-RC]

Superslim LED Panel 72W 7,200Lm 120x60Cm White Remote Control (Intensity-CCT) 40,000H [HO-PANMB595119572W-RC]

See questions and answers

  • Brand:GreenIce + Epistar Led
  • SKU:HO-PANMB595119572WRC
Eprel file
Reference Stock Price Discount Amount
Cold/Natural/Warm
SKU: HO-PANMB595119572WRC
Free delivery in 48 h ... if you ask before
Stock available
86,18€
86,18€
For additional amounts the delivery period is 60 days As of the order date

Warranty

  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening

Accessories

Technical file

Product code
HO-PANMB595119572W-RC
Light temperature
Cold/Natural/Warm
Power (W)
72.0
Luminosity (LM)
7200
Luminous efficacy (LM/W)
100
Type of LEDs
Epistar Led
Number of LEDs
720
LED efficacy
110
Opening Angle (º)
120
CRI
80
UGR
◄19
Power factor (PF)
0.99
Construction
Aluminum/ PC
Facility
IP20
Strain
85-265VAC
Driver output
DC180-210V
Long
1195.0
Measures (mm)
595x1195x12
Broad
595.0
High
12.0
Isolation class
II
Estimated life (H)
40000
Dimable
Yeah
Equivalence (W)
385
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
72.0
Weight (gr)
5100
Flicker
0.78
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
INDEX R9
5
Minimum cri range
92
Maximum cri range
22
Chromaticity x
0.323
Chromaticity and
0.353
Additional information
Detailed instructions in the "Documents" tab
Minimum CCT range
3000
Maximum cri range
6000
IK Protection Index
IK05
Número unidades caja exterior
5.0
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Characteristics

Product code
HO-PANMB595119572W-RC
Light temperature
Cold/Natural/Warm
Power (W)
72.0
Luminosity (LM)
7200
Luminous efficacy (LM/W)
100
Type of LEDs
Epistar Led
Number of LEDs
720
LED efficacy
110
Opening Angle (º)
120
CRI
80
UGR
◄19
Power factor (PF)
0.99
Construction
Aluminum/ PC
Facility
IP20
Strain
85-265VAC
Driver output
DC180-210V
Long
1195.0
Measures (mm)
595x1195x12
Broad
595.0
High
12.0
Isolation class
II
Estimated life (H)
40000
Dimable
Yeah
Equivalence (W)
385
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
72.0
Weight (gr)
5100
Flicker
0.78
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
INDEX R9
5
Minimum cri range
92
Maximum cri range
22
Chromaticity x
0.323
Chromaticity and
0.353
Additional information
Detailed instructions in the "Documents" tab
Minimum CCT range
3000
Maximum cri range
6000
IK Protection Index
IK05
Número unidades caja exterior
5.0
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Description

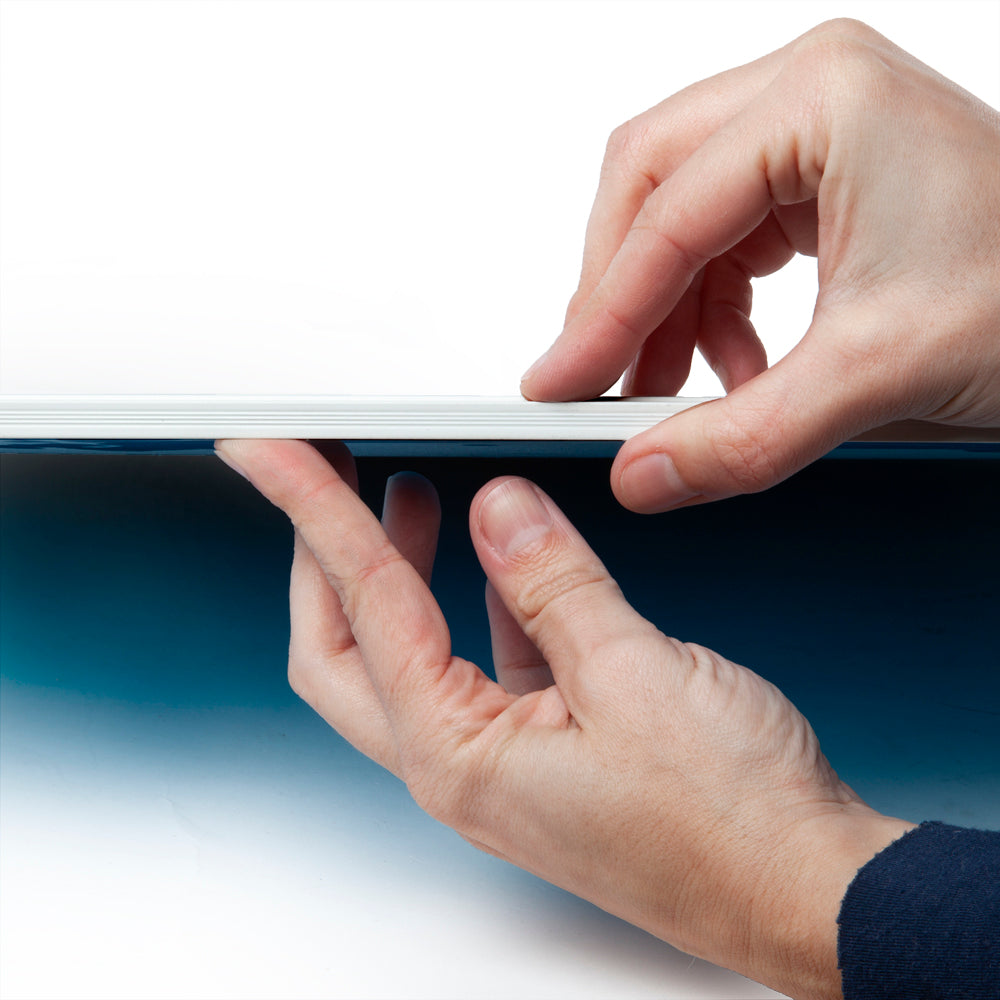

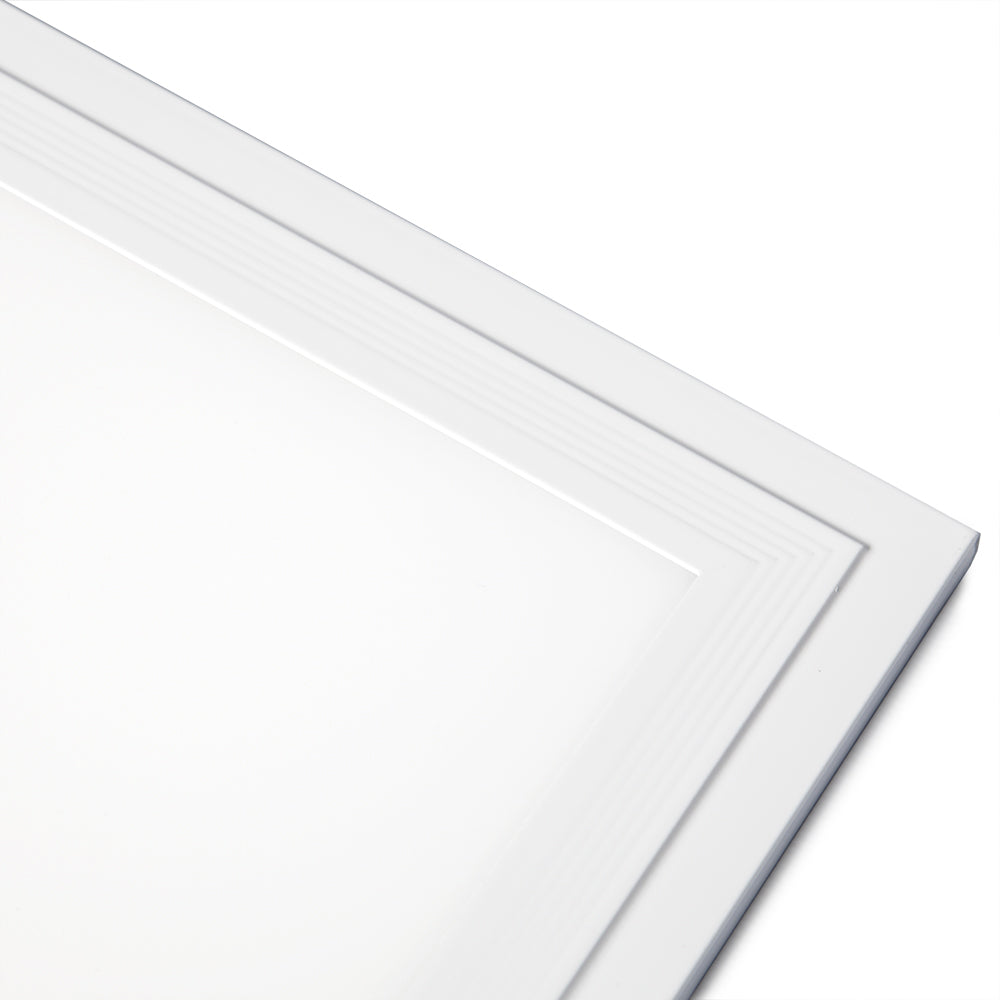

The 120x60cm LED panel has an elegant finish, a white lacquered aluminum frame and an ultra-thin design of only 12mm. With an immediate start-up, without noise and without flickering , this LED Panel is perfect for places where you want to maximize the illuminated space, projecting light uniformly and without glare. You can change its color temperature and regulate the light intensity using its Radiofrequency controller.

It offers solutions for offices, factories, supermarkets, shops and for residential use, due to its design and elegant finish it represents an efficient alternative for most demanding designers. It can be installed directly to outlets supplied by the electrical network (85-265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (100 Lm/W) consuming 72W through SMD3014 type LEDs and managing to provide a luminous flux of 7200Lm uniformly distributed through an opal plastic diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 500W incandescent bulb, its consumption represents a value of 72kWh/1000h, reducing the amount of energy invoiced and the emissions of polluting gases into the atmosphere.

The panel has a degree of protection IP25 (valid for dust and humidity indoors), in addition to being robust enough for the required mechanical demands.

These extra-flat LED screens consume up to 55% less and do not require any type of maintenance, with which we avoid replacement itutions of primers or reactances. And having the advantage of being a much lighter and more manageable product.

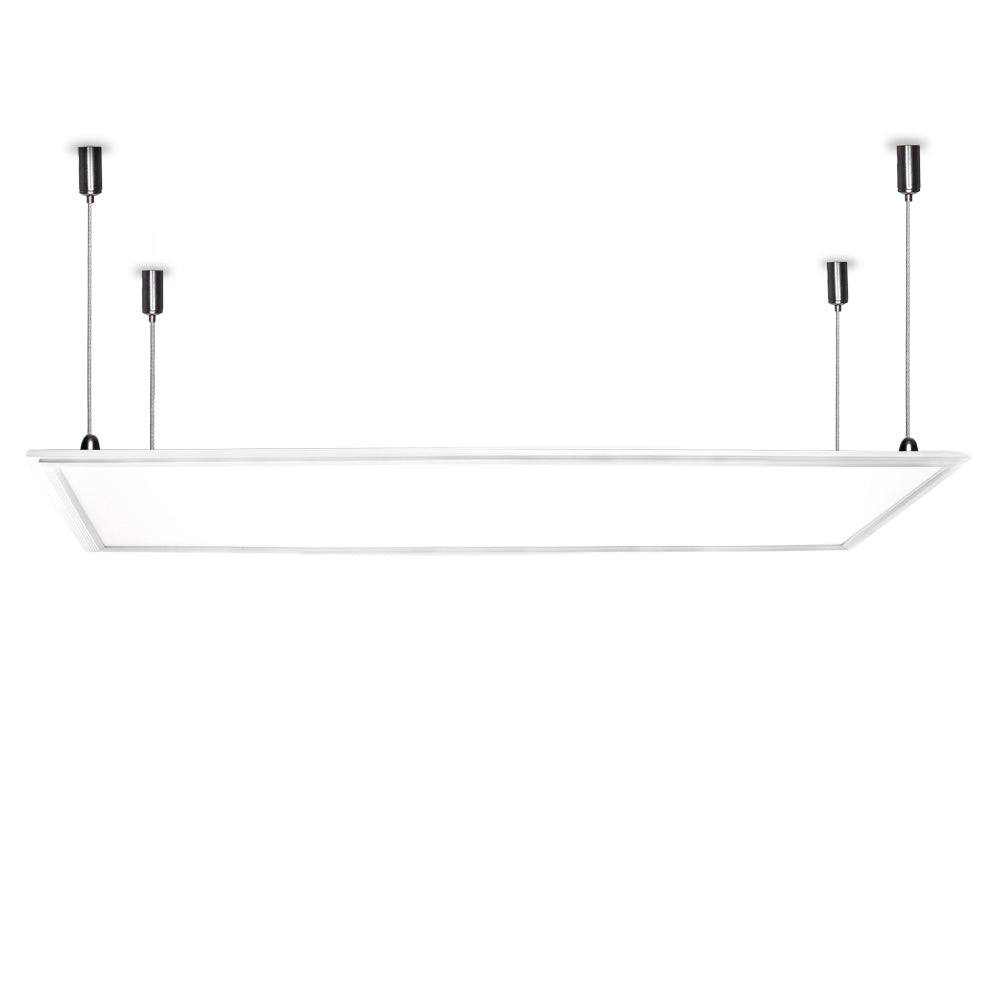

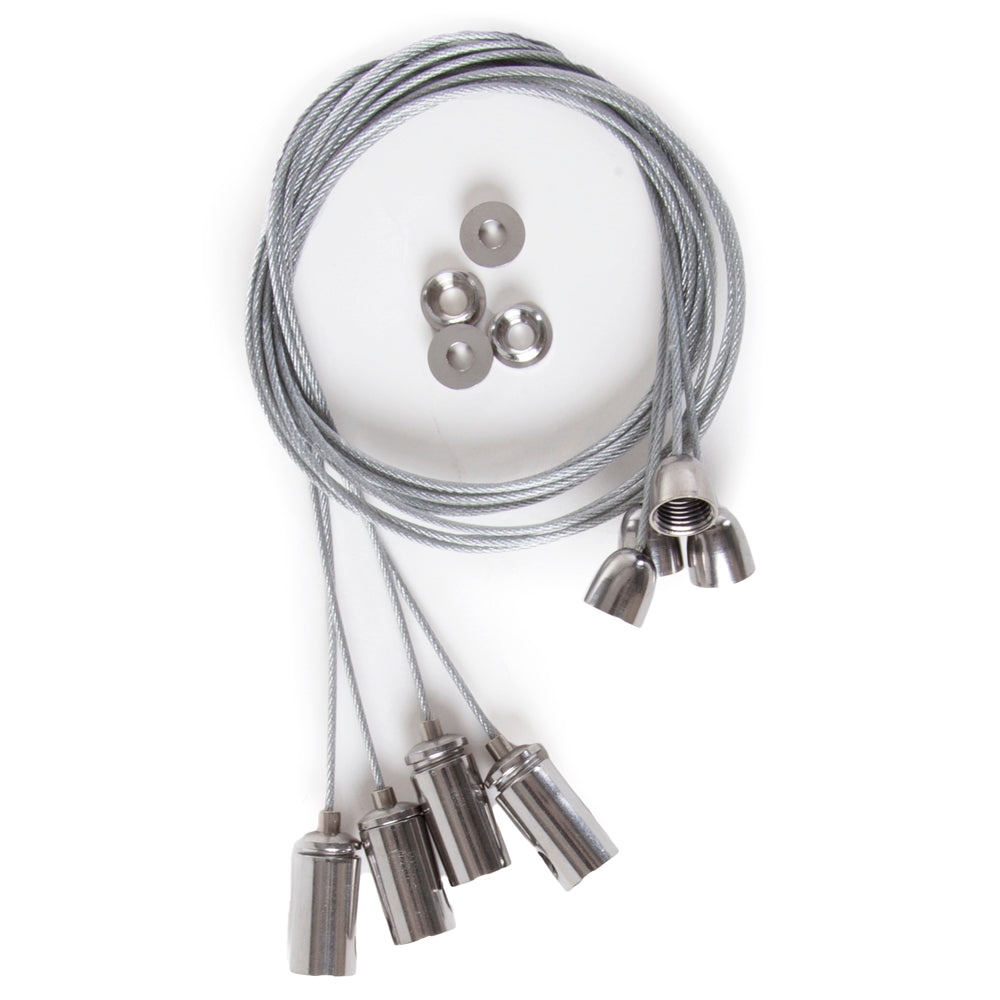

The led panel can be used supported on Armstrong false ceiling, on plasterboard with the help of the fastening clips for led panels, with which we can embed said panel in the ceiling, or with suspension kits for led panels. These kits are made up of four tensors, one in each corner, allowing us to achieve the desired height or inclination to give the perfect touch to our decoration.

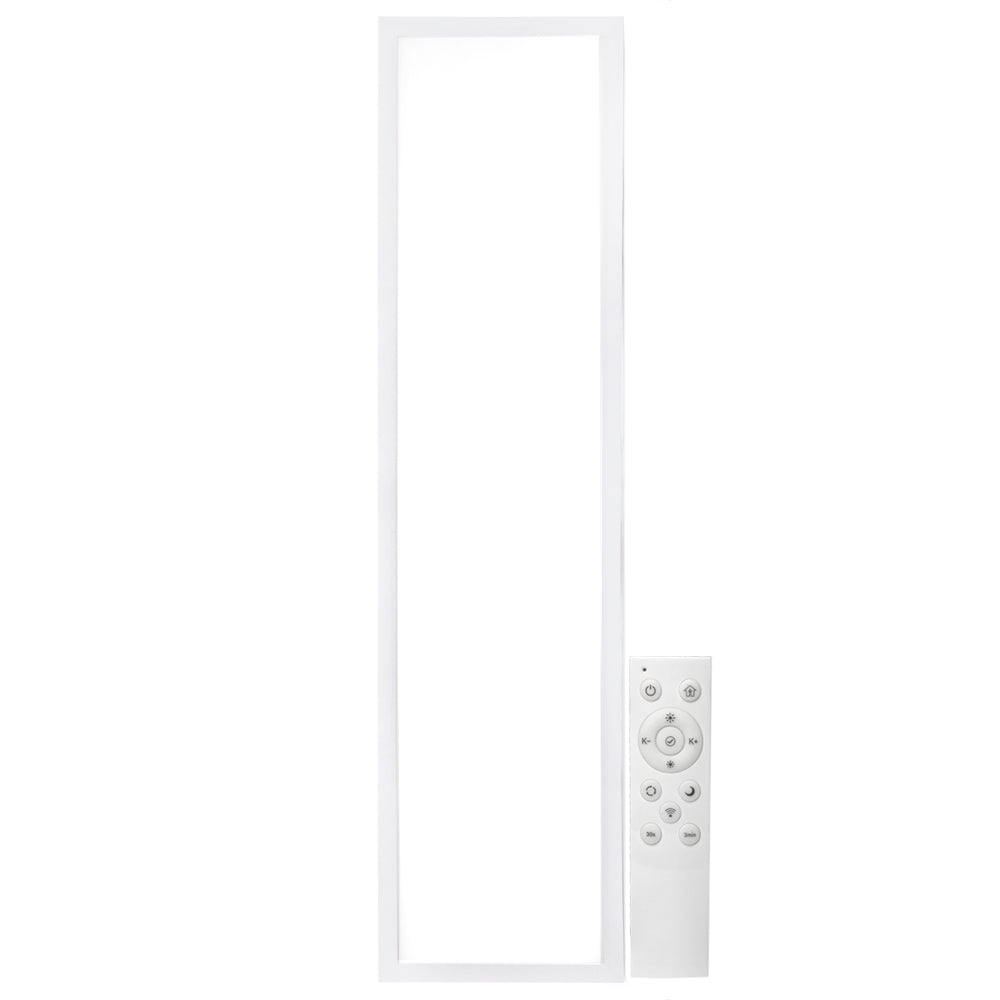

Remote control for intensity control and color temperature included .
