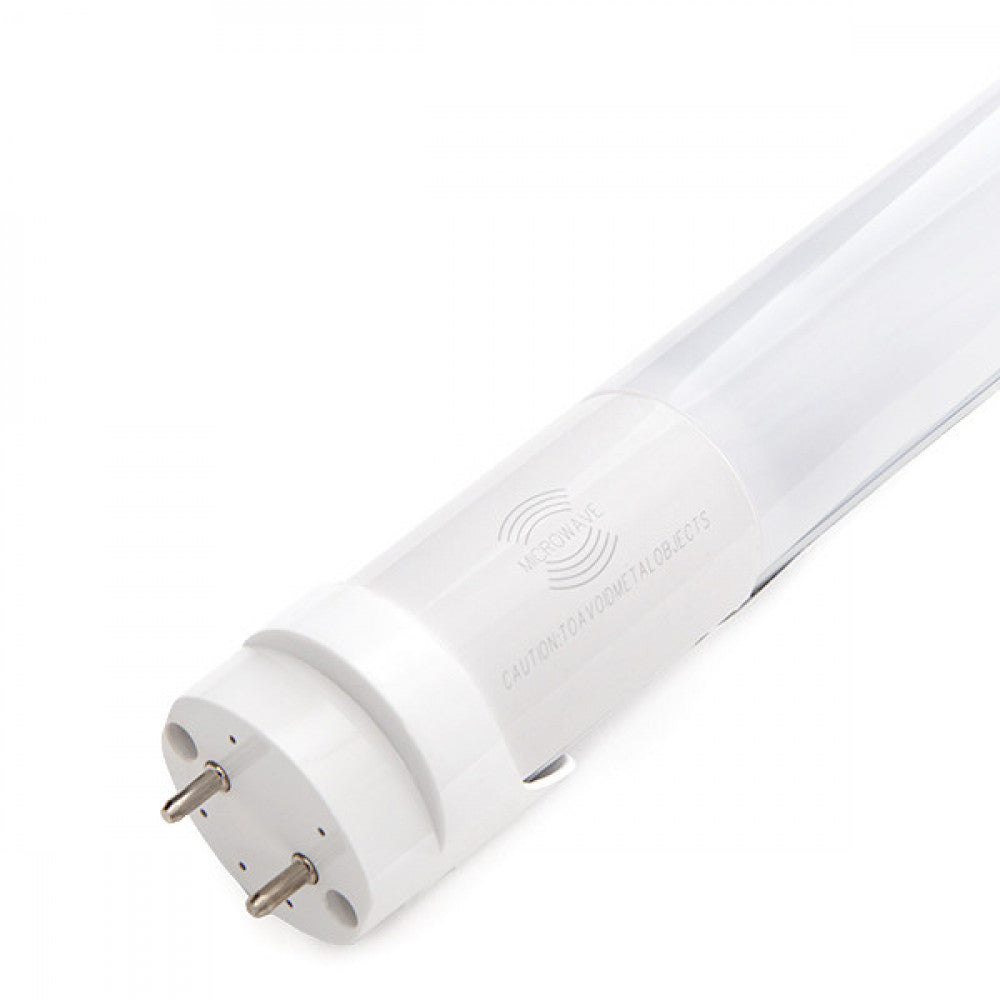

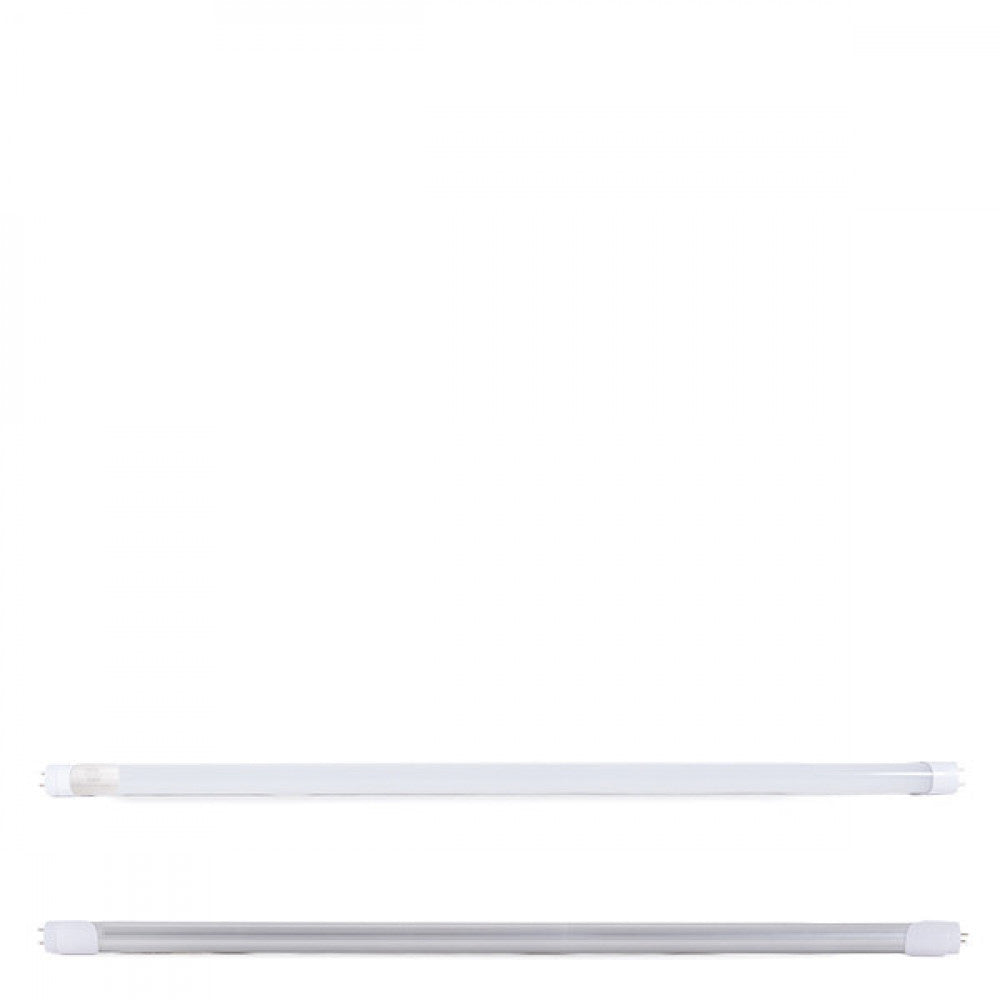

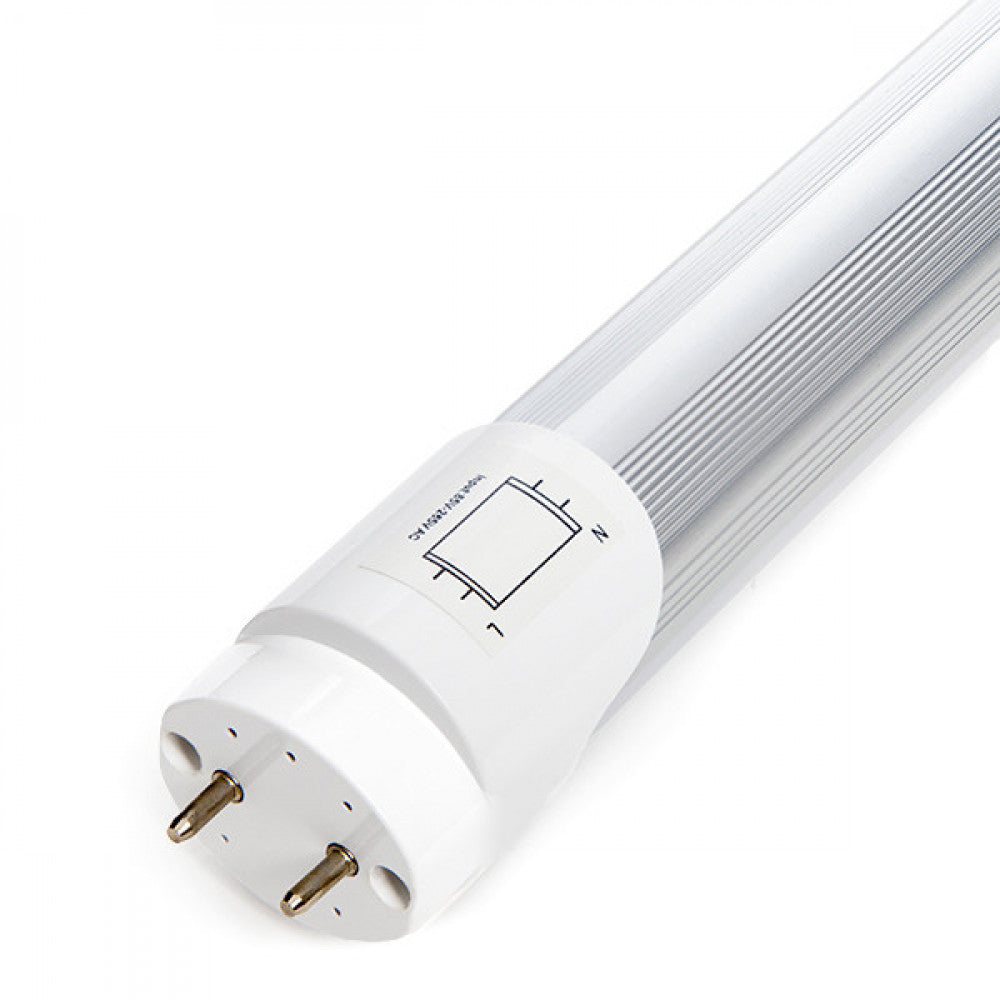

T8 LED Tube 23W 2,470Lm 6000ºK 150Cm Proximity Sensor 40,000H [GR-T8SENS23W-O-CW]

T8 LED Tube 23W 2,470Lm 6000ºK 150Cm Proximity Sensor 40,000H [GR-T8SENS23W-O-CW]

See questions and answers

  • Brand:GreenIce + Epistar Led
  • SKU:GR-T8SENS23W-O-CW
Eprel file
Reference Stock Price Discount Amount
6000K: Cool White
SKU: GR-T8SENS23W-O-CW
Delivery in 48 h ... if you ask before
There are few
11,62€
11,62€
For additional amounts the delivery period is 60 days As of the order date

Warranty

  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening

Accessories

Technical file

Product code
GR-T8SENS23W-O-CW
Light temperature
Cold White
Power (W)
23.0
Luminosity (LM)
2470
Luminous efficacy (LM/W)
107
Type of LEDs
Epistar Led
Number of LEDs
120
LED efficacy
117
Opening Angle (º)
120
CRI
80
Power factor (PF)
0.99
Construction
Aluminum/ PC
Facility
IP20
Strain
85-265VAC
Driver output
DC36-80V
Long
1500.0
Measures (mm)
Ø26x1500
Estimated life (H)
40000
Dimable
Yeah
Equivalence (W)
155
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
T8
Temperature range (ºC)
-40 +60
Lighting cycles
100000
Diffuser
Opal
Kelvin º
6000
Energy consumption (kWh/1000h)
23.0
Weight (gr)
270
Flicker
0.94
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single CCT
6000
INDEX R9
36
Minimum cri range
88
Maximum cri range
26
Chromaticity x
0.319
Chromaticity and
0.338
Additional information
Detailed instructions in the "Documents" tab
Connection
2XX
Diameter
26
Número unidades caja exterior
50.0
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000:2008; EN 60598:2008; EN 62471:2008

Characteristics

Product code
GR-T8SENS23W-O-CW
Light temperature
Cold White
Power (W)
23.0
Luminosity (LM)
2470
Luminous efficacy (LM/W)
107
Type of LEDs
Epistar Led
Number of LEDs
120
LED efficacy
117
Opening Angle (º)
120
CRI
80
Power factor (PF)
0.99
Construction
Aluminum/ PC
Facility
IP20
Strain
85-265VAC
Driver output
DC36-80V
Long
1500.0
Measures (mm)
Ø26x1500
Estimated life (H)
40000
Dimable
Yeah
Equivalence (W)
155
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
T8
Temperature range (ºC)
-40 +60
Lighting cycles
100000
Diffuser
Opal
Kelvin º
6000
Energy consumption (kWh/1000h)
23.0
Weight (gr)
270
Flicker
0.94
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single CCT
6000
INDEX R9
36
Minimum cri range
88
Maximum cri range
26
Chromaticity x
0.319
Chromaticity and
0.338
Additional information
Detailed instructions in the "Documents" tab
Connection
2XX
Diameter
26
Número unidades caja exterior
50.0
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000:2008; EN 60598:2008; EN 62471:2008

Description

The LED Tube with Microwave Proximity Sensor integrates a proximity sensor that provides new features.When an object approaches this LED Tube (distance of 5 meters), the microwave sensor detects it and makes operate the tube at its maximum power. As soon as the object leaves the radius of action of the LED Tube, after 30 seconds, it lowers its brightness to 30% of the total, offering more than enough courtesy light with a minimum consumption.

The number of starts does not affect the life of the tube at all, more than 30,000 hours.

Ideal for parking lots, basements, schools, offices, bathrooms, and any other area that needs lighting for a long period of time.

Precautions:

  • Do not place any metallic object in front of the sensor as it may alter its operation.
  • Ensure a distance of at least 5 meters between tube and tube as ignition may occur. differences between these.
