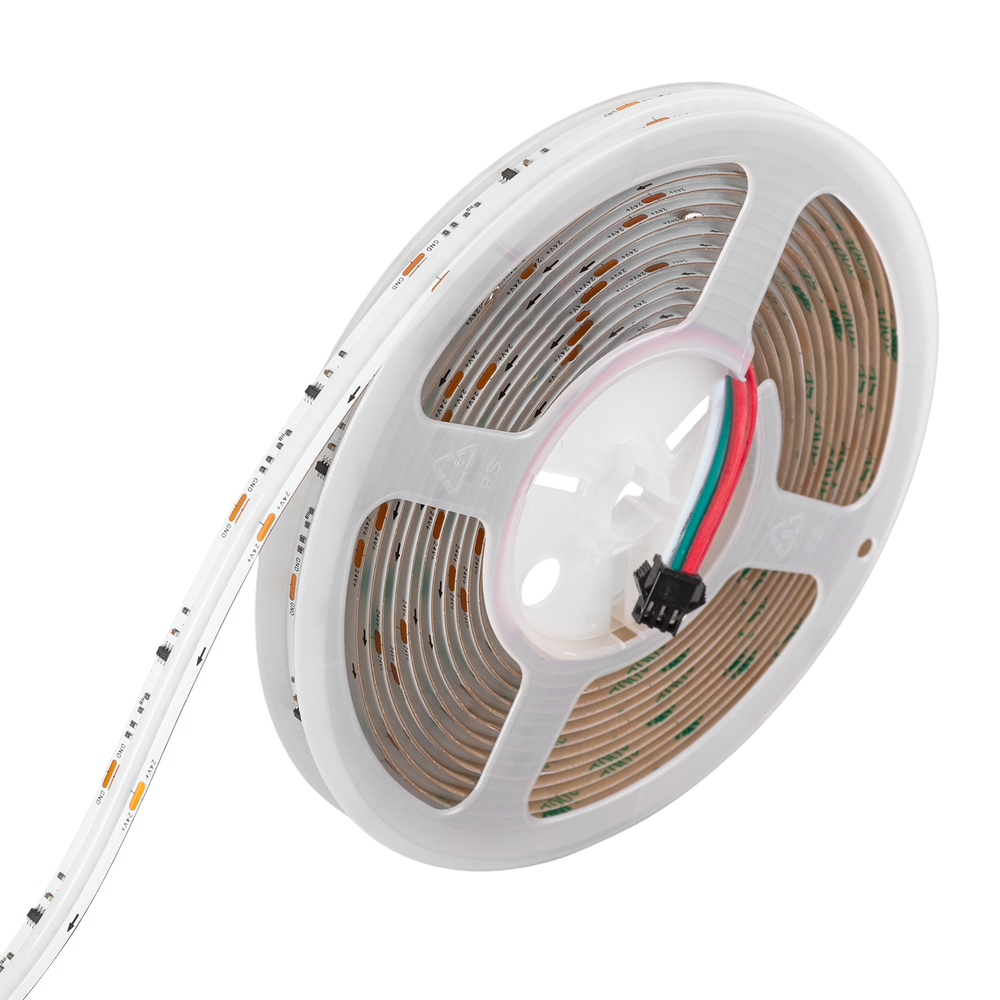

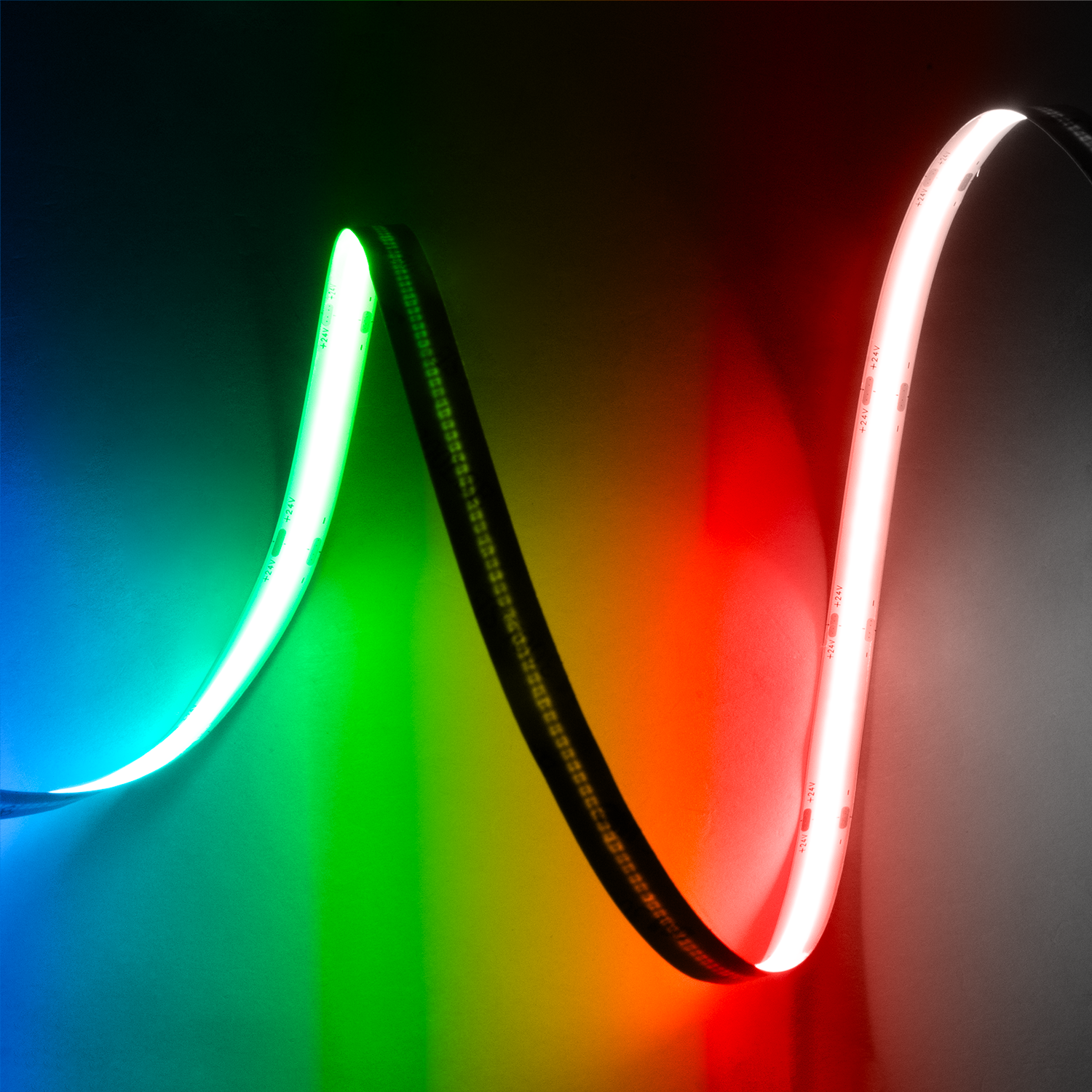

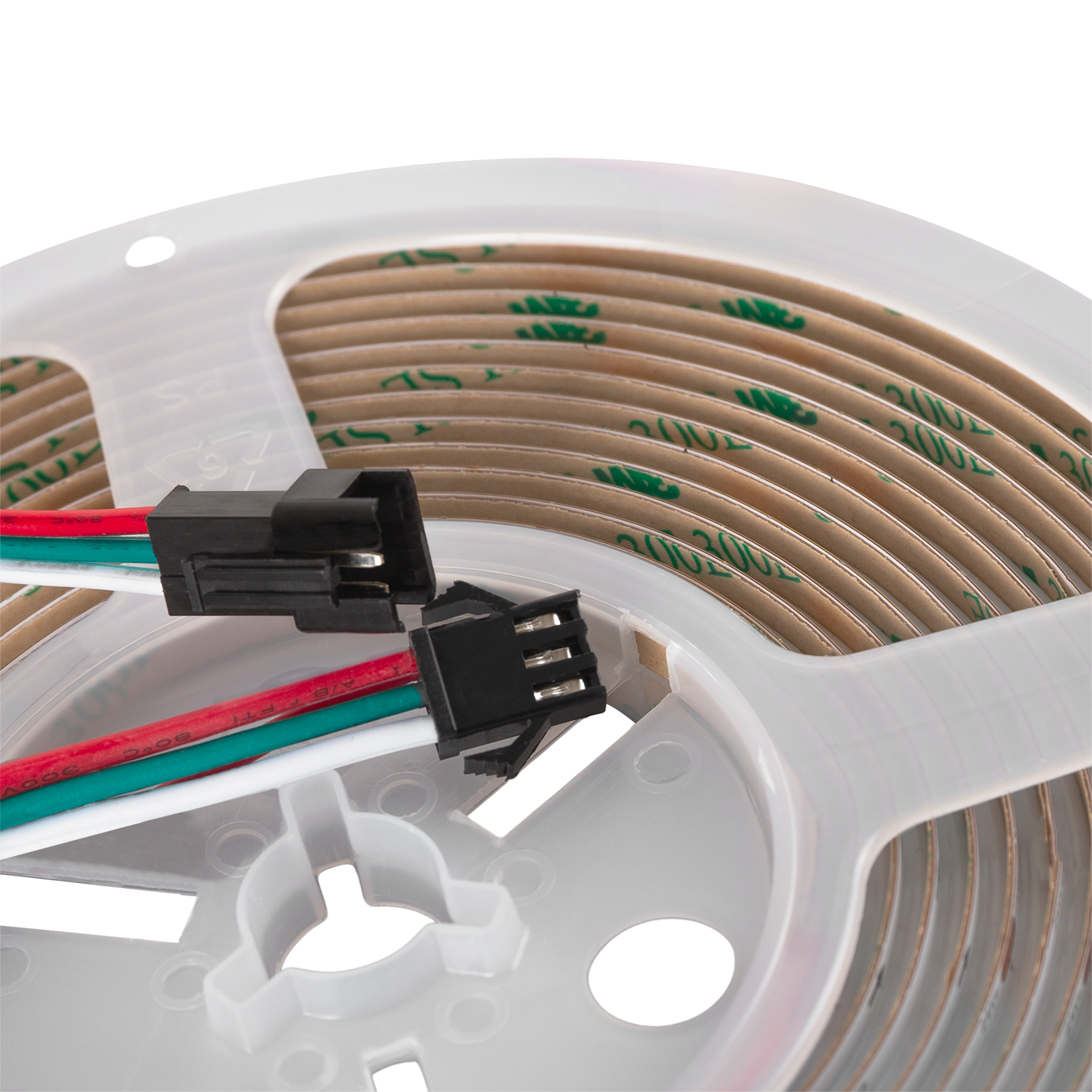

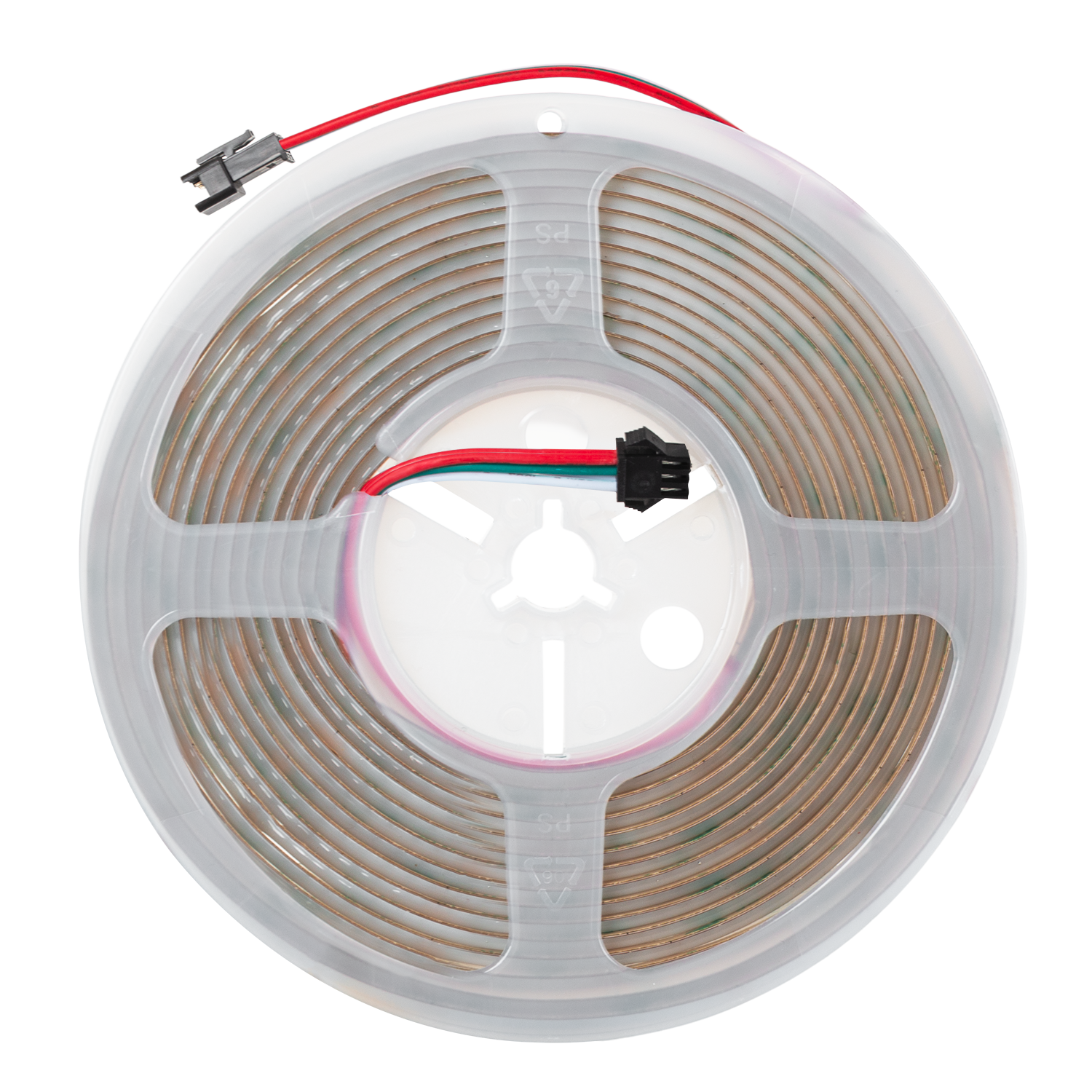

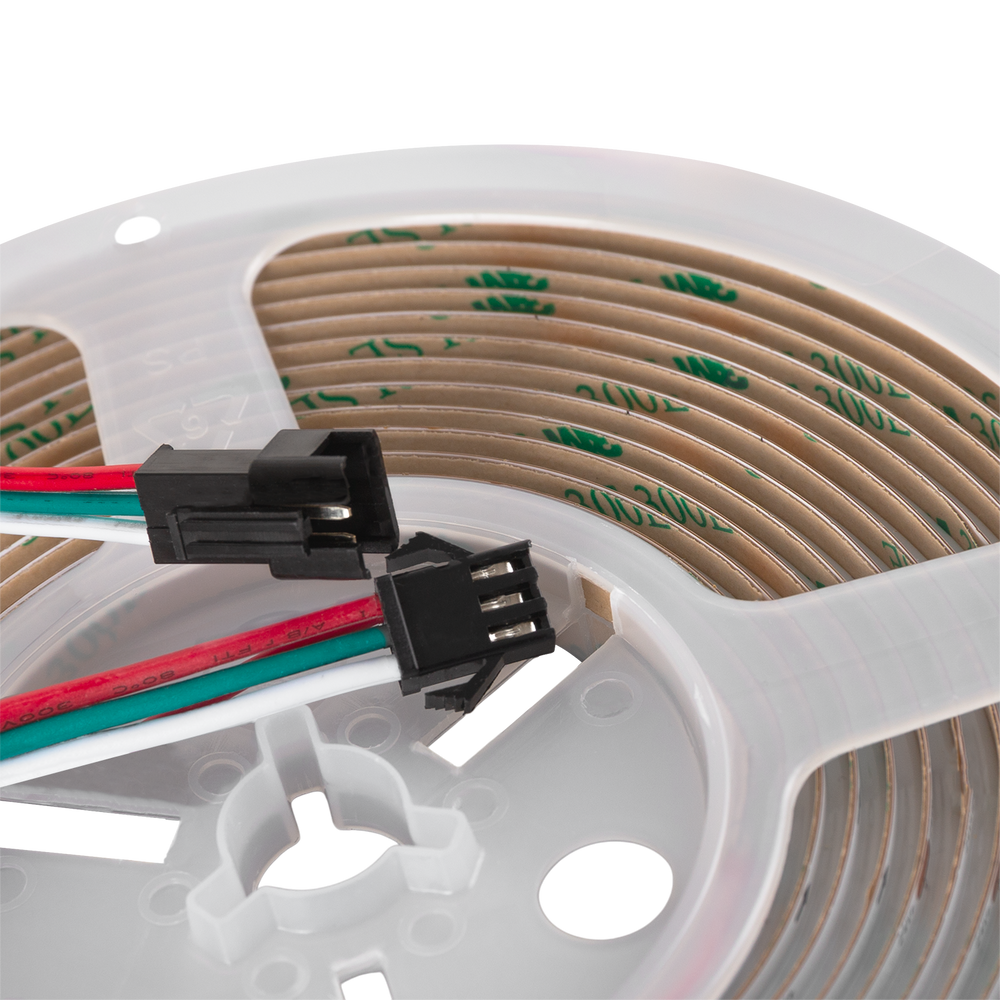

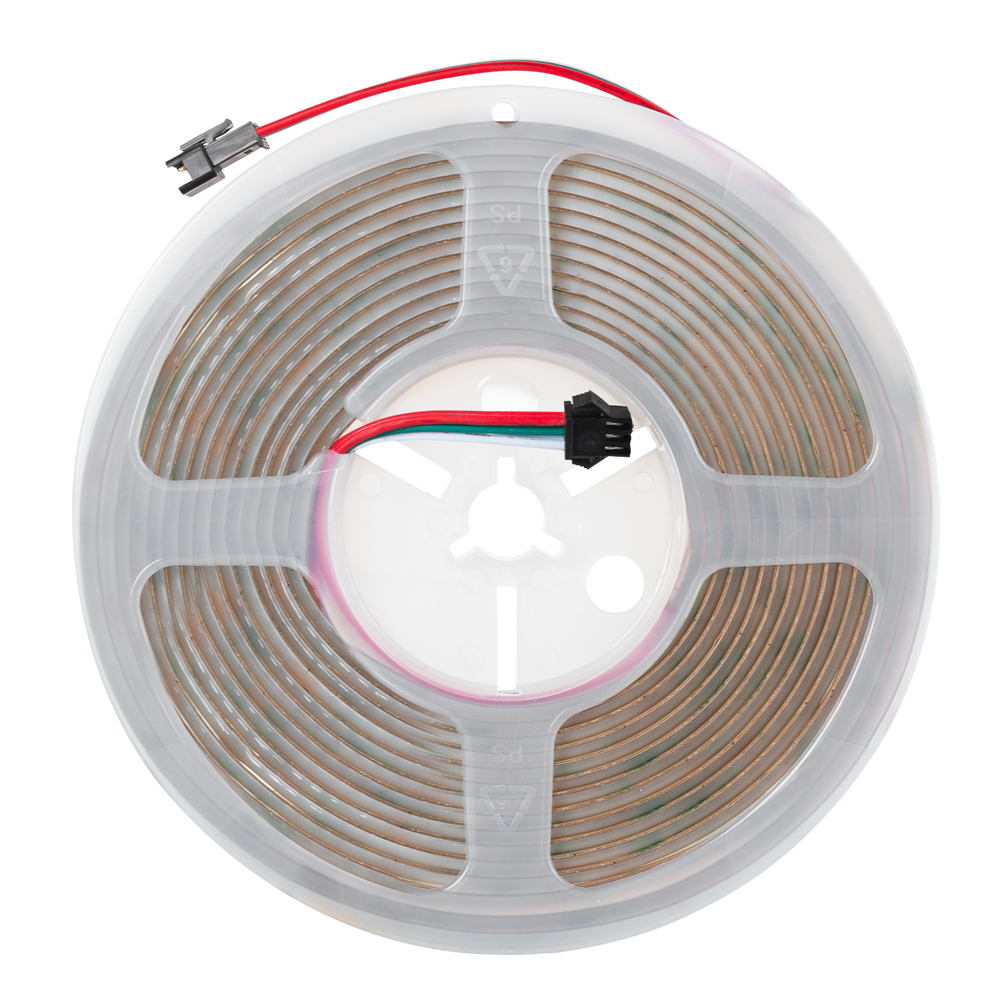

Digital COB LED Strip 2811 20IC/m 5M 19W/M RGB IP20 24VDC

Digital COB LED Strip 2811 20IC/m 5M 19W/M RGB IP20 24VDC

See questions and answers

  • SKU:SKY-FSLCOB-RGB720L
F
Reference Stock Price Discount Amount
RGB
SKU: SKY-FSLCOB-RGB720L
Free delivery in 48 h ... if you ask before
Stock available
35,91€
35,91€
For additional amounts the delivery period is 25 days As of the order date

Warranty

  • Warranty 3 years
  • 120 º Opening

Accessories

Technical file

Product code
SKY-FSLCOB-RGB720L
Light temperature
RGBIC
Power (W)
19.0
Luminosity (LM)
1900
Luminous efficacy (LM/W)
100
Type of LEDs
COB 1000/M WS2811
Number of LEDs
720 Leds/M
Opening Angle (º)
120
CRI
90
Construction
PCB/ 3M
Facility
IP20
Strain
24VDC
Long
5000.0
Measures (mm)
10x2,2x5000
Broad
10.0
High
2.2
Isolation class
III
Estimated life (H)
40000
Work frequency (Hz)
50/60
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20 ~+50
Lighting cycles
80000
Energy consumption (kWh/1000h)
19.0
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69

Characteristics

Product code
SKY-FSLCOB-RGB720L
Light temperature
RGBIC
Power (W)
19.0
Luminosity (LM)
1900
Luminous efficacy (LM/W)
100
Type of LEDs
COB 1000/M WS2811
Number of LEDs
720 Leds/M
Opening Angle (º)
120
CRI
90
Construction
PCB/ 3M
Facility
IP20
Strain
24VDC
Long
5000.0
Measures (mm)
10x2,2x5000
Broad
10.0
High
2.2
Isolation class
III
Estimated life (H)
40000
Work frequency (Hz)
50/60
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20 ~+50
Lighting cycles
80000
Energy consumption (kWh/1000h)
19.0
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69

Description

The Digital COB LED Strip 24V DC COB 1000 LED/m 5m IP20 CRI90 Width 12mm Cut 5 cm is an advanced lighting solution that combines COB technology with SPI digital control, allowing you to independently manage the color of the LEDs. With 20 pixels per meter, this strip is capable of sophisticated tracking, flash and LED group control effects, offering a dynamic and personalized lighting experience much more versatile than conventional COB strips.

This RGBIC Digital COB LED Strip has 1000 LEDs per meter, guaranteeing continuous and uniform lighting with superior color rendering thanks to its CRI90. Its integrated WS2811 control chip allows precise management of each group of LEDs through the SPI (Serial Peripheral Interface) interface, providing flexibility and creativity in your lighting projects.

The length of 5 meters and the possibility of cutting every 5 cm facilitate its customization to adapt to the specific needs of each installation, while its width of 12 mm allows its integration into aluminum profiles and other narrow structures.

To get the most out of this LED strip, it is essential to use a compatible digital controller, which allows you to easily configure and manage the desired lighting effects.

Thanks to its compact design and RGBIC technology, this LED strip is ideal for decorative, accent and beacon applications. Its ability to manage color and intensity independently makes it the perfect choice for festive spaces such as nightclubs, concert halls, pergolas, facades, showcases and shelves. The versatility of its lighting effects allows you to create unique and personalized environments.

Additionally, its IP20 design makes it suitable for indoor use, while its efficient energy performance ensures high-quality, sustainable lighting.

* LED strips should never be turned on when they are coiled, as this could cause overheating and damage the LEDs.

* To ensure a safe and efficient installation, it is recommended to use aluminum profiles and thermal tape to dissipate heat and protect the strip from possible damage.
