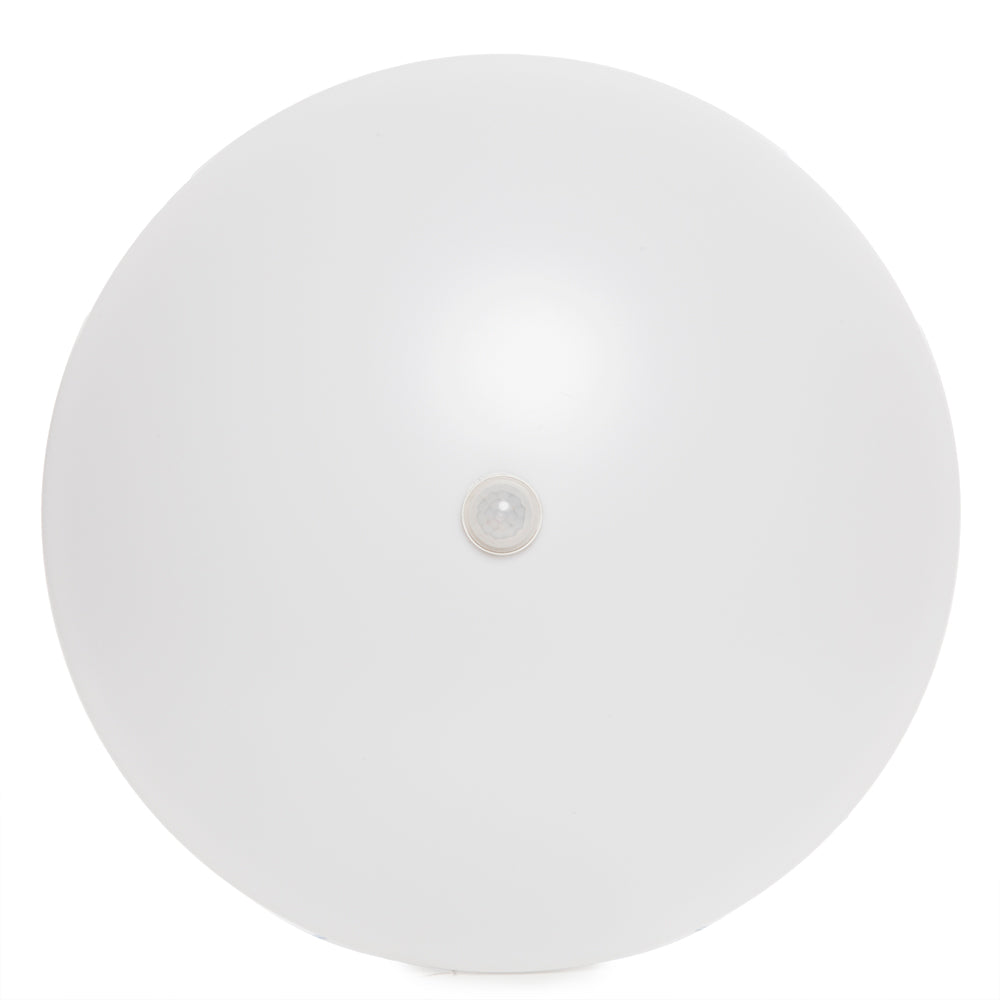

LED ceiling light 18W 1,500Lm 6000ºK Detector PIR 40,000H [HO-PL-18-D-CW]

LED ceiling light 18W 1,500Lm 6000ºK Detector PIR 40,000H [HO-PL-18-D-CW]

See questions and answers

Brand:GreenIce + Epistar Led
SKU:HO-PL-18-D-CW

Eprel file

Reference	Stock	Price
6000K: Cool White SKU: HO-PL-18-D-CW Delivery in 48 h ... if you ask before	Stock available	Usual price 15,52€ Usual price Offer price 15,52€ Unit price by
4200K: Daylight SKU: HO-PL-18-D-W Delivery in 48 h ... if you ask before	Stock available	Usual price 15,52€ Usual price Offer price 15,52€ Unit price by
2700K: Warm White SKU: HO-PL-18-D-WW Delivery in 48 h ... if you ask before	Stock available	Usual price 15,52€ Usual price Offer price 15,52€ Unit price by

For additional amounts the delivery period is 60 days As of the order date

Documents

See all documents

Warranty

Warranty 3 years

Eye Care
120 º Opening

Technical file

Product code

HO-PL-18-D-CW

Light temperature

Cold White

Power (W)

18.0

Luminosity (LM)

1500

Luminous efficacy (LM/W)

83

Type of LEDs

Epistar Led

Number of LEDs

90

LED efficacy

91

Opening Angle (º)

120

CRI

80

Power factor (PF)

0.98

Construction

Aluminum/ PC

Facility

IP20

Strain

85-265VAC

Driver output

DC24-36V

Measures (mm)

Ø300

Isolation class

II

Estimated life (H)

40000

Dimable

Yeah

Equivalence (W)

120

Work frequency (Hz)

50/ 60

Start time (s)

0.1

Energy class

G

Certificates

CE/ROHS/ISO9001

Bush

Terminal Block

Temperature range (ºC)

-20 +40

Lighting cycles

100000

Diffuser

Opal

Kelvin º

6000

Energy consumption (kWh/1000h)

18.0

Weight (gr)

750

Flicker

0.95

Half -year useful life (at 3 h/day)

36.52

Half -Year Useful Life (5 h/day)

21.91

Half -year useful life (at 8 h/day)

13.69

Directional

Non-Directional

Single CCT

6000

INDEX R9

26

Minimum cri range

92

Maximum cri range

1

Chromaticity x

0.323

Chromaticity and

0.353

Diameter

300

Número unidades caja exterior

10.0

Applicable standards

IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Characteristics

Product code

HO-PL-18-D-CW

Light temperature

Cold White

Power (W)

18.0

Luminosity (LM)

1500

Luminous efficacy (LM/W)

83

Type of LEDs

Epistar Led

Number of LEDs

90

LED efficacy

91

Opening Angle (º)

120

CRI

80

Power factor (PF)

0.98

Construction

Aluminum/ PC

Facility

IP20

Strain

85-265VAC

Driver output

DC24-36V

Measures (mm)

Ø300

Isolation class

II

Estimated life (H)

40000

Dimable

Yeah

Equivalence (W)

120

Work frequency (Hz)

50/ 60

Start time (s)

0.1

Energy class

G

Certificates

CE/ROHS/ISO9001

Bush

Terminal Block

Temperature range (ºC)

-20 +40

Lighting cycles

100000

Diffuser

Opal

Kelvin º

6000

Energy consumption (kWh/1000h)

18.0

Weight (gr)

750

Flicker

0.95

Half -year useful life (at 3 h/day)

36.52

Half -Year Useful Life (5 h/day)

21.91

Half -year useful life (at 8 h/day)

13.69

Directional

Non-Directional

Single CCT

6000

INDEX R9

26

Minimum cri range

92

Maximum cri range

1

Chromaticity x

0.323

Chromaticity and

0.353

Diameter

300

Número unidades caja exterior

10.0

Applicable standards

IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Description

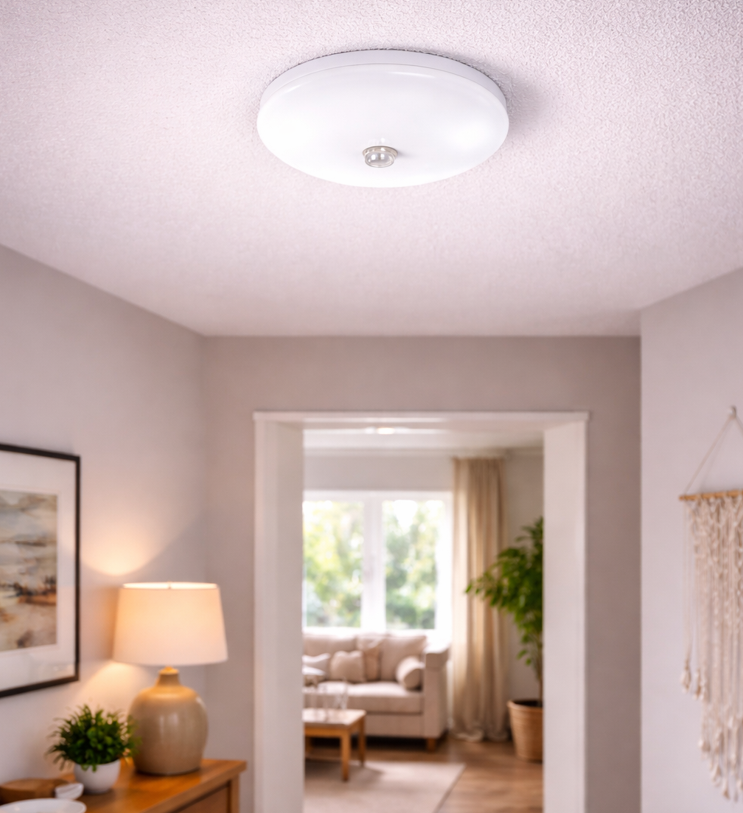

The 18W LED ceiling light with motion detector is perfect for going one step further in optimizing energy consumption.

By incorporating a radar sensor, it turns on automatically if it detects any movement within its radius of action. Once it detects that the room is empty, it turns off directly.

Parameters:
