LED ceiling light 24W 2400Lm 6000ºK Circular 40,000H [HO-PLAF-C-24W-CW]

LED ceiling light 24W 2400Lm 6000ºK Circular 40,000H [HO-PLAF-C-24W-CW]

See questions and answers

  • Brand:GreenIce + Osram Led
  • SKU:HO-PLAF-C-24W-CW
Eprel file
Reference Stock Price Discount Amount
6000K: Cool White
SKU: HO-PLAF-C-24W-CW
Delivery in 48 h ... if you ask before
Stock available
8,33€
8,33€
4200K: Daylight
SKU: HO-PLAF-C-24W-W
Delivery in 48 h ... if you ask before
Stock available
8,33€
8,33€
2700K: Warm White
SKU: HO-PLAF-C-24W-WW
Delivery in 48 h ... if you ask before
Stock available
8,33€
8,33€
For additional amounts the delivery period is 60 days As of the order date

Warranty

  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening

Accessories

Technical file

Product code
HO-PLAF-C-24W-CW
Light temperature
Cold White
Power (W)
24.0
Luminosity (LM)
2400
Luminous efficacy (LM/W)
100
Type of LEDs
Osram Led
Number of LEDs
120
LED efficacy
110
Opening Angle (º)
120
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/ PC
Facility
IP20
Strain
220-240VAC
Driver output
30-42 V
Measures (mm)
Ø270x38
High
38.0
Isolation class
II
Estimated life (H)
40000
Dimable
No
Equivalence (W)
160
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Opal
Kelvin º
6000
Energy consumption (kWh/1000h)
24.0
Weight (gr)
729
Flicker
0.95
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
36
Minimum cri range
80
Maximum cri range
22
Chromaticity x
0.316
Chromaticity and
0.335
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Diameter
295
Número unidades caja exterior
20.0
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Characteristics

Product code
HO-PLAF-C-24W-CW
Light temperature
Cold White
Power (W)
24.0
Luminosity (LM)
2400
Luminous efficacy (LM/W)
100
Type of LEDs
Osram Led
Number of LEDs
120
LED efficacy
110
Opening Angle (º)
120
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/ PC
Facility
IP20
Strain
220-240VAC
Driver output
30-42 V
Measures (mm)
Ø270x38
High
38.0
Isolation class
II
Estimated life (H)
40000
Dimable
No
Equivalence (W)
160
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Opal
Kelvin º
6000
Energy consumption (kWh/1000h)
24.0
Weight (gr)
729
Flicker
0.95
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
36
Minimum cri range
80
Maximum cri range
22
Chromaticity x
0.316
Chromaticity and
0.335
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Diameter
295
Número unidades caja exterior
20.0
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Description

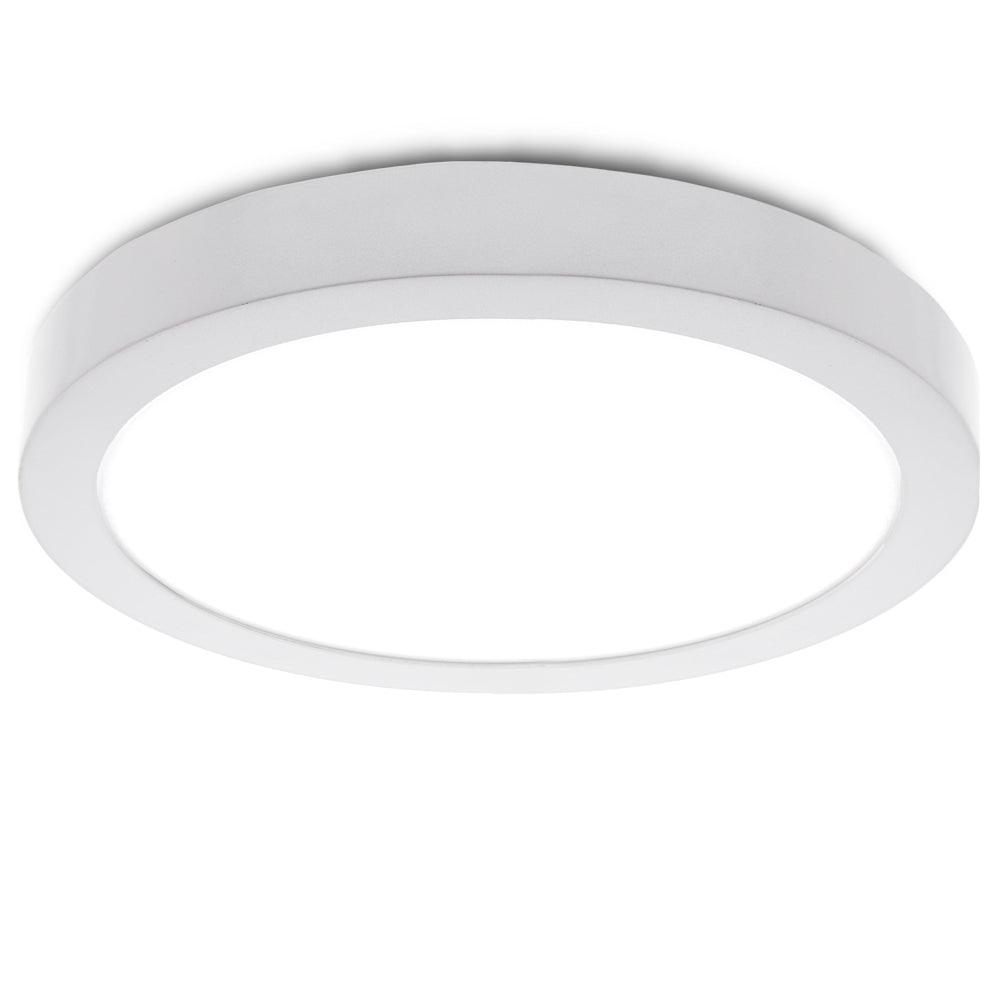

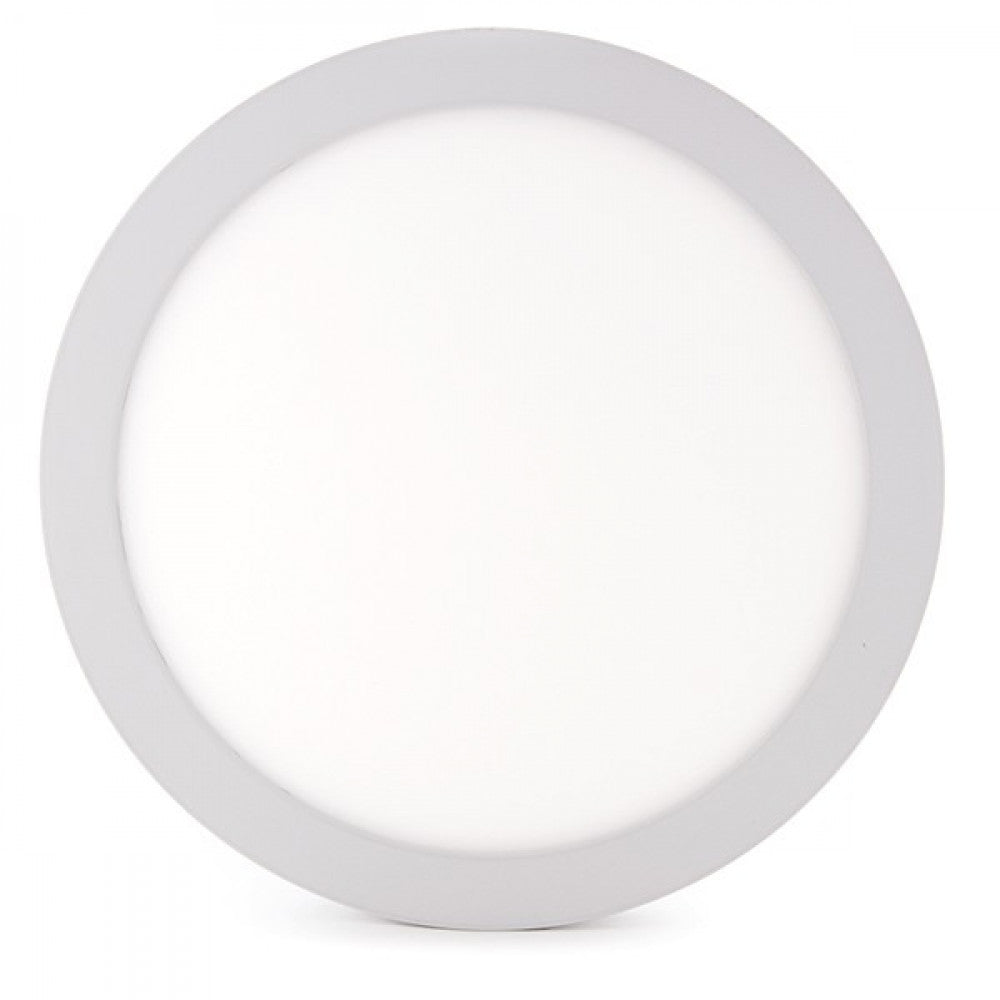

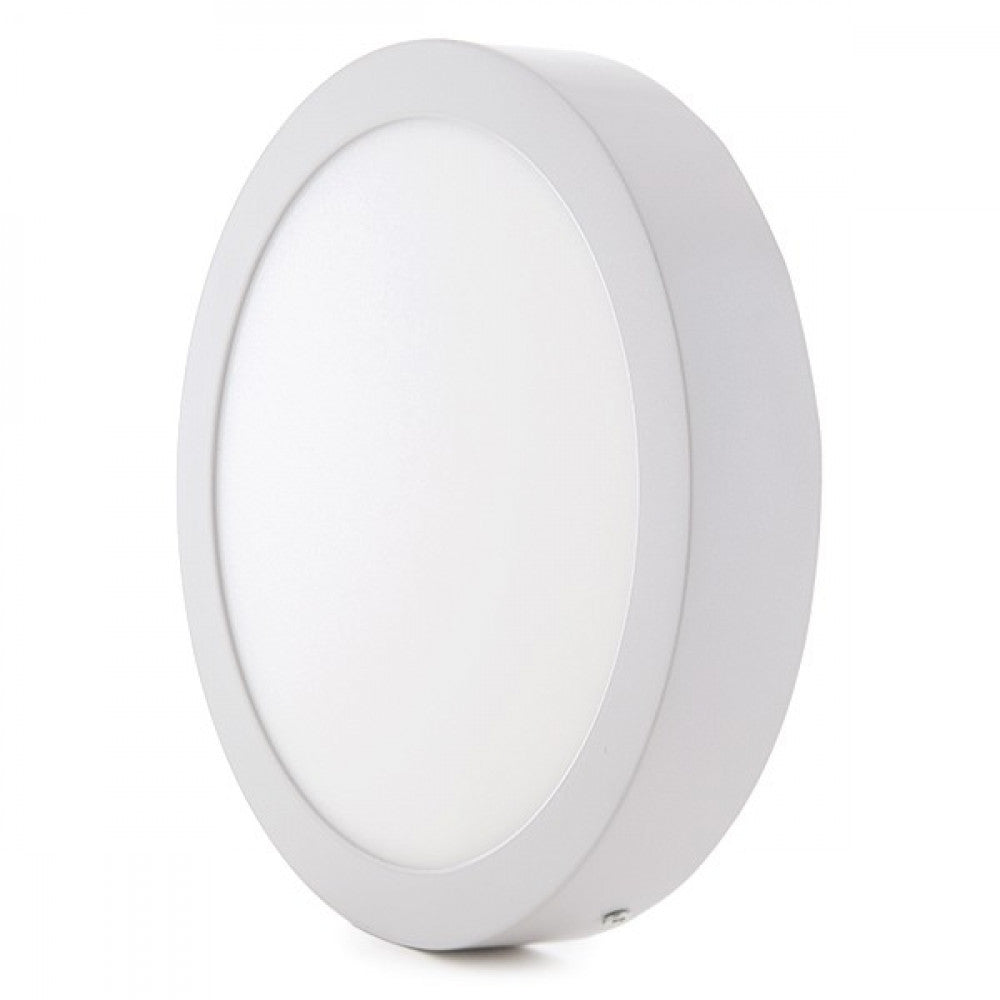

The 295mm diameter, 38mm thick circular LED ceiling light offers solutions for offices, factories, supermarkets, shops and for residential use. It can be installed directly to electrical outlets. current supplied by the electrical network (85-256VAC) with a service frequency of 50/60Hz.

It has a high efficiency (79 Lm/W) consuming 24W through LEDs of the type SMD2835 and managing to provide a luminous flux of 1900Lm uniformly distributed by an opal plastic diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 150W incandescent bulb, its consumption represents a value of 24kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

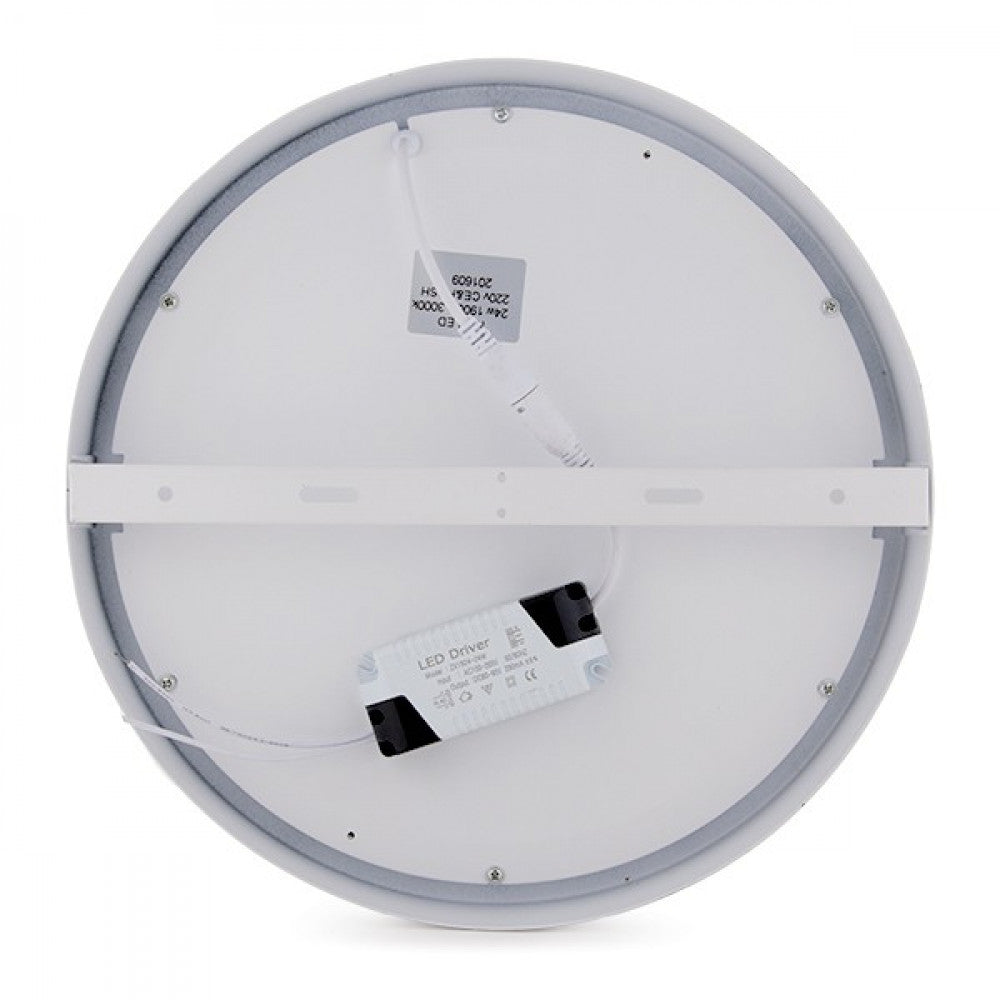

This luminaire is powered by a Non-dimmable driver included in the package that must be connected directly to the network, with an output connector compatible with the connection of the plate (56-95VDC, 300mA), additionally the necessary accessories for the installation of the luminaire are included. White finish built with aluminum.This surface ceiling light has an IP25 degree of protection (valid for dust and humidity indoors), in addition to being robust enough for the required mechanical demands.

Ideal to replace the traditional halogen ones, reaching savings of up to 90% and conventional low consumption downlights, reaching savings of up to 60%, thus achieving high energy efficiency.

Easy installation, long life of the led luminaire, more than 30,000 hours and maintenance free.

The perfect solution to create an elegant environment, in new construction or rehabilitation, for replace the current spotlights, for the home, offices, receptions, museums, bars, etc.

This luminaire is available in natural white (4200°K), cold white (6000°K) and warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.

Documents

Installation_manual
Spanish_technical_data
Eu_certificates
Technical_drawings
