LED Circular Downlight Spotlight 18W 2520Lm 6000ºK Anti-Glare UGR19 40,000H [HO-DL-AD-COB-18W-CW]

LED Circular Downlight Spotlight 18W 2520Lm 6000ºK Anti-Glare UGR19 40,000H [HO-DL-AD-COB-18W-CW]

See questions and answers

  • Brand:GreenIce + Philips Led
  • SKU:HO-DL-AD-COB-18W-CW
Eprel file
Reference Stock Price Discount Amount
6000K: Cool White
SKU: HO-DL-AD-COB-18W-CW
Delivery in 48 h ... if you ask before
Stock available
11,19€
11,19€
4200K: Daylight
SKU: HO-DL-AD-COB-18W-W
Ask for it and collect it in 60 days
Available
11,19€
11,19€
2700K: Warm White
SKU: HO-DL-AD-COB-18W-WW
Delivery in 48 h ... if you ask before
Stock available
11,19€
11,19€
For additional amounts the delivery period is 60 days As of the order date

Warranty

  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening

Accessories

Technical file

Product code
HO-DL-AD-COB-18W-CW
Light temperature
Cold White
Power (W)
18.0
Luminosity (LM)
2520
Luminous efficacy (LM/W)
140
Type of LEDs
Philips Led
LED efficacy
154
Opening Angle (º)
120
CRI
80
UGR
◄19
Power factor (PF)
0.98
Construction
Aluminum/ PC
Facility
IP20
Strain
220-240VAC
Driver output
30-42 V
Measures (mm)
Ø170x85
High
85.0
Isolation class
II
Estimated life (H)
40000
Dimable
No
Equivalence (W)
120
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
D
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Transparent
Kelvin º
6000
Energy consumption (kWh/1000h)
18.0
Weight (gr)
690
Flicker
0.87
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
26
Minimum cri range
92
Maximum cri range
4
Chromaticity x
0.323
Chromaticity and
0.353
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Roof cut (mm)
Ø150
Diameter
170
Número unidades caja exterior
20.0
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
HO-DL-AD-COB-18W-CW
Light temperature
Cold White
Power (W)
18.0
Luminosity (LM)
2520
Luminous efficacy (LM/W)
140
Type of LEDs
Philips Led
LED efficacy
154
Opening Angle (º)
120
CRI
80
UGR
◄19
Power factor (PF)
0.98
Construction
Aluminum/ PC
Facility
IP20
Strain
220-240VAC
Driver output
30-42 V
Measures (mm)
Ø170x85
High
85.0
Isolation class
II
Estimated life (H)
40000
Dimable
No
Equivalence (W)
120
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
D
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Transparent
Kelvin º
6000
Energy consumption (kWh/1000h)
18.0
Weight (gr)
690
Flicker
0.87
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
26
Minimum cri range
92
Maximum cri range
4
Chromaticity x
0.323
Chromaticity and
0.353
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Roof cut (mm)
Ø150
Diameter
170
Número unidades caja exterior
20.0
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

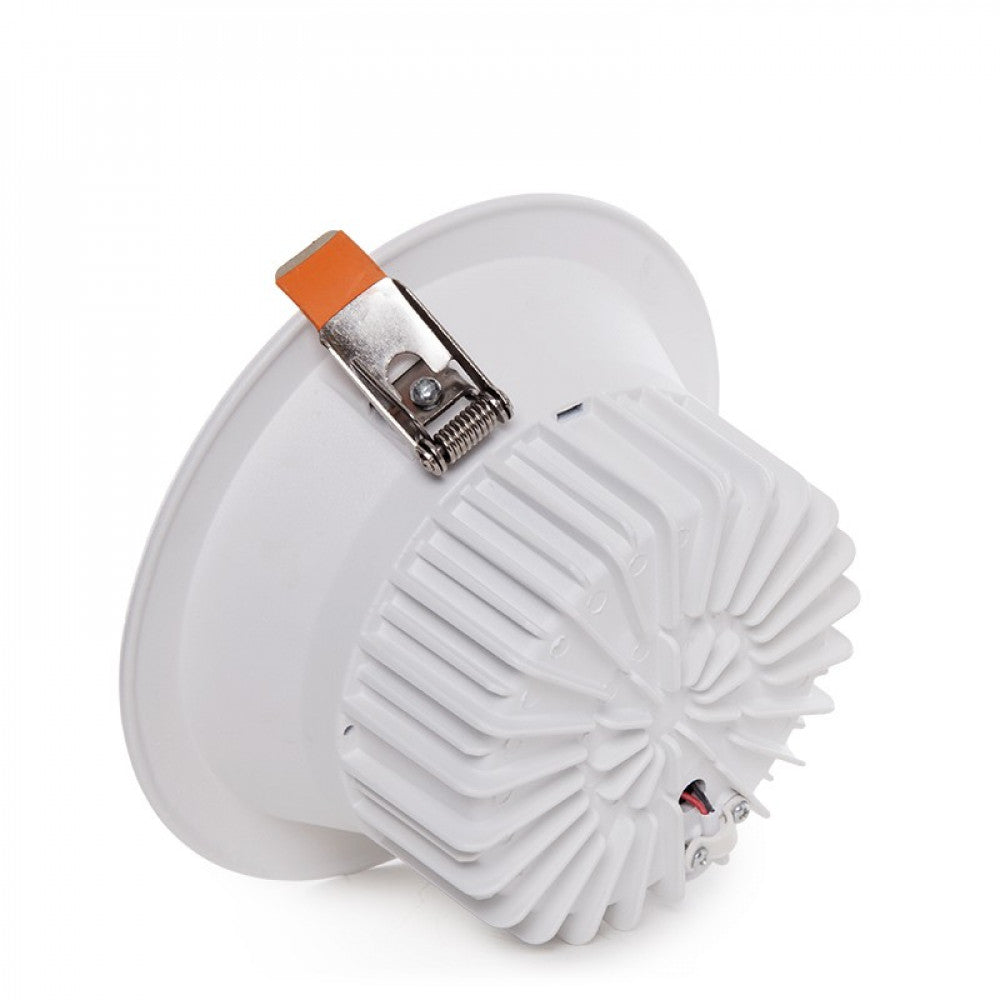

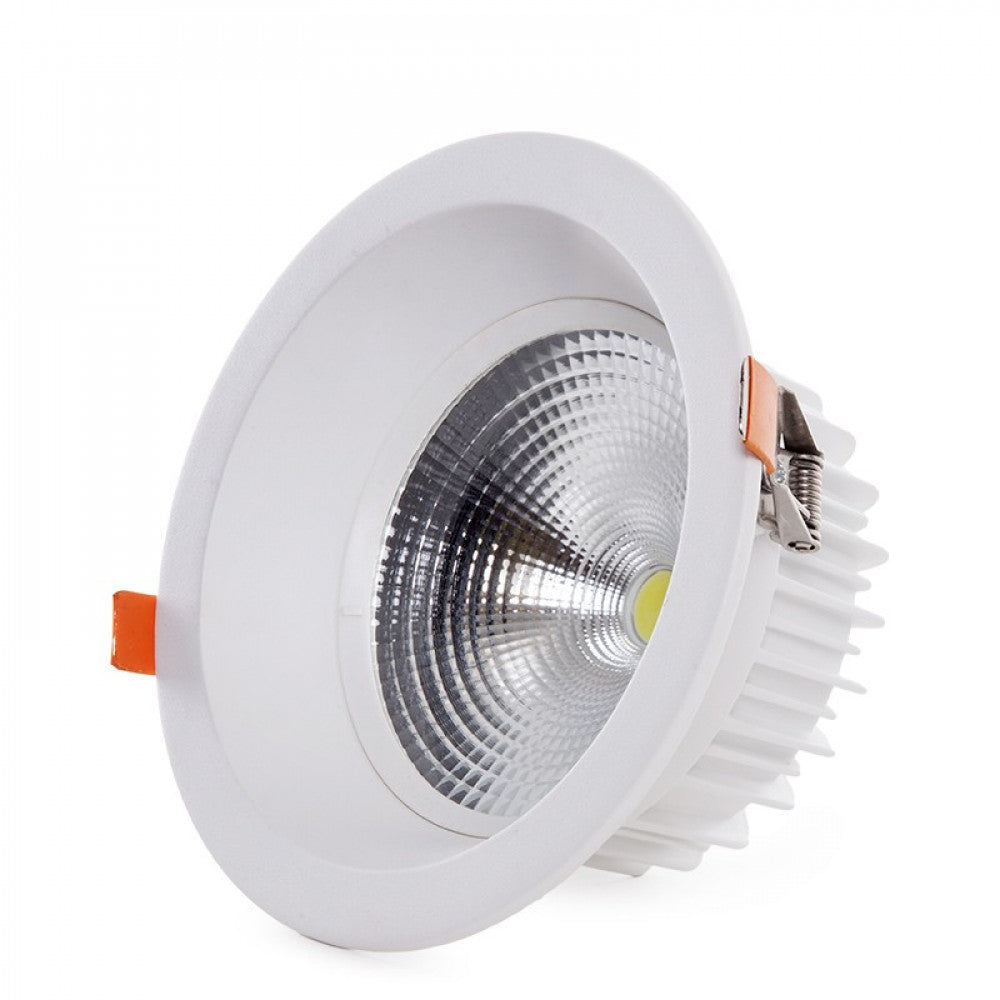

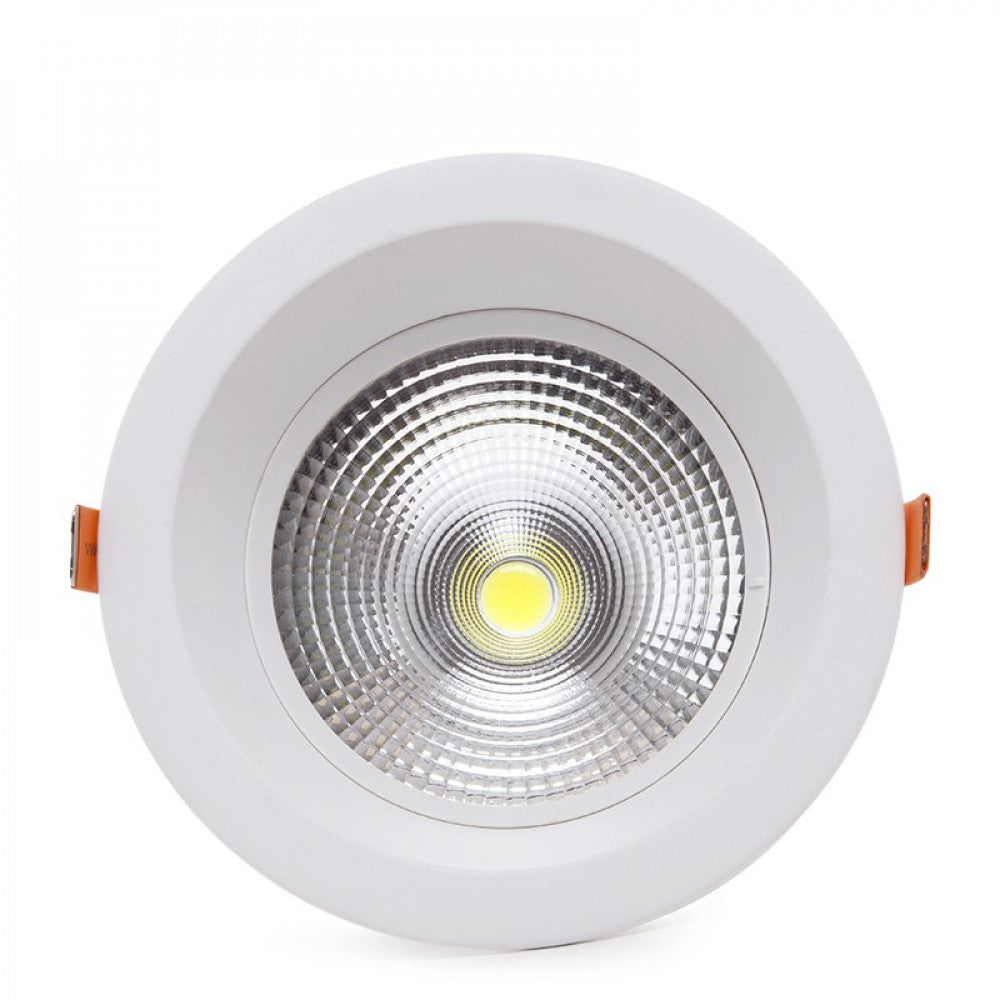

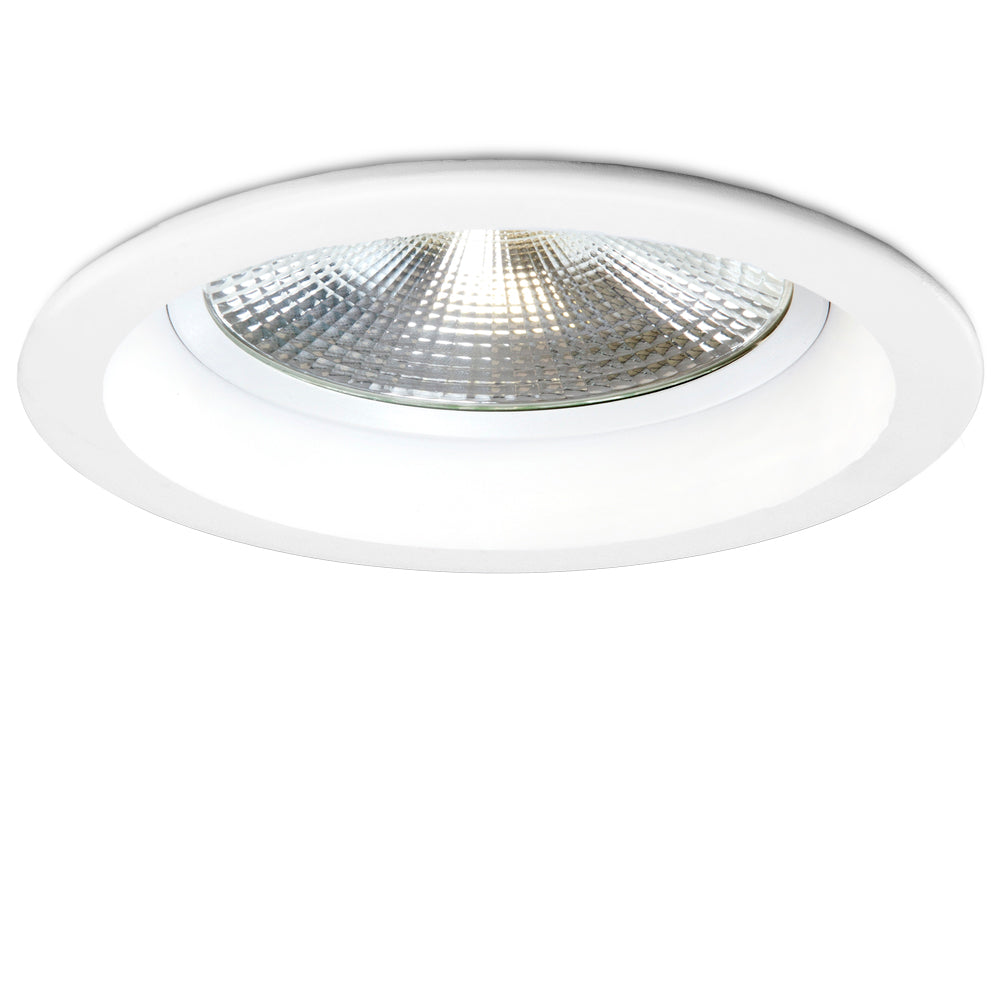

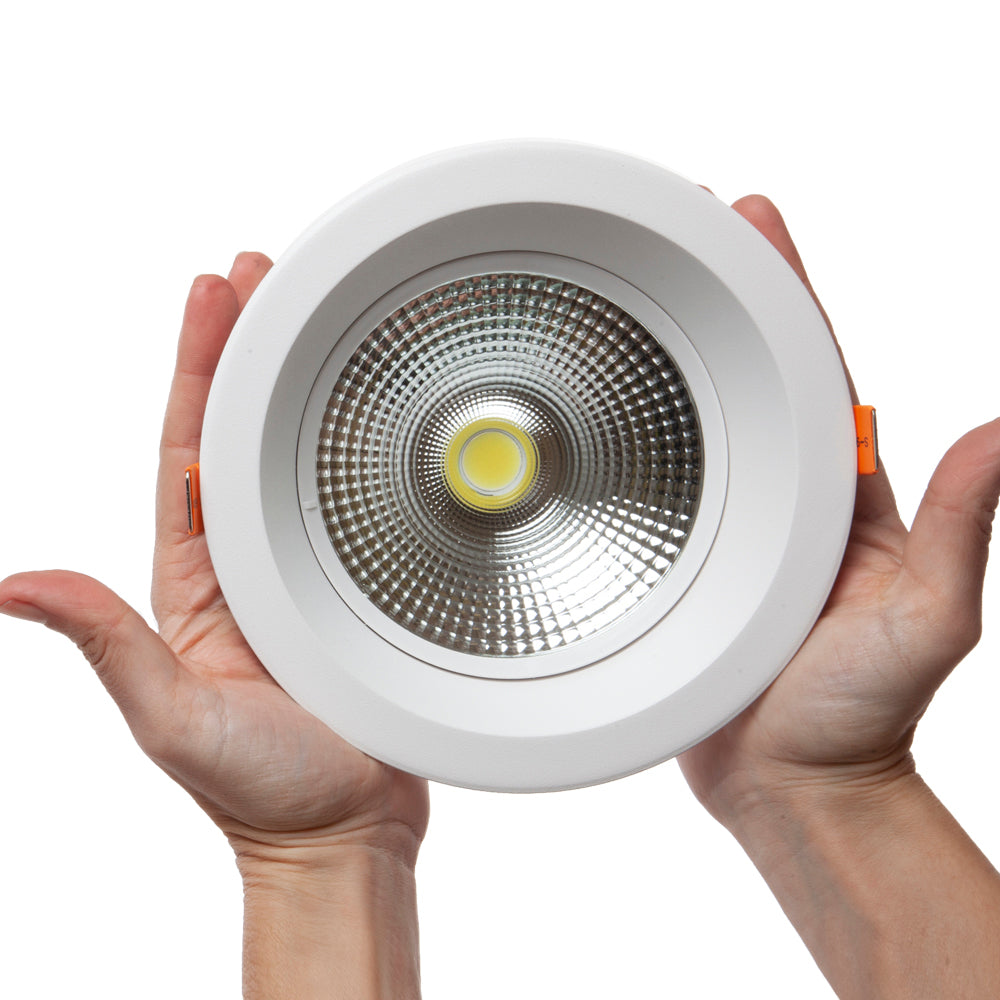

The 170mm diameter circular LED Downlight with a thickness of (85mm) offers solutions for offices, factories, supermarkets, shops and for residential use. It can be installed directly to outlets supplied by the electrical network (86-265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (140 Lm/W) consuming 18W through a COB-type LED and managing to provide a luminous flux of 2520Lm evenly distributed through a transparent anti-glare diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 120W incandescent bulb, its consumption represents a value of 18kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

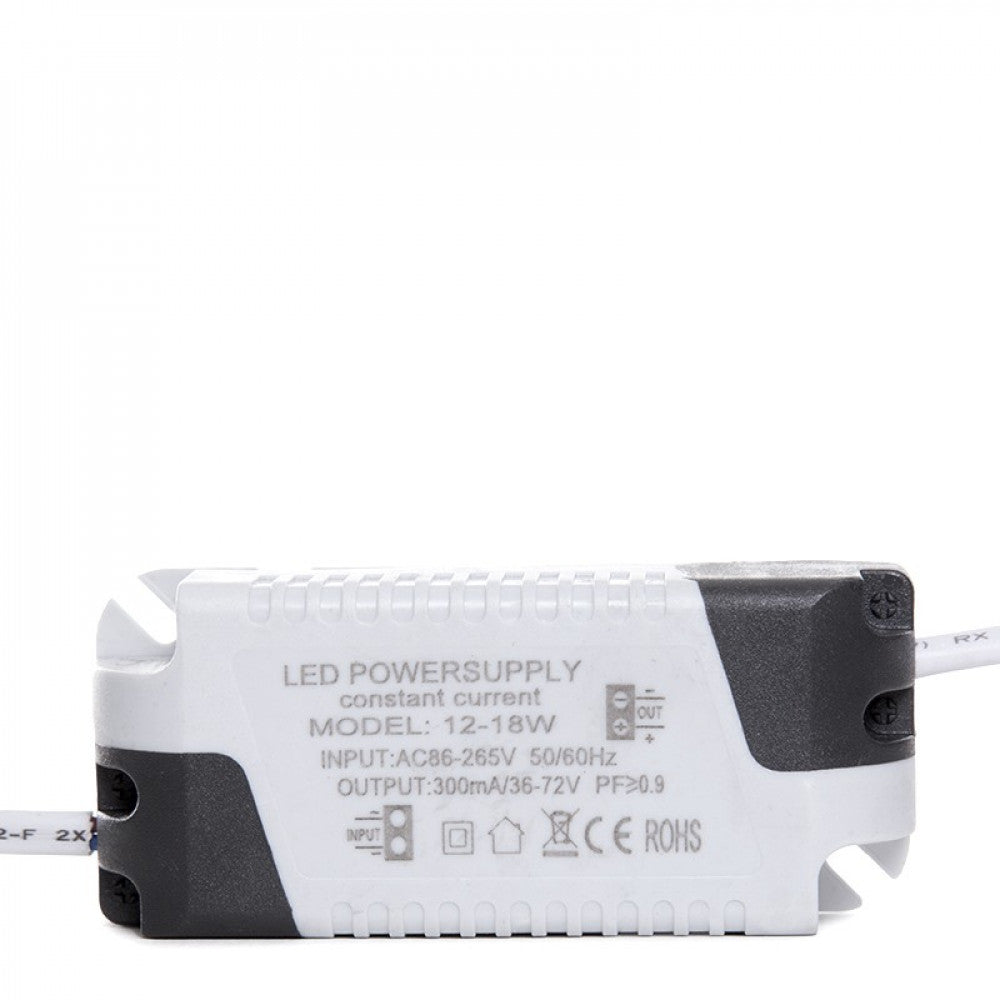

This downlight is powered by a Non-dimmable driver included in the package that must be connected directly to the network, with an output connector compatible with the connection of the downlight (36-72VDC, 300mA), additionally the necessary accessories for the installation of the downlight are included. White finish built with aluminum and polycarbonate. The Downlight has an IP20 degree of protection (valid for dust and humidity indoors), in addition to being robust enough for the required mechanical demands.

It is made of high-quality materials such as aluminium, which ensures the durability of the spotlight. It offers uniform lighting without annoying reflections. In addition, it has the CE and RoHS certificates, which are synonymous with quality and safety.

The Downlight spotlight has a high color rendering index (CRI 80) and, therefore, , ensures distortion-free color reproduction. This factor is key in commercial environments and spaces where products are displayed in general, such as supermarkets, shops, malls, museums, dealerships, restaurants, etc.

This Downlight It is available in natural white (4200°K), cold white (6000°K) and warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.
