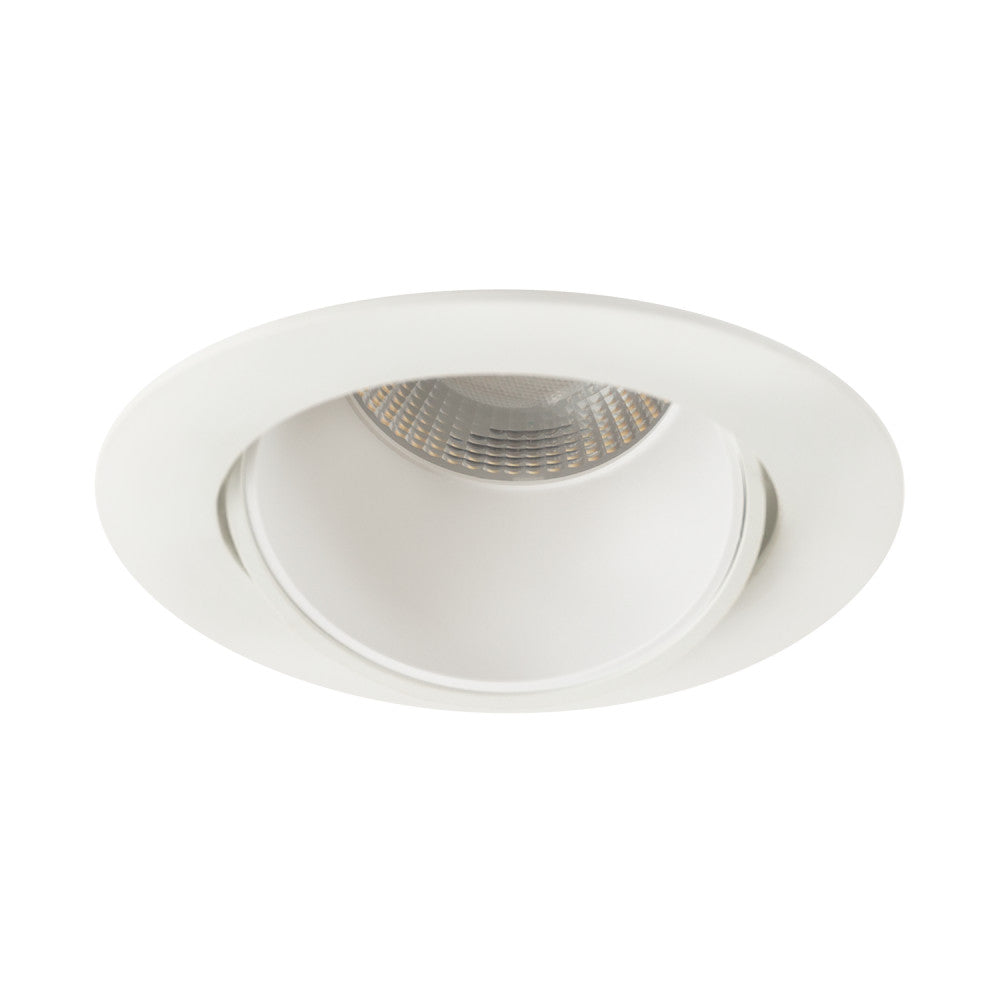

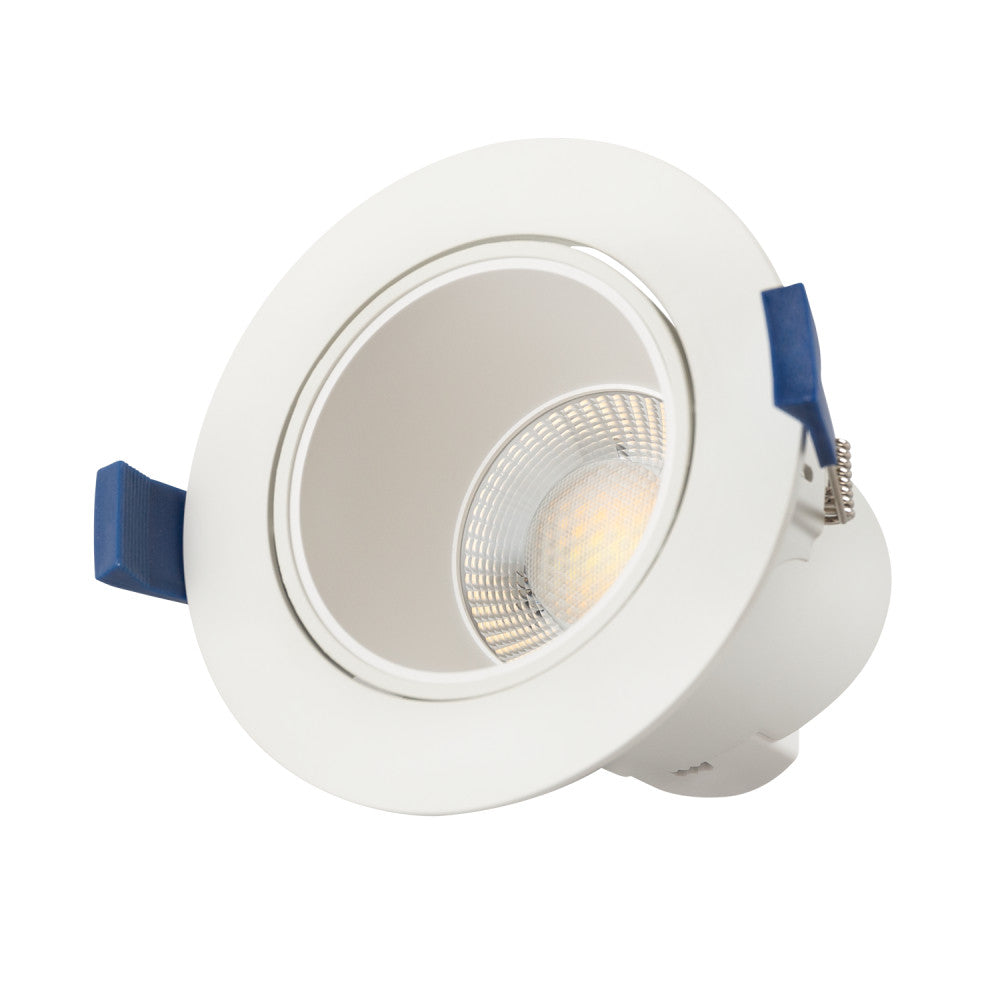

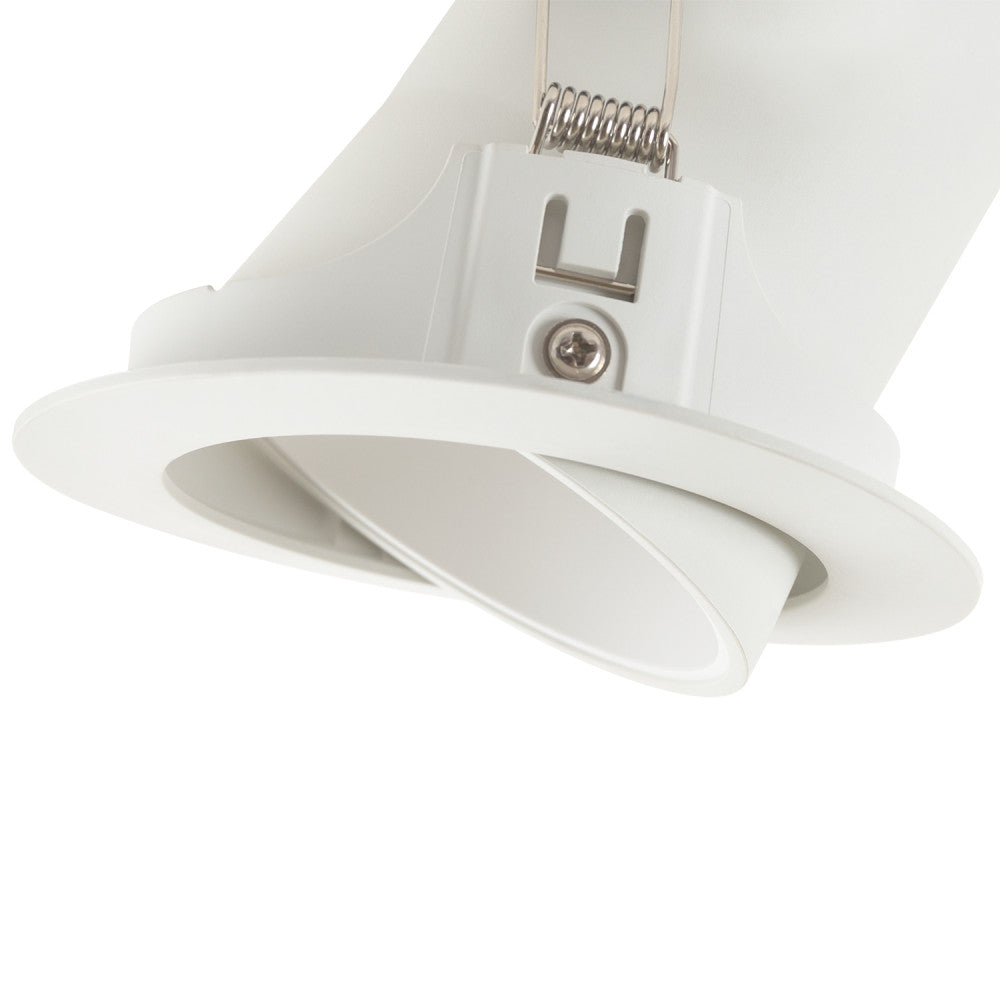

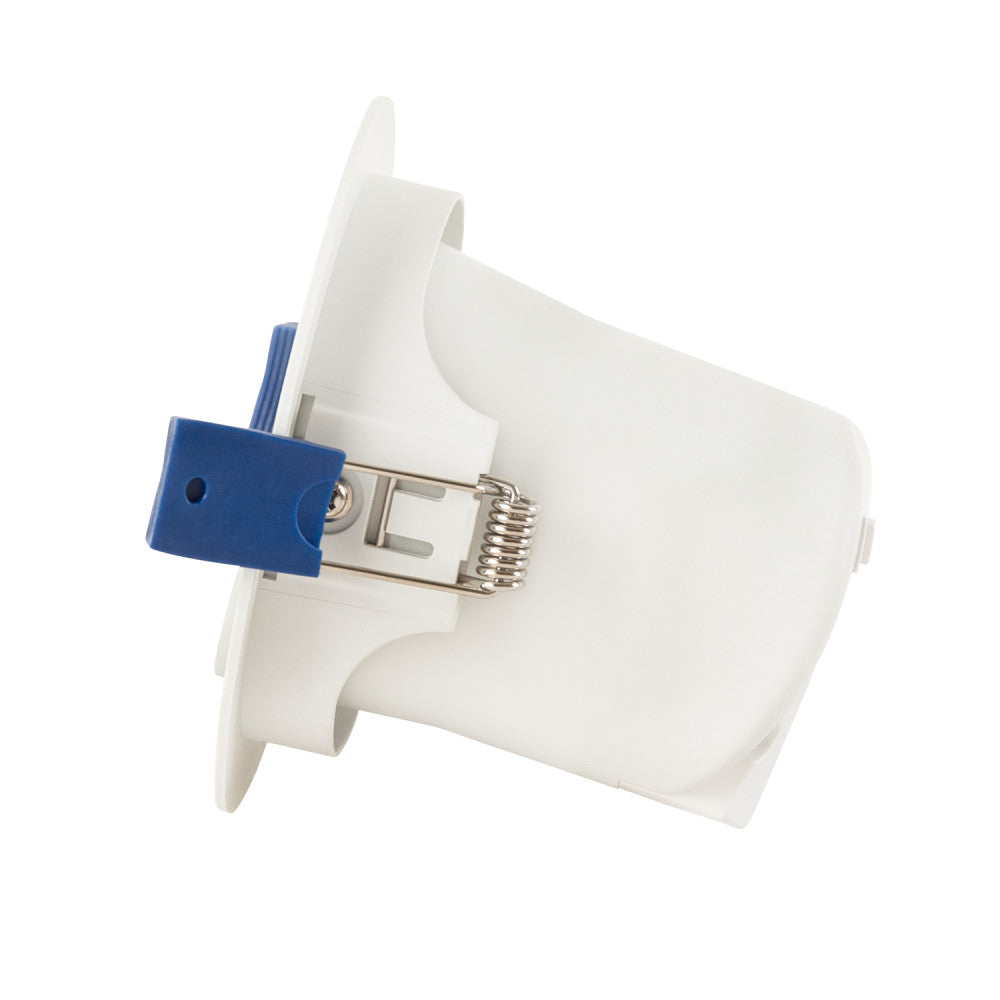

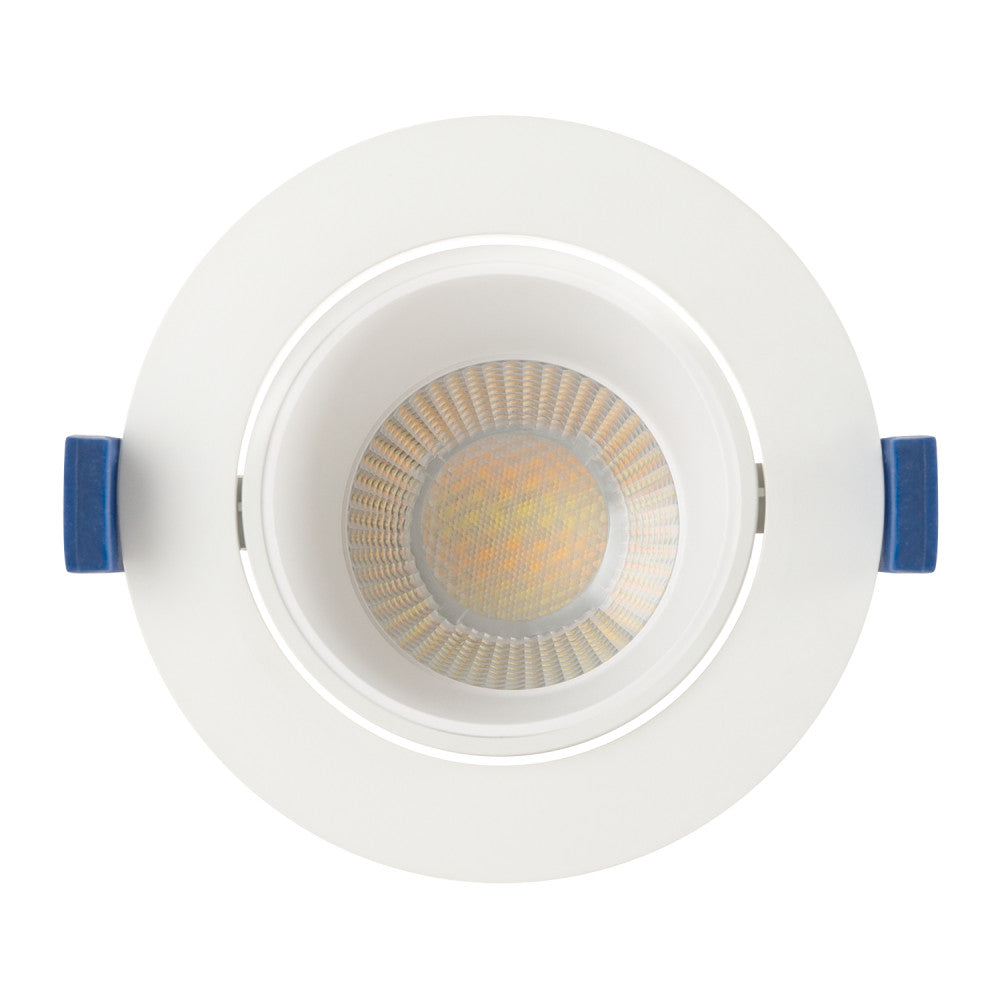

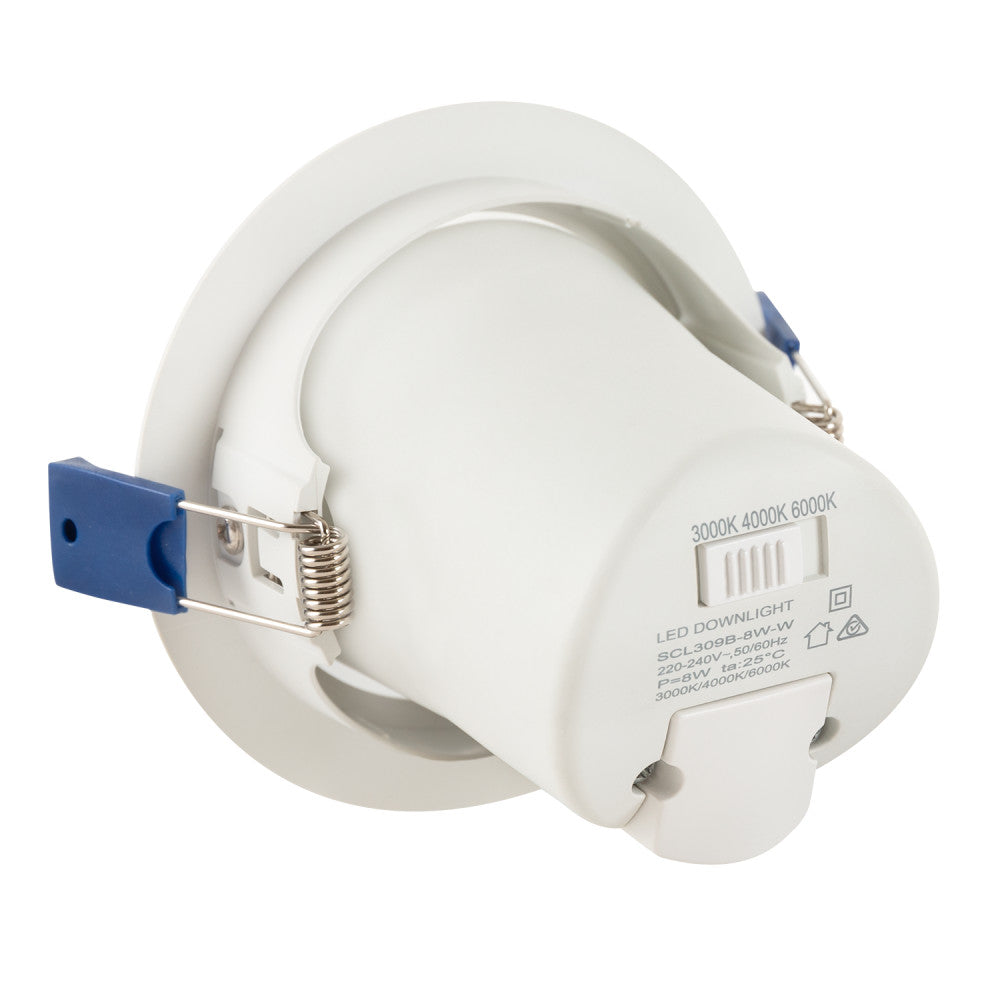

LED Downlight Adjustable Recessed 8W 750Lm CCT 3000-6500ºK (Adjustable Light Tone) 60º IP20 [SE-SCL309B-8W-W-CCT]

LED Downlight Adjustable Recessed 8W 750Lm CCT 3000-6500ºK (Adjustable Light Tone) 60º IP20 [SE-SCL309B-8W-W-CCT]

See questions and answers

  • Brand:GreenIce
  • SKU:SE-SCL309B-8W-W-CCT
F
Reference Stock Price Discount Amount
CCT
SKU: SE-SCL309B-8W-W-CCT
Delivery in 48 h ... if you ask before
Stock available
6,10€
6,10€
For additional amounts the delivery period is 90 days As of the order date

Warranty

  • Warranty 3 years
  • 60º º Opening

Accessories

Technical file

Product code
SE-SCL309B-8W-W-CCT
Light temperature
CCT
Power (W)
8.0
Luminosity (LM)
750
Luminous efficacy (LM/W)
93
Type of LEDs
SMD2835 Lumileds
LED efficacy
102
Opening Angle (º)
60º
CRI
80
UGR
◄19
Power factor (PF)
0.99
Construction
Aluminum/PC
Facility
IP20
Strain
220-240VAC
Measures (mm)
Ø100x87
High
87.0
Isolation class
II
Estimated life (H)
50000
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
8.0
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Minimum cri range
80
Maximum cri range
90
Roof cut (mm)
90
Minimum CCT range
3000
Maximum cri range
6500
Diameter
100

Characteristics

Product code
SE-SCL309B-8W-W-CCT
Light temperature
CCT
Power (W)
8.0
Luminosity (LM)
750
Luminous efficacy (LM/W)
93
Type of LEDs
SMD2835 Lumileds
LED efficacy
102
Opening Angle (º)
60º
CRI
80
UGR
◄19
Power factor (PF)
0.99
Construction
Aluminum/PC
Facility
IP20
Strain
220-240VAC
Measures (mm)
Ø100x87
High
87.0
Isolation class
II
Estimated life (H)
50000
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
8.0
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Minimum cri range
80
Maximum cri range
90
Roof cut (mm)
90
Minimum CCT range
3000
Maximum cri range
6500
Diameter
100

Description

The UGR19 90mm Ceiling Cut Circular LED Downlight offers solutions for offices, factories, supermarkets, shops and for residential use. It can be installed directly to the power sockets supplied by the mains (220-240VAC) with a service frequency of 50/60Hz.

It has a high efficiency (90 Lm/W) consuming 8W through a SMD type LED and managing to provide a luminous flux of 750Lm evenly distributed by an anti-glare opal diffuser from which a colour rendering index of 80 is obtained. It provides lighting equivalent to a 50W incandescent bulb, its consumption represents a value of 8kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

Finished in white colour built with aluminium and polycarbonate. The Downlight has an IP20 protection rating (valid for dust and humidity indoors), as well as being sufficiently robust for the required mechanical demands.

It is made of high-quality materials such as aluminium, which ensures the durability of the spotlight. It offers uniform lighting without annoying reflections. In addition, it has CE and RoHS certifications, which are synonymous with quality and safety.

The Downlight spotlight has a high colour rendering index (CRI 80) and therefore ensures colour reproduction without distortions. This factor is key in commercial environments and spaces where products are displayed in general such as supermarkets, shops, shopping centres, museums, dealerships, restaurants, etc.

This Downlight is available in CCT natural white (4200°K), cool white (6500°K) and warm white (3000°K). The indicated colour temperature may vary within a tolerance of 7%.
