LED Pixel Screen 16X16Cm 256 Pixels 5VDC 77W IP30 RGB

LED Pixel Screen 16X16Cm 256 Pixels 5VDC 77W IP30 RGB

See questions and answers

  • Brand:GreenIce
  • SKU:WU- P-16X16-RGB
Reference Stock Price Discount Amount
RGB
SKU: WU- P-16X16-RGB
Free delivery in 48 h ... if you ask before
There are few
33,03€
33,03€
For additional amounts the delivery period is 30 days As of the order date

Documents

Warranty

  • Warranty 3 years
  • 120 º Opening

Technical file

Product code
WU- P-16X16-RGB
Light temperature
RGB
Power (W)
77.0
Type of LEDs
SMD5050
Opening Angle (º)
120
Construction
Aluminum/PC
Facility
IP30
Strain
5VDC
Long
160.0
Measures (mm)
160x160
Broad
160.0
Estimated life (H)
40000
Dimable
No
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +65
Lighting cycles
80000
Diffuser
Transparent
Energy consumption (kWh/1000h)
77.0
Weight (gr)
10
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Single/range CCT
Range
Additional information
Transformer/centralized control required

Characteristics

Product code
WU- P-16X16-RGB
Light temperature
RGB
Power (W)
77.0
Type of LEDs
SMD5050
Opening Angle (º)
120
Construction
Aluminum/PC
Facility
IP30
Strain
5VDC
Long
160.0
Measures (mm)
160x160
Broad
160.0
Estimated life (H)
40000
Dimable
No
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +65
Lighting cycles
80000
Diffuser
Transparent
Energy consumption (kWh/1000h)
77.0
Weight (gr)
10
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Single/range CCT
Range
Additional information
Transformer/centralized control required

Description

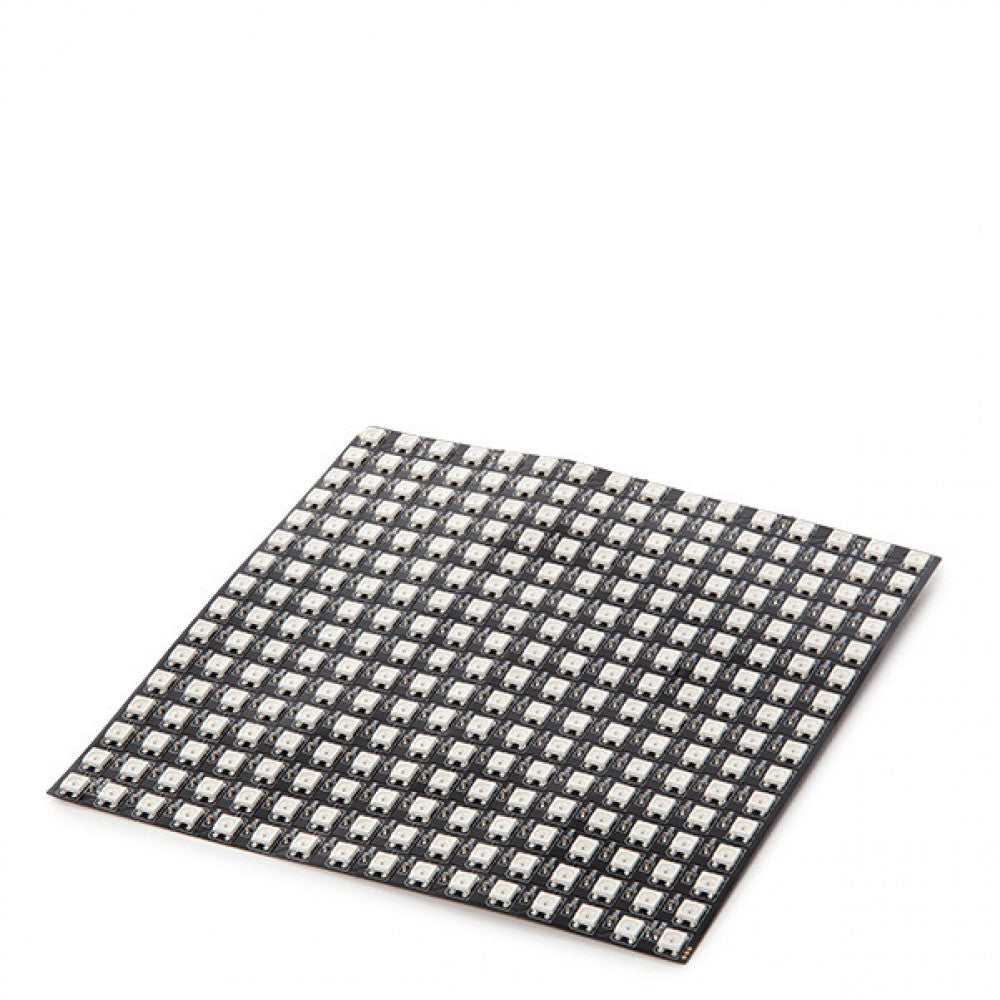

The 160x160mm LED pixel screen consists of 256 RGB pixels, it consists of a flexible screen that can be easily adapted to any shape, as well as being a totally modular product, thus being able to be combined with other pixel screens.

It has a total consumption of 77W and requires a 5VDC power supply. Additionally, this screen is controlled by an SPI (Additional Accessory) controller, with which a large number of lighting effects can be performed.

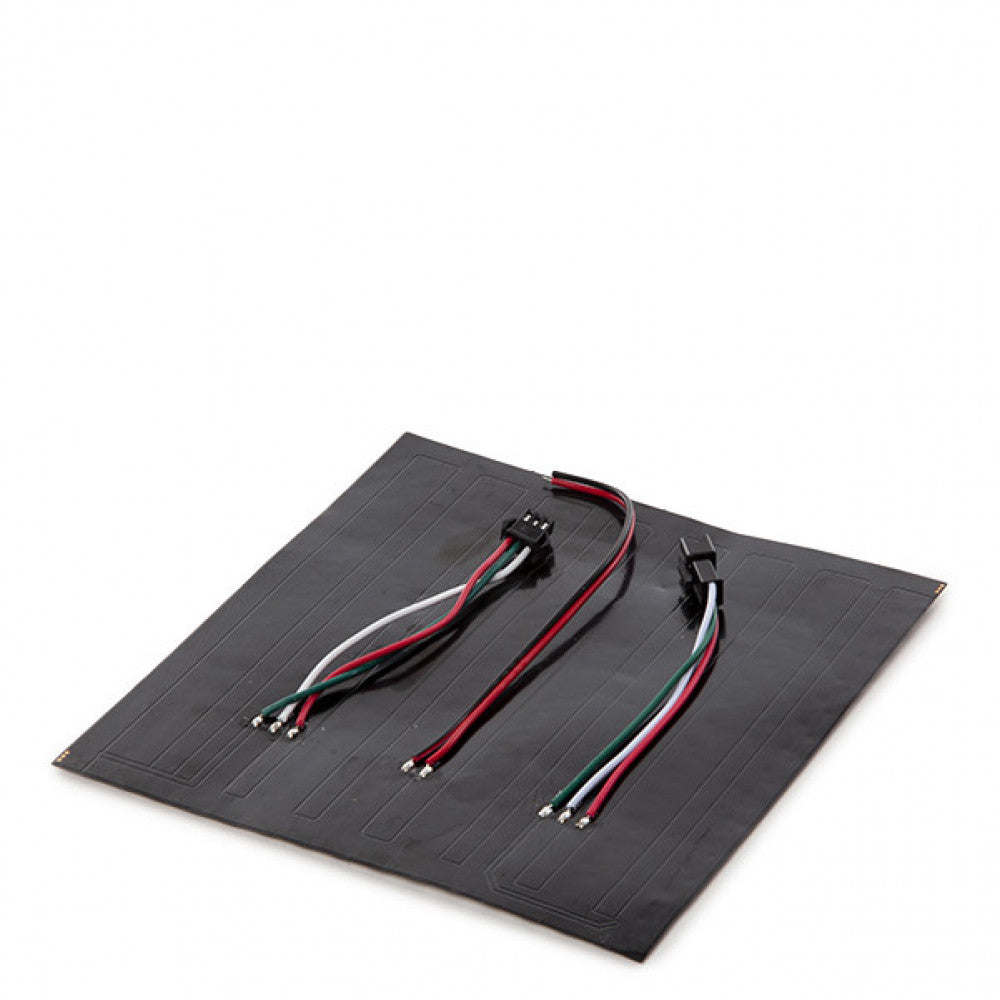

This screen has 256 pixels distributed in 16 lines of 16 pixels, generating a square and completely symmetrical shape, having one pixel per square centimeter, additionally, on the back of the screen there are the power supply connections, the input data and data output thus providing the possibility of connecting more similar displays. This product has an IP30 protection index, being suitable for dust and dry indoor environments.
