LED streetlight 200W 28,000Lm 6000ºK IP65 PRO SMD5050 50,000H [HO-STR200W-10-CW]

LED streetlight 200W 28,000Lm 6000ºK IP65 PRO SMD5050 50,000H [HO-STR200W-10-CW]

See questions and answers

  • Brand:GreenIce + Philips Led
  • SKU:HO-STR200W-10-CW
Eprel file
Reference Stock Price Discount Amount
6000K: Cool White
SKU: HO-STR200W-10-CW
Free delivery in 48 h ... if you ask before
Stock available
56,67€
56,67€
4000K: Daylight
SKU: HO-STR200W-10-W
Free delivery in 48 h ... if you ask before
Stock available
56,67€
56,67€
2700K: Warm White
SKU: HO-STR200W-10-WW
Free delivery in 48 h ... if you ask before
Stock available
56,67€
56,67€
For additional amounts the delivery period is 60 days As of the order date

Warranty

  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 140X65 º Opening
  • Certificado ENEC

Technical file

Product code
HO-STR200W-10-CW
Light temperature
Cold White
Power (W)
200.0
Luminosity (LM)
28000
Luminous efficacy (LM/W)
140
Type of LEDs
Philips Led
LED efficacy
154
Opening Angle (º)
140X65
CRI
90
Power factor (PF)
0.99
Construction
Aluminum/ PC
Facility
IP65
Strain
85-265VAC
Long
697.0
Measures (mm)
697x311x110
Broad
311.0
High
110.0
Isolation class
I
Estimated life (H)
50000
Dimable
No
Equivalence (W)
1000
Work frequency (Hz)
50/60Hz
Start time (s)
0.1
Energy class
D
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +65
Lighting cycles
100000
Diffuser
Microprismatic
Kelvin º
6000
Energy consumption (kWh/1000h)
200.0
Weight (gr)
3000
Flicker
0.5
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
11
Minimum cri range
21
Maximum cri range
92
Chromaticity x
0.334
Chromaticity and
0.352
Connection
De Red
IK Protection Index
IK08
ULR
0%
Número unidades caja exterior
8.0
Fixing diameter
60mm
Overvoltage protection
4

Characteristics

Product code
HO-STR200W-10-CW
Light temperature
Cold White
Power (W)
200.0
Luminosity (LM)
28000
Luminous efficacy (LM/W)
140
Type of LEDs
Philips Led
LED efficacy
154
Opening Angle (º)
140X65
CRI
90
Power factor (PF)
0.99
Construction
Aluminum/ PC
Facility
IP65
Strain
85-265VAC
Long
697.0
Measures (mm)
697x311x110
Broad
311.0
High
110.0
Isolation class
I
Estimated life (H)
50000
Dimable
No
Equivalence (W)
1000
Work frequency (Hz)
50/60Hz
Start time (s)
0.1
Energy class
D
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +65
Lighting cycles
100000
Diffuser
Microprismatic
Kelvin º
6000
Energy consumption (kWh/1000h)
200.0
Weight (gr)
3000
Flicker
0.5
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
11
Minimum cri range
21
Maximum cri range
92
Chromaticity x
0.334
Chromaticity and
0.352
Connection
De Red
IK Protection Index
IK08
ULR
0%
Número unidades caja exterior
8.0
Fixing diameter
60mm
Overvoltage protection
4

Description

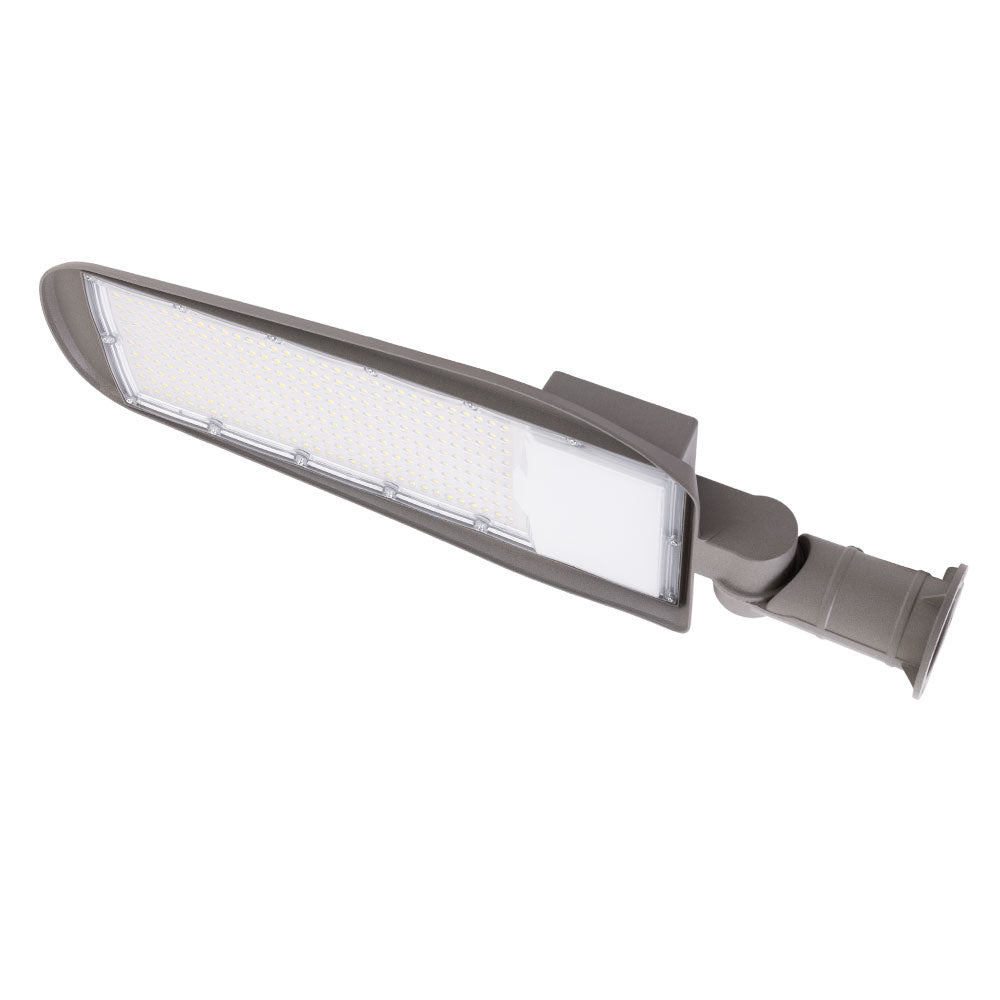

The 200W 28.000Lm 6000ºK IP65 PRO LED Streetlight is specially designed for public lighting.

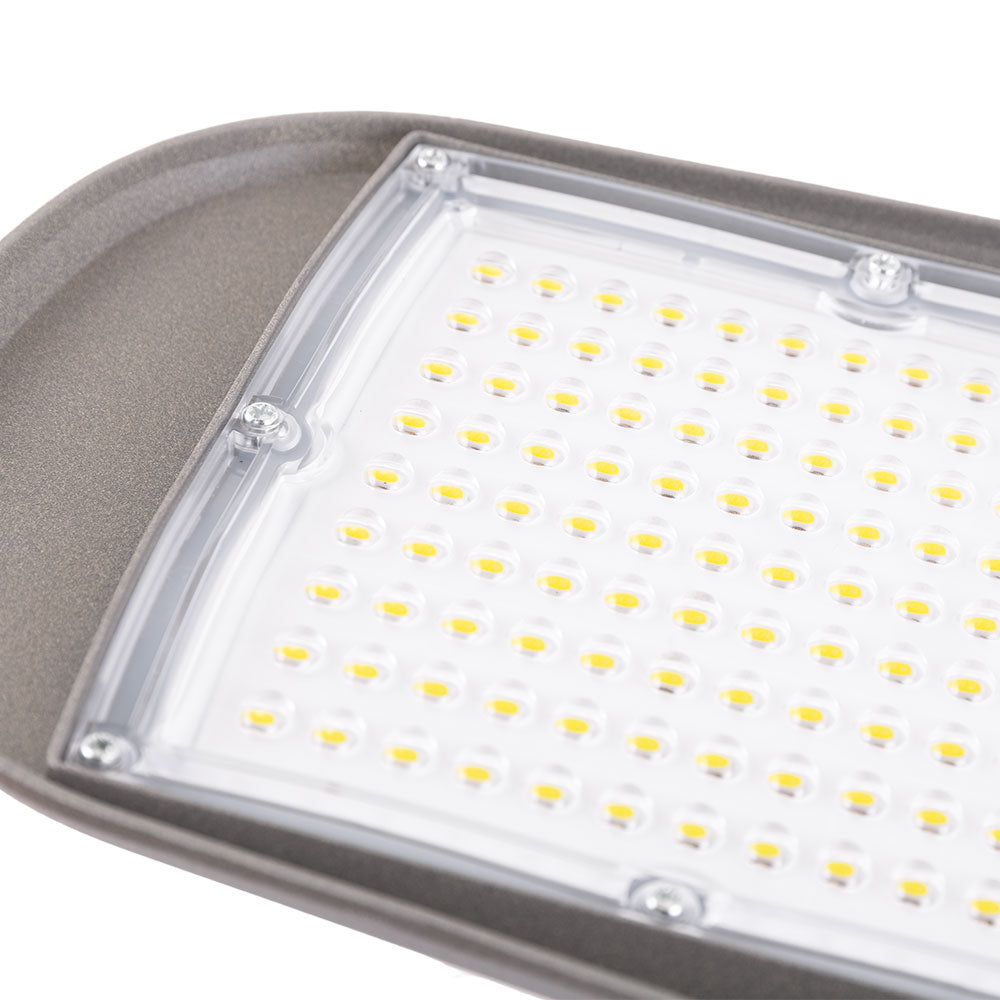

Its SMD 2835 LUMILEDS light source produces a high light efficiency of 140 lm/W. It is the perfect replacement to replace old discharge streetlights, improving visibility on any type of road and significantly reducing electricity consumption.

Made of injected aluminum and PC, the 200W LED Luminaire has an IP65 protection factor that makes it weather resistant and an anticorrosive treatment, both chemical and mechanical, resistant to UV rays that further improves its durability.

* Fixing diameter: Ø60mm.

Documents

Installation_manual
Spanish_technical_data
Eu_certificates
Technical_drawings
