1 3

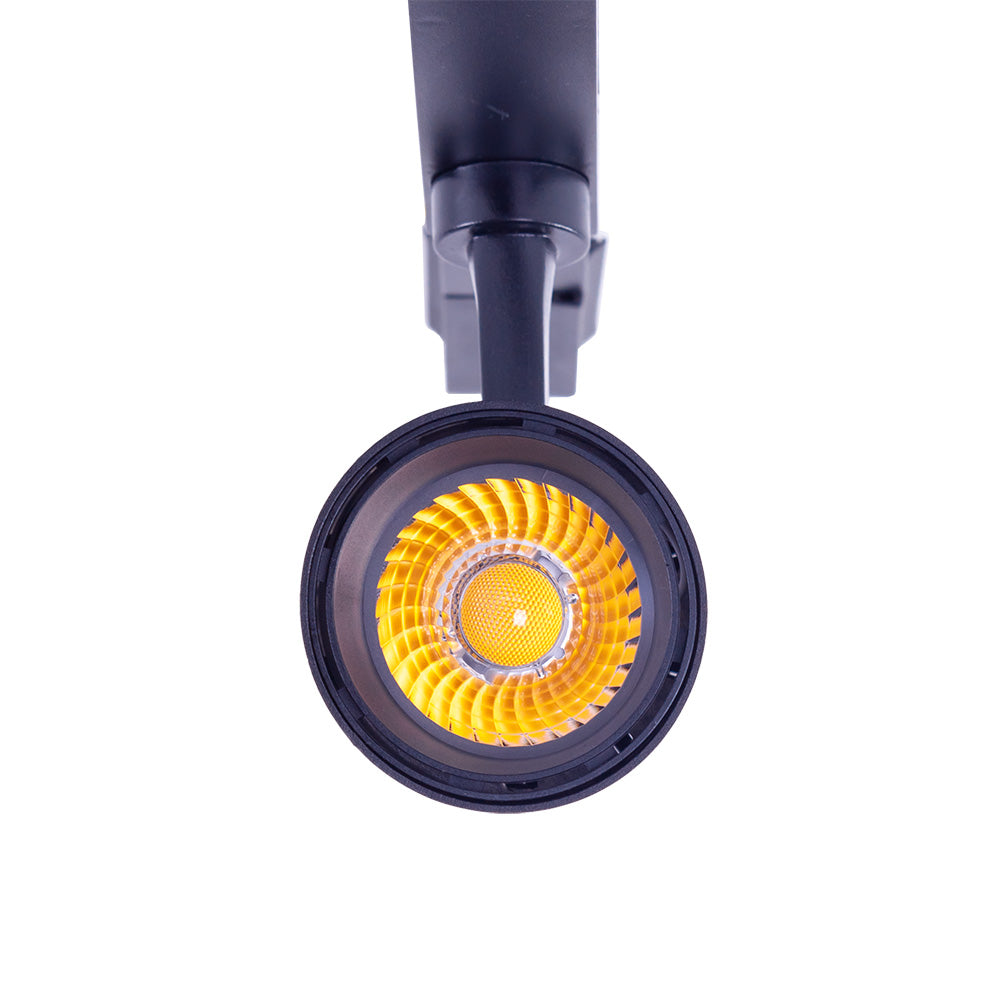

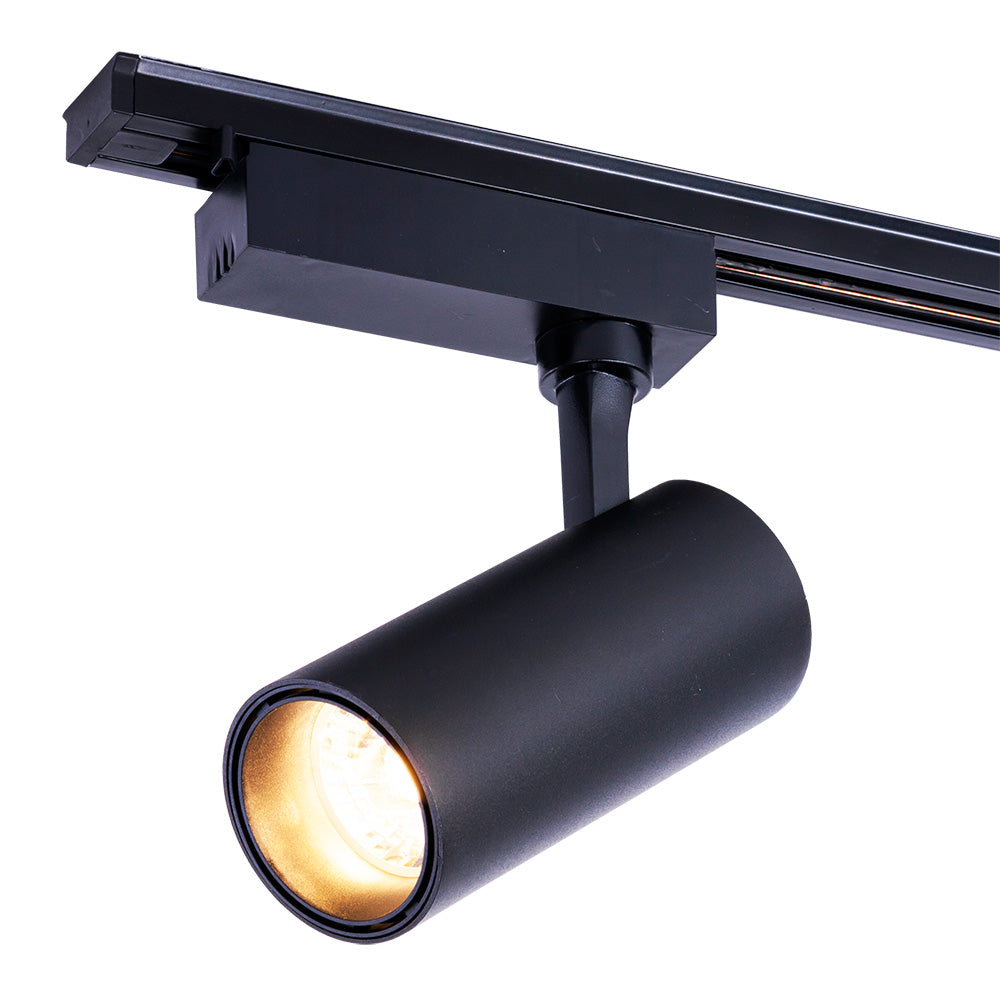

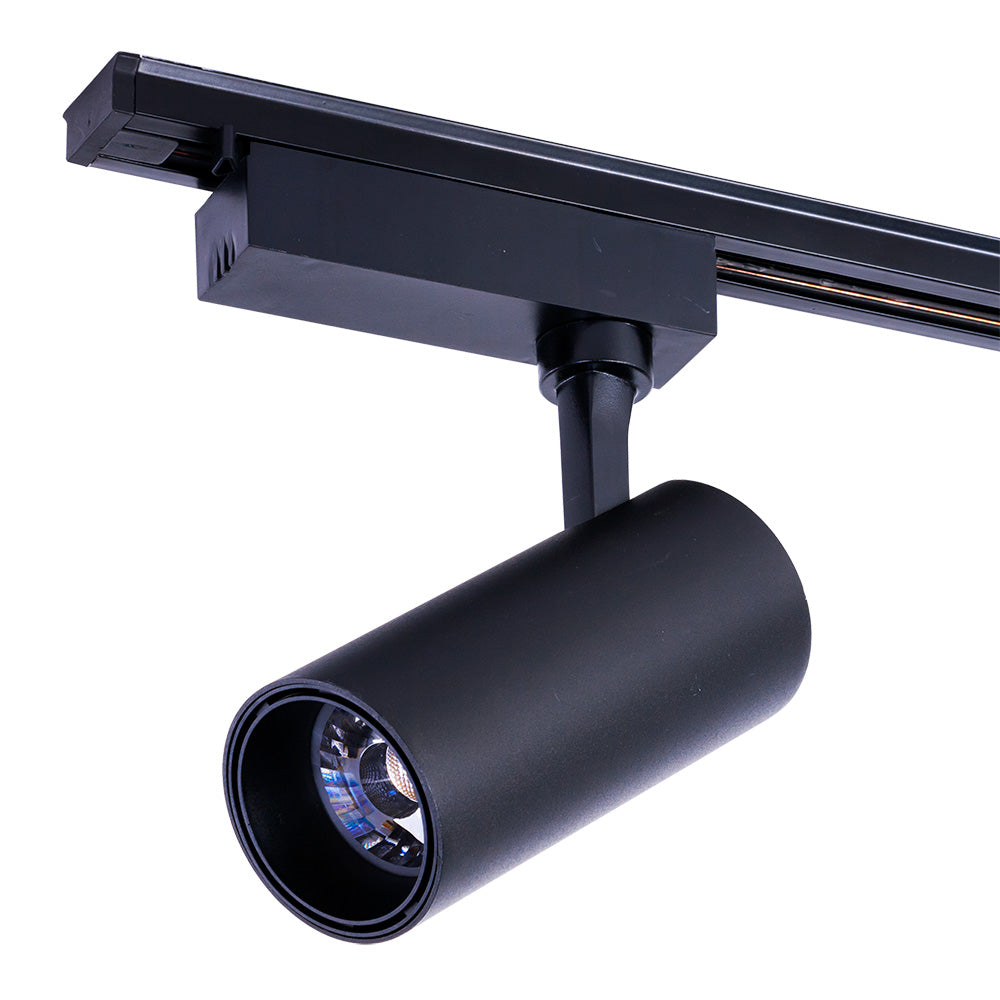

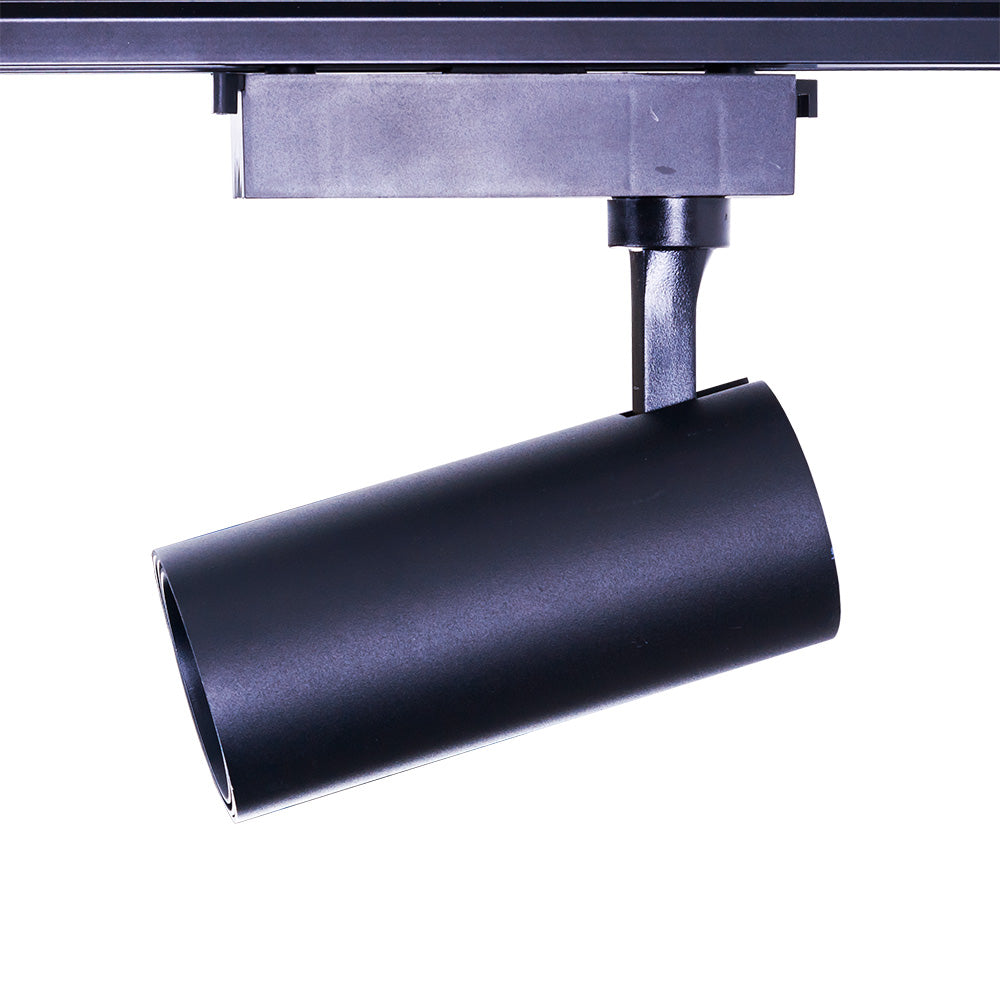

LED Track Light 30W 3000Lm CRI85 4200ºK Lumiastra Single Phase 40,000H [LUM-ATB095030-BW]

LED Track Light 30W 3000Lm CRI85 4200ºK Lumiastra Single Phase 40,000H [LUM-ATB095030-BW]

See questions and answers

  • Brand:GreenIce + Lumiastra
  • SKU:LUM-ATB095030-B-W
Eprel file
Reference Stock Price Discount Amount
4200K: Daylight
SKU: LUM-ATB095030-B-W
Delivery in 48 h ... if you ask before
Stock available
14,65€
14,65€
2700K: Warm White
SKU: LUM-ATB095030-B-WW
Delivery in 48 h ... if you ask before
Stock available
14,65€
14,65€
For additional amounts the delivery period is 60 days As of the order date

Warranty

  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 38 º Opening
  • Certificado ENEC

Accessories

Technical file

Product code
LUM-ATB095030-B-W
Light temperature
Natural White
Power (W)
30.0
Luminosity (LM)
3000
Luminous efficacy (LM/W)
100
Type of LEDs
COB
Number of LEDs
1
LED efficacy
110
Opening Angle (º)
38
CRI
85
UGR
◄19
Power factor (PF)
0.9
Construction
Aluminum/ PC
Facility
IP20
Strain
220-240VAC
Measures (mm)
Ø77x256
High
256.0
Isolation class
II
Estimated life (H)
40000
Dimable
No
Equivalence (W)
200
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Transparent
Kelvin º
4200
Energy consumption (kWh/1000h)
30.0
Weight (gr)
1000
Flicker
0.78
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Directional
Single/range CCT
Only
Single CCT
4200
INDEX R9
8
Minimum cri range
96
Maximum cri range
1
Chromaticity x
0.387
Chromaticity and
0.386
Diameter
77
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000-3-2:2006; EN61000-3-3:2008; EN 60598-2-1:1989; EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008; EN 62471:2008; EN 62493:2010

Characteristics

Product code
LUM-ATB095030-B-W
Light temperature
Natural White
Power (W)
30.0
Luminosity (LM)
3000
Luminous efficacy (LM/W)
100
Type of LEDs
COB
Number of LEDs
1
LED efficacy
110
Opening Angle (º)
38
CRI
85
UGR
◄19
Power factor (PF)
0.9
Construction
Aluminum/ PC
Facility
IP20
Strain
220-240VAC
Measures (mm)
Ø77x256
High
256.0
Isolation class
II
Estimated life (H)
40000
Dimable
No
Equivalence (W)
200
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Transparent
Kelvin º
4200
Energy consumption (kWh/1000h)
30.0
Weight (gr)
1000
Flicker
0.78
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Directional
Single/range CCT
Only
Single CCT
4200
INDEX R9
8
Minimum cri range
96
Maximum cri range
1
Chromaticity x
0.387
Chromaticity and
0.386
Diameter
77
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000-3-2:2006; EN61000-3-3:2008; EN 60598-2-1:1989; EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008; EN 62471:2008; EN 62493:2010

Description

Single-phase LED Track Light Black 30W 3000Lm 30.000H Lumiastra
