Bañador de Pared 18W 1377Lm 4200ºK IP65 40.000H [PL623023-W]

Bañador de Pared 18W 1377Lm 4200ºK IP65 40.000H [PL623023-W]

See questions and answers

  • Brand:GreenIce
  • SKU:PL623023-W
Eprel file
Reference Stock Price Discount Amount
4200K: Daylight
SKU: PL623023-W
Free delivery in 48 h ... if you ask before
Stock available
26,32€
26,32€
2700K: Warm White
SKU: PL623023-WW
Free delivery in 48 h ... if you ask before
Stock available
26,32€
26,32€

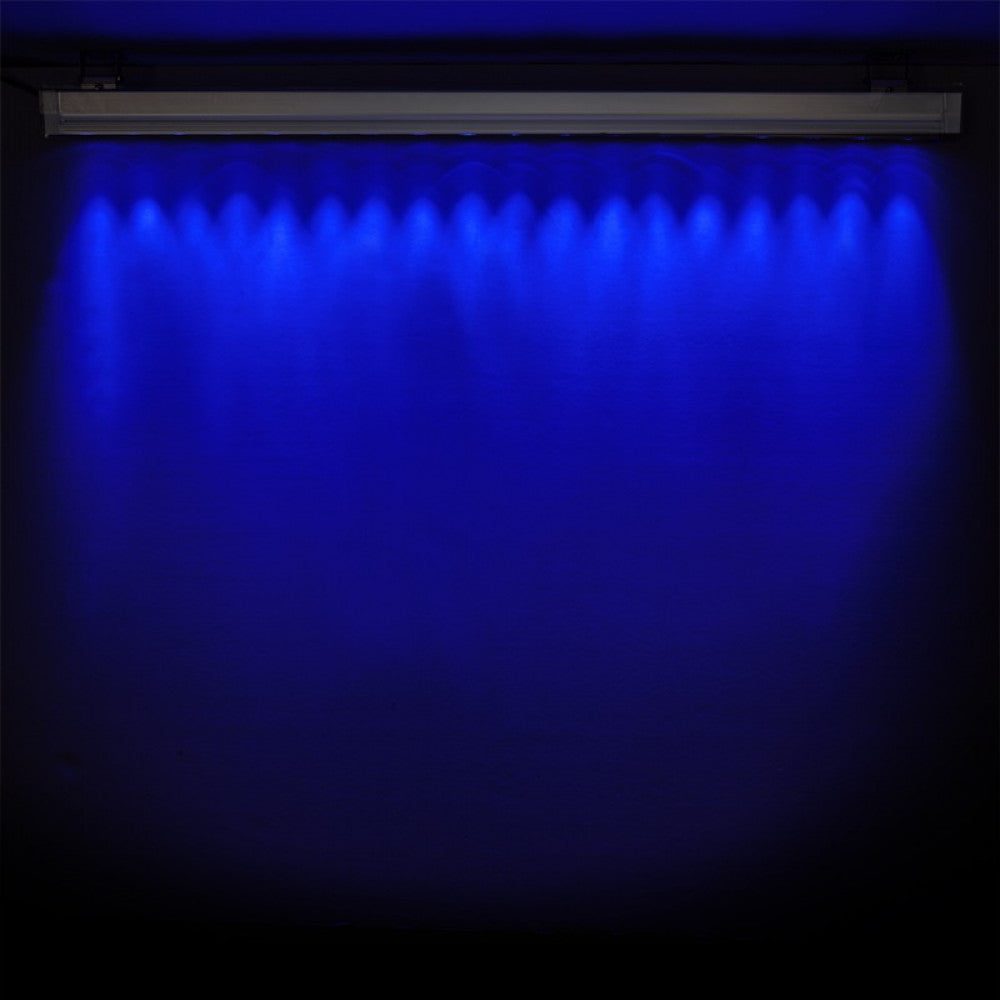

Blue
SKU: PL623023-B
Ask for it and get free in 60 days
Exhausted
28,21€
28,21€
For additional amounts the delivery period is 60 days As of the order date

Warranty

  • Warranty 3 years
  • 120 º Opening

Technical file

Product code
PL623023-W
Light temperature
Blanco Natural
Power (W)
18.0
Luminosity (LM)
1377
Luminous efficacy (LM/W)
76
Type of LEDs
Epistar Led
Number of LEDs
18
LED efficacy
83
Opening Angle (º)
120
CRI
80
Power factor (PF)
0.99
Construction
Aluminio/ Cristal
Facility
IP65
Strain
220VAC
Driver output
DC24-38V
Long
996.0
Measures (mm)
996x49x51
Broad
51.0
High
49.0
Isolation class
I
Estimated life (H)
40000
Dimable
No
Equivalence (W)
120
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Borna
Temperature range (ºC)
-20 +65
Lighting cycles
100000
Diffuser
Transparente
Kelvin º
4200
Energy consumption (kWh/1000h)
18.0
Weight (gr)
1200
Flicker
0.92
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
No Direccional
Single/range CCT
Único
Single CCT
4200
INDEX R9
5
Minimum cri range
97
Maximum cri range
12
Chromaticity x
0.377
Chromaticity and
0.381
IK Protection Index
IK08
Número unidades caja exterior
16.0
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Characteristics

Product code
PL623023-W
Light temperature
Blanco Natural
Power (W)
18.0
Luminosity (LM)
1377
Luminous efficacy (LM/W)
76
Type of LEDs
Epistar Led
Number of LEDs
18
LED efficacy
83
Opening Angle (º)
120
CRI
80
Power factor (PF)
0.99
Construction
Aluminio/ Cristal
Facility
IP65
Strain
220VAC
Driver output
DC24-38V
Long
996.0
Measures (mm)
996x49x51
Broad
51.0
High
49.0
Isolation class
I
Estimated life (H)
40000
Dimable
No
Equivalence (W)
120
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Borna
Temperature range (ºC)
-20 +65
Lighting cycles
100000
Diffuser
Transparente
Kelvin º
4200
Energy consumption (kWh/1000h)
18.0
Weight (gr)
1200
Flicker
0.92
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
No Direccional
Single/range CCT
Único
Single CCT
4200
INDEX R9
5
Minimum cri range
97
Maximum cri range
12
Chromaticity x
0.377
Chromaticity and
0.381
IK Protection Index
IK08
Número unidades caja exterior
16.0
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Description

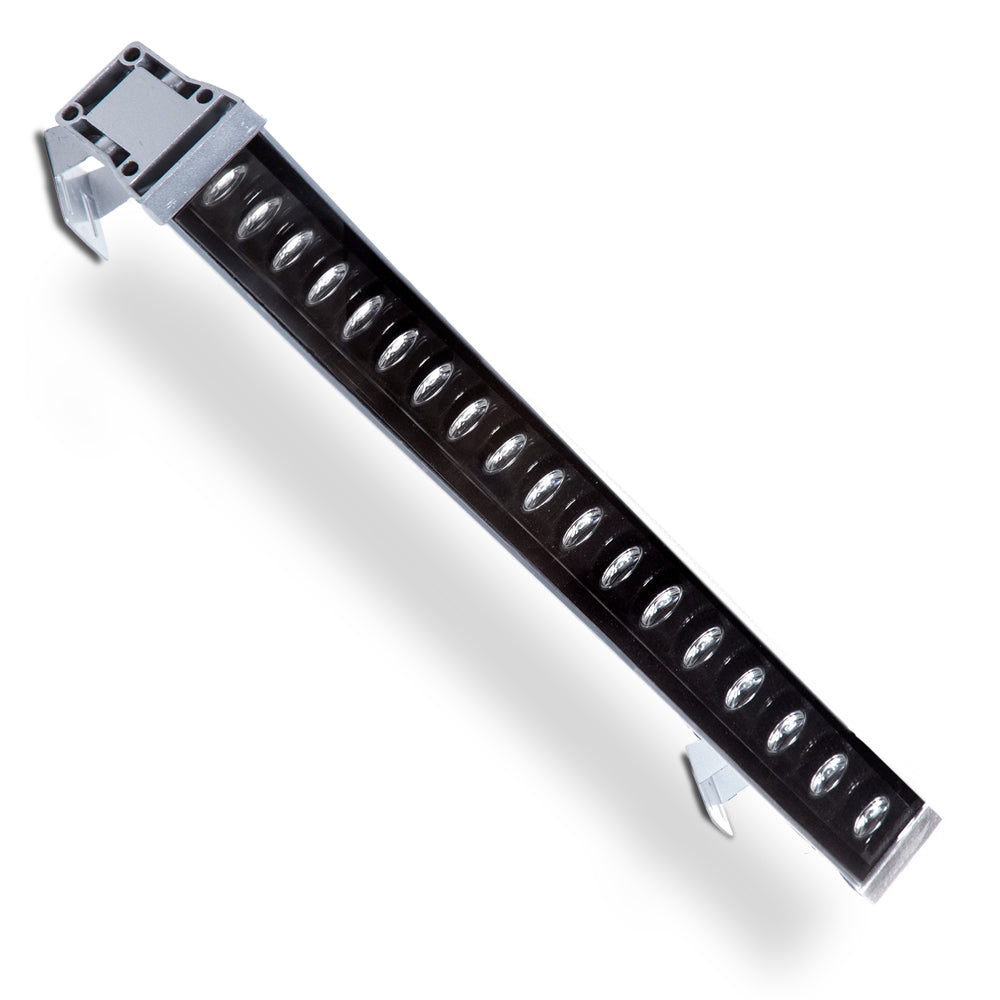

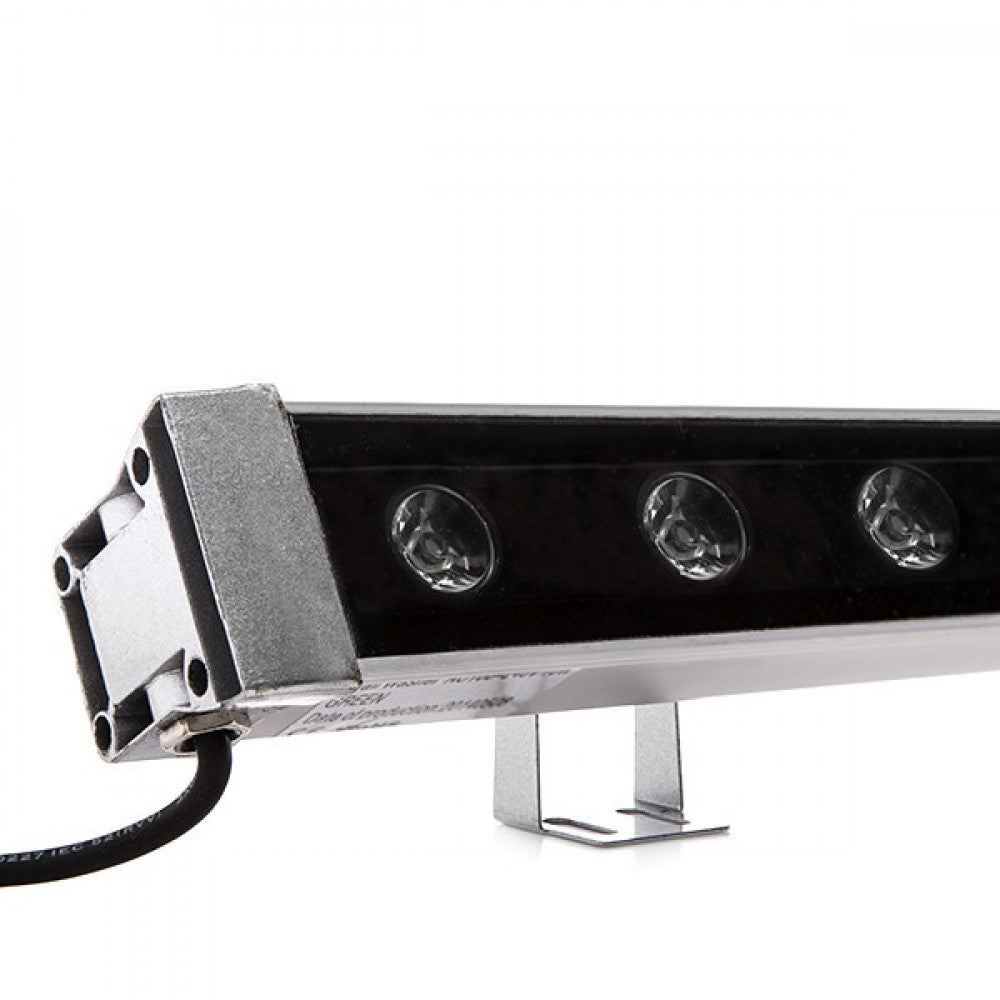

The LED Wall Washer mounts an optic specially designed for diffuse lighting.Its driver is integrated inside the Linear Washer. It works directly at 100-240V, so it is powered by connecting it directly to the electrical network.

It has a high efficiency consuming 18W through 18 high-power LEDs, with an opening angle of 60 °, obtaining a color rendering index of 80. its consumption represents a value of 18kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere. This floodlight offers instant start-up, has a IP65 degree of protection (valid for dust and humidity outdoors), as well as being robust enough for the required mechanical demands. Made of aluminum with a gray finish and high-resistance anti-explosion glass.

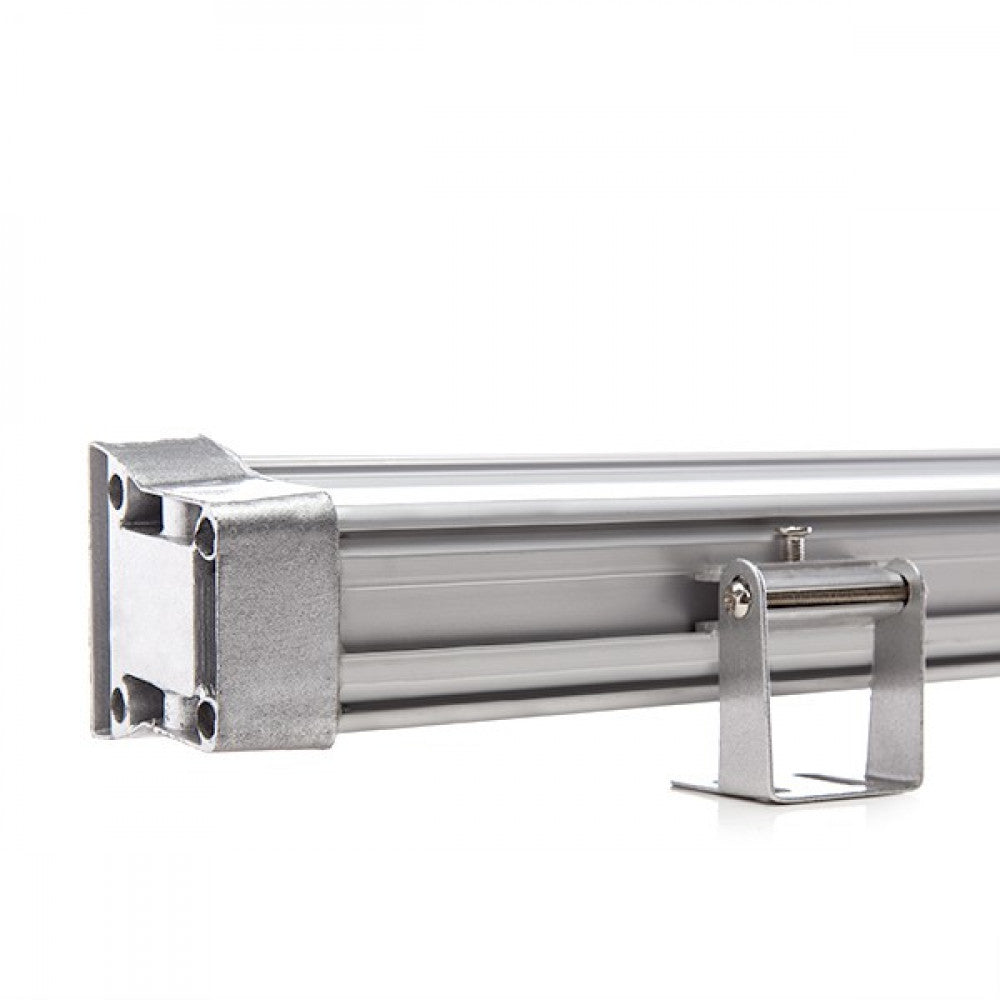

LED floodlights are widely used to project light on walls, facades, gardens, stages, walls, museums, exhibitions. It can be installed as a wall light, on the ceiling or even on the ground thanks to its adjustable support.

The washer is available in sequential RGB, blue, green, red, natural white (4200°K) and warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.

Documents

Installation_manual
