LED Wall Washer 24W 1836Lm 4200ºK IP65 40,000H [HO-623025-W]

LED Wall Washer 24W 1836Lm 4200ºK IP65 40,000H [HO-623025-W]

See questions and answers

  • Brand:GreenIce
  • SKU:HO-623025-W
Eprel file
Reference Stock Price Discount Amount
4200K: Daylight
SKU: HO-623025-W
Free delivery in 48 h ... if you ask before
Stock available
40,57€
40,57€
2700K: Warm White
SKU: HO-623025-WW
Free delivery in 48 h ... if you ask before
Stock available
40,57€
40,57€
Blue
SKU: HO-623025-B
Free delivery in 48 h ... if you ask before
Stock available
40,57€
40,57€
For additional amounts the delivery period is 60 days As of the order date

Warranty

  • Warranty 3 years
  • 30 º Opening

Technical file

Product code
HO-623025-W
Light temperature
Natural White
Power (W)
24.0
Luminosity (LM)
1836
Luminous efficacy (LM/W)
76
Type of LEDs
Epistar Led
Number of LEDs
24
LED efficacy
83
Opening Angle (º)
30
CRI
80
Power factor (PF)
0.99
Construction
Aluminum/Glass
Facility
IP65
Strain
220VAC
Driver output
DC54-100V 300ma
Long
1000.0
Measures (mm)
1000x75x73
Broad
73.0
High
75.0
Isolation class
I
Estimated life (H)
40000
Dimable
No
Equivalence (W)
160
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +65
Lighting cycles
100000
Diffuser
Opal
Kelvin º
4200
Energy consumption (kWh/1000h)
24.0
Weight (gr)
1200
Flicker
0.81
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
4200
INDEX R9
7
Minimum cri range
97
Maximum cri range
7
Chromaticity x
0.377
Chromaticity and
0.381
IK Protection Index
IK08
Número unidades caja exterior
8.0
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Characteristics

Product code
HO-623025-W
Light temperature
Natural White
Power (W)
24.0
Luminosity (LM)
1836
Luminous efficacy (LM/W)
76
Type of LEDs
Epistar Led
Number of LEDs
24
LED efficacy
83
Opening Angle (º)
30
CRI
80
Power factor (PF)
0.99
Construction
Aluminum/Glass
Facility
IP65
Strain
220VAC
Driver output
DC54-100V 300ma
Long
1000.0
Measures (mm)
1000x75x73
Broad
73.0
High
75.0
Isolation class
I
Estimated life (H)
40000
Dimable
No
Equivalence (W)
160
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +65
Lighting cycles
100000
Diffuser
Opal
Kelvin º
4200
Energy consumption (kWh/1000h)
24.0
Weight (gr)
1200
Flicker
0.81
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
4200
INDEX R9
7
Minimum cri range
97
Maximum cri range
7
Chromaticity x
0.377
Chromaticity and
0.381
IK Protection Index
IK08
Número unidades caja exterior
8.0
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Description

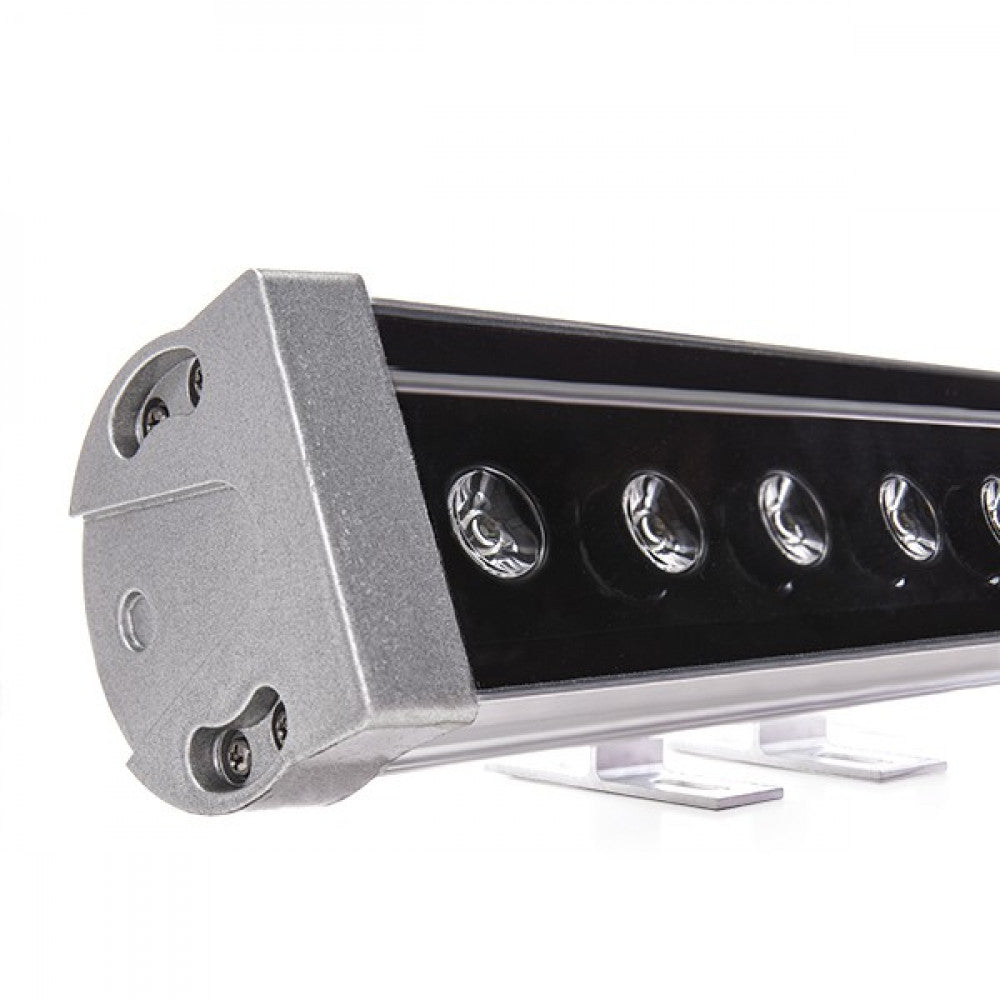

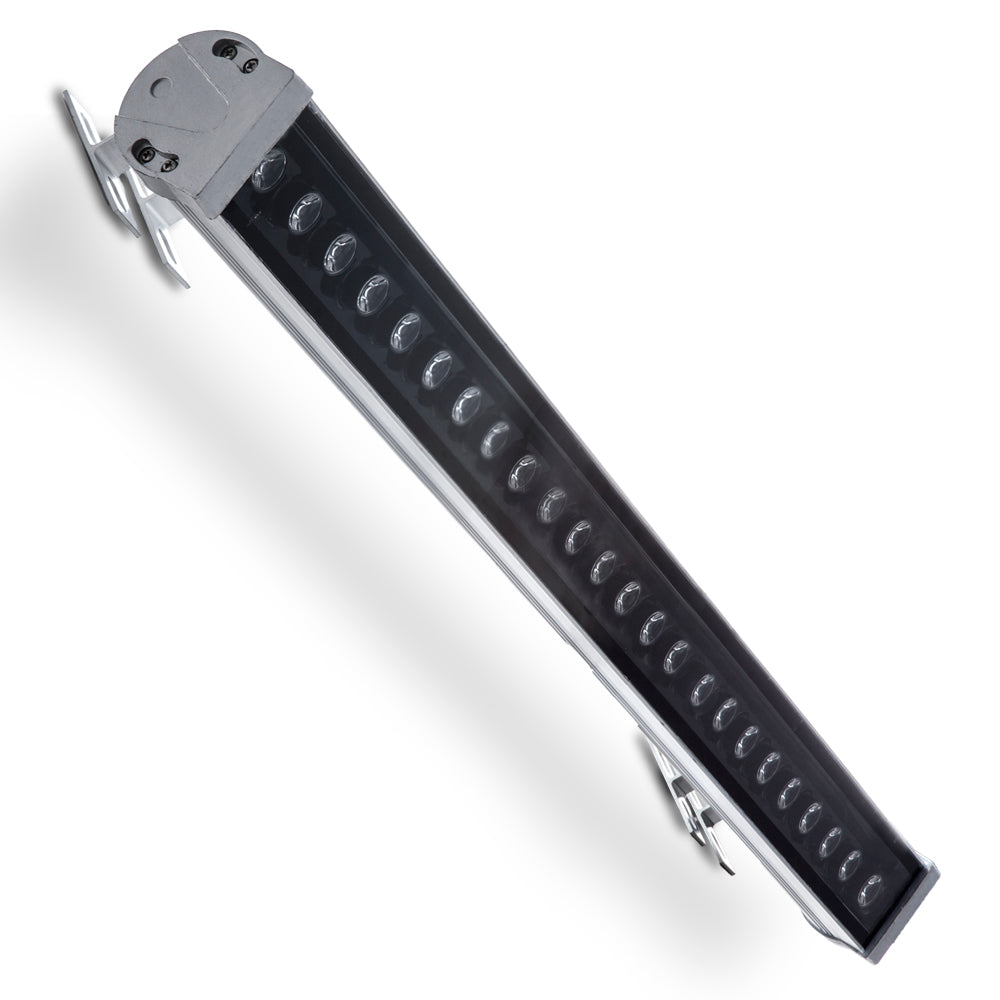

The LED Wall Washer mounts an optic specially designed for diffuse lighting.Its driver is integrated inside the Linear Washer. It works directly at 100-240V, so it is powered by connecting it directly to the electrical network.

It has a high efficiency (90 Lm/W) consuming 24W through 24 high-power LEDs, with an opening angle of 60°, obtaining a color rendering index of 80. its consumption represents a value of 24kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere. This floodlight offers instant start-up, has a IP65 degree of protection (valid for dust and humidity outdoors), as well as being robust enough for the required mechanical demands. Made of aluminum with a gray finish and high-resistance anti-explosion glass.

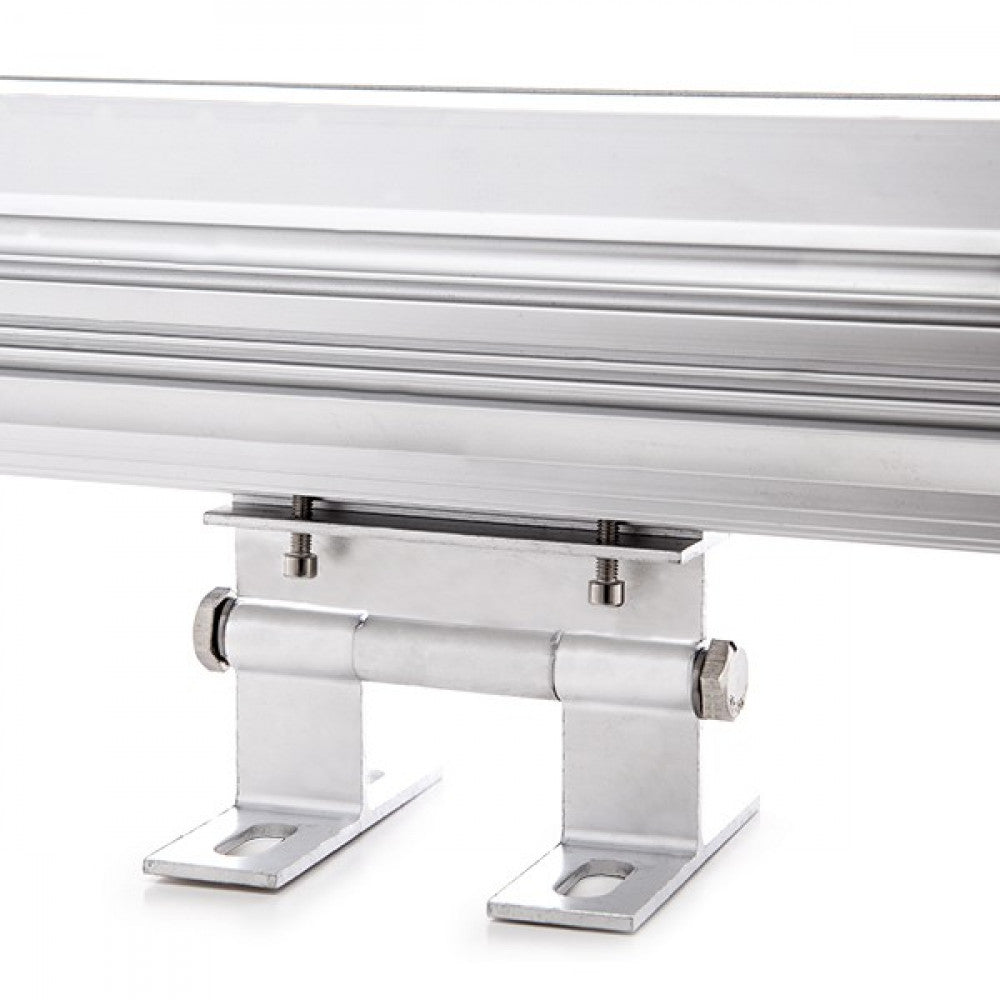

LED floodlights are widely used to project light on walls, facades, gardens, stages, walls, museums, exhibitions. It can be installed as a wall light, on the ceiling or even on the ground thanks to its adjustable support.

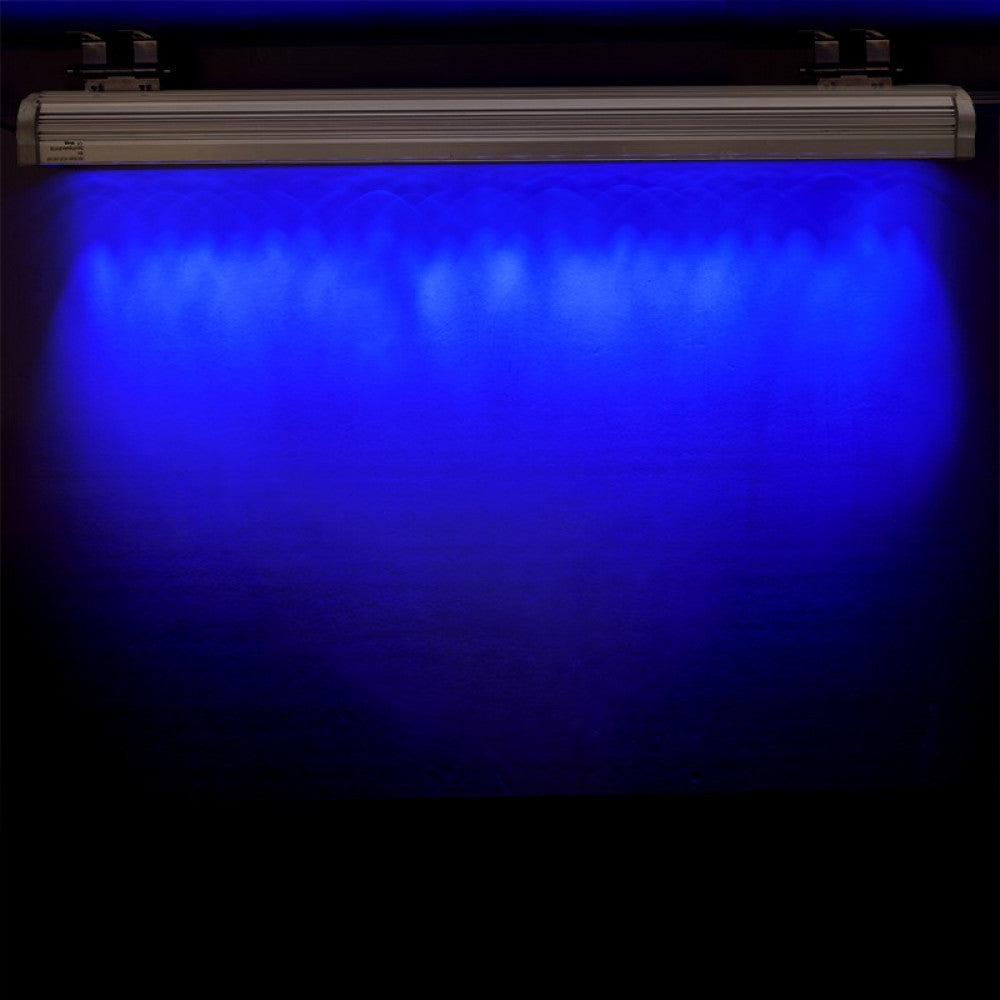

The washer is available in sequential RGB, blue, green, red, natural white (4200°K) and warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.

Documents

Installation_manual
Spanish_technical_data
Eu_certificates
