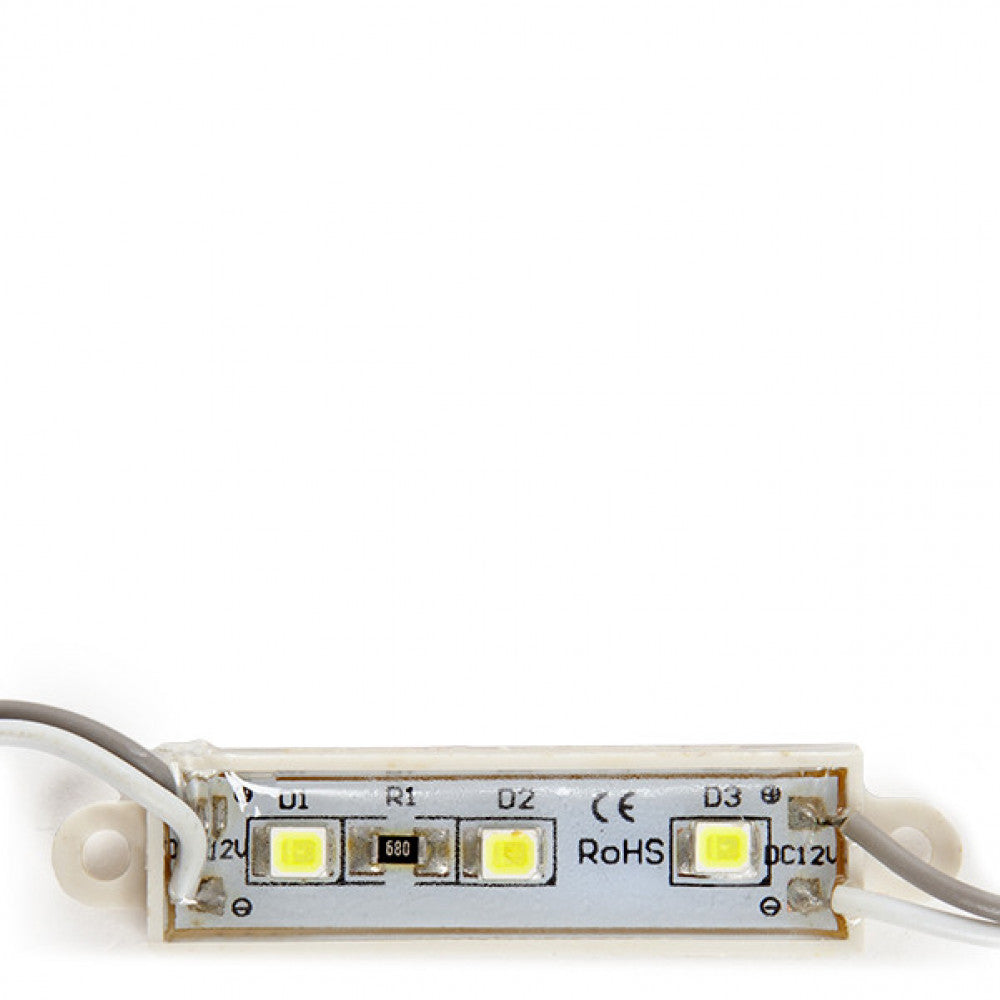

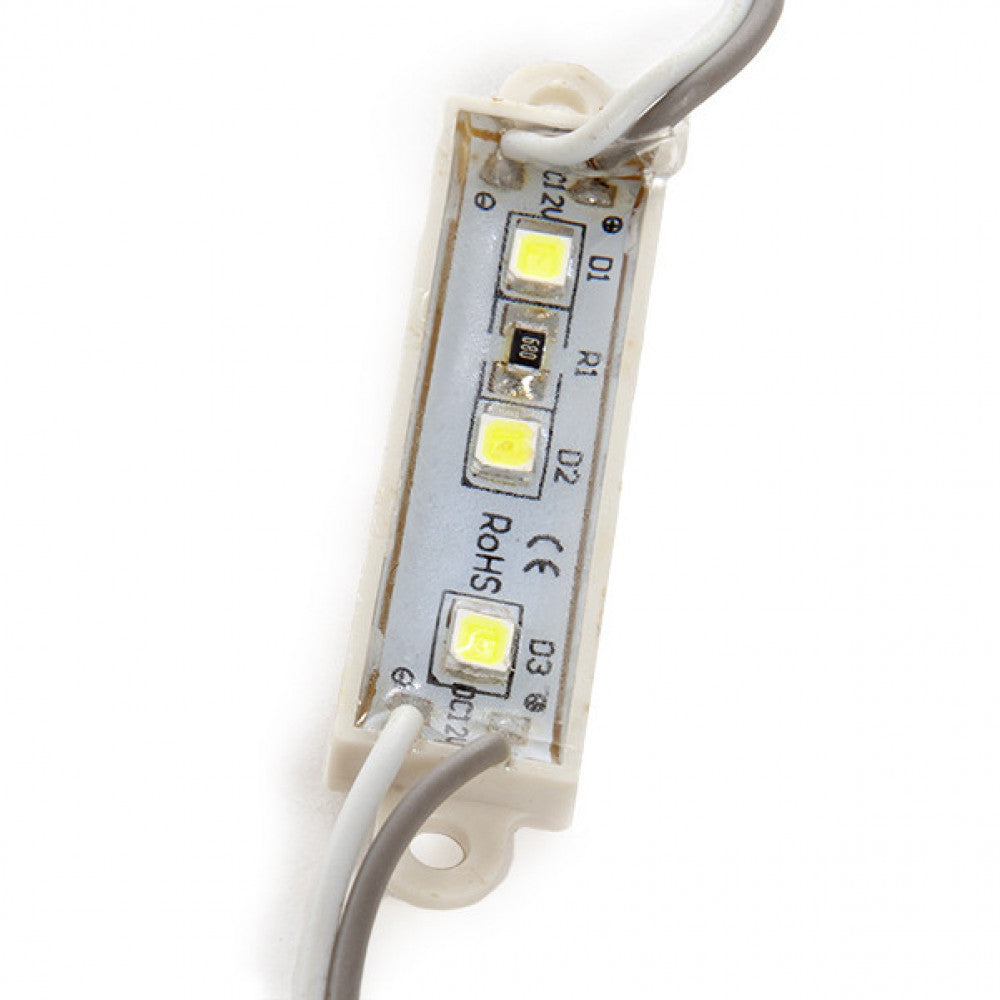

Module 0.3W 13Lm 4200ºK 3 LEDs SMD3528 40,000H [US-LMP3528W3A-0001]

Module 0.3W 13Lm 4200ºK 3 LEDs SMD3528 40,000H [US-LMP3528W3A-0001]

See questions and answers

  • Brand:GreenIce
  • SKU:US-LMP3528W3A-0001
G
Reference Stock Price Discount Amount
4200K: Daylight
SKU: US-LMP3528W3A-0001
Delivery in 48 h ... if you ask before
Stock available
0,35€
0,35€
Green
SKU: US-LMP3528W3A-0003
Delivery in 48 h ... if you ask before
Stock available
0,17€
0,17€
For additional amounts the delivery period is 25 days As of the order date

Documents

Warranty

  • Warranty 3 years
  • 120 º Opening

Accessories

Technical file

Product code
US-LMP3528W3A-0001
Light temperature
Natural White
Power (W)
0.3
Luminosity (LM)
13
Type of LEDs
SMD3528
Opening Angle (º)
120
CRI
80
Construction
PVC/ ABS
Facility
IP65
Strain
12VDC
Long
39.0
Measures (mm)
39x11x4
Broad
11.0
High
4.0
Isolation class
III
Estimated life (H)
40000
Dimable
No
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +65
Lighting cycles
80000
Diffuser
Transparent
Kelvin º
4200
Energy consumption (kWh/1000h)
0.3
Weight (gr)
50
Flicker
0.04
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Single/range CCT
Only
Single CCT
4200
INDEX R9
17
Minimum cri range
85
Maximum cri range
12
Chromaticity x
0.323
Chromaticity and
0.353
Additional information
Transformer required in the "accessories" tab
Número unidades caja exterior
500.0
Applicable standards
EN 55015:2006; EN 61000-3-2:2006; EN 61547:2009; EN 61000-4-2:2009; EN 61000-4-3:2006; EN 61000-4-4:2004; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004

Characteristics

Product code
US-LMP3528W3A-0001
Light temperature
Natural White
Power (W)
0.3
Luminosity (LM)
13
Type of LEDs
SMD3528
Opening Angle (º)
120
CRI
80
Construction
PVC/ ABS
Facility
IP65
Strain
12VDC
Long
39.0
Measures (mm)
39x11x4
Broad
11.0
High
4.0
Isolation class
III
Estimated life (H)
40000
Dimable
No
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +65
Lighting cycles
80000
Diffuser
Transparent
Kelvin º
4200
Energy consumption (kWh/1000h)
0.3
Weight (gr)
50
Flicker
0.04
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Single/range CCT
Only
Single CCT
4200
INDEX R9
17
Minimum cri range
85
Maximum cri range
12
Chromaticity x
0.323
Chromaticity and
0.353
Additional information
Transformer required in the "accessories" tab
Número unidades caja exterior
500.0
Applicable standards
EN 55015:2006; EN 61000-3-2:2006; EN 61547:2009; EN 61000-4-2:2009; EN 61000-4-3:2006; EN 61000-4-4:2004; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004

Description

The LED Module is designed for use in closed light boxes or corporeal signs. It produces homogeneous lighting. It offers several options for quick and easy mounting: screwing, gluing or snap-fitting. It has a very long useful life.

Particularly robust encapsulation and fully integrated heat sink
